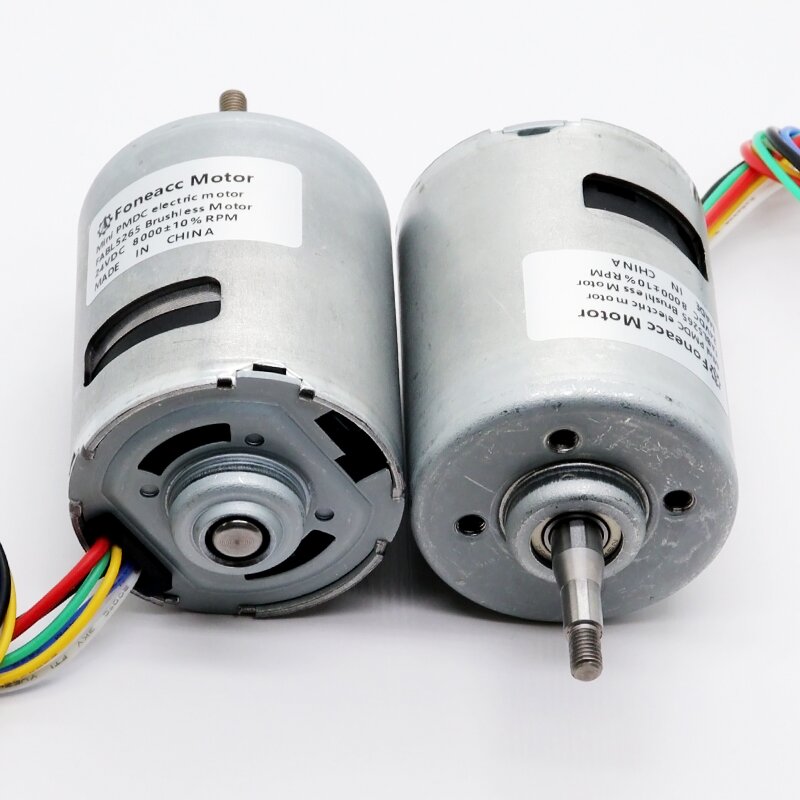

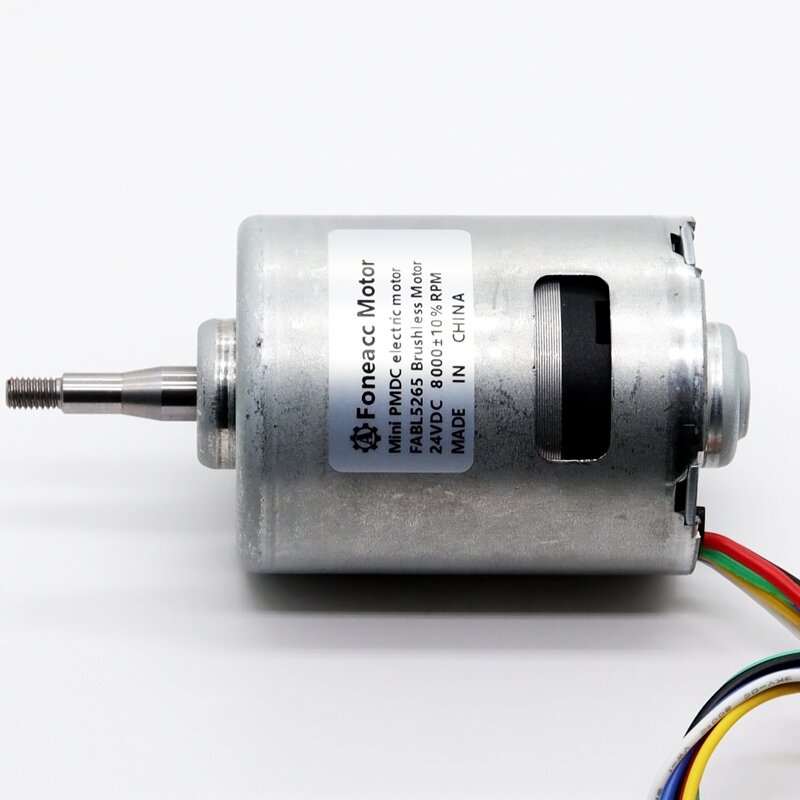

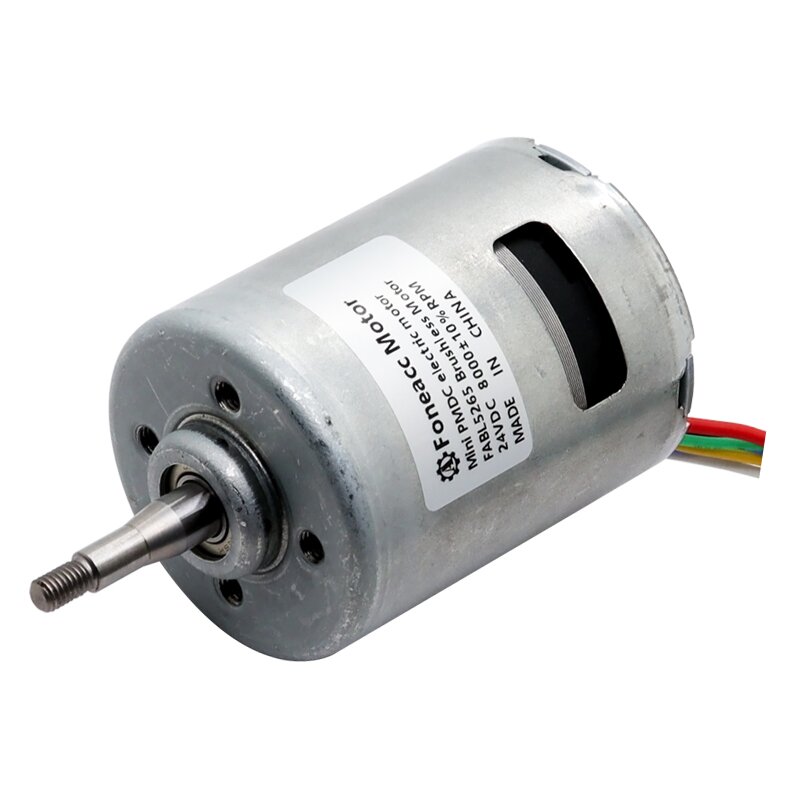

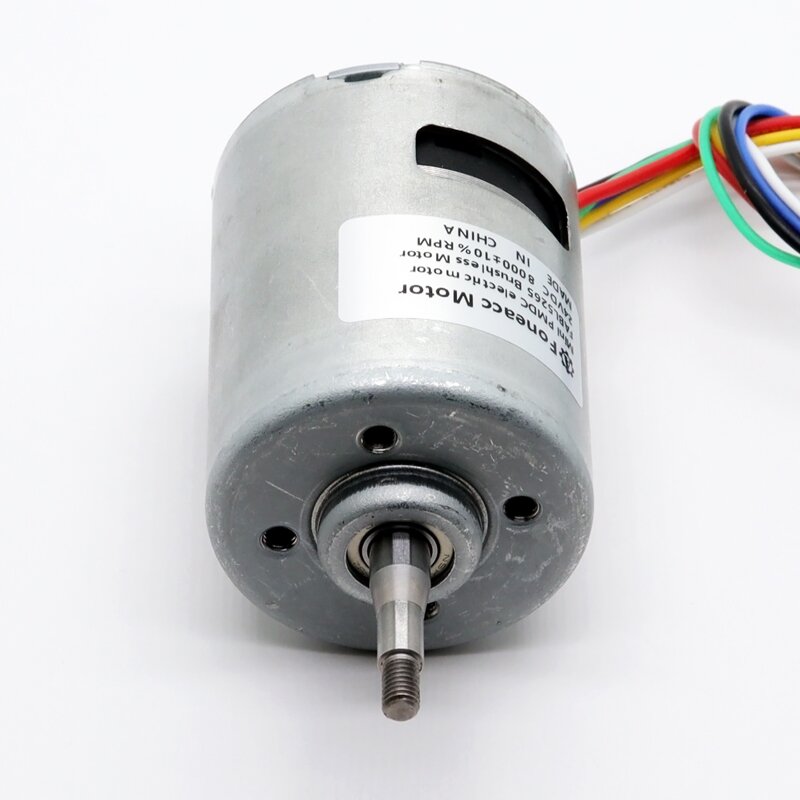

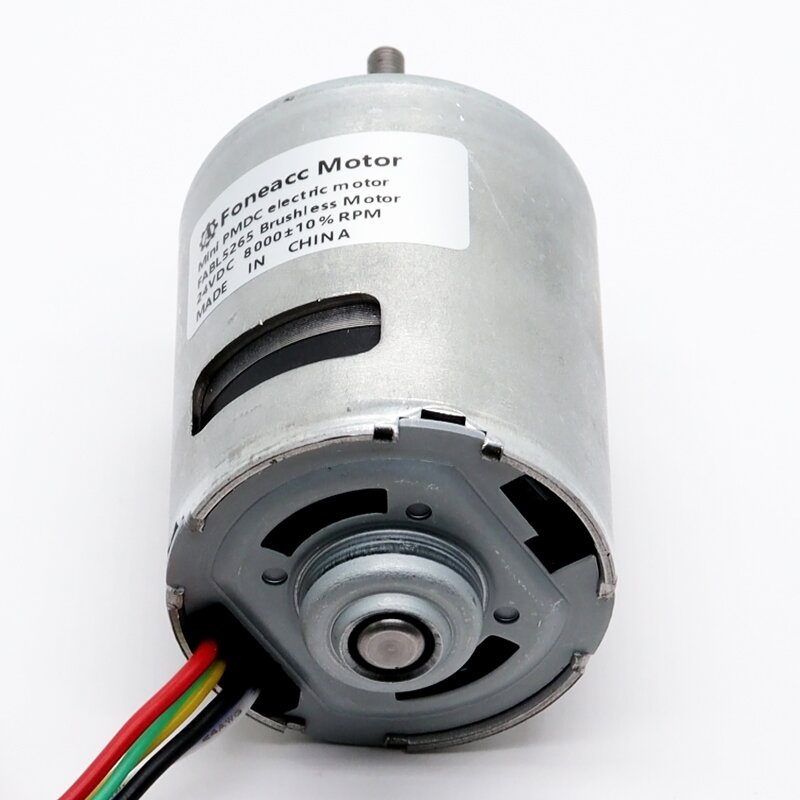

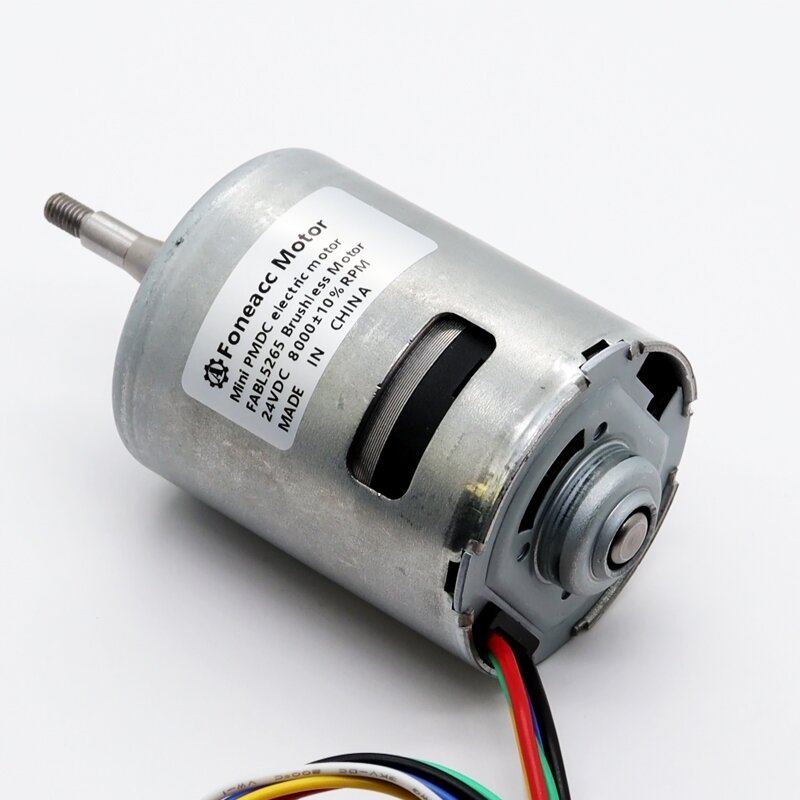

BL5265 BL5265I 52mm OD BLDC Motor with integrated driver PCBA

BL5265 52mm OD BLDC motor with built-in driver controller with hall sensor

---

Main features:

| - Model Number: BL5265I
| - Shell Stator Size : Φ52* L 65 mm(Φ 2.05 inch * 2.56 inch)
| - Shaft : Φ8.0mm[0.315 inch], screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 15W - 120W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 1200 gf-cm(117 mNm)
| - Rotor: inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs
| -  PWM pulse wide speed range
| -  Clockwise/counter-clockwise rotation
| -  FG speed feedback signal
| -  Low EMC | -  Low noise
| -  Long lifespan: up to 20000hrs
| -  Over-current protection | -  Over-voltage protection | -  Under-voltage protection

---

BL5265I dc motor data examples:

Model	Voltage		No load		At maximum efficiency					Stall
	Range	Nominal	Speed	Current	Speed	Current	Torque	P.out	Eff.	Torque	Current
		V	R/min	A	R/min	A	gf-cm	W	%	gf-cm	A
BL5265I-S01	8~18	12	5,100	1.1	3,982	3.92	880.4	35.99	76.5	4,015	13.95
BL5265I-S02	8~26	18	4,950	0.55	4,023	2.39	788.2	32.55	75.7	4,208	10.35
BL5265I-S03	8~26	24	7,930	0.71	6,771	4.14	1195.0	83.07	83.6	4,774	17.55
BL5265I-S04	8~26	24	6,500	0.59	5,614	3.74	1201.9	69.27	77.2	8,821	23.71

---

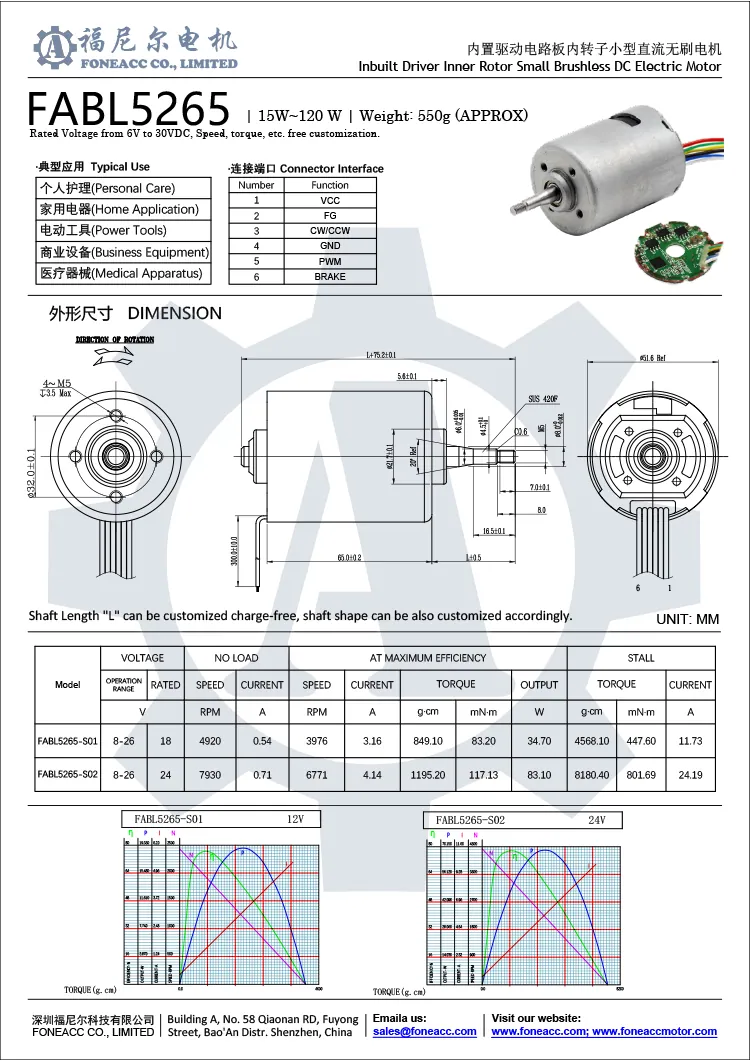

Dimensions and performance curves of BL5265I dc motor for reference:

---

Download BL5265I DC motor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
