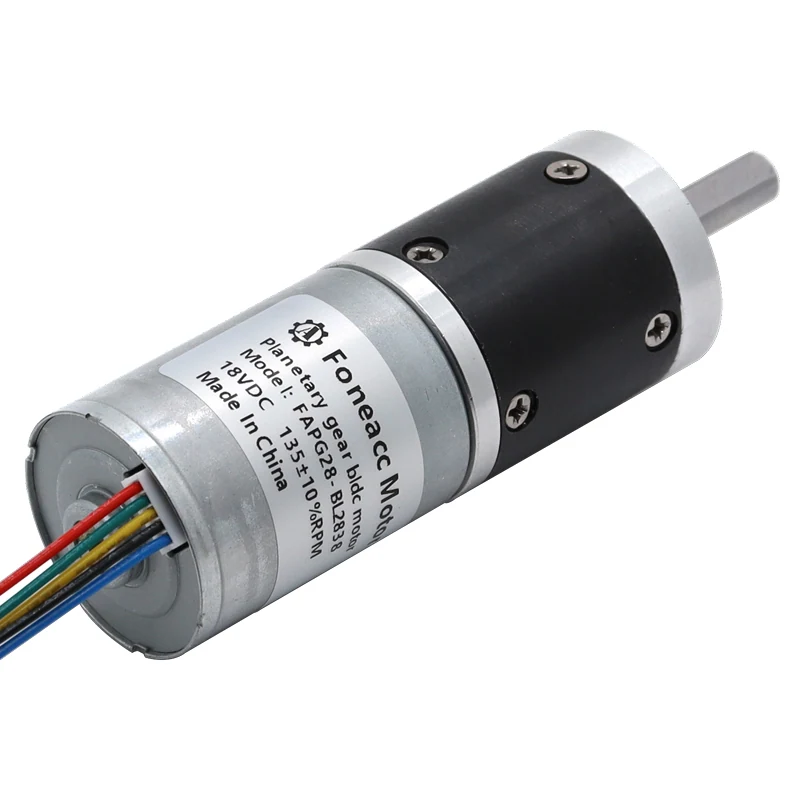

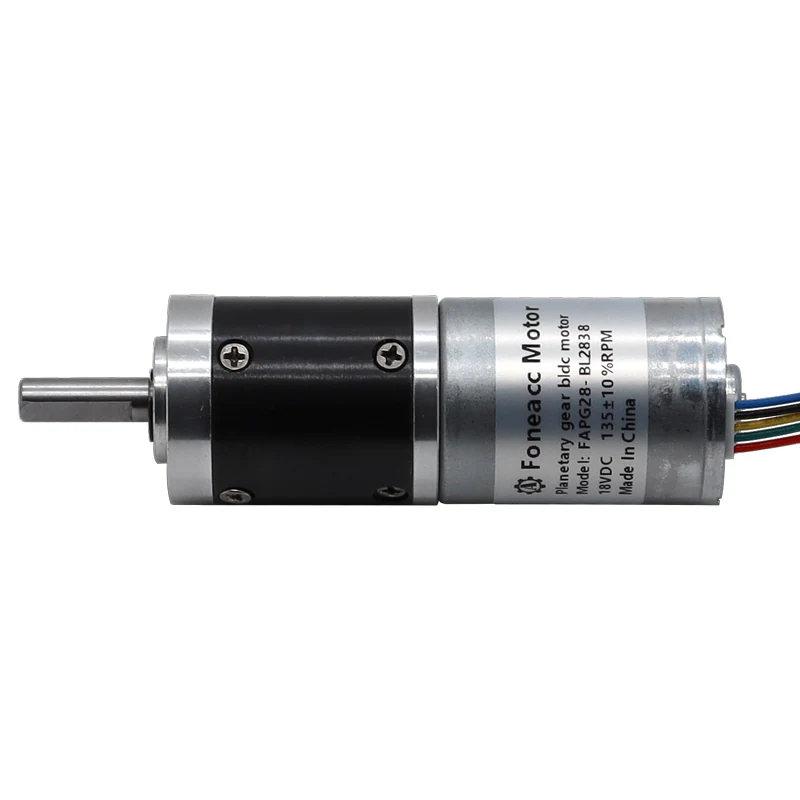

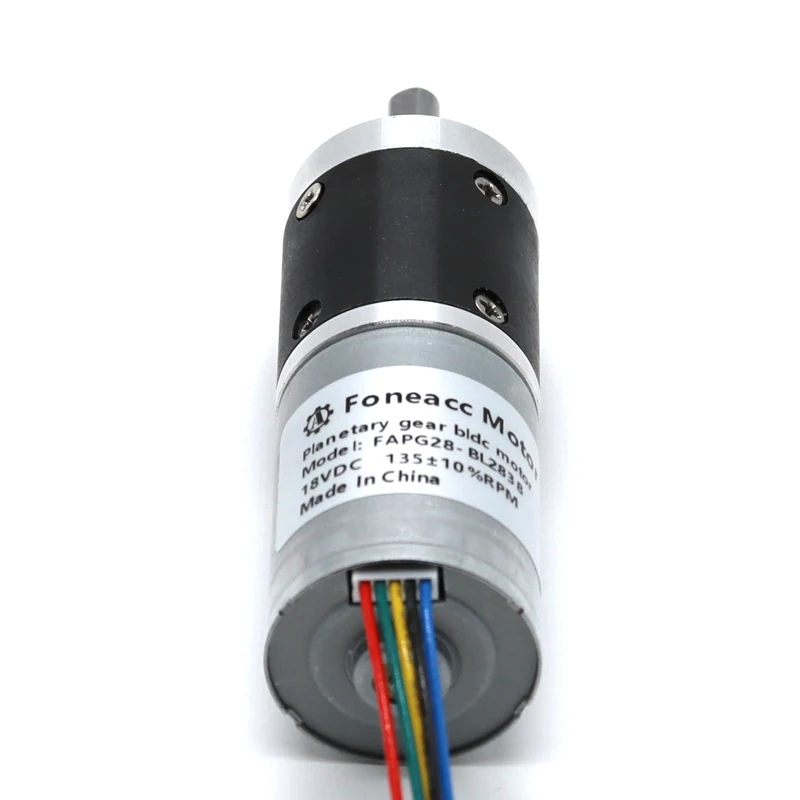

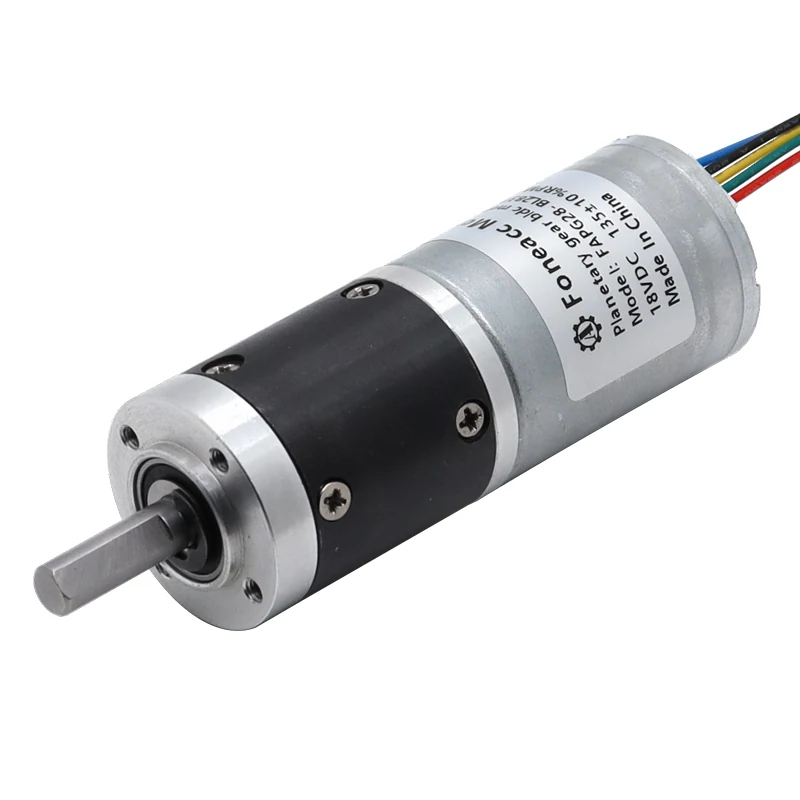

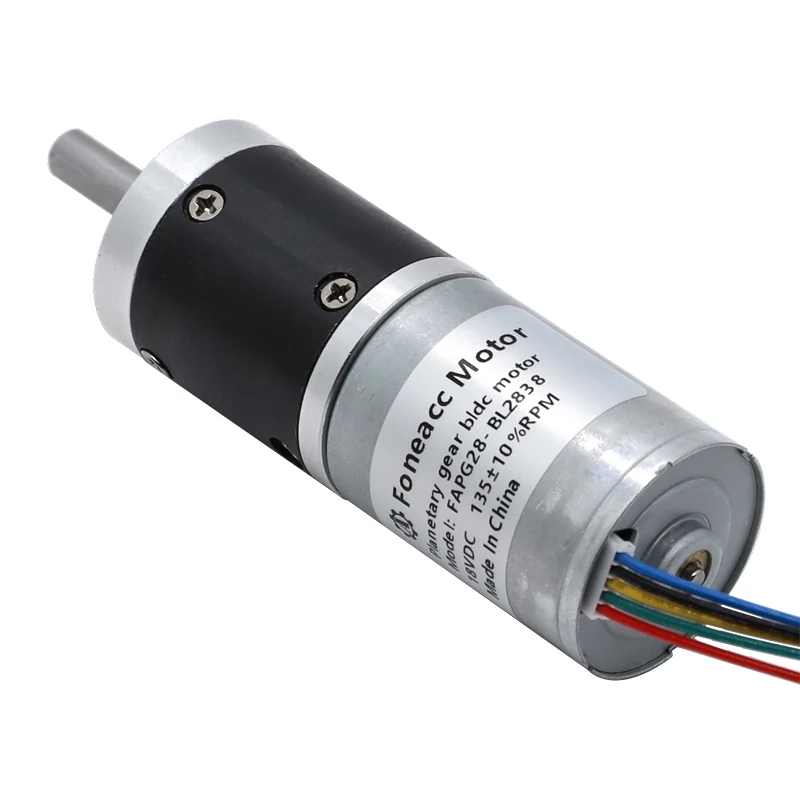

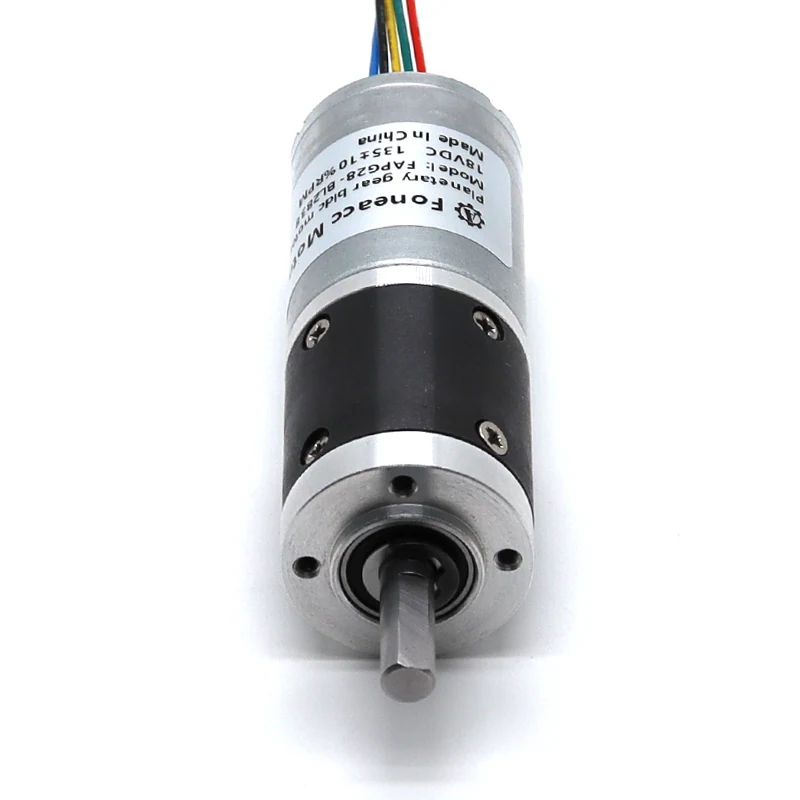

|- Model: PG28-BL2838;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 3V, 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 25Kgf-cm ;
|- Size : Φ28* L TBD ;
|- Shaft : concentric driveshaft, Φ6mm D-cut 0.5mm, custom;
|- Commutation: Brushless, PWM-driven;
|- Construction: Permanent Magnet;
|- Control: Built-in driver board with hall sensors;
|- MOQ: 500 pcs;
|- Model: PG28-BL2838; BL2838I geared motor
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 25 Kgf-cm ;
|- Size : Φ28* L TBD ;
|- Shaft : concentric driveshaft, Φ6mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: magnetic encoder;
|- MOQ: 500 pcs;

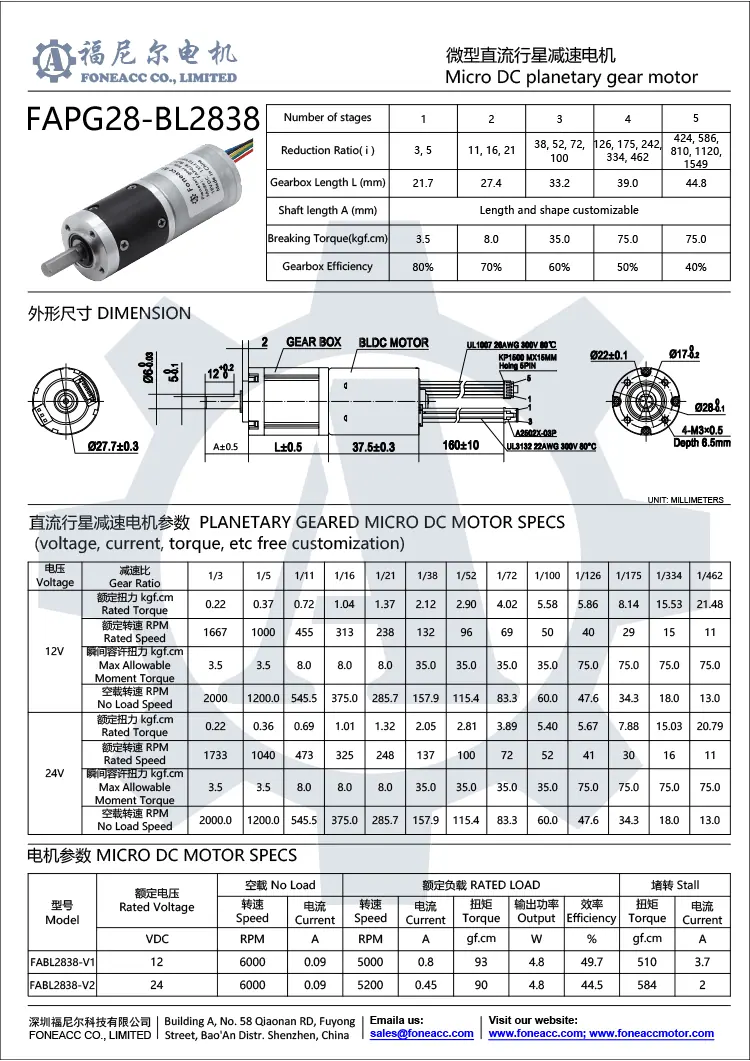

Model | No Load | Rated Load |
Breaking
Torque
|
|
Speed | Torque | Speed | ||
r/min | kgf-cm | r/min | kgf-cm | |
PG28-BL2838-12V3K | 2000 | 0.22 | 1667 | 3.5 |
PG28-BL2838-12V5K | 1200 | 0.37 | 1000 | 3.5 |
PG28-BL2838-12V11K | 545.5 | 0.72 | 455 | 8 |
PG28-BL2838-12V16K | 375 | 1.04 | 313 | 8 |
PG28-BL2838-12V21K | 285.7 | 1.37 | 238 | 8 |
PG28-BL2838-12V38K | 157.9 | 2.12 | 132 | 35 |
PG28-BL2838-12V52K | 115.4 | 2.9 | 96 | 35 |
PG28-BL2838-12V72K | 83.3 | 4.02 | 69 | 35 |
PG28-BL2838-12V100K | 60 | 5.58 | 50 | 35 |
PG28-BL2838-12V126K | 47.6 | 5.86 | 40 | 75 |
PG28-BL2838-12V175K | 34.3 | 8.14 | 29 | 75 |
PG28-BL2838-12V334K | 18 | 15.53 | 15 | 75 |
PG28-BL2838-12V462K | 13 | 21.48 | 11 | 75 |
PG28-BL2838-24V3K | 2000 | 0.22 | 1733 | 3.5 |
PG28-BL2838-24V5K | 1200 | 0.36 | 1040 | 3.5 |
PG28-BL2838-24V11K | 545.5 | 0.69 | 473 | 8 |
PG28-BL2838-24V16K | 375 | 1.01 | 325 | 8 |
PG28-BL2838-24V21K | 285.7 | 1.32 | 248 | 8 |
PG28-BL2838-24V38K | 157.9 | 2.05 | 137 | 35 |
PG28-BL2838-24V52K | 115.4 | 2.81 | 100 | 35 |
PG28-BL2838-24V72K | 83.3 | 3.89 | 72 | 35 |
PG28-BL2838-24V100K | 60 | 5.4 | 52 | 35 |
PG28-BL2838-24V126K | 47.6 | 5.67 | 41 | 75 |
PG28-BL2838-24V175K | 34.3 | 7.88 | 30 | 75 |
PG28-BL2838-24V334K | 18 | 15.03 | 16 | 75 |
PG28-BL2838-24V462K | 13 | 20.79 | 11 | 75 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
