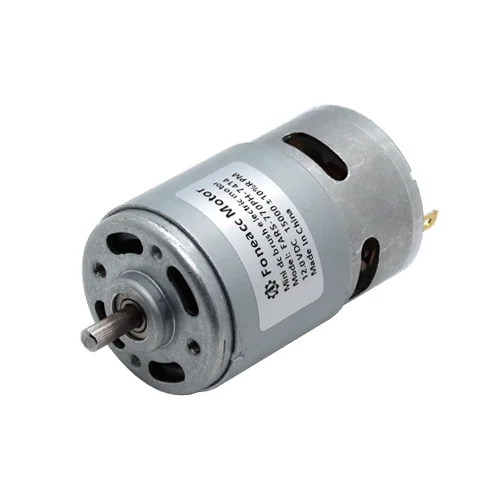

RS-770 High speed high torque 12V 24V micro DC motors | Foneacc Motor

|- Model Number: RS-770
|- Shell Stator Size : Φ42* L 67 mm(Φ 2.637 inch * 2.953 inch)
|- Shaft : Φ5mm(0.197 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 120W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 1.2 Kgf·cm(1.47 N·m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)

RS-770 High speed high torque 12V 24V micro dc motors | Foneacc Motor


Main features:

|- Model Number: RS-770
|- Shell Stator Size : Φ42* L 67 mm(Φ 2.637 inch * 2.953 inch)
|- Shaft : Φ5mm(0.197 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 120W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 1.2 Kgf-cm(1.47 N-m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)


RS-770 dc motor data examples:

Model Voltage No load At Maximum Efficiency Stall
Range Rated Speed Current Speed Current Torque P.out EFF. Torque Current
V R/min A R/min A g-cm W % g-cm A
RS-770SH-8523R 6.0-14.0 12 15000 2.2 13177 15.91 826.2 111.77 58.5 6802 115

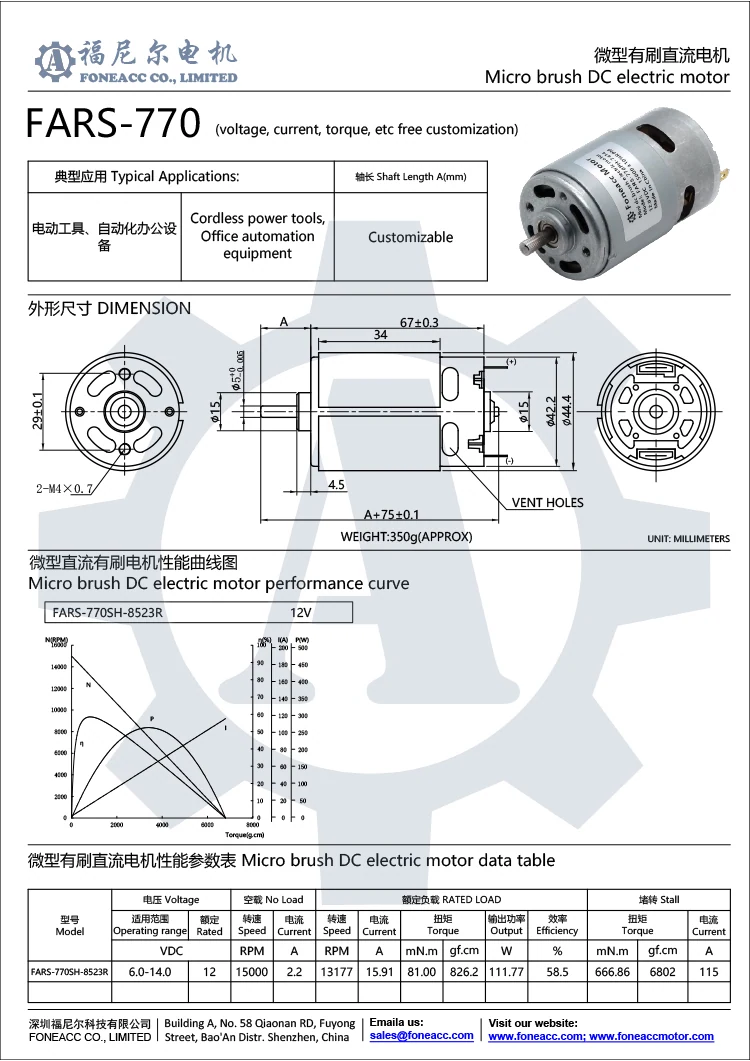

Dimensions and performance curves of RS-770 dc motor for reference:

RS-770 micro brush dc electric motor


Download  DC motor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
