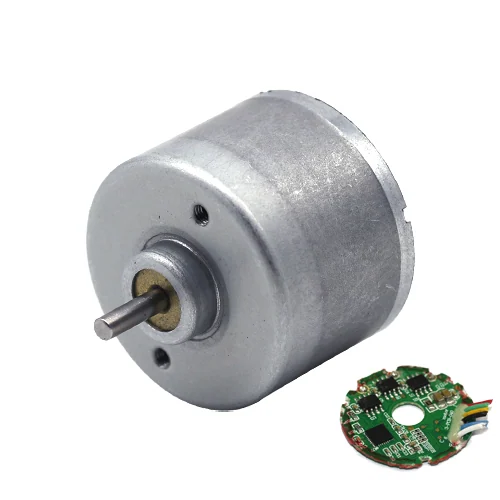

BL3626i B3626M 36mm Small BLDC Brushless DC Motor

| - Model Number: BL3626I
| - Shell Stator Size : Φ36* L 26 mm(Φ 1.42 inch * 1.02 inch)
| - Shaft : Φ3.175mm[0.125 inch](or 4.0mm[0.157 inch]), screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 2W - 16W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 100 gf-cm(9.8 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs

BL3626i BL3626 B3626M 36mm Small BLDC brushless dc motor


Key features:

| - Model Number: BL3626I, B3626M
| - Shell Stator Size : Φ36* L 26 mm(Φ 1.42 inch * 1.02 inch)
| - Shaft : Φ3.175mm[0.125 inch](or 4.0mm[0.157 inch]), screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 2W - 16W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 150 gf-cm(14.7 mNm)
| - Rotor: inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 6/12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs


BL3626I dc motor data examples:

Model Voltage No load At maximum efficiency Stall
Range Nominal Speed Current Speed Current Torque P.out Eff. Torque Current
V R/min A R/min A gf-cm W % gf-cm A
BL3626I-V1 8.0-16.0 12 6,027 0.15 4,882 0.638 96.1 4.82 62.9 506 2.72
BL3626I-V2 8.0-26.0 18 7,435 0.124 6,022 0.504 91 5.63 62.0 479 2.12
BL3626I-V3 8.0-26.0 24 8,927 0.111 7,231 0.456 91.3 6.78 61.9 481 1.93
B3626M-S01 8.0-26.0 9 2,720 0.12 985 0.57 140 1.42 27.6 219 2.50
B3626M-S02 8.0-26.0 12 4,460 0.18 3,750 0.57 110 4.23 61.9 681 2.50
B3626M-S03 8.0-26.0 24 5,998 0.12 4,858 0.5 153 7.63 63.6 805 2.50
B3626M-S04 8.0-26.0 24 11,990 0.35 9,420 0.996 150 14.51 60.7 651 2.50

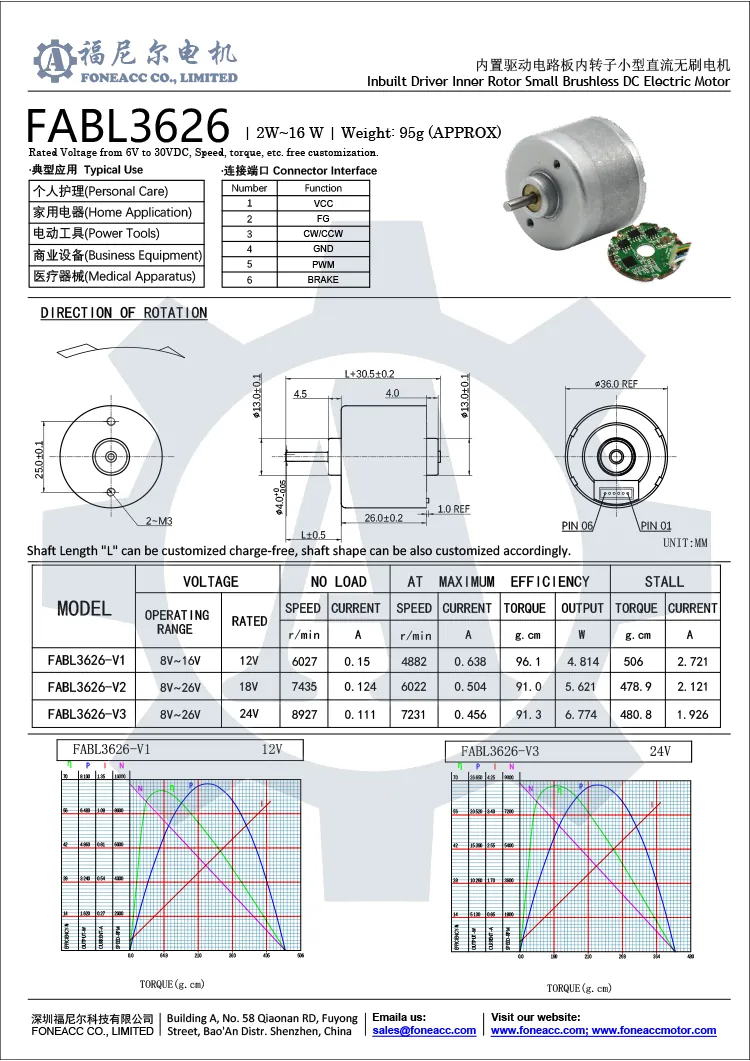

Dimensions and performance curves of BL3626I dc motor for reference:

bl3626 <a href=/micro-brushless-dc-motor-foneacc-motion.html target='_blank'>BLDC motor</a>

6 wires built-in driver interface instruction.webp


Download DC motor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
