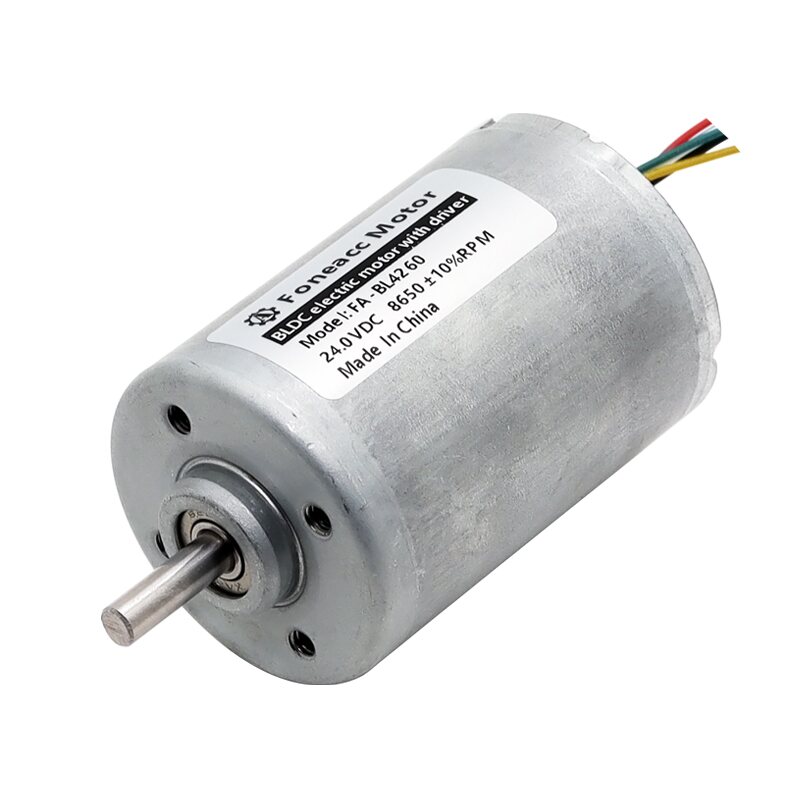

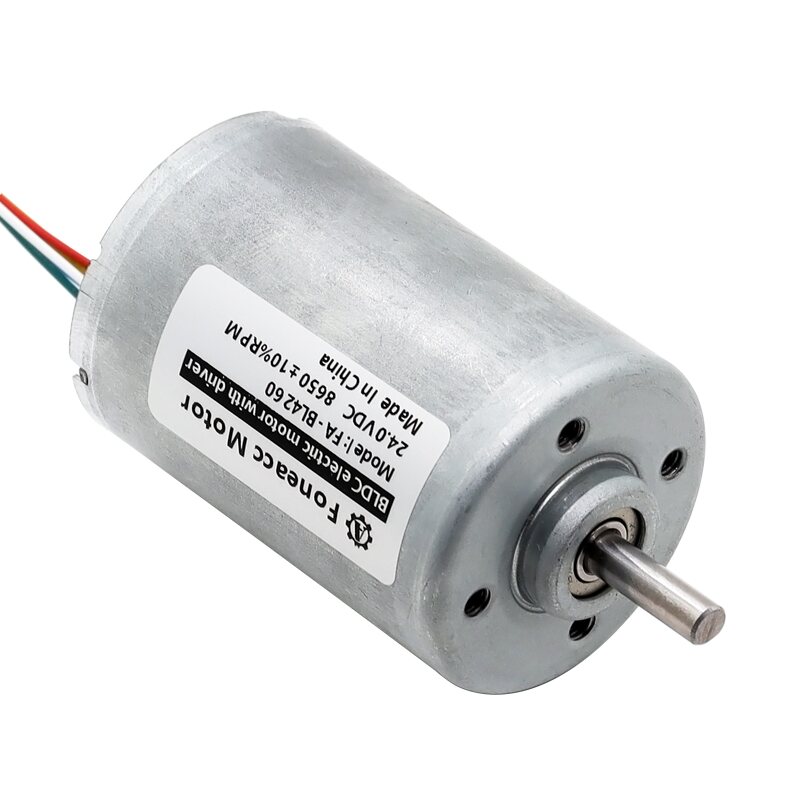

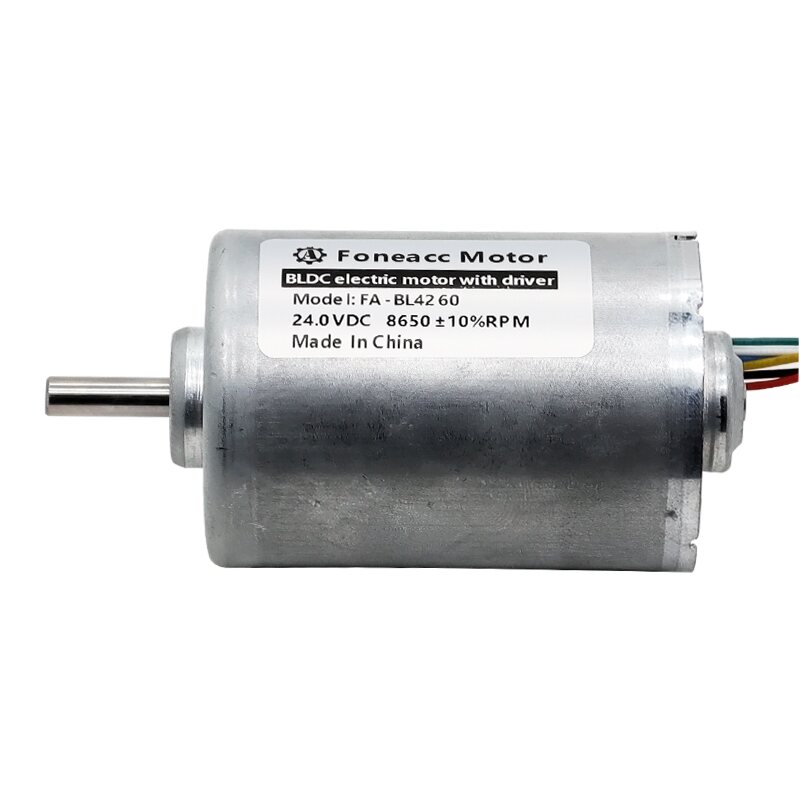

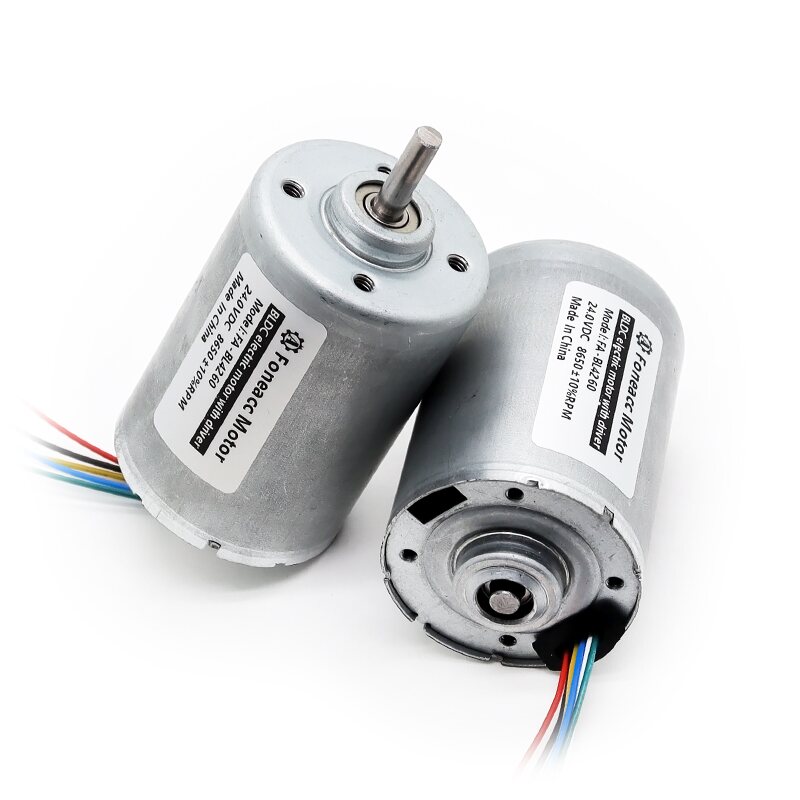

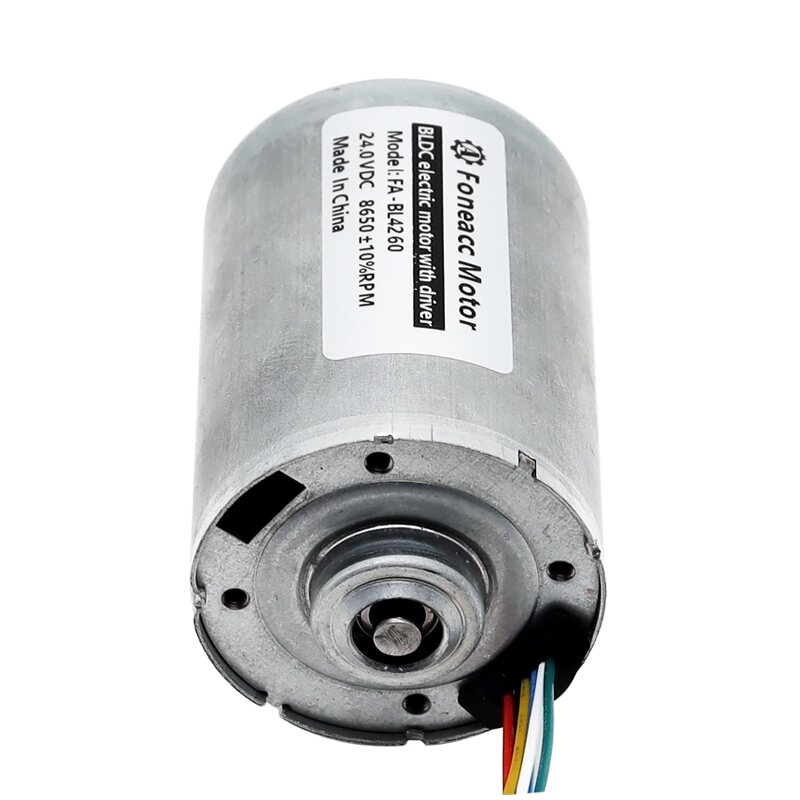

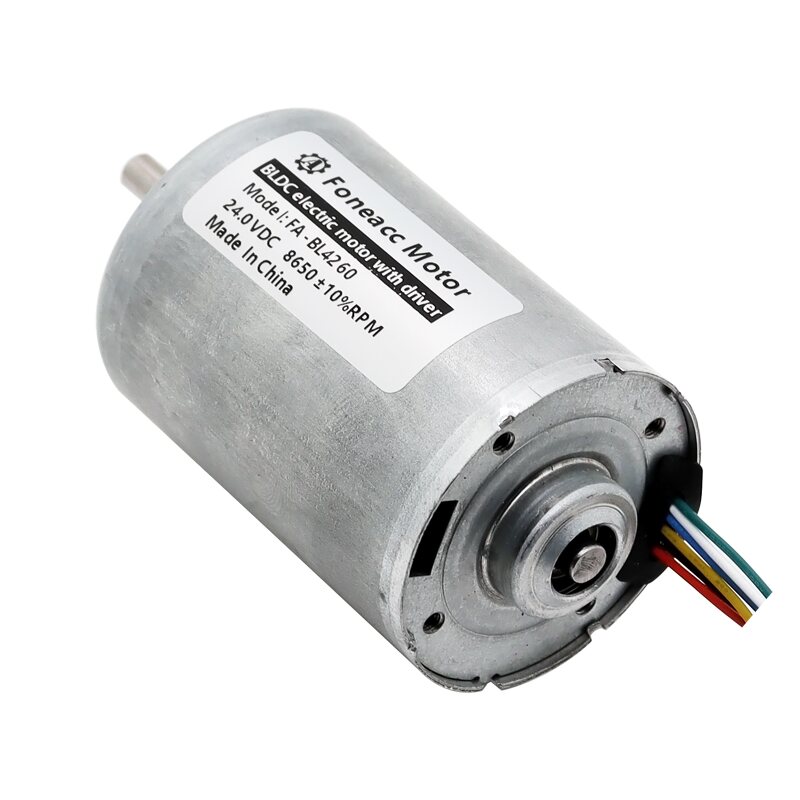

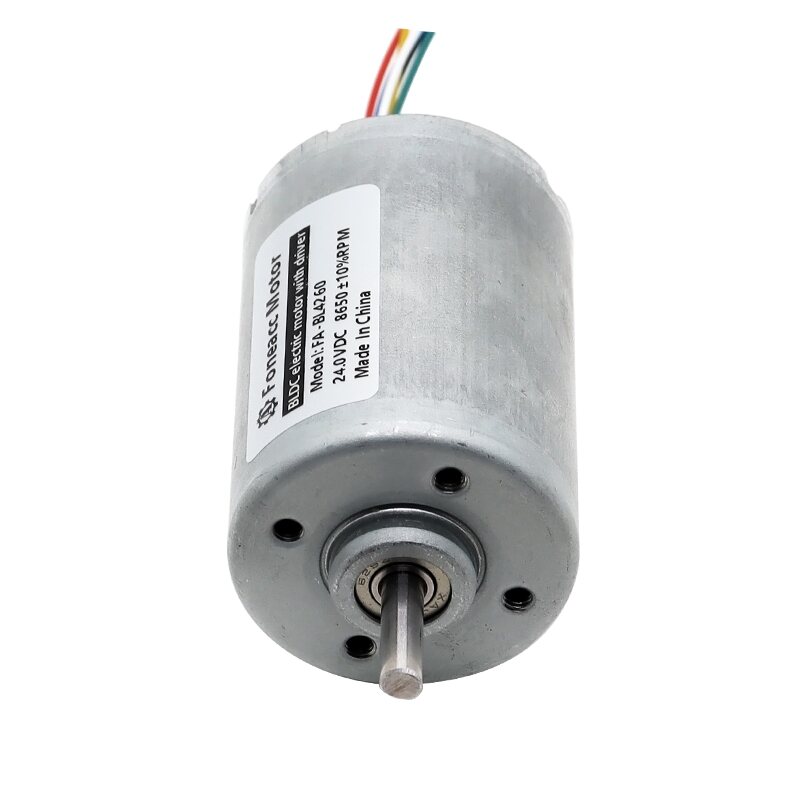

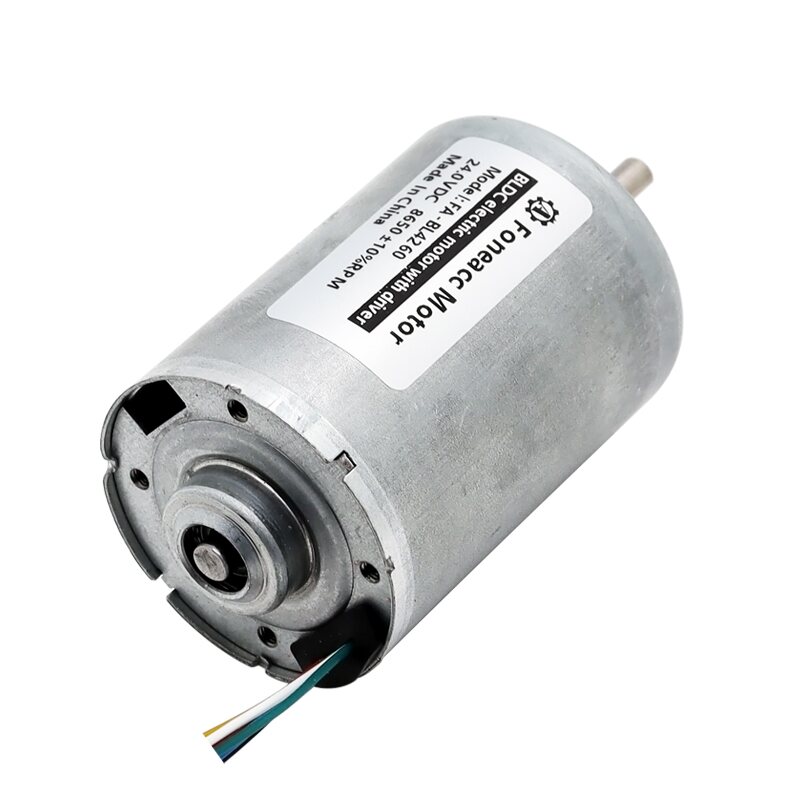

BL4260 BL4260i B4260M OD Diameter 42mm Small Inner Rotor Brushless DC BLDC Motor

| - Model Number: BL4260I
| - Shell Stator Size : Φ42* L 60 mm(Φ 1.65 inch * 2.36 inch)
| - Shaft : Φ5.0mm[0.197 inch], screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 10W - 78W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 1000 gf-cm(98mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs

BL4260 BL4260i B4260M OD Diameter 42mm Small inner rotor Brushless DC BLDC motor


Key features:

| - Model Number: BL4260I
| - Shell Stator Size : Φ 42* L 60 mm(Φ 1.65 inch * 2.36 inch)
| - Shaft : Φ 5.0mm[0.197 inch], screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 10W - 78W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 1000 gf-cm(98mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs
| -  PWM pulse wide speed range
| -  Clockwise/counter-clockwise rotation
| -  FG speed feedback signal
| -  Low EMC | -  Low noise
| -  Long lifespan: up to 20000hrs
| -  Over-current protection | -  Over-voltage protection | -  Under-voltage protection


BL4260I dc motor data examples:

Model Voltage No load At maximum efficiency Stall
Range Nominal Speed Current Speed Current Torque P.out Eff. Torque Current
V R/min A R/min A gf-cm W % gf-cm A
BL4260I-V1 8~16 12 2,038 0.15 1,773 0.934 480.3 8.74 78.0 3,694 6.18
BL4260I-V2 8~26 18 3,690 0.2 3,284 1.564 654.7 22.07 78.4 5,952 12.60
BL4260I-V3 8~26 24 4,280 0.2 3,766 1.567 766.6 29.64 78.8 6,388 11.60
B4260M-S01 8~26 12 2,050 0.16 1,775 0.942 480.5 8.76 77.5 3,695 6.18
B4260M-S02 8~26 24 4,260 0.26 3,270 1.85 970.0 32.56 73.3 4,175 3.00
B4260M-S03 8~26 24 4,046 0.24 3,342 1.21 612.6 21.02 72.4 3,516 2.50
FABL4260-V01 8~26 25.2 6743 0.383 5629 1.936 745.7 43.1 83.9 4516 9.79
FABL4260-V02 8~26 24 8743 0.21 7575 1.365 358 27.84 85 2680 8.851

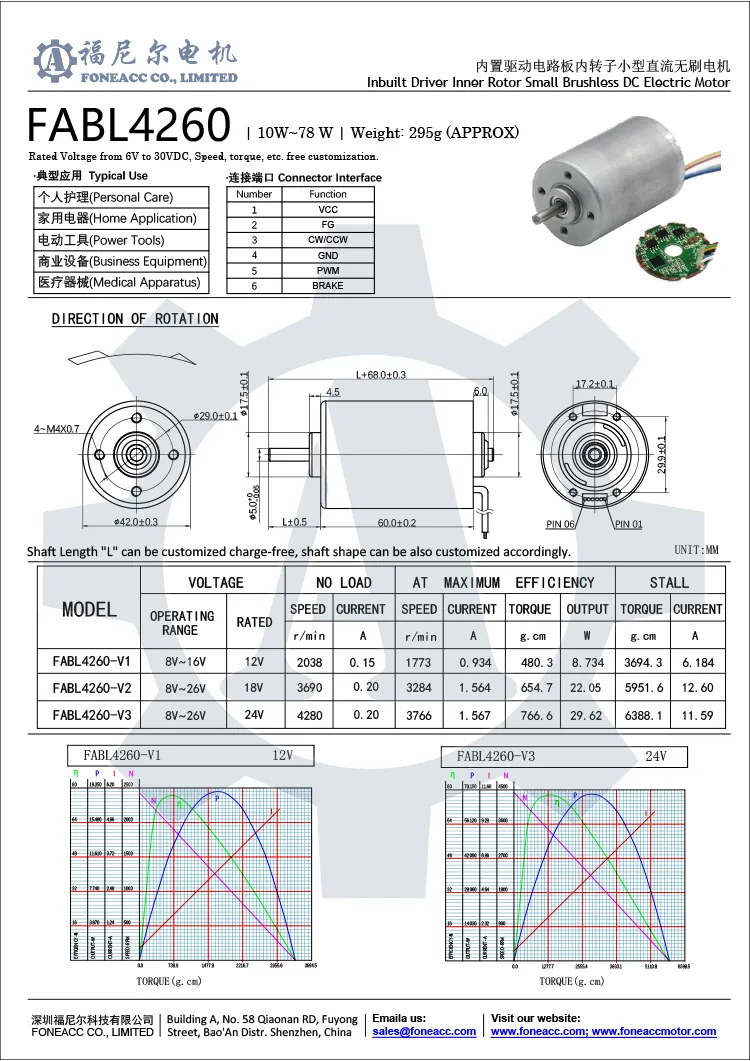

Dimensions and performance curves of BL4260I dc motor for reference:

bl4260 bldc motor

6 wires built-in driver interface instruction.webp


Download BL4260I DC motor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
