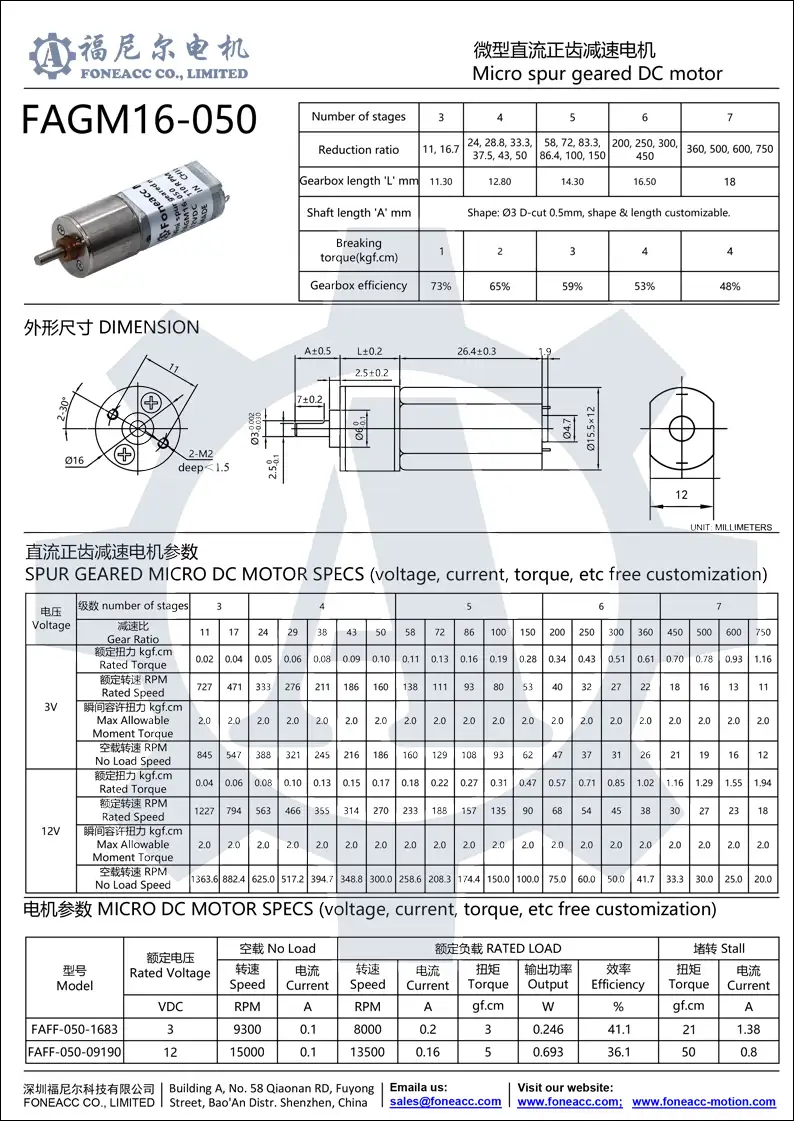

|- Model: GM16-050;
|- Gearbox: 16 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 2.8Kgf-cm ;
|- Size : Φ16 * L TBD ;
|- Shaft : Φ3mm D-cut 0.5mm, M3, M4, custom;
|- Encoder : Magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs
|- Model: GM16-050;
|- Gearbox: 16 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 2.8Kgf-cm ;
|- Size : Φ16 * L TBD ;
|- Shaft : Φ3mm D-cut 0.5mm, M3, M4, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs
Gear Box Data:
Gearbox Length (mm) | Stages | Reduction Ratio | Rated Torque | Breaking Torque | |||||
kgf-cm | |||||||||
11 | 3 | 11.5/1 | 14/1 | 0.2 | 0.5 | ||||
12.5 | 4 | 23/1 | 28/1 | 32/1 | 40/1 | 0.3 | 0.7 | ||
14 | 5 | 46/1 | 56/1 | 65/1 | 80/1 | 91/1 | 112/1 | 0.4 | 0.8 |
15.5 | 6 | 130/1 | 159/1 | 183/1 | 224/1 | 257/1 | 315/1 | 0.5 | 1 |
17 | 7 | 365/1 | 448/1 | 515/1 | 630/1 | 725/1 | 889/1 | 0.6 | 1.2 |
Spur Geared Motor Data examples(can be customized accordingly.):
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||
Range |
Rated | Speed | Current | Speed | Current | Torque | P.out | Torque | Current | |
V | rpm | A | rpm | A | kg.cm | W | kg.cm | A | ||
GM16-050-14K061200 | 3.0~6.0 | 6 | 1200 | 0.08 | 945 | 0.06 | 0.06 | 0.58 | 0.29 | 1.12 |
GM16-050-112K03120 | 2.0~4.0 | 3 | 120 | 0.1 | 96 | 0.42 | 0.36 | 0.35 | 1.8 | 1.65 |
GM16-050-515K1225 | 5.0~12.0 | 12 | 25 | 0.05 | 19 | 0.16 | 1.6 | 0.31 | 6.45 | 0.48 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
