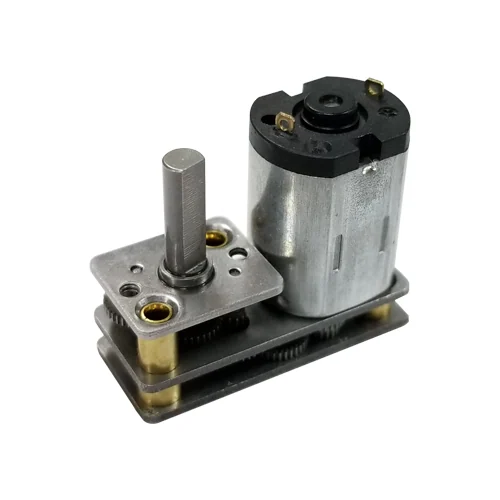

GMR24-N20VA N20 dc motor, 24mm small spur gear dc motor

|- micro dc motor FF-N20VA assembled with 24mm metal spur gearbox;
|- Model: GMR24-N20 micro metal gearmotor;
|- Gearbox: 24 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 1.8Kgf-cm ;
|- Size : Φ24 * L TBD ;
|- Square Gearbox size:12mm*10mm;
|- Shaft : Φ3mm D-cut 0.5mm, M3, M4, custom;
|- Encoder : Magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

GMR24-N20VA N20 dc motor, 24mm small spur gear dc motor


Main features:

|- micro dc motor FF-N20VA assembled with 24mm metal spur gearbox;
|- Model: GMR24-N20 micro metal gearmotor;
|- Gearbox: 24 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 1.8Kgf-cm ;
|- Size : Φ24 * L TBD ;
|- Square Gearbox size:12mm*10mm;
|- Shaft : Φ3mm D-cut 0.5mm, M3, M4, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs


GMR24-N20VA dc geared motor data examples:

Gearbox Data:

Number of stages

2

4

5

7

Reduction ratio

3,5,10

17,20,30,36

50,63,100

110,150,210

250,298,380

372,625,1000

Gearbox length “L”mm

9

9

9

12

Breaking torque(kgf.cm)

0.6

0.9

1.2

2

Gearbox efficiency

81%

65%

59%

48%

The Φ12 mm single small dc electric motor without gearbox data(For reference only, not corresponding data):

Motor model

Rated

Volt.

No load

At Max Eff Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

mA

r/min

mA

r/min

gf.cm

W

gf.cm

mA

FF-N20VA-V1

3

≤50

10000

≤185

8000

2

0.2

≥8

≥350

FF-N20VA-V2

3

≤80

15000

≤280

12400

3

0.4

≥12

≥520

FF-N20VA-V3

3

≤110

20000

≤370

15500

4

0.6

≥16

≥700

FF-N20VA-V4

6

≤25

10000

≤95

8000

2

0.2

≥8

≥160

FF-N20VA-V5

6

≤40

15000

≤145

12400

3

0.4

≥12

≥250

FF-N20VA-V6

6

≤60

20000

≤190

15500

4

0.6

≥16

≥320

The Φ12 mm spur geared dc electric motor with gearbox data(For reference only, not corresponding data):

Geared Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
GMR24-N20-EN-V1 3 0.07 110.7 0.27 87.3 0.28 0.25 1.30 1.01
GMR24-N20-EN-V2 3 0.03 10.7 0.15 7.30 1.20 0.10 3.90 0.33
GMR24-N20-EN-V3 5 0.04 135.5 0.13 104.1 0.17 0.19 0.75 0.44
GMR24-N20-EN-V4 5 0.04 61.5 0.15 47.3 0.50 0.24 2.00 0.53
GMR24-N20-EN-V5 5 0.03 48.8 0.12 38.6 0.50 0.20 2.40 0.46
GMR24-N20-EN-V6 6 0.128 86 0.33 62 0.92 0.59 3.32 0.86

Dimensions and configurations of GMR24-N20VA dc gear motor for reference:

gmr24-n20 small spur geared brush dc electric motor datasheet


Download GMR24-N20VA DC gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
