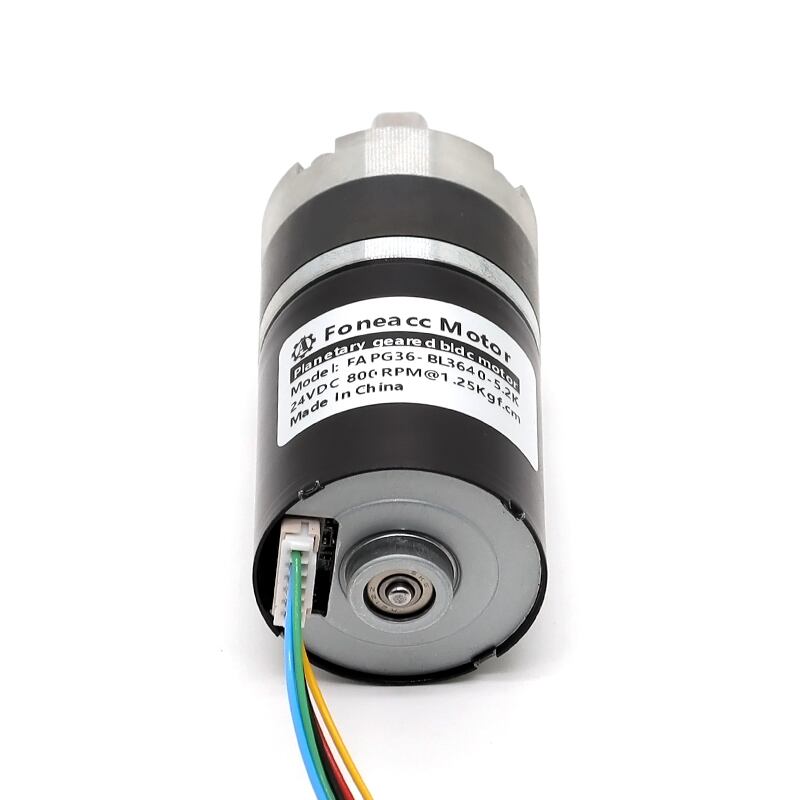

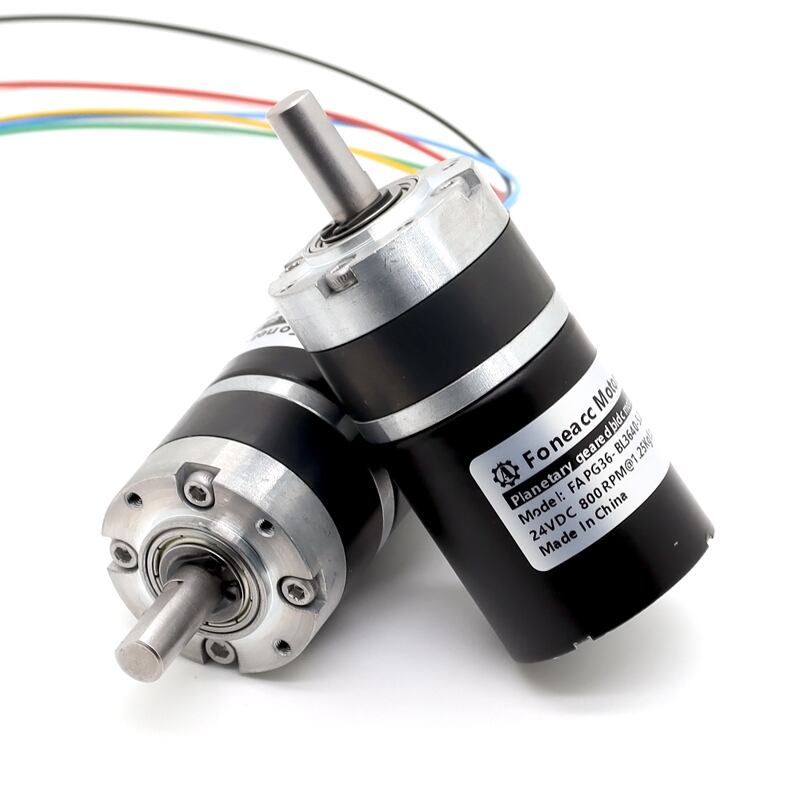

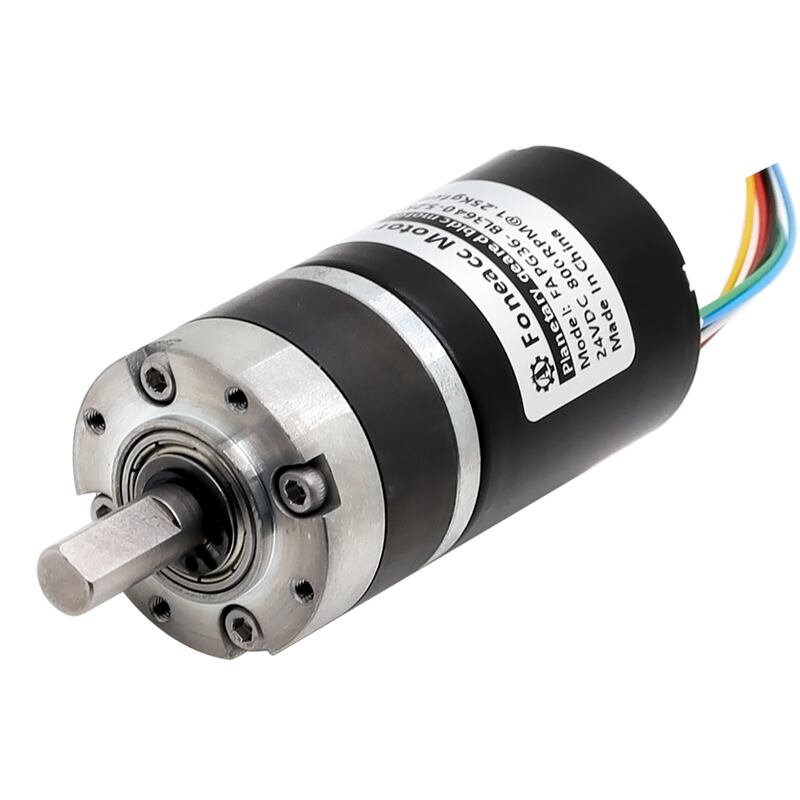

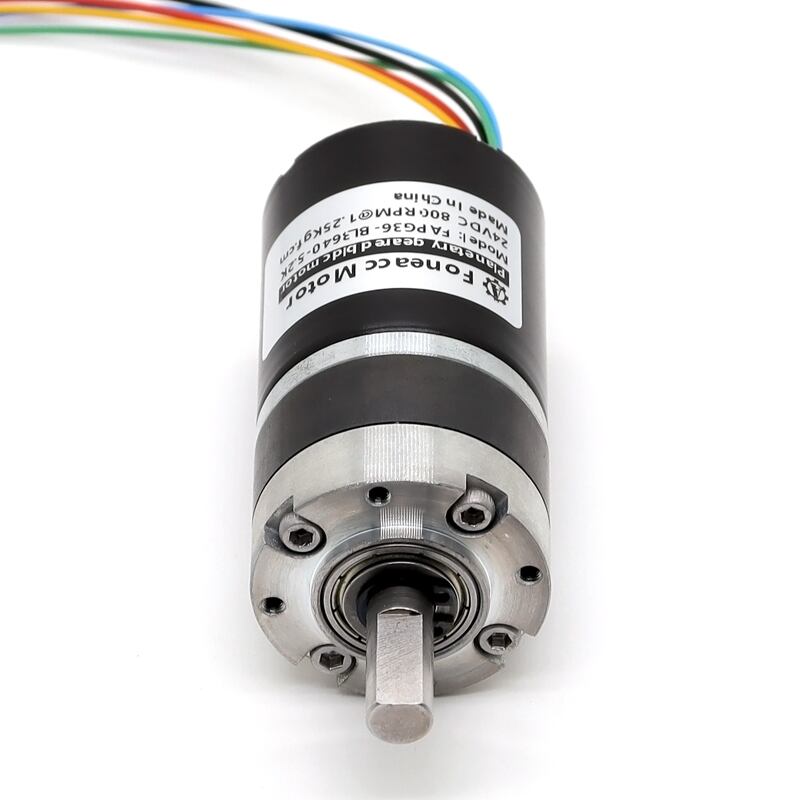

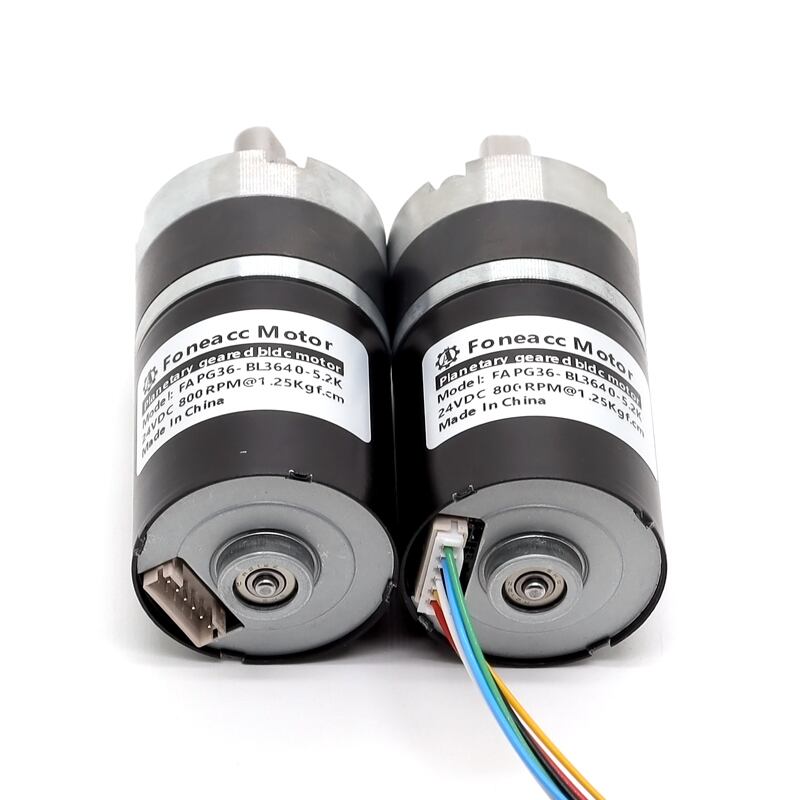

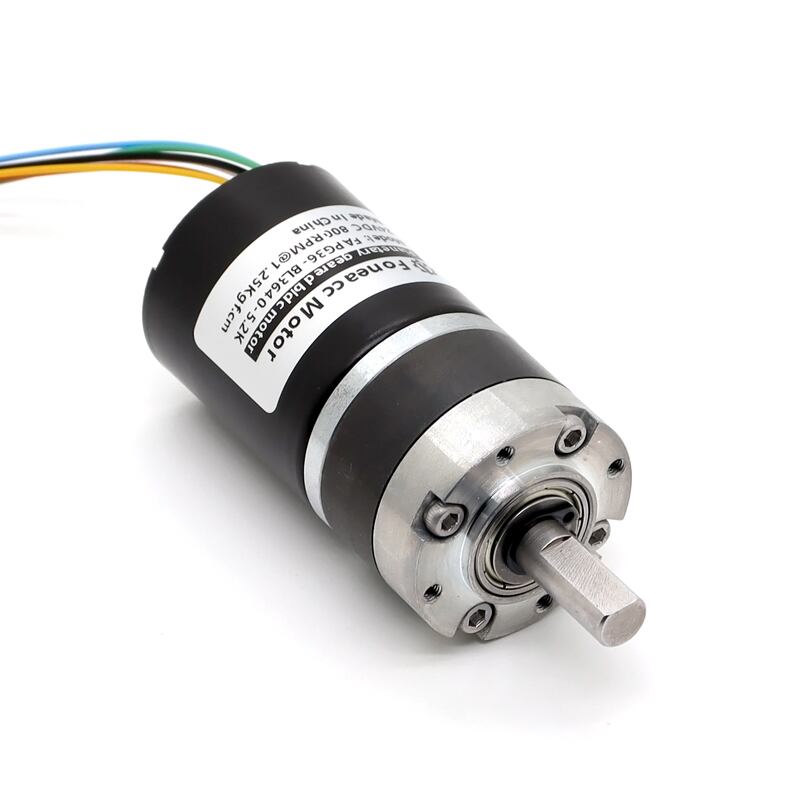

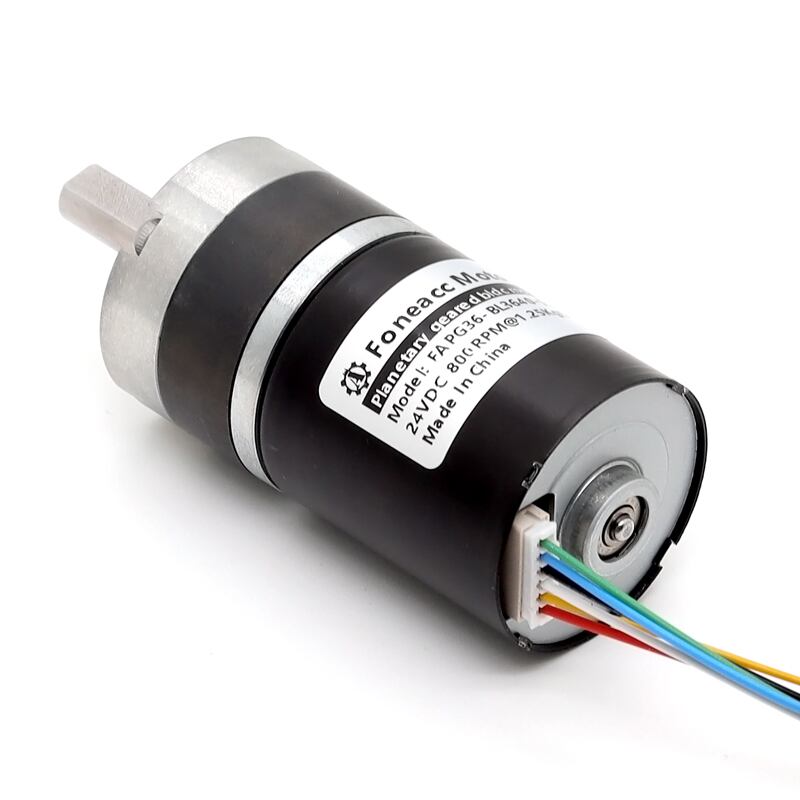

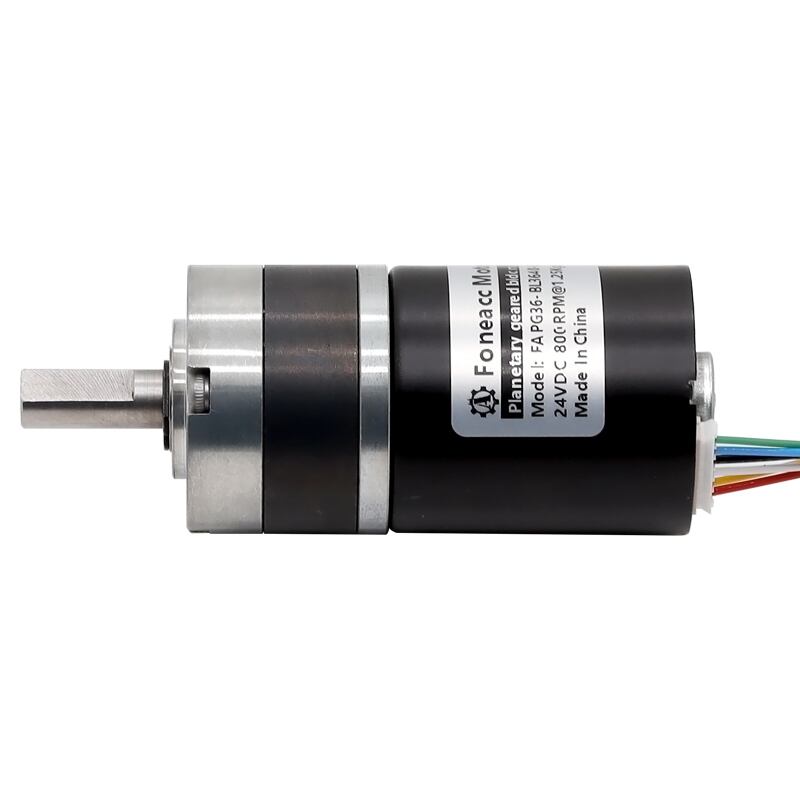

PG36-BL3640 OD 36mm Planetary Geared BLDC brushless DC Electric Motor

PG36-BL3640 OD 36mm Planetary Geared BLDC brushless DC Electric Motor

---

Main features:

|- Model: PG36-BL3640, BL3640I planetary geared BLDC motor
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 100Kgf-cm ;
|- Rated Output power: Max. 35W ;
|- Size : Φ36* L TBD ;
|- Shaft : concentric driveshaft, Φ8mm D-cut 1mm, custom;
|- Commutation: Brushless, PWM-driven;
|- Construction: Permanent Magnet;
|- Control: Built-in driver board with hall sensors;
|- MOQ: 500 pcs;

---

PG36-BL3640 mini bldc planetary geared motor data examples:

Model	No Load	Rated Load		Breaking Torque
	Speed	Torque	Speed
	R/min	kgf-cm	R/min	kgf-cm
PG36-BL3640-12V3.7K	1251.8	0.8	1011.8	15.5
PG36-BL3640-12V5.2K	1001.4	1.0	809.4	15.5
PG36-BL3640-12V13.7K	357.6	2.3	289.1	50
PG36-BL3640-12V19K	263.5	3.2	213.0	50
PG36-BL3640-12V27K	185.4	4.5	149.9	50
PG36-BL3640-12V51K	98.2	7.3	79.4	150
PG36-BL3640-12V71K	70.5	10.2	57.0	150
PG36-BL3640-12V100K	50.1	14.4	40.5	150
PG36-BL3640-12V139K	36.0	20.0	29.1	150
PG36-BL3640-12V189K	26.5	22.7	21.4	150
PG36-BL3640-12V369K	13.6	44.2	11.0	150
PG36-BL3640-12V516K	9.7	61.8	7.8	150
PG36-BL3640-12V721K	6.9	86.4	5.6	150
PG36-BL3640-24V3.7K	1491.0	0.5	1239.3	15.5
PG36-BL3640-24V5.2K	1192.8	0.7	991.4	15.5
PG36-BL3640-24V13.7K	426.0	1.7	354.1	50
PG36-BL3640-24V19K	313.9	2.3	260.9	50
PG36-BL3640-24V27K	220.9	3.2	183.6	50
PG36-BL3640-24V51K	116.9	5.2	97.2	150
PG36-BL3640-24V71K	84.0	7.2	69.8	150
PG36-BL3640-24V100K	59.6	10.2	49.6	150
PG36-BL3640-24V139K	42.9	14.1	35.7	150
PG36-BL3640-24V189K	31.6	16.0	26.2	150
PG36-BL3640-24V369K	16.2	31.3	13.4	150
PG36-BL3640-24V516K	11.6	43.8	9.6	150
PG36-BL3640-24V721K	8.3	61.1	6.9	150

---

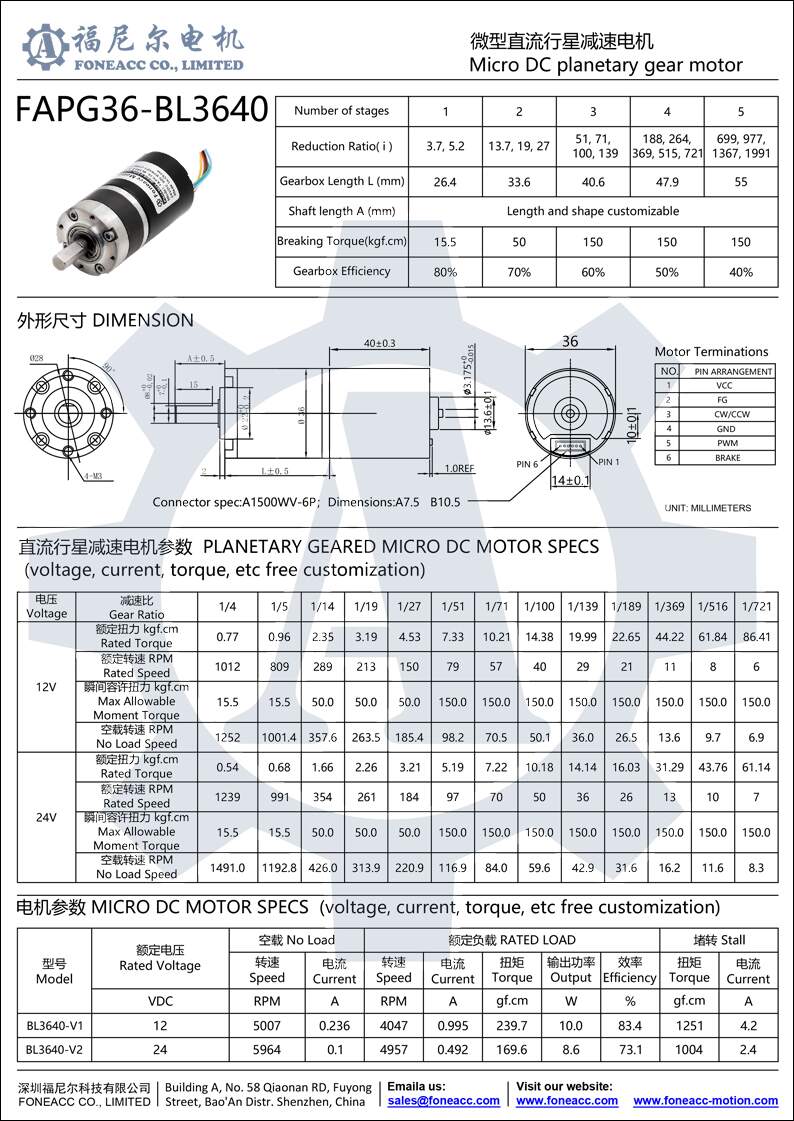

Dimensions and configurations of PG36-BL3640 mini bldc planetary gear motor for reference:

---

Download PG36-BL3640 mini dc gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
