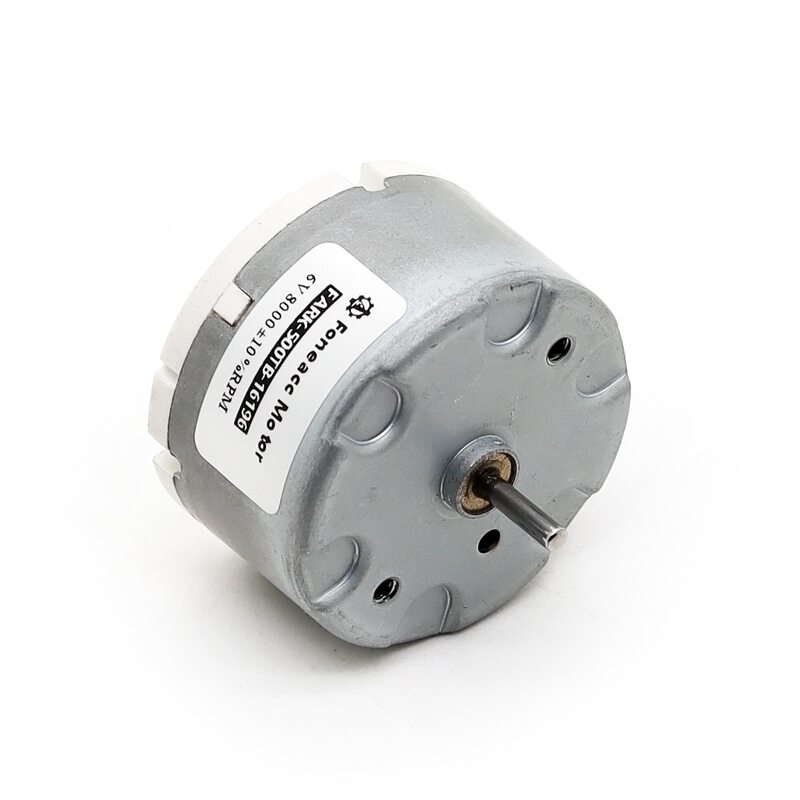

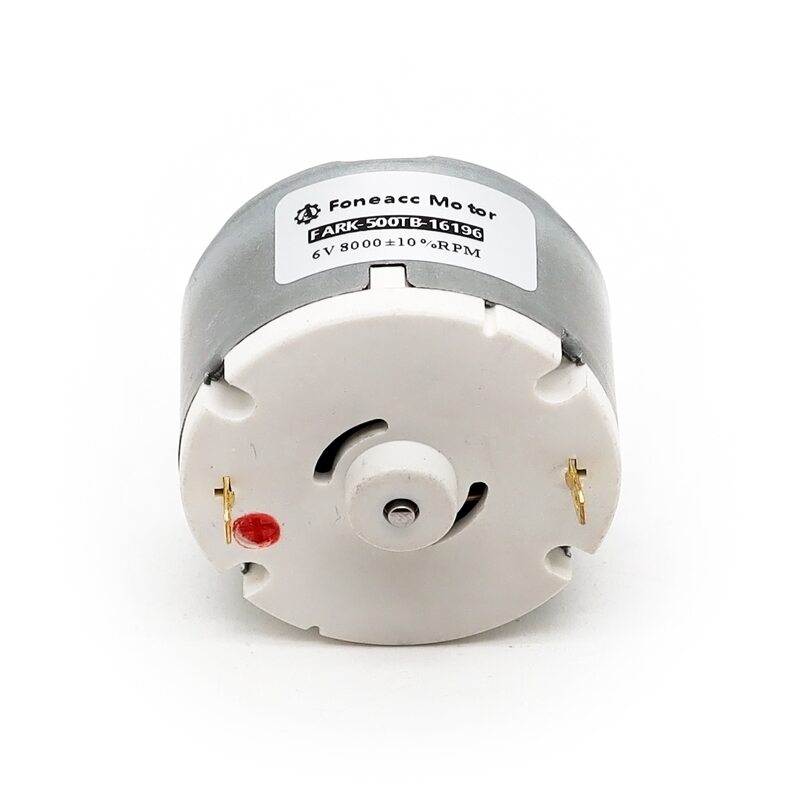

|- Model Number: RF-500, RK-500, RF-500TB
|- Shell Stator Size : Φ32* L 19.2 mm(Φ 1.26 inch * 0.756 inch)
|- Shaft : Φ2.0mm(0.079 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 1W
|- Rated Voltage: DC 1.5V - 24V
|- Rated Torque: up to 50 gf·cm(6.86 mN·m)
|- Construction: Permanent Magnet
|- Commutation: Metal brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
|- Model Number: RF-500TB, RK-500, RF-500
|- Shell Stator Size : Φ32* L 19.2 mm(Φ 1.26 inch * 0.756 inch)
|- Shaft : Φ2.0mm(0.079 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 1W
|- Rated Voltage: DC 1.5V - 24V
|- Rated Torque: up to 50 gf·cm(6.86 mN·m)
|- Construction: Permanent Magnet
|- Commutation: Metal brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
| Model | Voltage | No- load | At Maximum Efficiency | Stall | ||||||
| Range | Rated | Speed | Current | Speed | Current | Torque | P.out | Torque | Current | |
| V | R/min | A | R/min | A | g-cm | W | g-cm | A | ||
| RF-500TB-235019 | 3~12 | 3V | 3300 | 0.05 | 2600 | 0.22 | 20 | 0.13 | 102 | 1.02 |
| RF-500TB-255017 | 3~12 | 3V | 3000 | 0.03 | 2100 | 0.21 | 20 | 0.08 | 71 | 0.77 |
| RF-500TB-415014 | 3~12 | 4.5V | 2800 | 0.02 | 2000 | 0.12 | 20 | 0.07 | 79 | 0.47 |
| RF-500TB-545012 | 3~12 | 6V | 2800 | 0.01 | 2100 | 0.10 | 20 | 0.08 | 80 | 0.37 |
| RF-500TB-800010 | 6~24 | 15V | 4800 | 0.01 | 3600 | 0.09 | 30 | 0.19 | 129 | 0.43 |
| RK-500TB-14430 | 6~24 | 15V | 9000 | 0.06 | 6900 | 0.30 | 40 | 0.83 | 176 | 1.48 |
| RK-500TB-14440 | 12~24 | 12V | 7200 | 0.05 | 5800 | 0.20 | 25 | 0.51 | 143 | 1.17 |
| RK-500TB-16265 | 12~24 | 12V | 12100 | 0.10 | 10000 | 0.40 | 30 | 1.09 | 168 | 2.40 |
| RK-500TB-130022 | 1.5~6 | 3V | 6000 | 0.11 | 5100 | 0.39 | 15 | 0.32 | 106 | 2.23 |
| RK-500TB-335016 | 1.5~6 | 3V | 2000 | 0.03 | 1500 | 0.15 | 20 | 0.09 | 76 | 0.52 |
| RK-500TB-600011 | 12~24 | 12V | 5150 | 0.02 | 4250 | 0.10 | 20 | 0.26 | 124 | 0.58 |
| RK-500TB-690011 | 12~24 | 12V | 4500 | 0.03 | 3300 | 0.13 | 30 | 0.31 | 124 | 0.47 |
| RK-500TB-21160 | 3~12 | 6V | 9900 | 0.10 | 7800 | 0.62 | 30 | 0.58 | 145.6 | 3.43 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
