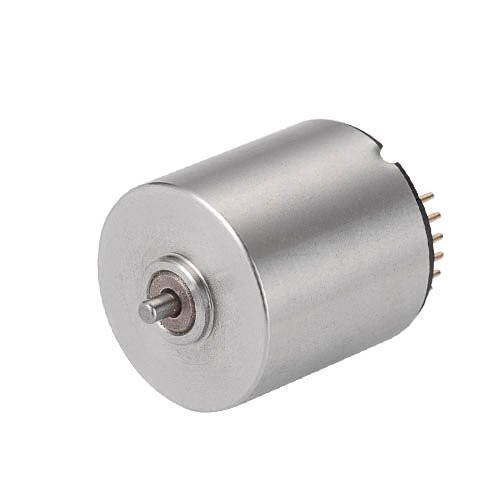

ODØ 15mm coreless brushless dc electric motor

  • 1515RB 15mm diameter precision brushless coreless dc electric motors
1515RB 15mm diameter precision brushless coreless dc electric motors

1515RB 15mm diameter precision brushless coreless dc electric motors

  • Model: 1515RB
  • Diameter: 15mm
  • Length: 15mm
  • Type: brushless coreless motor
  • Product description:1515RB 15mm diameter precision brushless coreless dc electric motors, FONEACC, small coreless brushless dc electric motor, small coreless dc motor, brushless motor, bldc motor,coreless dc motor, corel
  • INQUIRY

1515RB 15mm diameter precision brushless coreless dc electric motors

See detailed specs as below:

电机参数Motor data)

1515RB-03A

1515RB-01A

1515RB-08A

1515RB-06A

额定电压下数值 (Values at nominal voltage)

1 额定电压(Nominal voltage

VDC

6.0

6.0

7.4

7.4

2 空载转速(No load speed)

rpm

31000

36000

27000

30600

3 空载电流(No load current)

mA

210

150

200

182

4 额定转速(Nominal speed)

rpm

25730

25920

22545

26160

5 额定转矩(Nominal torque)

mNm

1

1

1

1

6 额定电流(Nominal current)

A

0.74

0.74

0.54

0.60

7 堵转转矩(Stall torque)

mNm

6.03

3.55

6.01

7.06

8 堵转电流(Stall current)

A

3.33

2.28

2.32

3.12

9 最大效率(Max efficiency)

%

63

63

59

64

电机常数(Motor constant)

10 相间电阻(Terminal resistance)

Ω

1.8

2.63

3.19

2.37

11 转矩常数(Torque constant)

mNm/A

1.81

1.56

2.57

2.26

12 速度常数(Speed constant)

rpm/V

5167

6000

3649

4135

其他特性参数(Other specs)


13 环境温度范围 (Ambient temperature )

-10~40

14 绕组最高允许温度
(Max permissible winding temperature)

120

15 最高允许转速(Max permissible speed)

40000rpm

16 电极磁极对数(Number of the pole pairs)

1

17 换向器片数(Number of the commutator segments)

3

18 电机质量(Weight)

12.80g

19.端子定义Terminals:

PIN1:C
PIN2:GND
PIN3:HB
PIN4:HA
PIN5:B
PIN6:VCC
PIN7:HC
PIN8:A

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

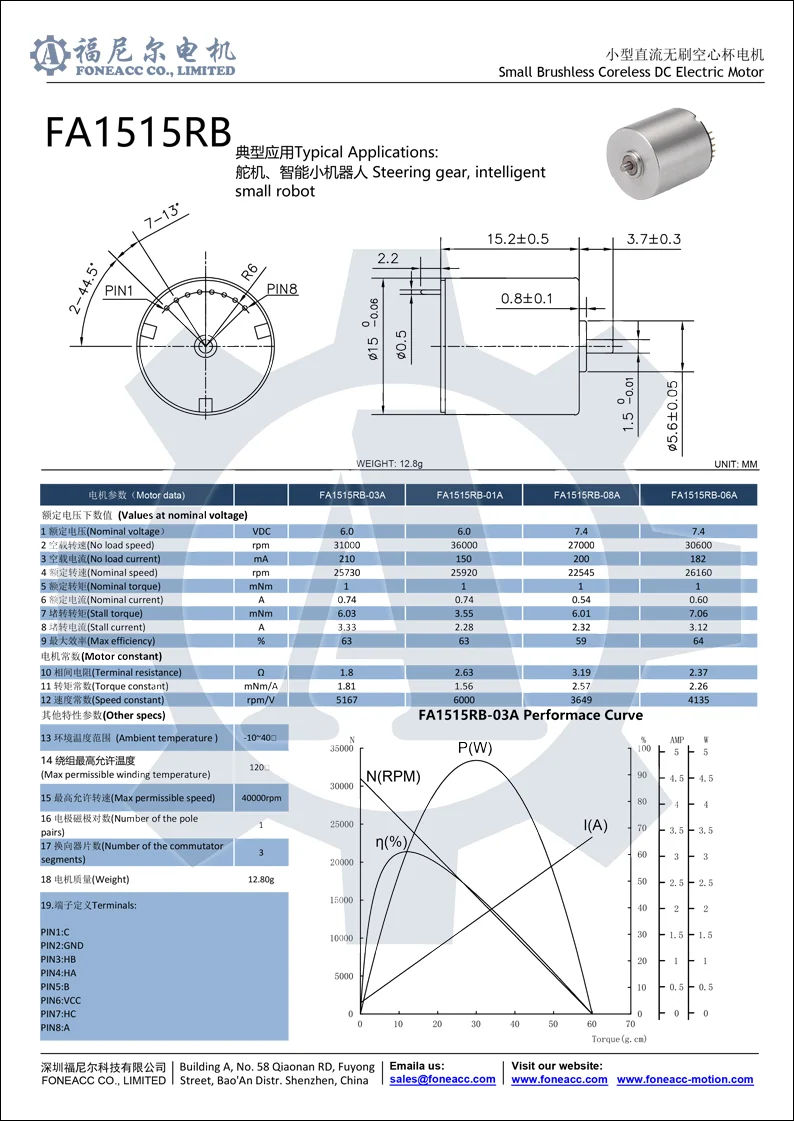

Download and view HD file: 1515RB.pdf
