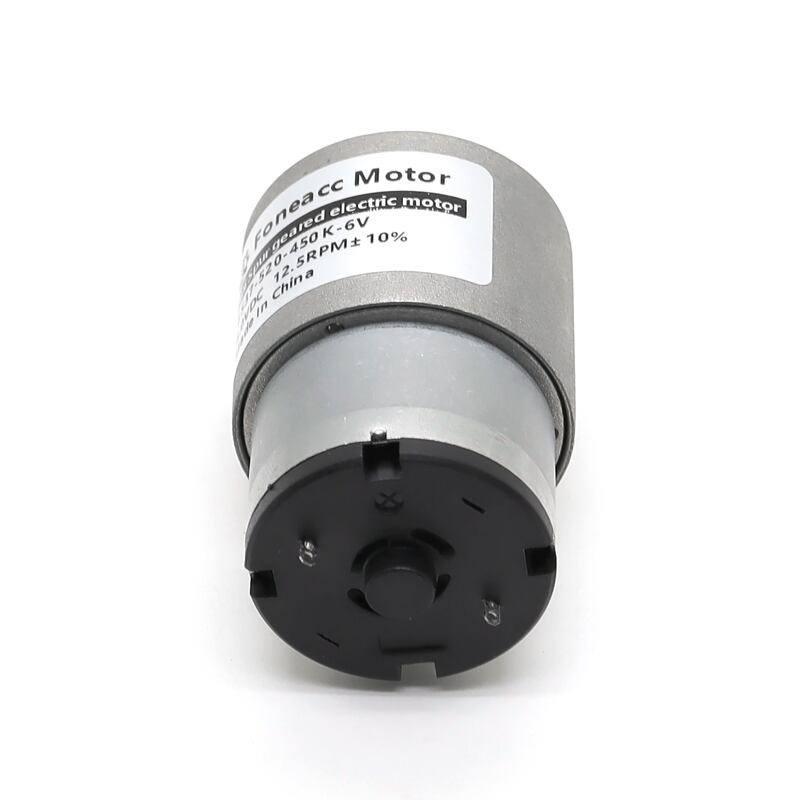

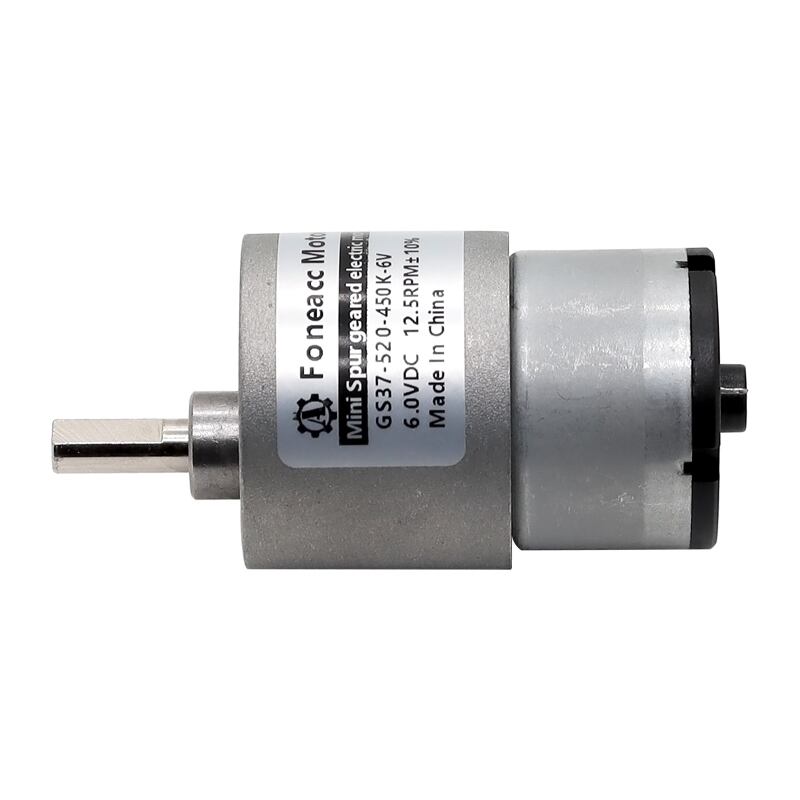

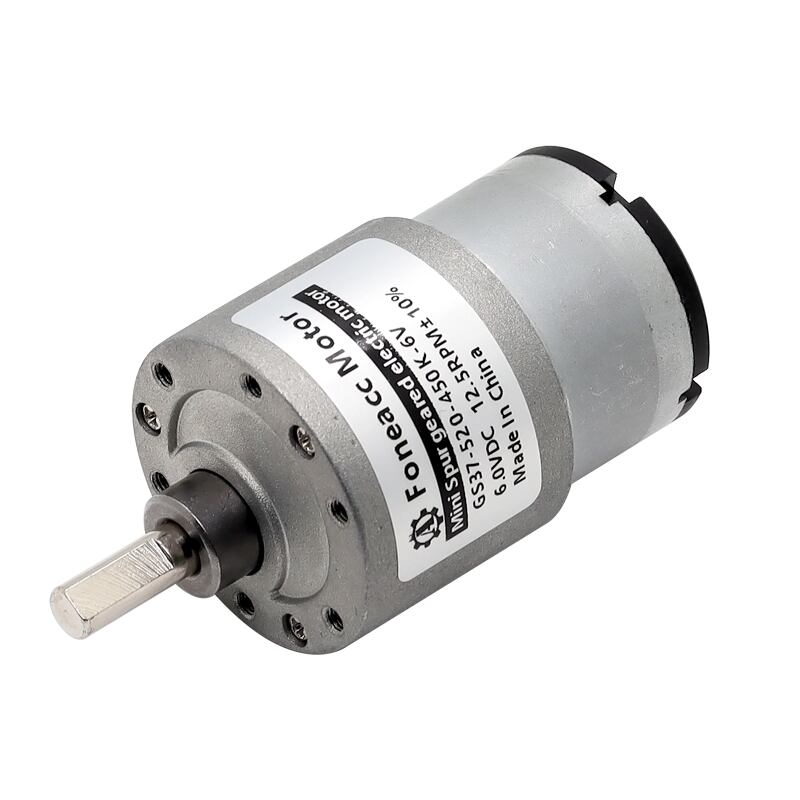

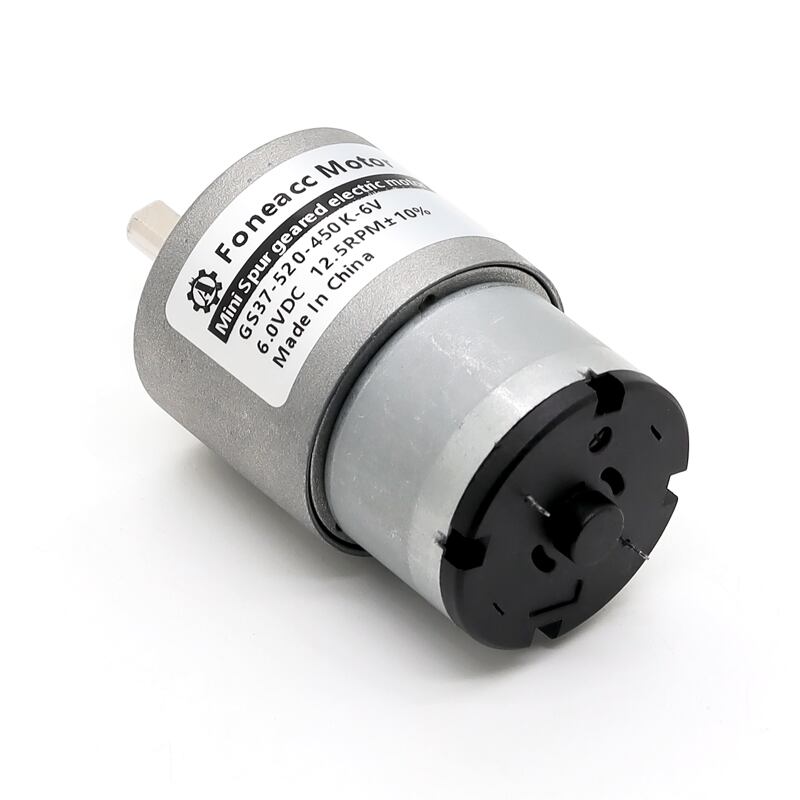

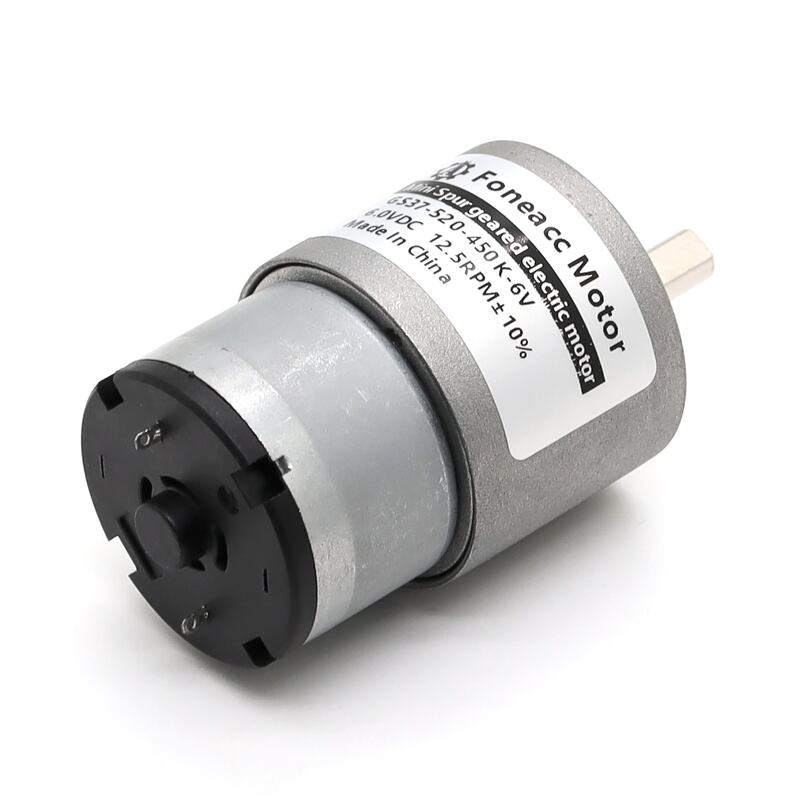

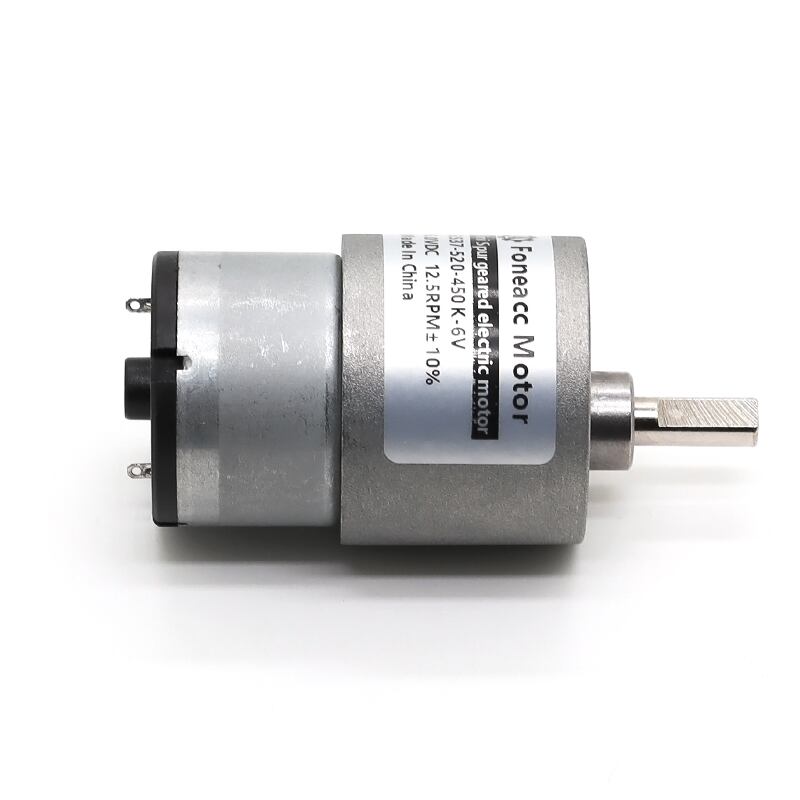

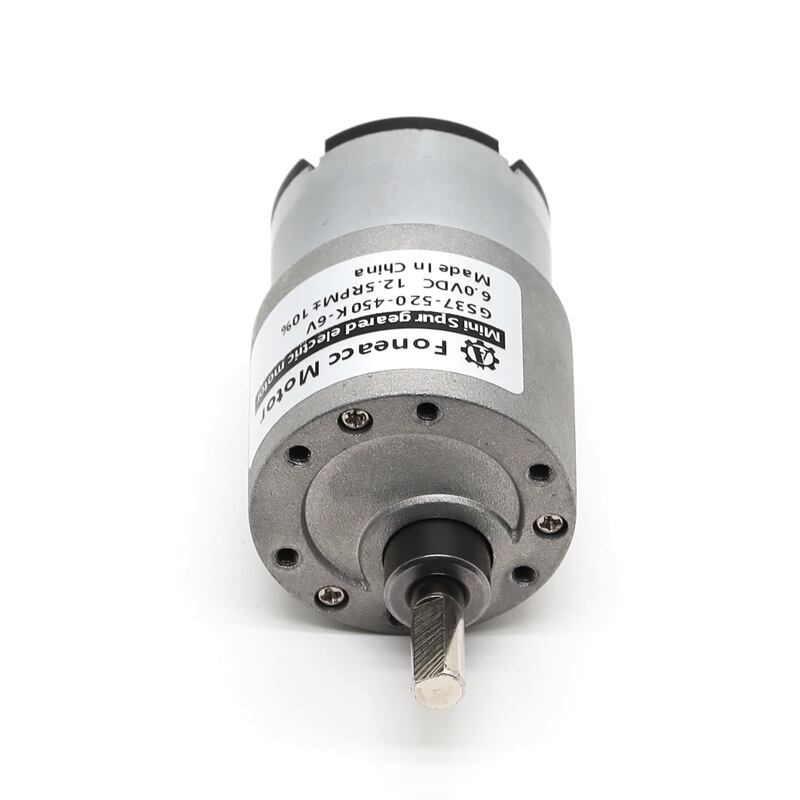

|- Model: GS37-520 micro metal gearmotor;
|- Gearbox: 37 mm metal spur gear reducer with parallel shaft ;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 13Kgf-cm ;
|- Size : Φ37 * L TBD ;
|- Shaft : Φ6mm D-cut 0.5mm, custom;
|- Encoder : Magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs
|- Model: GS37-520 micro metal gearmotor;
|- Gearbox: 37 mm metal spur gear reducer with parallel shaft ;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 13Kgf-cm ;
|- Size : Φ37 * L TBD ;
|- Shaft : Φ6mm D-cut 0.5mm, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs
Data table of GS37-520 spur gearhead dc electric motor
| Voltage | number of stages | 2 | 3 | 4 | 5 | 6 | |||||||||||
| Gear Ratio | 10 | 16.7 | 23.3 | 36 | 50 | 70 | 90 | 110 | 121 | 180 | 270 | 350 | 490 | 540 | 630 | 810 | |
| 6V | kgf.cm Rated Torque | 0.25 | 0.38 | 0.53 | 0.81 | 1.03 | 1.44 | 1.85 | 2.06 | 2.27 | 3.37 | 5.05 | 5.96 | 8.35 | 9.20 | 10.73 | 13.80 |
RPM Rated Speed | 480 | 287 | 206 | 133 | 96 | 69 | 53 | 44 | 40 | 27 | 18 | 14 | 10 | 9 | 8 | 6 | |
kgf.cm Max Allowable Moment Torque | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | |
RPM No Load Speed | 580 | 347 | 249 | 161 | 116 | 83 | 64 | 53 | 48 | 32 | 21 | 17 | 12 | 11 | 9 | 7 | |
| 12V | kgf.cm Rated Torque | 0.25 | 0.38 | 0.53 | 0.81 | 1.03 | 1.44 | 1.85 | 2.06 | 2.27 | 3.37 | 5.05 | 5.96 | 8.35 | 9.20 | 10.73 | 13.80 |
RPM Rated Speed | 500 | 299 | 215 | 139 | 100 | 71 | 56 | 45 | 41 | 28 | 19 | 14 | 10 | 9 | 8 | 6 | |
kgf.cm Max Allowable Moment Torque | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | |
RPM No Load Speed | 600.0 | 359.3 | 257.5 | 166.7 | 120.0 | 85.7 | 66.7 | 54.5 | 49.6 | 33.3 | 22.2 | 17.1 | 12.2 | 11.1 | 9.5 | 7.4 | |
Single motor RF-520 dc electric motor specs
| Model | Rated Voltage | No Load | RATED LOAD | Stall | ||||||
| Speed | Current | Speed | Current | Torque | Output | Efficiency | Torque | Current | ||
| VDC | RPM | A | RPM | A | gf.cm | W | % | gf.cm | A | |
| RF-520-22198 | 6 | 5800 | 0.07 | 4800 | 0.45 | 30 | 1.478 | 54.8 | 180 | 2.3 |
| RF-520-17370 | 12 | 6000 | 0.06 | 5000 | 0.25 | 30 | 1.540 | 51.3 | 215 | 1.2 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
