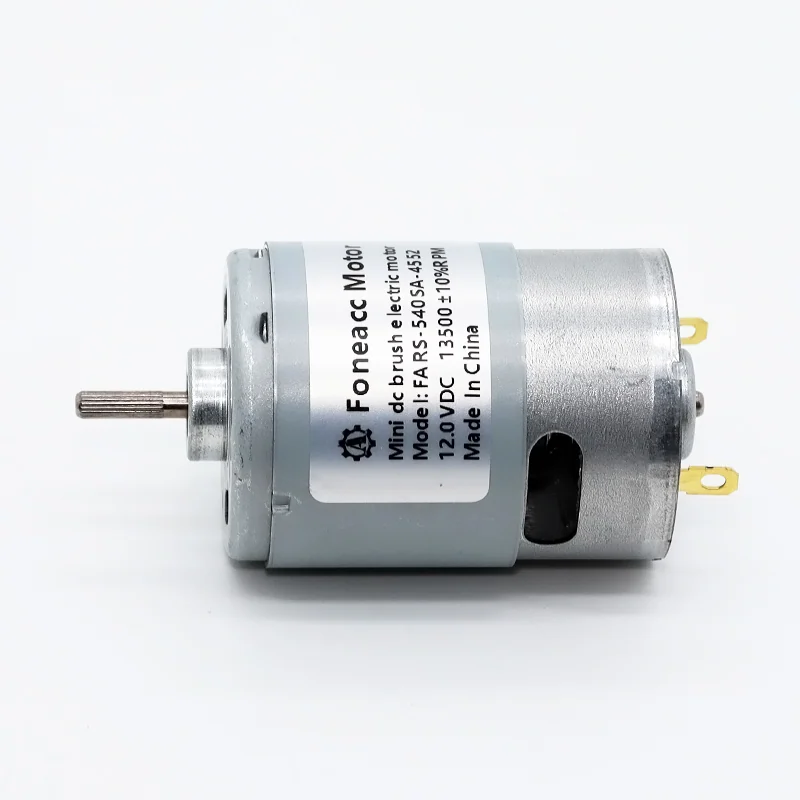

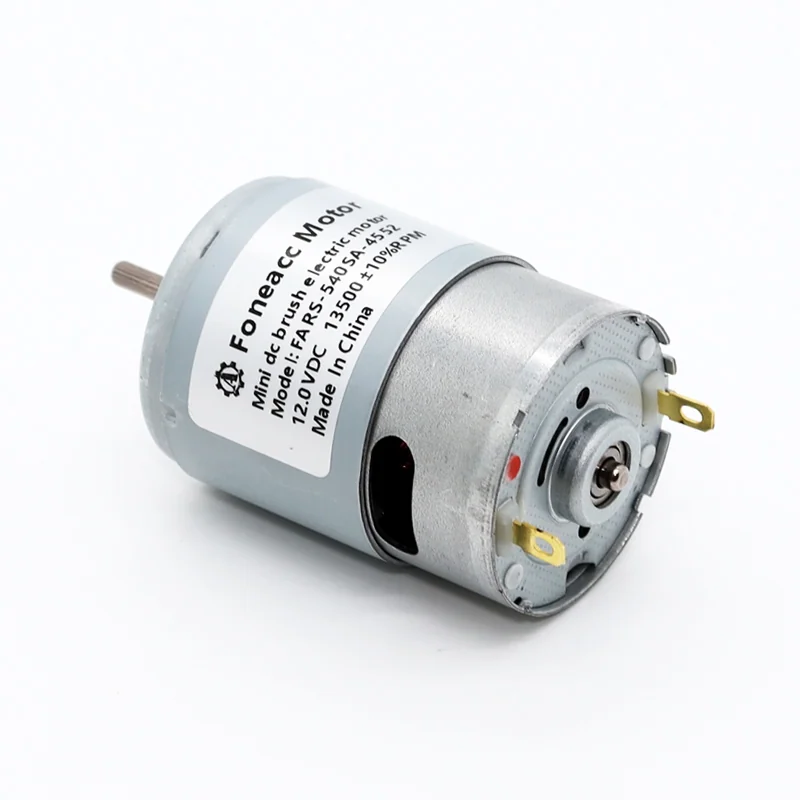

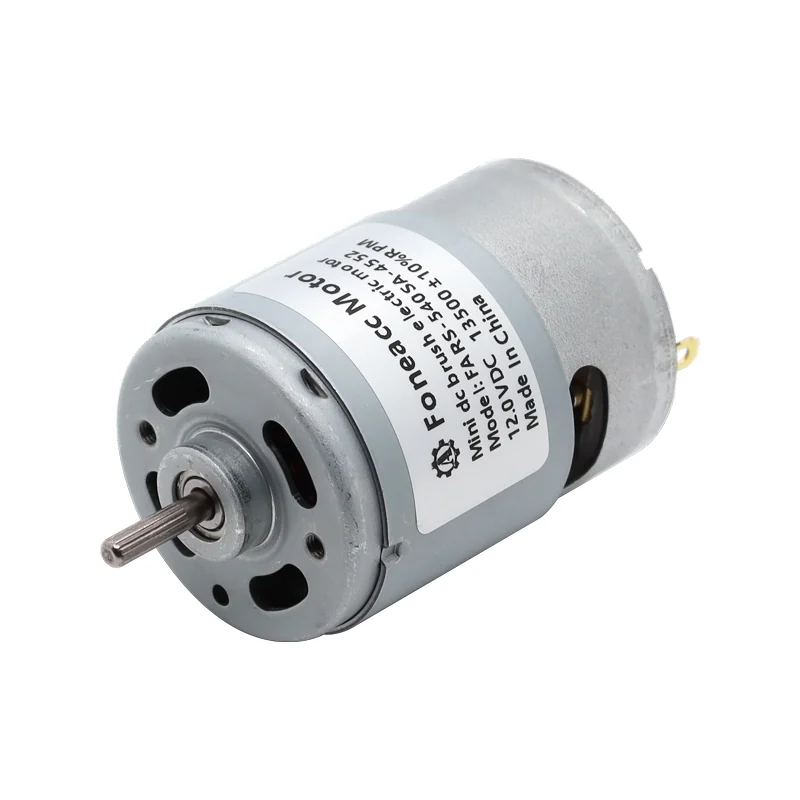

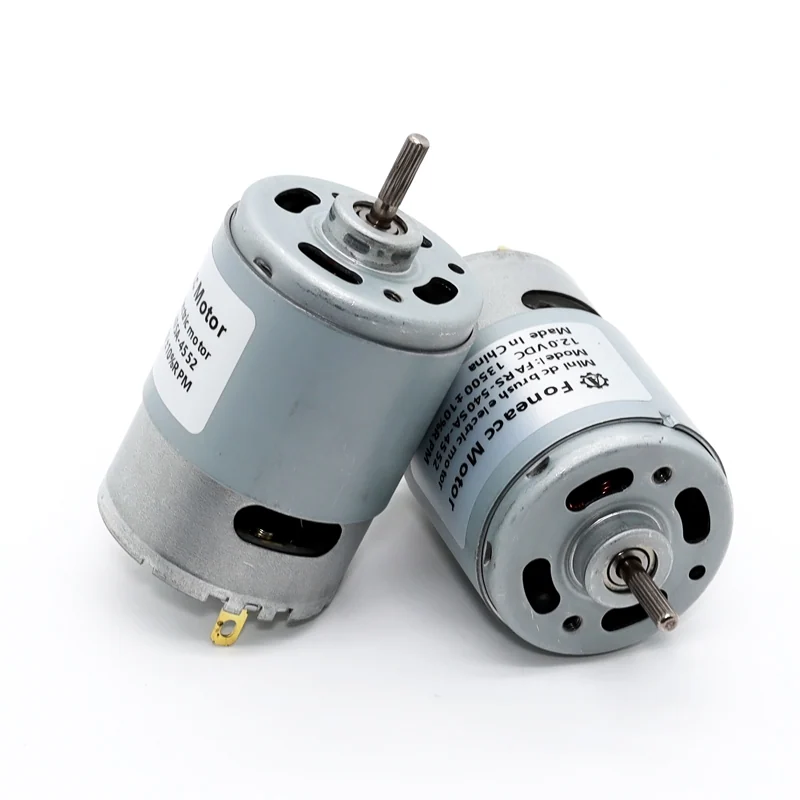

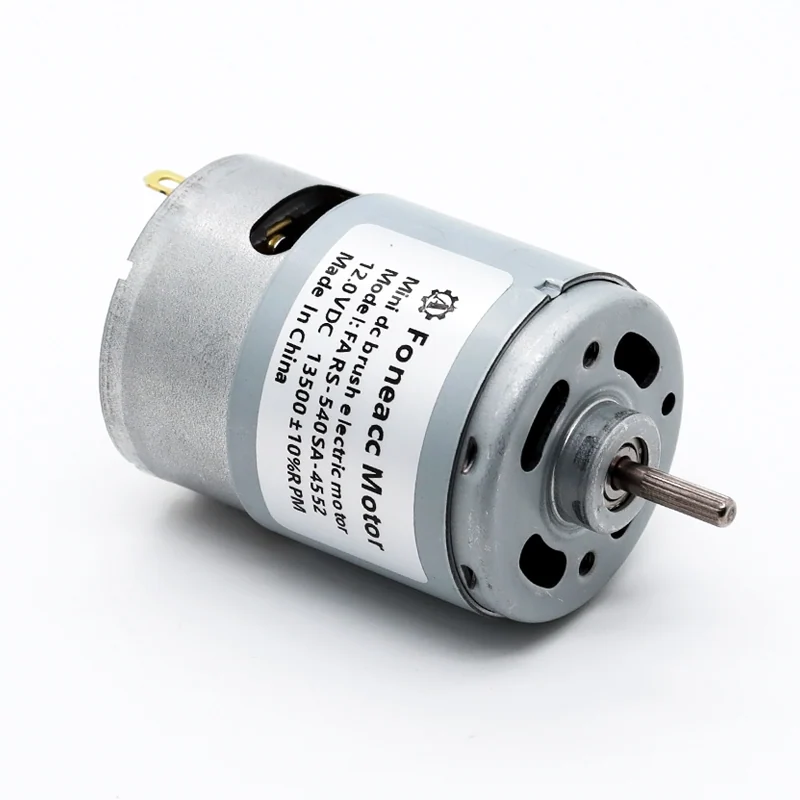

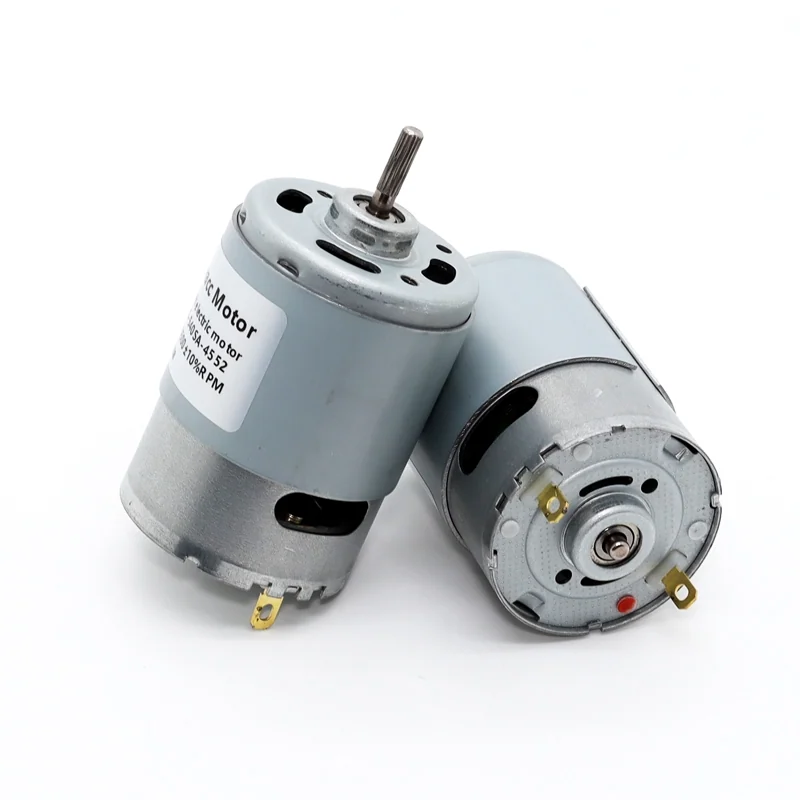

RS-540 Carbon Brushed Micro DC motor

|- Model Number: RS-540
|- Shell Stator Size : Φ35.8* L 50 mm(Φ 1.409 inch * 1.97 inch)
|- Shaft : Φ3.175mm(0.125 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 50W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 0.5 Kgf·cm(0.49 N·m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)

RS-540 Carbon Brushed micro dc motor


Main features:

|- Model Number: RS-540
|- Shell Stator Size : Φ35.8* L 50 mm(Φ 1.409 inch * 1.97 inch)
|- Shaft : Φ3.175mm(0.125 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 50W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 0.5 Kgf-cm(0.49 N-m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)


RS-540 and RS-545 dc motor data examples:

Model Voltage No load At Maximum Efficiency Stall
Range Rated Speed Current Speed Current Torque P.out EFF. Torque Current
V R/min A R/min A g-cm W % g-cm A
RS-540SH-5045 4.5-12 12 17,800 0.98 15,300 6.15 320 50.2 68.1 2,278 37.8
RS-540SH-4565 4.5-18 12 11,000 0.52 9,450 3.18 260 25.2 66.1 1,845 19.4
RS-540SA-33110 6-24 12 6,750 0.3 5,700 1.6 220 12.8 67 1,414 8.7
RS-540SA-18270 12-20 12 2,780 0.13 2,150 0.42 126 2.78 55.2 556 1.4
RS-545SH-5016 3-9 9 22,500 1.5 19,000 8.12 262 51.1 69.9 1,684 44.1
RS-545SH-5016 4.5-12 12 24000 1.3 20510 7.65 317 66.7 72.5 2181 45.0
RS-545SA-2870 6-20 9 2,270 0.23 1,840 1 150 2.83 68.7 792 4.3
RS-545SA-2486 9-20 12 4,800 0.25 3,800 0.99 175 6.83 57.5 840 3.8
RS-545SA-2595 9-20 12 4000 0.06 3200 0.48 120 3.94 68.4 600 2.16

Dimensions and performance curves of RS-540 dc motor for reference:

RS-540 micro brush dc electric motor

Dimensions and performance curves of RS-545 dc motor for reference:

RS-545 micro brush dc electric motor


Download RS-540 DC motor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
