RS-755 High speed high torque 12V 24V micro DC motors | Foneacc Motor

|- Model Number: RS-755
|- Shell Stator Size : Φ42* L 60 mm(Φ 2.637 inch * 2.362 inch)
|- Shaft : Φ5mm(0.197 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 80W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 0.9 Kgf·cm(0.88 N·m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)

RS-755 High speed high torque 12V 24V micro dc motors | Foneacc Motor


Main features:

|- Model Number: RS-755
|- Shell Stator Size : Φ42* L 60 mm(Φ 2.637 inch * 2.362 inch)
|- Shaft : Φ5mm(0.197 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 80W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 0.9 Kgf-cm(0.88 N-m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)


RS-755 dc motor data examples:

Model Voltage No load At Maximum Efficiency Stall
Range Rated Speed Current Speed Current Torque P.out EFF. Torque Current
V R/min A R/min A g-cm W % g-cm A
RS-755SH-27115 18-28 24 4,260 0.18 3,614 1.01 438 16.25 67.0 2,890 5.64
RS-755SH-7512R 4-19 6 9,500 2.26 8,123 9.31 460 38.36 68.7 3,130 66.34
RS-755VC-4540 9-32 18 10,000 0.85 8,400 4.47 630 54.33 67.5 3,945 23.5
RS-755VC-24120 12-27 24 3,500 0.22 2,840 0.95 468 13.65 59.8 2,487 4.10

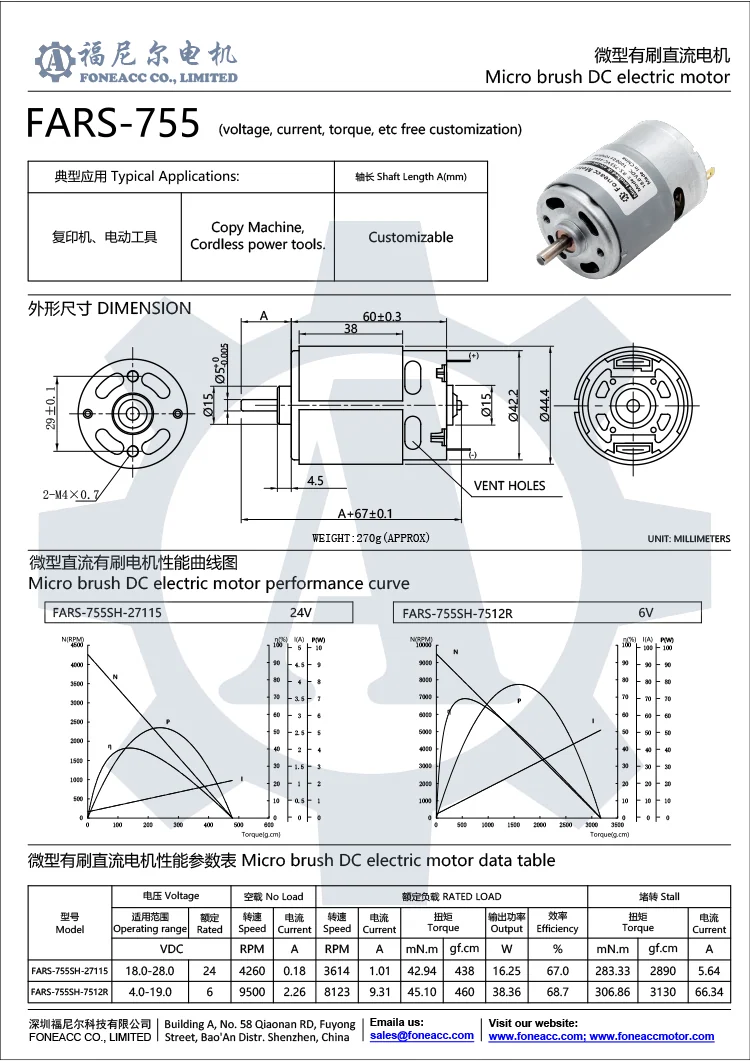

Dimensions and performance curves of RS-755 dc motor for reference:

RS-755 micro brush dc electric motor


Download RS-755 DC motor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
