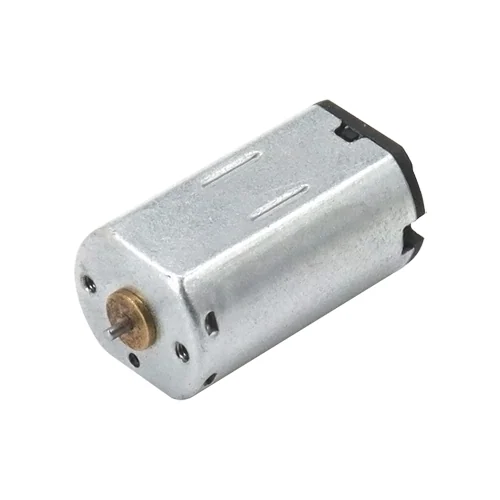

FF-M30VA 10mm Micro DC Motor

|- Model Number: FF-M310VA
|- Shell Stator Size : Φ10* L 20.3 mm(Φ 0.394 inch * 0.7992 inch)
|- Shaft : Φ1.0mm(0.0393inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 1W
|- Rated Voltage: DC 1.5V - 12V
|- Rated Torque: up to 3.5gf·cm(0.343 mN·m)
|- Construction: Permanent Magnet
|- Commutation: Metal/Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)

FF-M30VA 10mm micro dc motor


Main features:

|- Model Number: FF-M310VA
|- Shell Stator Size : Φ10* L 20.3 mm(Φ 0.394 inch * 0.7992 inch)
|- Shaft : Φ1.0mm(0.0393inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 1W
|- Rated Voltage: DC 1.5V - 12V
|- Rated Torque: up to 3.5gf-cm(0.343 mN-m)
|- Construction: Permanent Magnet
|- Commutation: Metal/Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)


FF-M30VA dc motor data examples:

Model Voltage No Load RATED LOAD Stall
range rated speed current speed current torque P eff. torque current
VDC RPM A RPM A gf.cm W % gf.cm A
FF-M30VA-1480 2~4 3 25000 0.15 18470 0.424 3.7 0.70 55.2 14 1.2
FF-M30VA-06270 2~9 9 11500 0.04 7858 0.086 2.6 0.21 27.1 8 0.18

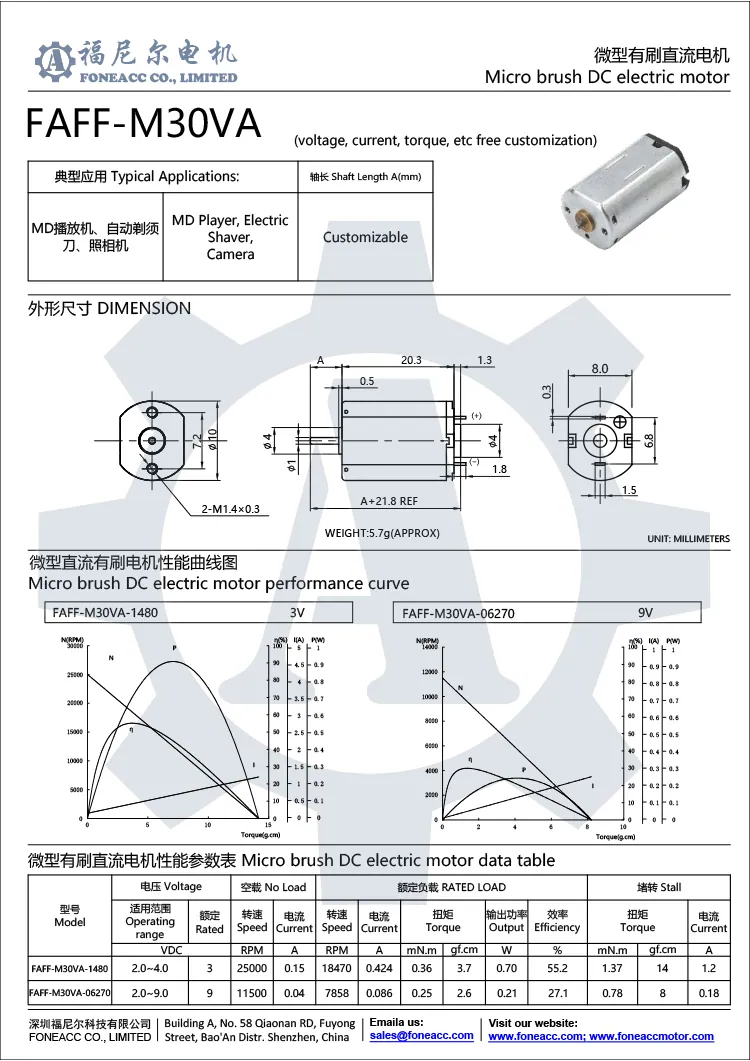

Dimensions and performance curves of FF-M30VA dc motor for reference:

ff-m30va micro brush dc electric motor


Download FF-M30VA DC motor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
