High torque PG45-BL4275 12V 24V 45mm diameter planetary geared bldc motor

PG45-BL4275 45mm mini epicyclic(planetary) gear motor

---

Main features:

|- Model: PG45-BL4275; BL4275 BLDC motor with gearbox.
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 9V,12V,24V,36V;
|- Rated Torque: Max. 200Kgf-cm ;
|- Size : Φ45* L TBD ;
|- Shaft : concentric driveshaft, Φ10mm D-cut 2mm, custom;
|- Commutation: Brushless, PWM-driven;
|- Construction: Permanent Magnet;

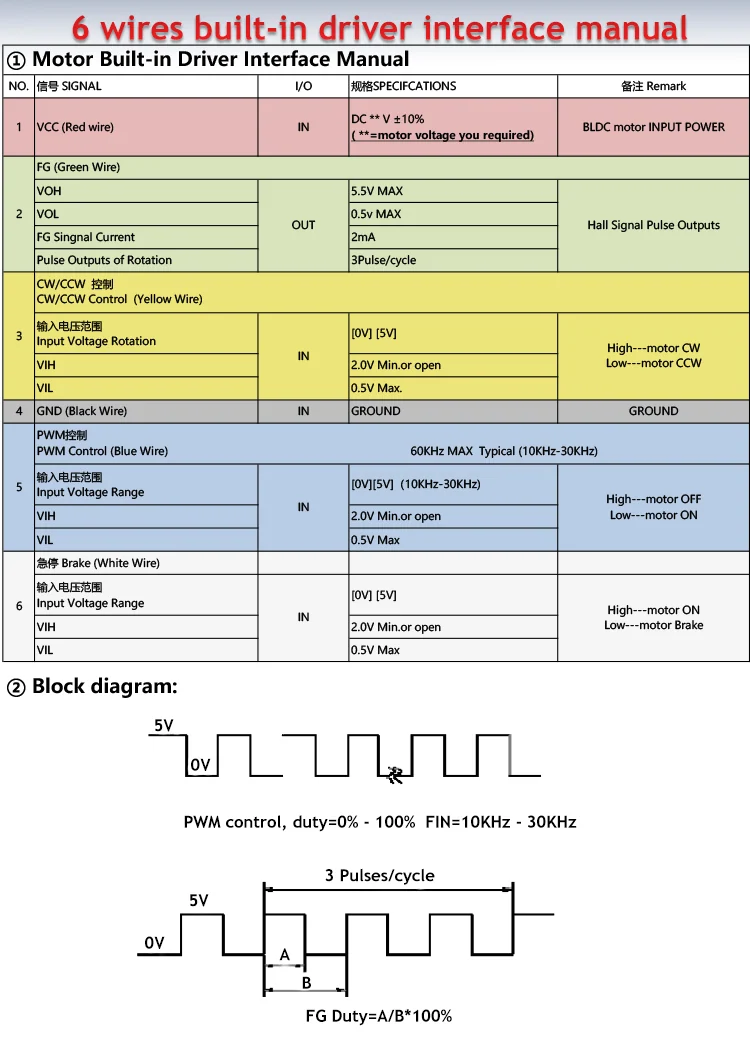

|- Control: Built-in driver board with hall sensors;
|- MOQ: 500 pcs;

---

PG45-BL4275 mini bldc planetary geared motor data examples:

Model	No Load	Rated Load		Breaking Torque
	Speed	Torque	Speed
	r/min	kgf-cm	r/min	kgf-cm
PG45-BL4275-12V3.7K	1837.8	1.5	1540.5	100
PG45-BL4275-12V10K	680.0	4.0	570.0	300
PG45-BL4275-12V14K	485.7	4.9	407.1	300
PG45-BL4275-12V19K	357.9	6.7	300.0	300
PG45-BL4275-12V32.5K	206.1	11.6	172.7	600
PG45-BL4275-12V51K	133.3	15.3	111.8	600
PG45-BL4275-12V71K	95.8	21.3	80.3	600
PG45-BL4275-12V100K	68.0	30.0	57.0	600
PG45-BL4275-12V139K	48.9	41.7	41.0	600
PG45-BL4275-12V188K	36.2	47.0	30.3	600
PG45-BL4275-12V264K	25.8	66.0	21.6	600
PG45-BL4275-12V369K	18.4	92.3	15.4	600
PG45-BL4275-12V516K	13.2	129.0	11.0	600
PG45-BL4275-12V699K	9.7	174.8	8.2	600
PG45-BL4275-12V1367K	5.0	341.8	4.2	600
PG45-BL4275-12V1911K	3.6	477.8	3.0	600
PG45-BL4275-24V3.7K	1110.8	3.4	913.0	100
PG45-BL4275-24V10K	411.0	9.2	337.8	300
PG45-BL4275-24V14K	293.6	11.2	241.3	300
PG45-BL4275-24V19K	216.3	15.2	177.8	300
PG45-BL4275-24V32.5K	124.5	26.5	102.4	600
PG45-BL4275-24V51K	80.6	35.1	66.2	600
PG45-BL4275-24V71K	57.9	48.8	47.6	600
PG45-BL4275-24V100K	41.1	68.8	33.8	600
PG45-BL4275-24V139K	29.6	95.6	24.3	600
PG45-BL4275-24V188K	21.9	107.7	18.0	600
PG45-BL4275-24V264K	15.6	151.3	12.8	600
PG45-BL4275-24V369K	11.1	211.4	9.2	600
PG45-BL4275-24V516K	8.0	295.7	6.5	600
PG45-BL4275-24V699K	5.9	400.5	4.8	600
PG45-BL4275-24V1367K	3.0	x	2.5	600
PG45-BL4275-24V1911K	2.2	x	1.8	600

---

Dimensions and configurations of PG45-BL4275 mini bldc planetary gear motor for reference:

---

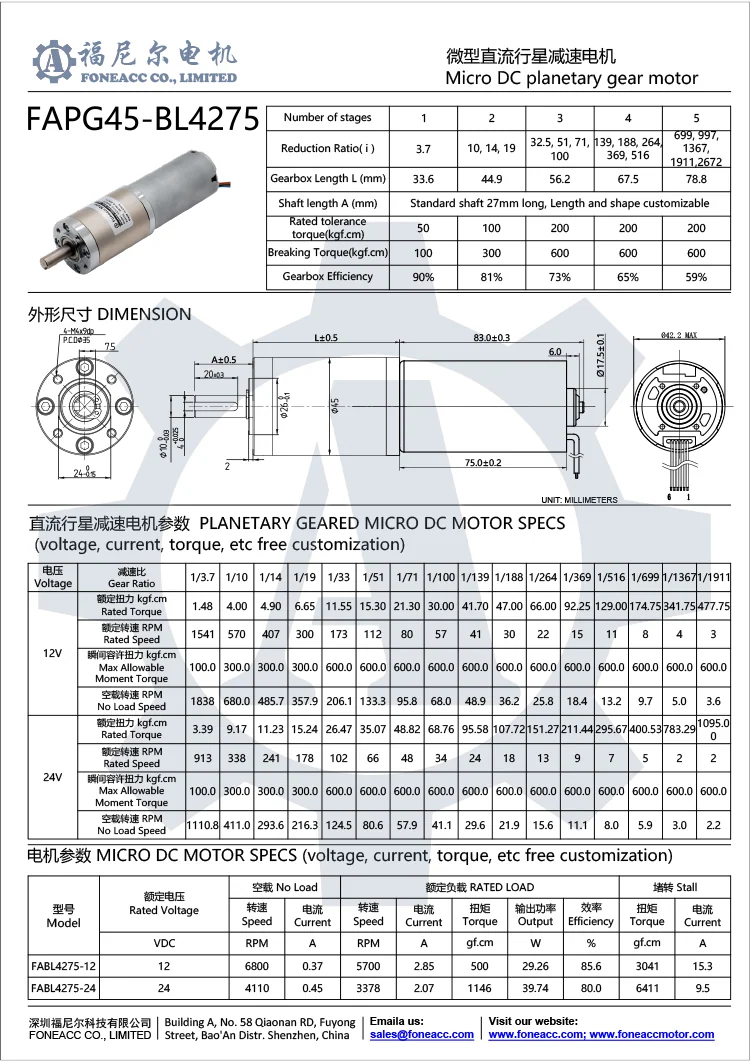

Download PG45-BL4275 mini dc gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
