|- Model Number: FK-180SH
|- Shell Stator Size : Φ20.4* L 32.1 mm(Φ 0.803 inch * 1.2638 inch)
|- Shaft : Φ2.0mm(0.0787 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 14W
|- Rated Voltage: DC 1.5V - 24V
|- Rated Torque: up to 20gf·cm(1.96 mN·m)
|- Construction: Permanent Magnet
|- Commutation: Metal/Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)

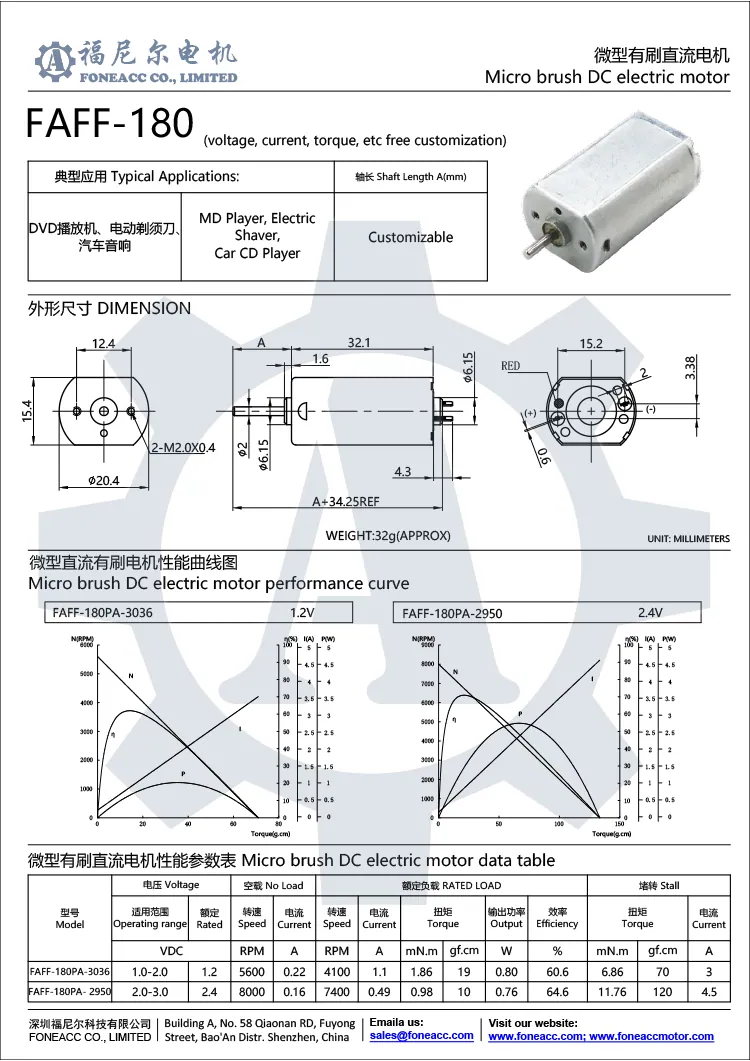

|- Model Number: FK-180SH, carbon brush version FF-180
|- Shell Stator Size : Φ20.4* L 32.1 mm(Φ 0.803 inch * 1.2638 inch)
|- Shaft : Φ2.0mm(0.0787 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 14W
|- Rated Voltage: DC 1.5V - 24V
|- Rated Torque: up to 20gf-cm(1.96 mN-m)
|- Construction: Permanent Magnet
|- Commutation: Metal/Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
| Model | Voltage | No load | At maximum efficiency | Stall | |||||||
| Range | Rated | Speed | Current | Speed | Current | Torque | P.out | Eff. | Torque | Current | |
| V | R/min | A | R/min | A | gf-cm | W | % | gf-cm | A | ||

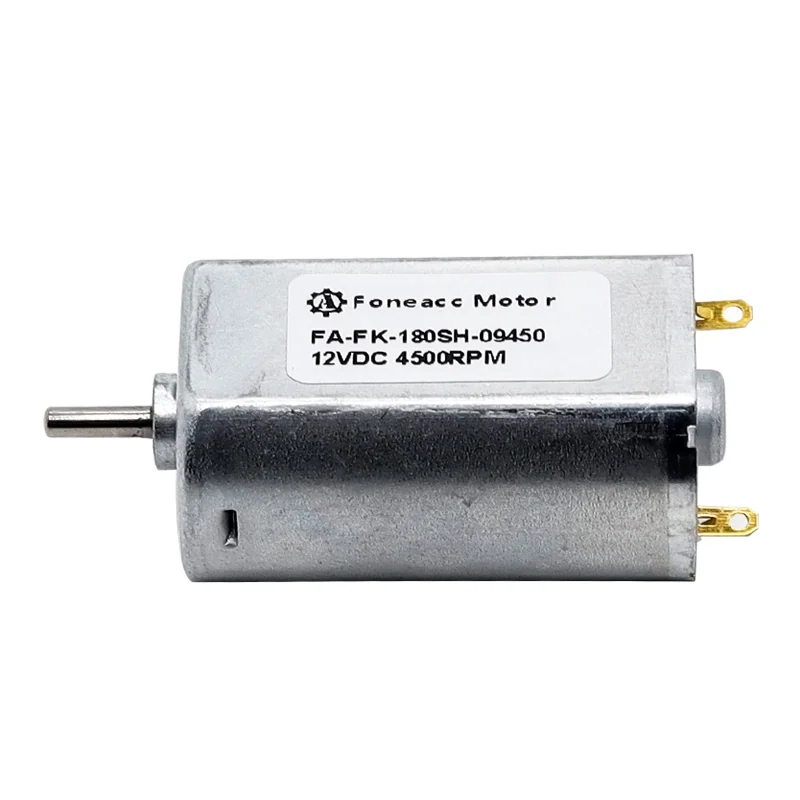

| FK-180SH-09450 | 12~24 | 12 | 4,400 | 0.021 | 3,500 | 0.082 | 13.6 | 0.49 | 69.4 | 67 | 0.32 |
| FK-180SH-17140 | 6~12 | 6 | 7,800 | 0.085 | 6,390 | 0.39 | 20.8 | 1.36 | 58.3 | 115 | 1.75 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
