ODØ 16mm small coreless dc electric motor

  • 1620R 16mm diameter precision brushed coreless dc electric motors

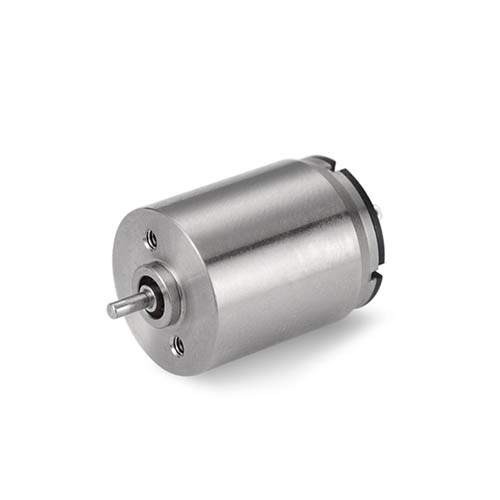

1620R 16mm diameter precision brushed coreless dc electric motors

1620R 16mm diameter precision brushed coreless dc electric motors

  • Model: 1620R
  • Dia/OD: 16mm
  • Depth: 20mm
  • Type: brushed coreless motor
  • Product description:We are 1620R China small dc motor factory, We offer 16mm diameter precision coreless dc electric motors specs custom, you can check with our engineer for advice and pricing.
  • INQUIRY
1620R 16mm diameter precision brushed coreless dc electric motors

Detailed specs as below:
电机参数(Motor data) 1620R-19A 1620R-31A 1620R-11A 1620R-34A 1620R-06A 1620R-01A
额定电压下数值 (Values at nominal voltage)
1 额定电压(Nominal  voltage VDC 3 4 4.5 8 12 24
2 空载转速(No load speed) rpm 4680 7430 10800 10000 12500 12200
3 空载电流(No load current) mA 10 20 35 15 23 10
4 额定转速(Nominal  speed) rpm 3720 6612 9774 9150 10750 10065
5 额定转矩(Nominal torque) mNm 0.5 0.5 0.5 0.5 1 1.5
6 额定电流(Nominal  current) A 0.09 0.11 0.15 0.08 0.13 0.08
7 堵转转矩(Stall torque) mNm 2.4 4.5 5.3 6 7.09 8.5
8 堵转电流(Stall current) A 0.4 0.89 1.36 0.8 0.79 0.46
9 最大效率(Max efficiency) % 74 75 75 74 72 75
电机常数(Motor constant)
10 相间电阻(Terminal resistance) Ω 7.5 4.5 3.3 10 15.2 52
11 转矩常数(Torque constant) mNm/A 6.0 5.04 3.9 7.49 8.99 18.42
12 速度常数(Speed constant) rpm/V 1560 1857 2400 1250 1042 508
其他特性参数(Other specs)
13 环境温度范围 (Ambient temperature ) -10~40
14 绕组最高允许温度
(Max permissible winding temperature)
80
15 最高允许转速(Max permissible speed) 20000rpm
16 电极磁极对数(Number of the pole pairs) 1
17 换向器片数(Number of the commutator  segments) 5
18 电机质量(Weight) 24.35g

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

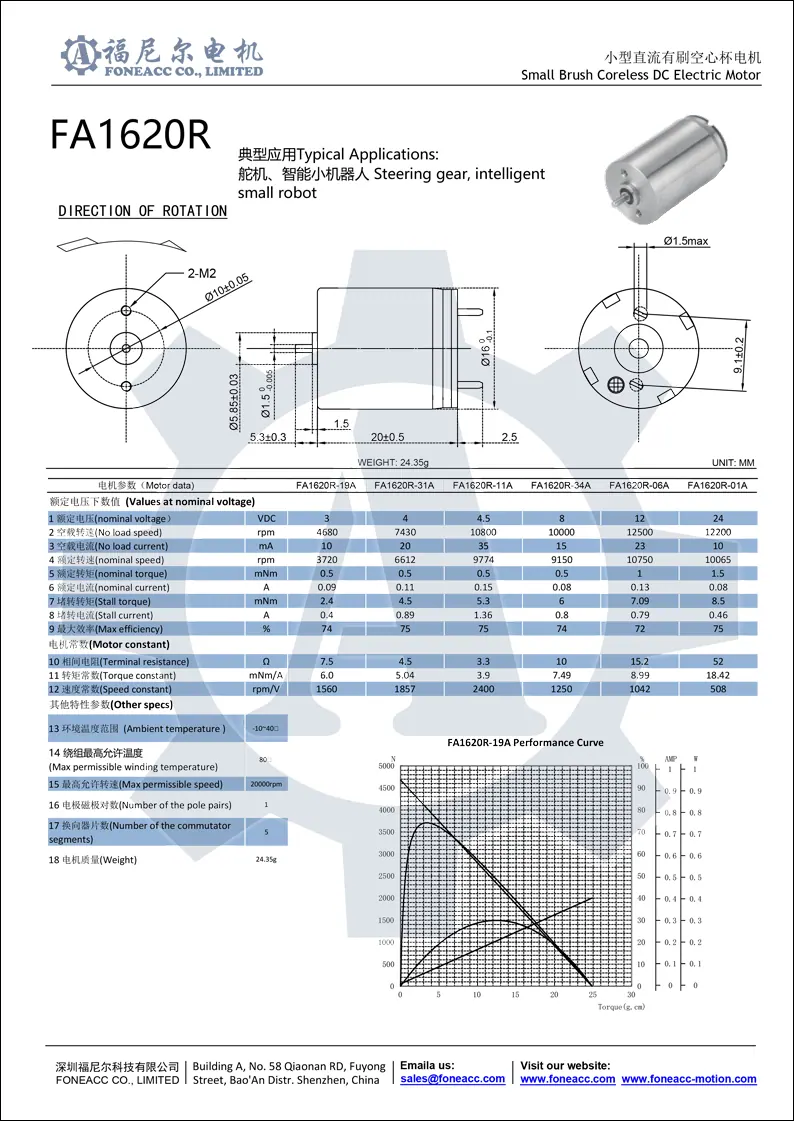

1620R <a href=/micro-brush-coreless-motor.html target='_blank'>coreless dc motor</a> specifications

Download and view 1620R.pdf
