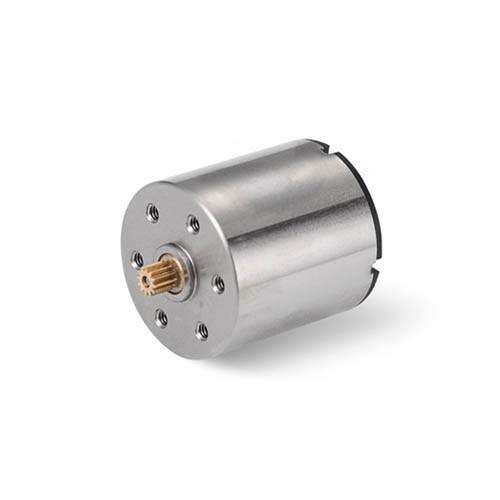

OD Φ 17mm small coreless dc electric motor

  • 1718R 17mm diameter precision brush coreless dc electric motors
1718R 17mm diameter precision brush coreless dc electric motors

1718R 17mm diameter precision brush coreless dc electric motors

  • Model: 1718R
  • Diameter: 17mm
  • Length: 18mm
  • Type: brush coreless motor
  • Product description:1718R 17mm small coreless dc electric motor, FONEACC, small coreless dc electric motor, small coreless dc motor, coreless dc motor, coreless motor, small dc motor, ironless electric motor, slotless br
  • INQUIRY
1718R 17mm diameter precision brush coreless dc electric motors

See detailed specs as below:

电机参数(Motor data) 1718R-35D 1718R-01A 1718R-87A 1718R-85B 1718R-88A
额定电压下数值 (Values at nominal voltage)
1 额定电压(Nominal  voltage VDC 5 7.4 11.1 12 24
2 空载转速(No load speed) rpm 16500 25500 18500 25600 20000
3 空载电流(No load current) mA 60 70 30 33 13
4 额定转速(Nominal  speed) rpm 14602 23460 16835 23168 18300
5 额定转矩(Nominal torque) mNm 1.5 1.5 1.5 1.5 1.5
6 额定电流(Nominal  current) A 0.58 0.6 0.3 0.36 0.14
7 堵转转矩(Stall torque) mNm 13 18.2 16.8 15.35 17.1
8 堵转电流(Stall current) A 4.59 6.73 3.00 3.5 1.53
9 最大效率(Max efficiency) % 80 82 82 83 83
电机常数(Motor constant)
10 相间电阻(Terminal resistance) Ω 1.09 1.1 3.7 3.43 15.7
11 转矩常数(Torque constant) mNm/A 2.83 2.72 5.62 4.39 11.24
12 速度常数(Speed constant) rpm/V 3300 3445 1666 2133 833
其他特性参数(Other specs)
13 环境温度范围 (Ambient temperature ) -10~40
14 绕组最高允许温度
(Max permissible winding temperature)
80
15 最高允许转速(Max permissible speed) 20000rpm
16 电极磁极对数(Number of the pole pairs) 1
17 换向器片数(Number of the commutator  segments) 5
18 电机质量(Weight) 24.85g

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

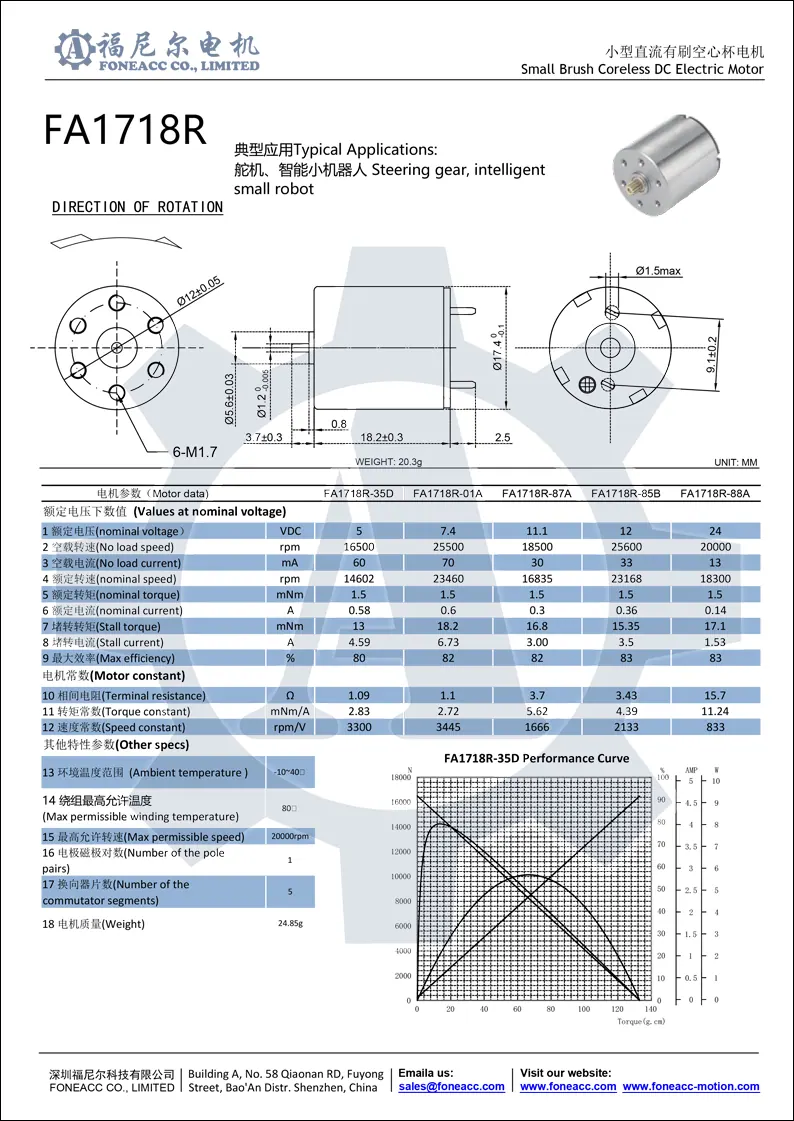

Download and view HD file: 1718R.pdf
