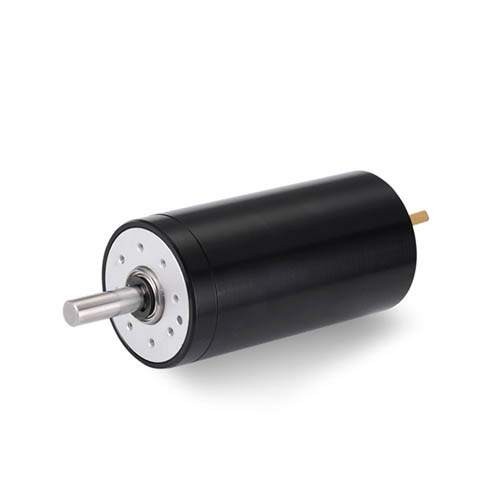

  • 3265R 32mm diameter precision brush coreless dc electric motors
3265R 32mm diameter precision brush coreless dc electric motors

3265R 32mm diameter precision brush coreless dc electric motors

  • Model: 3265R
  • Diameter: 32mm
  • Length: 65mm
  • Type: coreless dc motor
  • Product description:We FONEACC, manufactures and sells 3265R 32mm coreless dc motor to the world with high quality and good service~
  • INQUIRY
3265R 32mm diameter precision brush coreless dc electric motors

See detailed specs as below:
电机参数(Motor data)   3265R-01A 3265R-02A 3265R-03A 3265R-04A
额定电压下数值 (Values at nominal voltage)
额定电压(Nominal  voltage                   VDC 24 24 24 36
空载转速(No load speed) rpm 5860 4400 6400 8850
空载电流(No load current) mA 75 50 77 115
额定转速(Nominal  speed) rpm 5150 3740 5474 8400
额定转矩(Nominal torque) mNm 50 15 30 40
额定电流(Nominal  current) A 1.4 0.33 0.95 1.15
堵转转矩(Stall torque) mNm 426 98.04 200 797
堵转电流(Stall current) A 11.11 1.90 5.7 20.9
最大效率(Max efficiency) % 85 74 80 86
电机常数(Motor constant)
10  相间电阻(Terminal resistance) Ω 2.16 12.5 4.18 1.72
11  转矩常数(Torque constant) mNm/A 38.35 51.07 34.89 38.09
12  速度常数(Speed constant) rpm/V 244 183 268 246
其他特性参数(Other specs)
13  环境温度范围 (Ambient temperature ) -10~40
14  绕组最高允许温度(Max permissible winding temperature)
80
15  最高允许转速(Max permissible speed) 10000rpm
16  电极磁极对数(Number of the pole pairs) 1
17  换向器片数(Number of the commutator  segments) 5
18  电机质量(Weight) 225g


Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

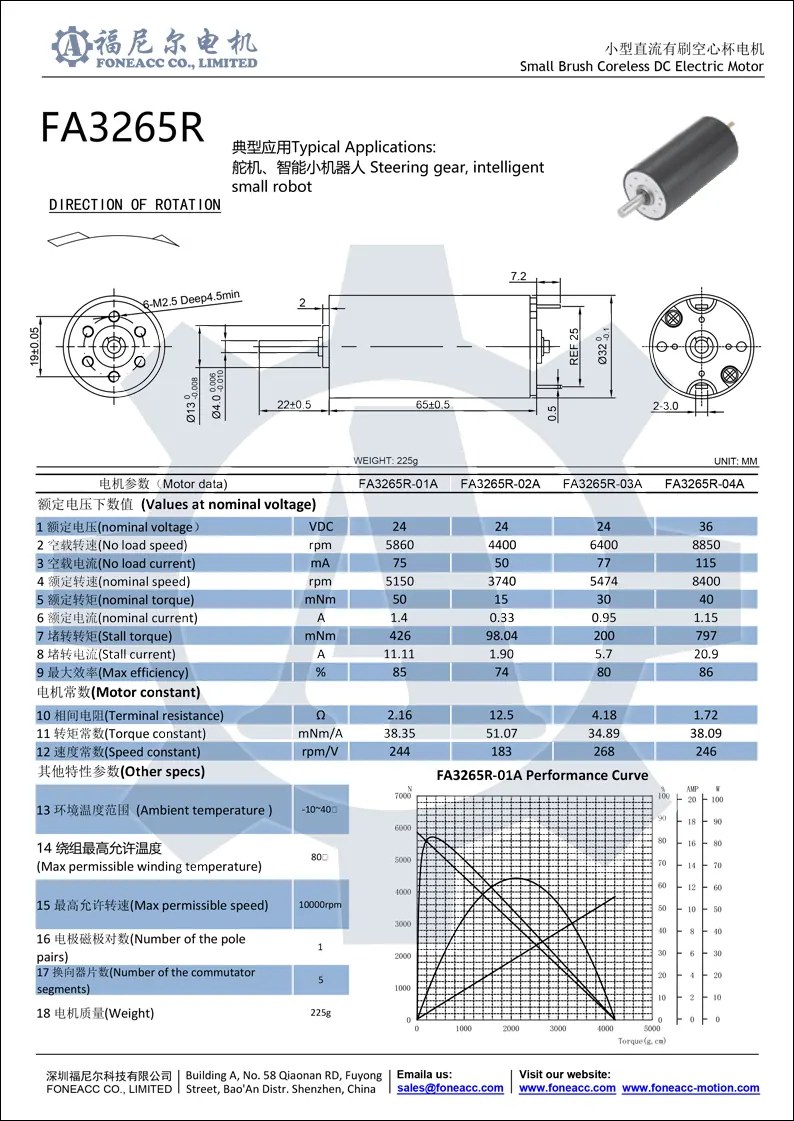

 Download and view HD file: 3264R.pdf
