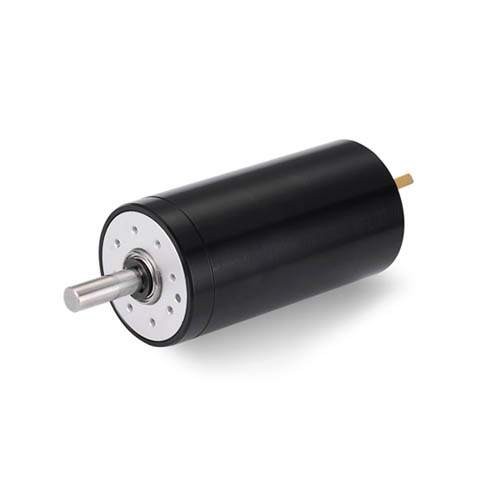

3570R 35mm diameter precision brushed coreless dc electric motors

  • Model: 3570R
  • Diameter: 35mm
  • Length: 70mm
  • Type: brush coreless motor
  • Product description:3570R 35mm small coreless dc electric motor, FONEACC, small coreless dc electric motor, small coreless dc motor, coreless dc motor, coreless motor, small dc motor, ironless electric motor, slotless br
  • INQUIRY

3570R 35mm diameter precision brushed coreless dc electric motors

See detailed specs as below:

电机参数(Motor data)   3570R-09A 3570R-11A 3570R-01A 3570R-08A
额定电压下数值 (Values at nominal voltage)
额定电压(Nominal  voltage                   VDC 12 12 24 24
空载转速(No load speed) rpm 4500 5500 4300 5800
空载电流(No load current) mA 140 150 70 100
额定转速(Nominal  speed) rpm 3670 4867 3700 5070
额定转矩(Nominal torque) mNm 100 100 100 100
额定电流(Nominal  current) A 4.04 5.06 1.94 2.67
堵转转矩(Stall torque) mNm 544 875 704 801
堵转电流(Stall current) A 21.82 42.86 13.48 20.69
最大效率(Max efficiency) % 85 89 87 87
电机常数(Motor constant)
10  相间电阻(Terminal resistance) Ω 0.55 0.28 1.78 1.16
11  转矩常数(Torque constant) mNm/A 24.97 20.43 52.30 38.74
12  速度常数(Speed constant) rpm/V 375 458 179 242
其他特性参数(Other specs)
13  环境温度范围 (Ambient temperature ) -10~40
14  绕组最高允许温度
(Max permissible winding temperature)
80
15  最高允许转速(Max permissible speed) 8000rpm
16  电极磁极对数(Number of the pole pairs) 1
17  换向器片数(Number of the commutator  segments) 5
18  电机质量(Weight) 310g


Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

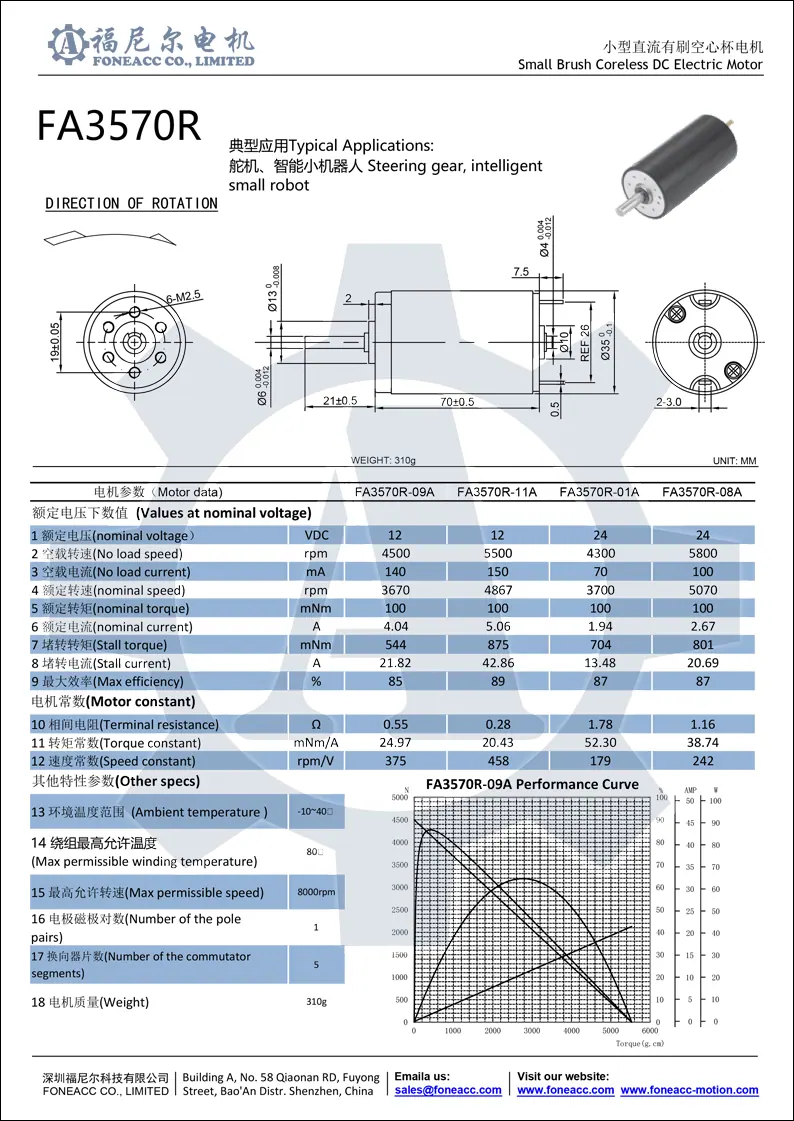

 3570R specs

Download and view HD file: 3570R.pdf
