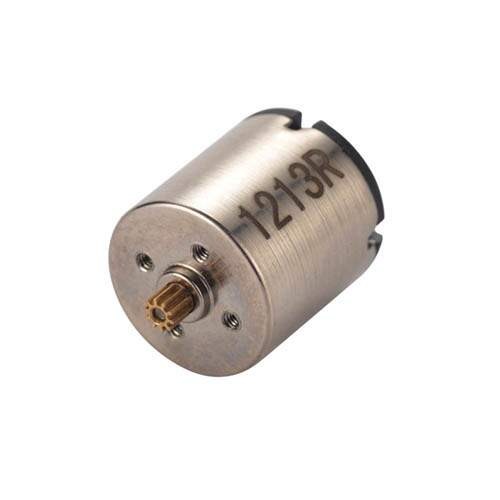

OD Φ 12mm small coreless dc electric motor

  • 1213R 12mm diameter precision brushed coreless dc electric motors
1213R 12mm diameter precision brushed coreless dc electric motors

1213R 12mm diameter precision brushed coreless dc electric motors

  • Model: 1213R
  • OD: 12mm
  • Depth: 13mm
  • Type: brushed coreless motor
  • Product description:We are 1213R China small dc motor factory, We offer 12mm diameter precision coreless dc electric motors specs custom, you can check with our engineer for advice and pricing.
  • INQUIRY
1213R 12mm diameter precision brushed coreless dc electric motors
Details specs as below:
电机参数(Motor data)   1213R-01A 1213R-04A 1213R-03A 1213R-02A
额定电压下数值 (Values at nominal voltage)
额定电压(Nominal  voltage                   VDC 6 6 7.4 7.4
空载转速(No load speed) rpm 30000 33500 17200 22250
空载电流(No load current) mA 50 62 30 30
额定转速(Nominal  speed) rpm 23550 26800 13500 16780
额定转矩(Nominal torque) mNm 0.4 0.5 0.5 0.5
额定电流(Nominal  current) A 0.25 0.34 0.14 0.18
堵转转矩(Stall torque) mNm 1.84 2.45 2.23 2.02
堵转电流(Stall current) A 0.98 1.46 0.56 0.65
最大效率(Max efficiency) % 66 68 66 67
电机常数(Motor constant)
10  相间电阻(Terminal resistance) Ω 6.1 4.1 13.3 11.36
11  转矩常数(Torque constant) mNm/A 1.87 1.68 4.03 3.11
12  速度常数(Speed constant) rpm/V 5000 5583 2324 3007
其他特性参数(Other specs)
13  环境温度范围 (Ambient temperature ) -10~40
14  绕组最高允许温度
(Max permissible winding temperature)
80
15  最高允许转速(Max permissible speed) 37000rpm
16  电极磁极对数(Number of the pole pairs) 1
17  换向器片数(Number of the commutator  segments) 5
18  电机质量(Weight) 5.8g
  Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

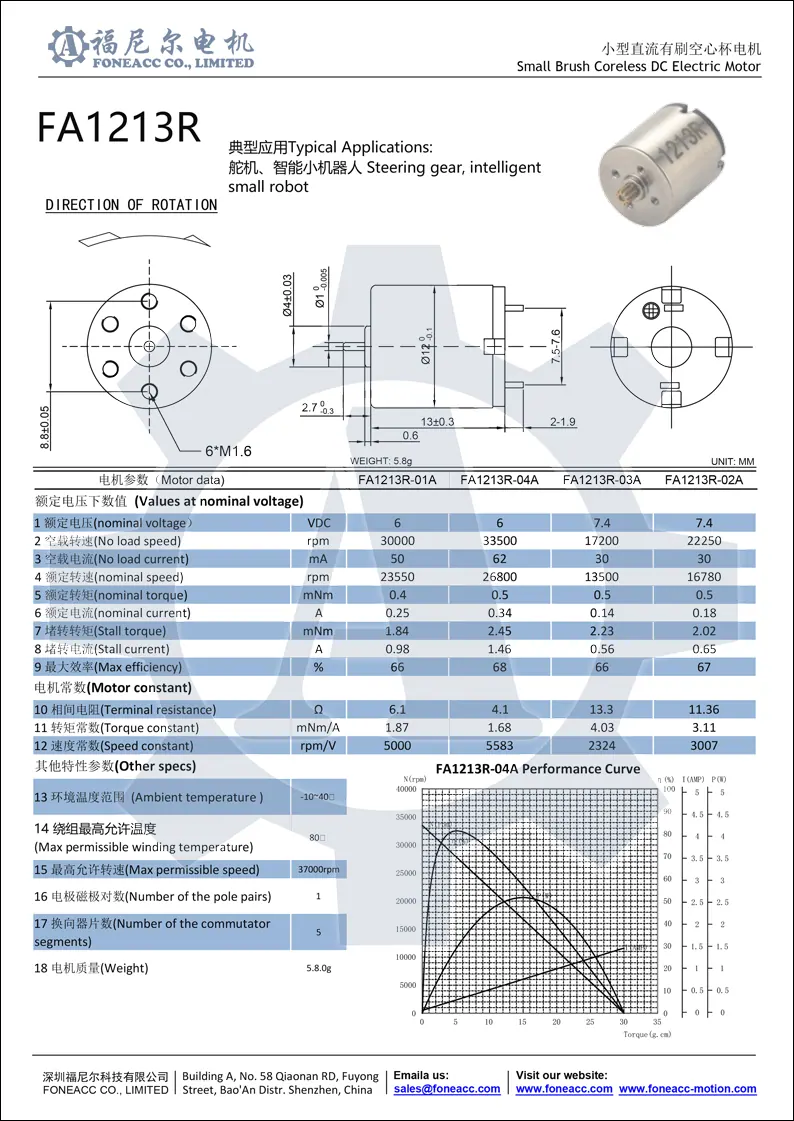

1213R specs
To view HD specs, you can download the file 1213R.pdf
