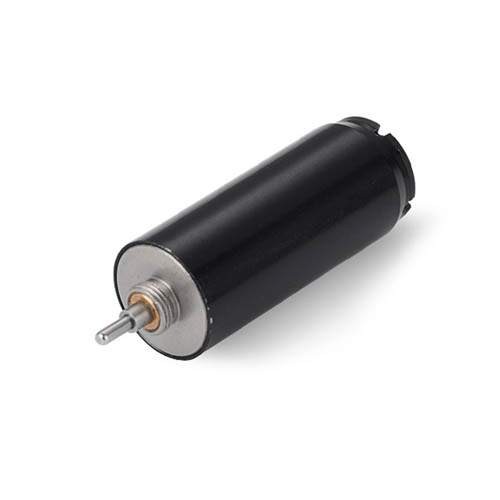

OD Φ 13mm small coreless dc electric motor

  • 1332R 13mm diameter precision brushed coreless dc electric motors
1332R 13mm diameter precision brushed coreless dc electric motors

1332R 13mm diameter precision brushed coreless dc electric motors

  • Model: 1332R
  • Dia/OD: 13mm
  • Length: 32mm
  • Type: brushed coreless motor
  • Product description:We are 1332R China manufacturer, we wholesale 13mm diameter precision coreless dc electric motors, small dc motor to clients all over the world.
  • INQUIRY
1332R 13mm diameter precision brushed coreless dc electric motors

See detailed specs as below:
电机参数(Motor data)   1332R-15A 1332R-24A 1332R-23A 1332R-17A
额定电压下数值 (Values at nominal voltage)
额定电压(Nominal  voltage                   VDC 3.7 5 7.2 12
空载转速(No load speed) rpm 14000 9700 12000 9000
空载电流(No load current) mA 70 25 18 15
额定转速(Nominal  speed) rpm 12670 8532 10620 7830
额定转矩(Nominal torque) mNm 1.5 1.5 1.5 1.5
额定电流(Nominal  current) A 0.65 0.33 0.28 0.13
堵转转矩(Stall torque) mNm 15.25 12.3 13.26 11.61
堵转电流(Stall current) A 6.17 2.55 2.36 0.93
最大效率(Max efficiency) % 81 81 84 78
电机常数(Motor constant)
10  相间电阻(Terminal resistance) Ω 0.6 1.96 3.05 12.9
11  转矩常数(Torque constant) mNm/A 2.47 4.83 5.62 12.48
12  速度常数(Speed constant) rpm/V 3783 1940 1666 750
其他特性参数(Other specs)
13  环境温度范围 (Ambient temperature ) -10~40
14  绕组最高允许温度
(Max permissible winding temperature)
80
15  最高允许转速(Max permissible speed) 20000rpm
16  电极磁极对数(Number of the pole pairs) 1
17  换向器片数(Number of the commutator  segments) 5
18  电机质量(Weight) 20.9g

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

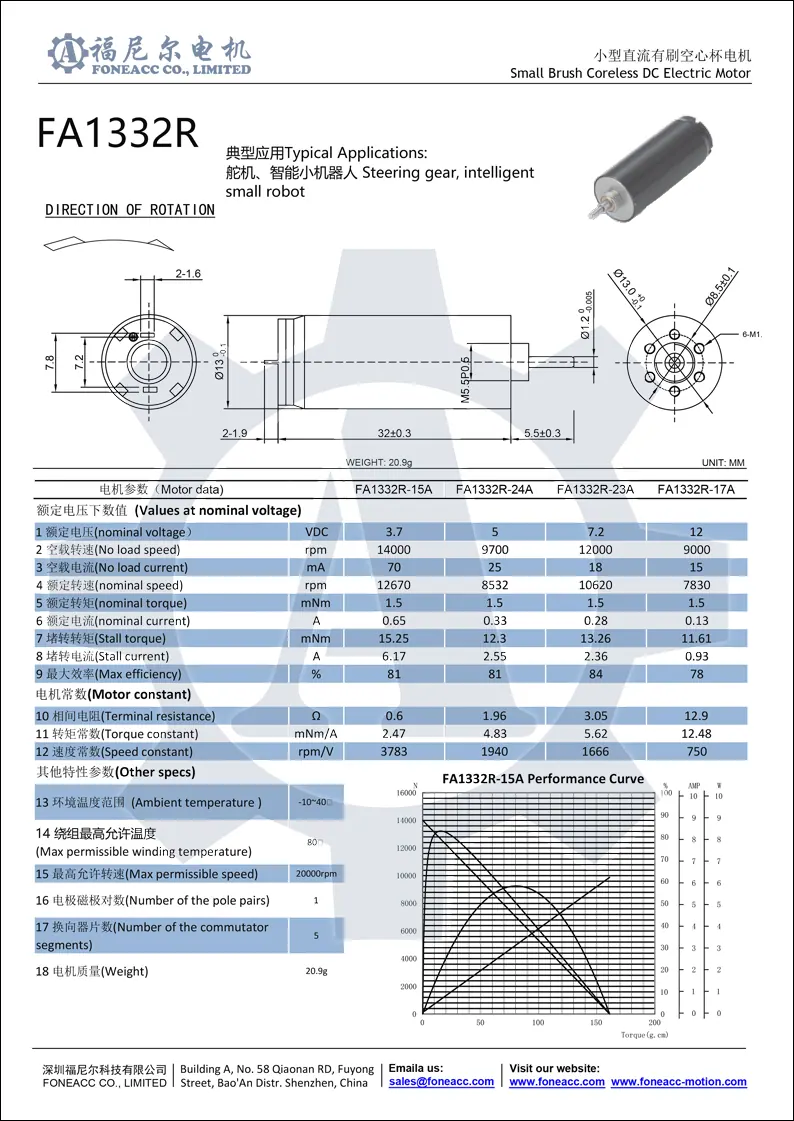

Download and view HD 1332R.pdf
