ODØ 22mm small coreless dc electric motor

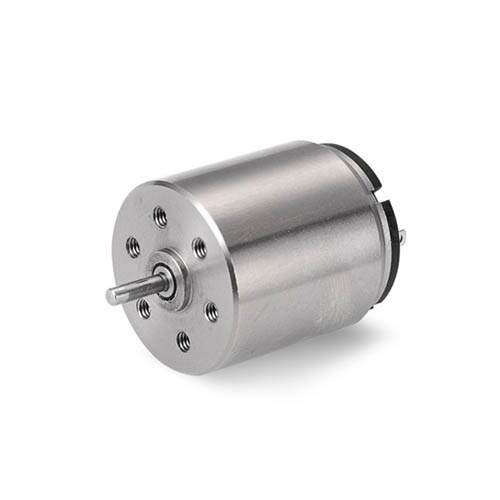

  • 2225R 22mm diameter precision brush coreless dc electric motors
2225R 22mm diameter precision brush coreless dc electric motors

2225R 22mm diameter precision brush coreless dc electric motors

  • Model: 2225R
  • Diameter: 22mm
  • Length: 25mm
  • Type: brushed coreless motor
  • Product description:We are 2225R China small dc motor factory, We offer 22mm diameter precision coreless dc electric motors specs custom, you can check with our engineer for advice and pricing. 2225R, small coreless d
  • INQUIRY

2225R 22mm diameter precision brush coreless dc electric motors | FONEACC CO LIMITED

See detailed specs as below:

电机参数(Motor data)   2225R-06A 2225R-05A 2225R-13A
额定电压下数值 (Values at nominal voltage)
额定电压(Nominal  voltage                   VDC 6 12 12
空载转速(No load speed) rpm 4900 10200 10500
空载电流(No load current) mA 35 42 35
额定转速(Nominal  speed) rpm 4042 83600 9180
额定转矩(Nominal torque) mNm 2 5 5
额定电流(Nominal  current) A 0.2 0.48 0.5
堵转转矩(Stall torque) mNm 11.46 27.5 40.12
堵转电流(Stall current) A 1 2.5 3.75
最大效率(Max efficiency) % 70 78 83
电机常数(Motor constant)
10  相间电阻(Terminal resistance) Ω 6 4.8 3.2
11  转矩常数(Torque constant) mNm/A 11.46 11.01 10.7
12  速度常数(Speed constant) rpm/V 817 850 875
其他特性参数(Other specs)
13  环境温度范围 (Ambient temperature ) -10~40
14  绕组最高允许温度
(Max permissible winding temperature)
80
15  最高允许转速(Max permissible speed) 25000rpm
16  电极磁极对数(Number of the pole pairs) 1
17  换向器片数(Number of the commutator  segments) 5
18  电机质量(Weight) 43.8g


2225R 22mm diameter precision brush coreless dc electric motors | FONEACC CO LTD

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

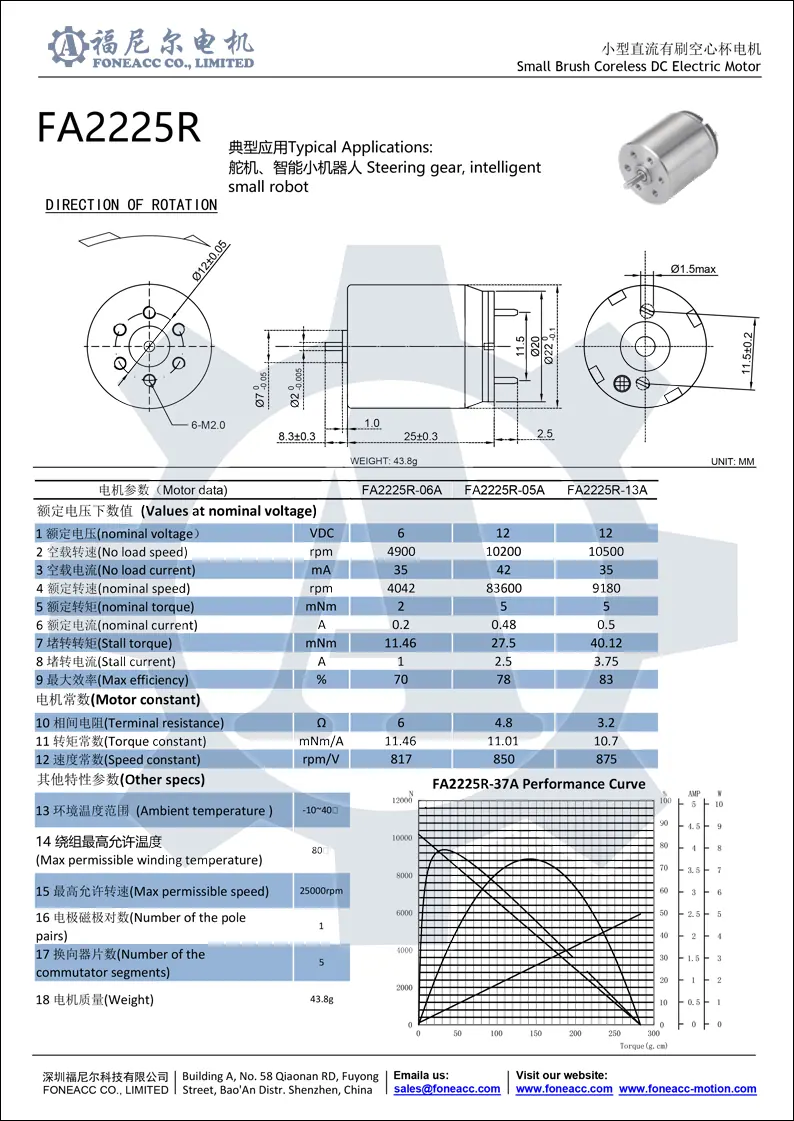

Download and view HD file: 2225R.pdf


Keywords:

 2225R, small coreless dc electric motor, FONEACC, small coreless dc electric motor, small coreless dc motor, coreless dc motor, coreless motor, small dc motor, ironless electric motor, slotless brushless dc motor,micromotor,coreless motor,small coreless dc motor
