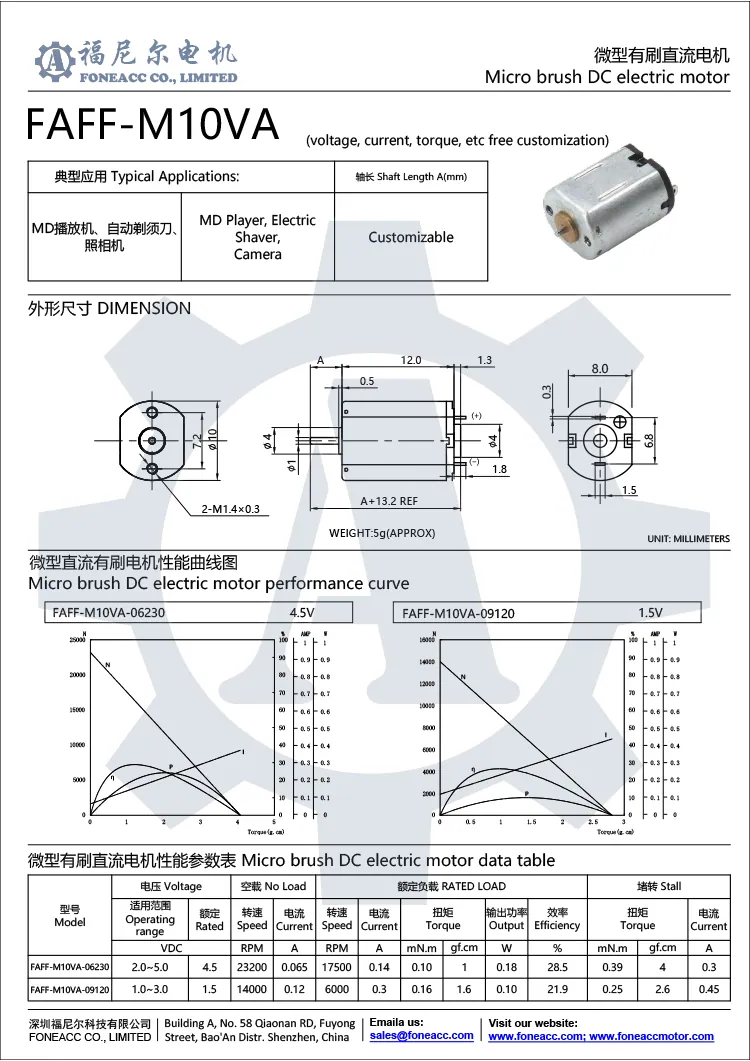

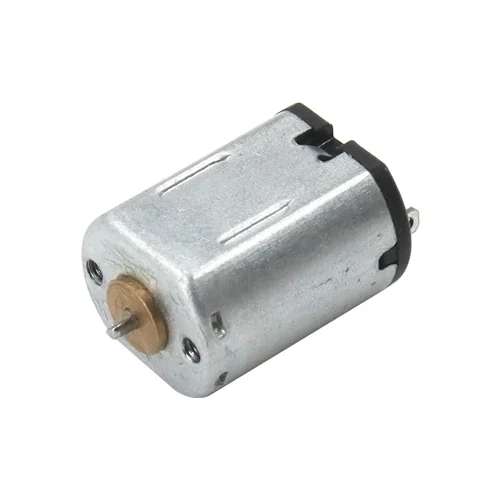

|- Model Number: FF-M10VA
|- Shell Stator Size : Φ10* L 12 mm(Φ 0.394 inch * 0.472 inch)
|- Shaft : Φ1.0mm(0.0393inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 0.8W
|- Rated Voltage: DC 1.5V - 12V
|- Rated Torque: up to 1.5gf·cm(0.147 mN·m)
|- Construction: Permanent Magnet
|- Commutation: Metal/Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
|- Model Number: FF-M10VA
|- Shell Stator Size : Φ10* L 12 mm(Φ 0.394 inch * 0.472 inch)
|- Shaft : Φ1.0mm(0.0393inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 0.8W
|- Rated Voltage: DC 1.5V - 12V
|- Rated Torque: up to 1.5gf-cm(0.147 mN-m)
|- Construction: Permanent Magnet
|- Commutation: Metal/Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
| Model | Voltage | No load | At maximum efficiency | Stall | |||||||
| range | rated | speed | current | speed | current | Torque | P.out | eff. | Torque | current | |
| V | R/min | A | R/min | A | gf-cm | W | % | gf-cm | A | ||
| FF-M10VA-06203 | 1.0-2.5 | 1.5 | 5,620 | 0.024 | 3,734 | 0.055 | 0.6 | 0.023 | 27.9 | 1.8 | 0.11 |
| FF-M10VA-09120 | 1.0-3.0 | 1.5 | 14,000 | 0.12 | 6,000 | 0.3 | 1.6 | 0.099 | 21.9 | 2.6 | 0.45 |
| FF-M10VA-07178 | 1.0-2.5 | 1.5 | 6,890 | 0.028 | 4,879 | 0.068 | 0.7 | 0.035 | 34.4 | 2.4 | 0.165 |
| FF-M10VA-09104 | 1.0-3.0 | 2.5 | 21,100 | 0.074 | 15,881 | 0.225 | 1.63 | 0.266 | 47.2 | 6.6 | 0.72 |
| FF-M10VA-07230 | 3-4.5 | 3 | 12,900 | 0.022 | 9,950 | 0.07 | 1 | 0.102 | 48.6 | 4.0 | 0.25 |
| FF-M10VA-08130 | 3-4.5 | 3 | 20,500 | 0.075 | 15,134 | 0.212 | 1.41 | 0.219 | 34.4 | 5.4 | 0.6 |
| FF-M10VA-06230 | 2.0-5.0 | 4.5 | 23,200 | 0.065 | 17,500 | 0.14 | 1 | 0.180 | 28.5 | 4.0 | 0.3 |
| FF-M10VA-05313 | 3.0-8.0 | 6 | 16,500 | 0.028 | 11,400 | 0.073 | 1.5 | 0.176 | 40.1 | 5.0 | 0.2 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
