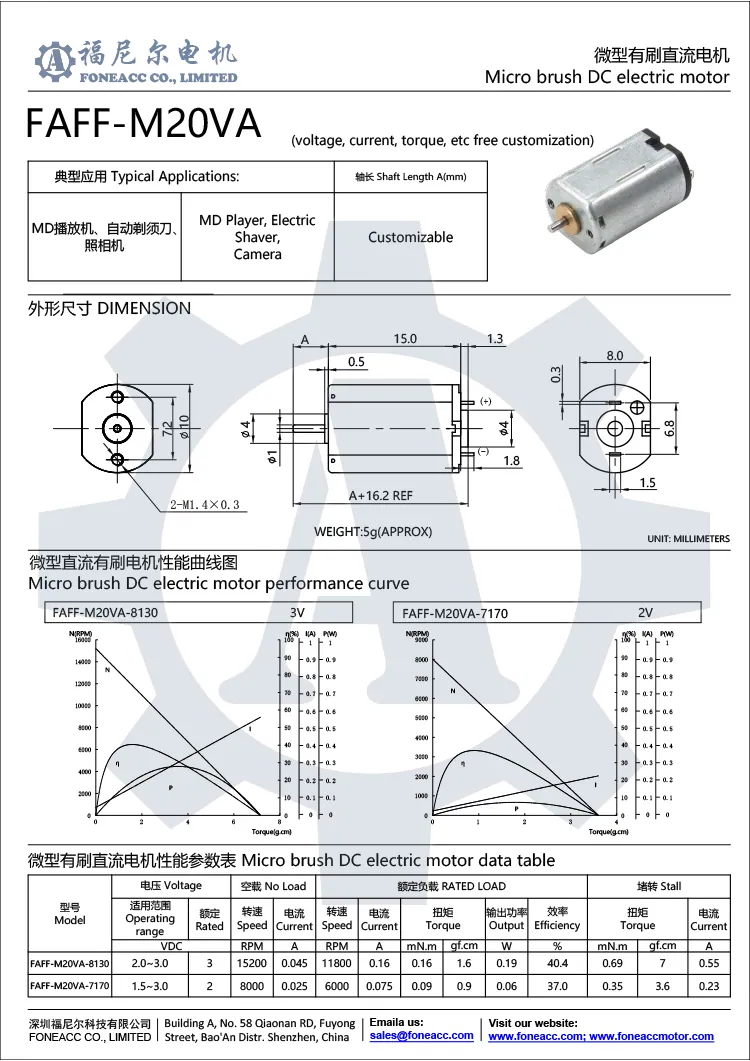

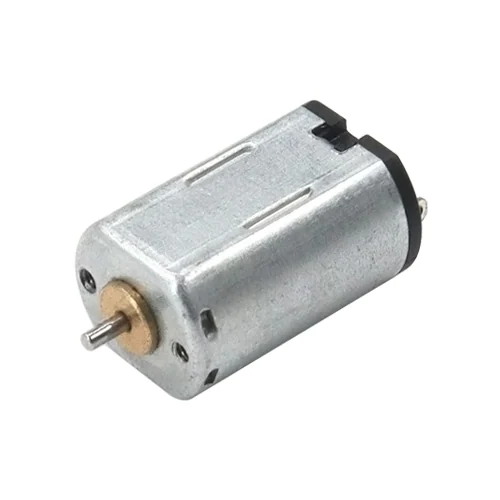

|- Model Number: FF-M20VA
|- Shell Stator Size : Φ10* L 15 mm(Φ 0.394 inch * 0.59 inch)
|- Shaft : Φ1.0mm(0.0393inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 1W
|- Rated Voltage: DC 1.5V - 12V
|- Rated Torque: up to 2gf·cm(0.196 mN·m)
|- Construction: Permanent Magnet
|- Commutation: Metal/Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
|- Model Number: FF-M20VA
|- Shell Stator Size : Φ10* L 15 mm(Φ 0.394 inch * 0.59 inch)
|- Shaft : Φ1.0mm(0.0393inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 1W
|- Rated Voltage: DC 1.5V - 12V
|- Rated Torque: up to 2gf-cm(0.196 mN-m)
|- Construction: Permanent Magnet
|- Commutation: Metal/Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
| Model | Rated Voltage | No-load | On Load | Stall | |||||
| Speed | Current | Speed | Torque | Current | P.out | Torque | Current | ||
| VDC | r/min | mA | rpm | g.cm | mA | W | g.cm | mA | |
| FF-M20VA-09120 | 3.0 | 15700 | 40 | 13500 | 1.0 | 100 | 0.14 | 7.0 | 0.50 |
| FF-M20VA-82130 | 3.0 | 15200 | 45 | 11800 | 1.6 | 160 | 0.19 | 8.0 | 0.60 |
| FF-M20VA-72170 | 2.0 | 8000 | 25 | 6100 | 0.8 | 70 | 0.05 | 4.0 | 0.24 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
