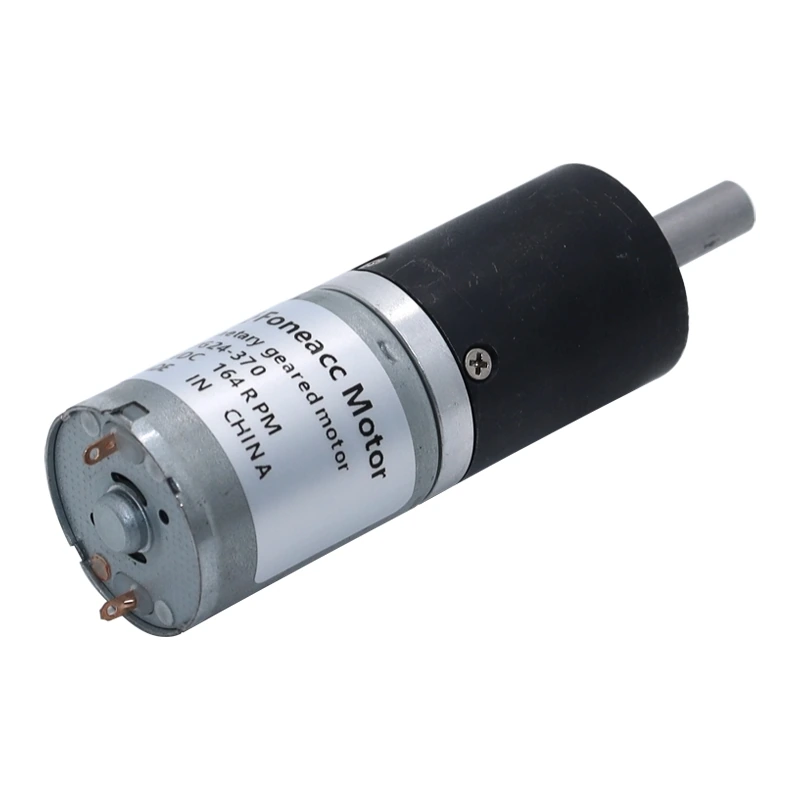

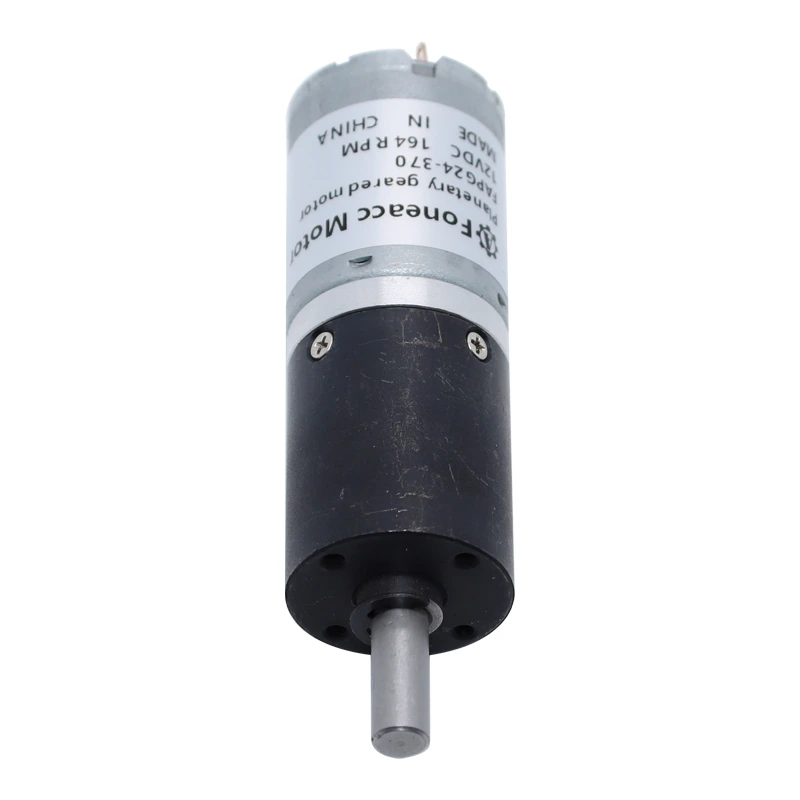

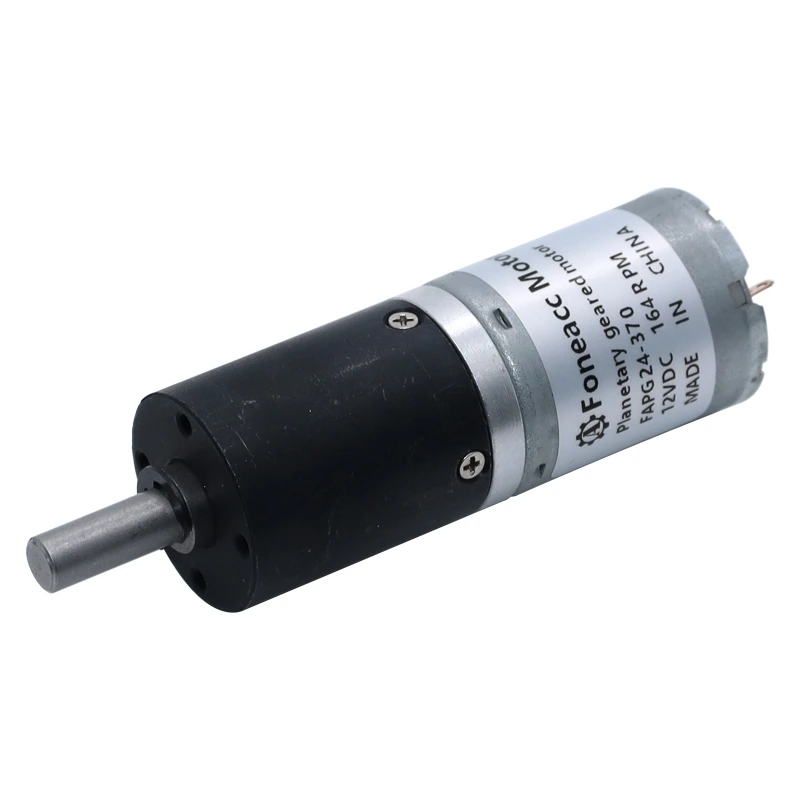

|- Model: PG24-370;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 15Kgf-cm ;
|- Size : Φ24* L TBD ;
|- Shaft : concentric driveshaft, Φ6mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic encoder;
|- MOQ: 500 pcs;
|- Model: PG24-370;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 15Kgf-cm ;
|- Size : Φ24* L TBD ;
|- Shaft : concentric driveshaft, Φ6mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: magnetic encoder;
|- MOQ: 500 pcs;
| Model | No Load | Rated Load |
Breaking
Torque
|
|
| Speed | Torque | Speed | ||
| r/min | kgf-cm | r/min | kgf-cm | |
| PG24-370-12V4K | 1250 | 0.13 | 950 | 2 |
| PG24-370-12V5K | 1000 | 0.16 | 760 | 2 |
| PG24-370-12V15K | 333.3 | 0.42 | 253 | 3.5 |
| PG24-370-12V18K | 277.8 | 0.5 | 211 | 3.5 |
| PG24-370-12V22K | 227.3 | 0.62 | 173 | 3.5 |
| PG24-370-12V57K | 87.7 | 1.37 | 67 | 12.5 |
| PG24-370-12V69K | 72.5 | 1.66 | 55 | 12.5 |
| PG24-370-12V83K | 60.2 | 1.99 | 46 | 12.5 |
| PG24-370-12V100K | 50 | 2.4 | 38 | 12.5 |
| PG24-370-12V211K | 22.6 | 4.42 | 17 | 35 |
| PG24-370-12V266K | 18.8 | 5.32 | 14 | 35 |
| PG24-370-12V334K | 15 | 6.68 | 11 | 35 |
| PG24-370-12V462K | 10.8 | 9.24 | 8 | 35 |
| PG24-370-24V4K | 1250 | 0.13 | 950 | 2 |
| PG24-370-24V5K | 1000 | 0.16 | 760 | 2 |
| PG24-370-24V15K | 333.3 | 0.42 | 253 | 3.5 |
| PG24-370-24V18K | 277.8 | 0.5 | 211 | 3.5 |
| PG24-370-24V22K | 227.3 | 0.62 | 173 | 3.5 |
| PG24-370-24V57K | 87.7 | 1.37 | 67 | 12.5 |
| PG24-370-24V69K | 72.5 | 1.66 | 55 | 12.5 |
| PG24-370-24V83K | 60.2 | 1.99 | 46 | 12.5 |
| PG24-370-24V100K | 50 | 2.4 | 38 | 12.5 |
| PG24-370-24V211K | 22.6 | 4.42 | 17 | 35 |
| PG24-370-24V266K | 18.8 | 5.32 | 14 | 35 |
| PG24-370-24V334K | 15 | 6.68 | 11 | 35 |
| PG24-370-24V462K | 10.8 | 9.24 | 8 | 35 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
