WG4632-370 small square worm gearbox carbon brush dc motor

|- Model: WG4632-370; RF-370, RK-370 dc motor with worm wheel gearbox reducer.
|- Gearbox: metal worm gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V;
|- Rated Torque: Max. 50 Kgf-cm ;
|- Size : 46mm * 32mm square gearbox, right angle output shaft.
|- Shaft : right angle driveshaft, Φ6mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic/Optical encoder.
|- MOQ: 500 pcs;

WG4632-370 small square worm gearbox carbon brush dc motor

Main features:

WG4632-370 mini dc worm geared motor data examples:

Model	No Load	Rated Load		Breaking Torque
	Speed	Torque	Speed	Breaking Torque
	r/min	N-m	r/min	N-m
WG4632-370-6V50K	120	0.039	104	0.311
WG4632-370-6V62.5K	96	0.049	83	0.389
WG4632-370-6V86K	69.8	0.068	60.5	0.535
WG4632-370-6V104K	57.7	0.082	50	0.647
WG4632-370-6V155.5K	38.6	0.123	33.4	0.967
WG4632-370-6V187.5K	32	0.148	27.7	0.166
WG4632-370-6V262.5K	22.9	0.207	19.8	1.632
WG4632-370-6V337.5K	17.8	0.267	15.4	2.099
WG4632-370-6V354K	16.9	0.196	14.7	1.54
WG4632-370-6V562.5K	10.7	0.311	9.2	2.448
WG4632-370-6V787K	7.6	0.435	6.6	x
WG4632-370-6V1012K	5.9	0.559	5	x
WG4632-370-6V1312K	4.6	0.508	4	x
WG4632-370-6V1687K	3.6	0.653	3	x
WG4632-370-6V2362K	2.5	0.914	2	x
WG4632-370-6V3037K	2	1.175	1.7	x
WG4632-370-12V50K	112	0.035	86	0.294
WG4632-370-12V62.5K	89.6	0.044	76.8	0.368
WG4632-370-12V86K	65	0.061	55.8	0.506
WG4632-370-12V104K	53.8	0.073	46	0.612
WG4632-370-12V155.5K	36	0.11	31	0.915
WG4632-370-12V187.5K	30	0.132	25.5	1.103
WG4632-370-12V262.5K	21.3	0.185	18.3	1.544
WG4632-370-12V337.5K	16.5	0.238	14	1.985
WG4632-370-12V354K	15.8	0.175	13.5	1.457
WG4632-370-12V562.5K	10	0.278	8.5	2.315
WG4632-370-12V787K	7	0.389	6	x
WG4632-370-12V1012K	5.5	0.5	4.7	x
WG4632-370-12V1312K	4.3	0.454	3.7	x
WG4632-370-12V1687K	3.3	0.587	2.8	x
WG4632-370-12V2362K	2.4	0.817	2	x
WG4632-370-12V3037K	1.8	1.05	1.5	x

Dimensions and configurations of WG4632-370 mini dc worm gear motor for reference:

WG4632-370 planetary gearbox dc electric motor

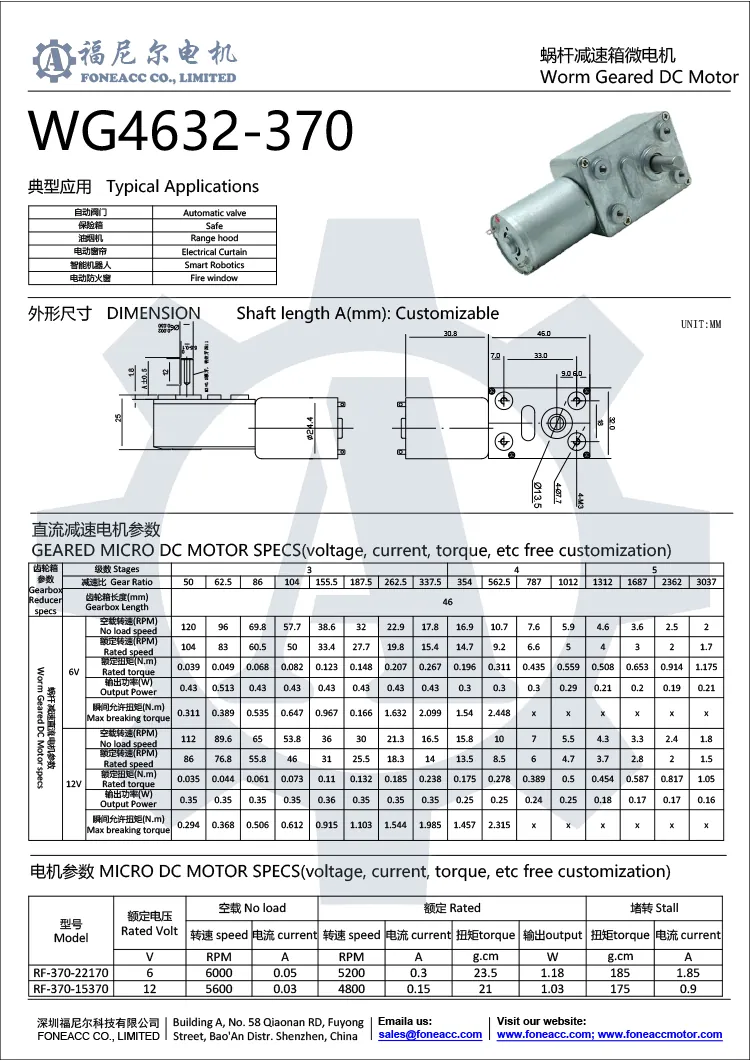

Download WG4632-370 mini worm wheel dc gearmotor datasheet for clear view:

WG4632-370-datasheet.pdf

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
