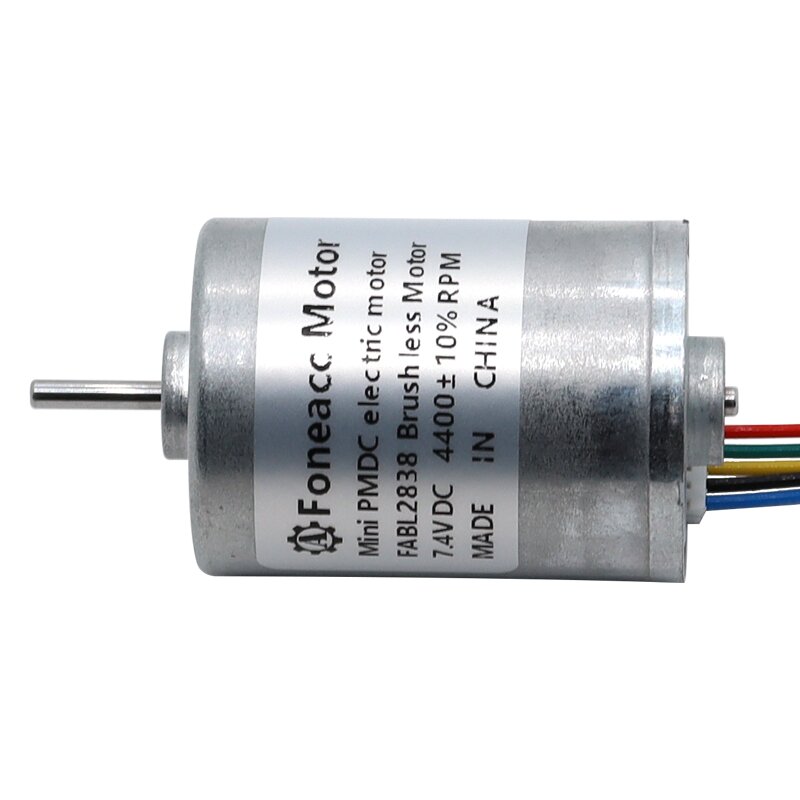

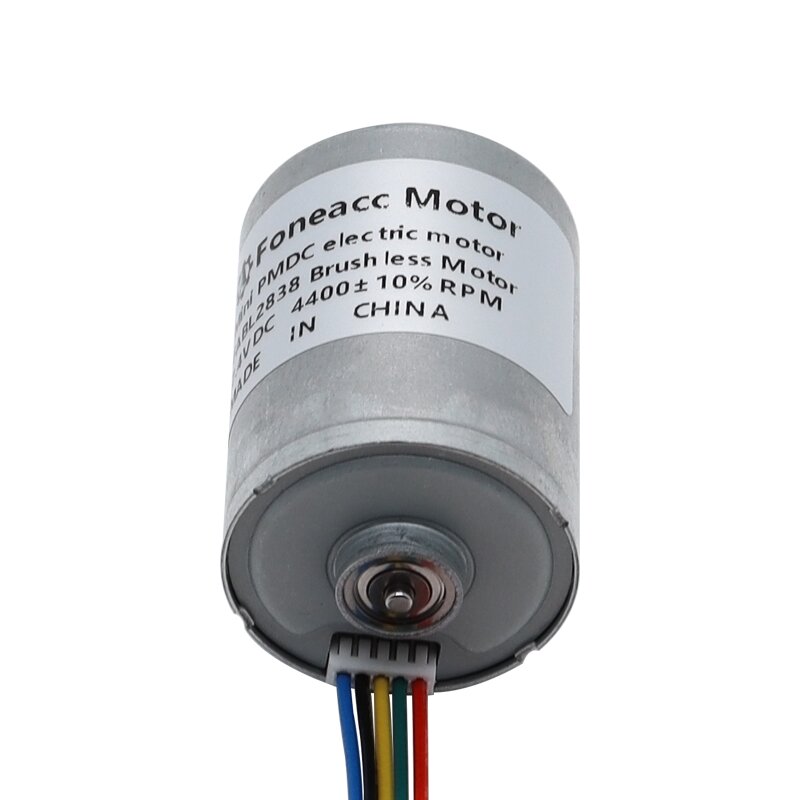

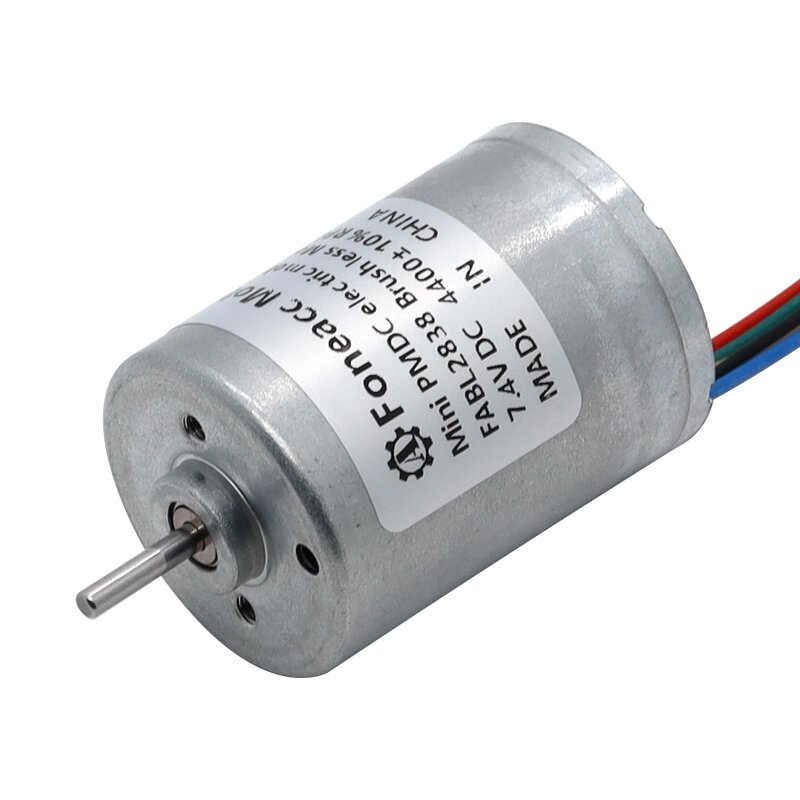

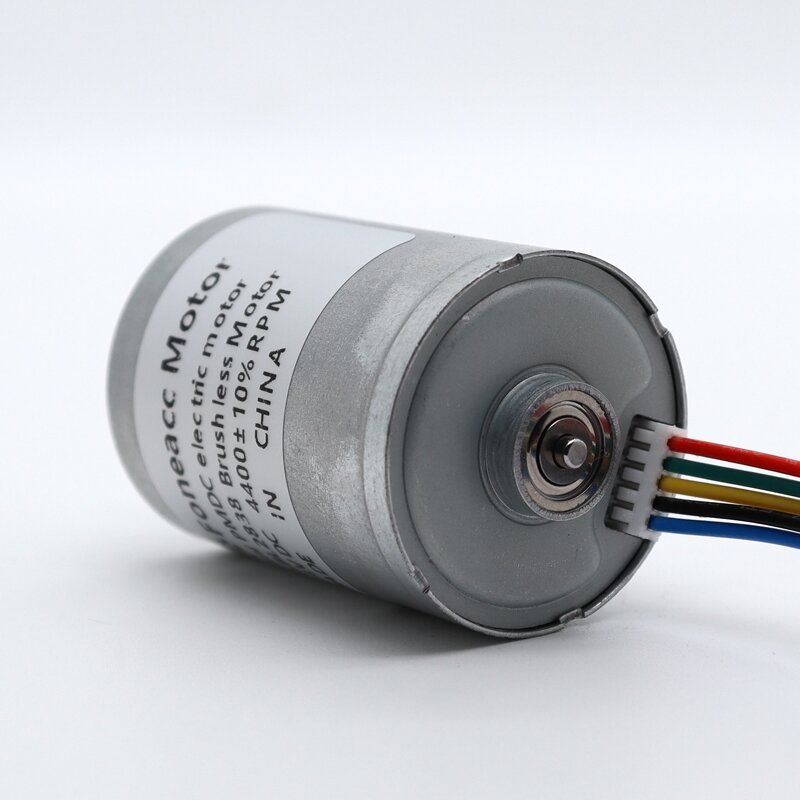

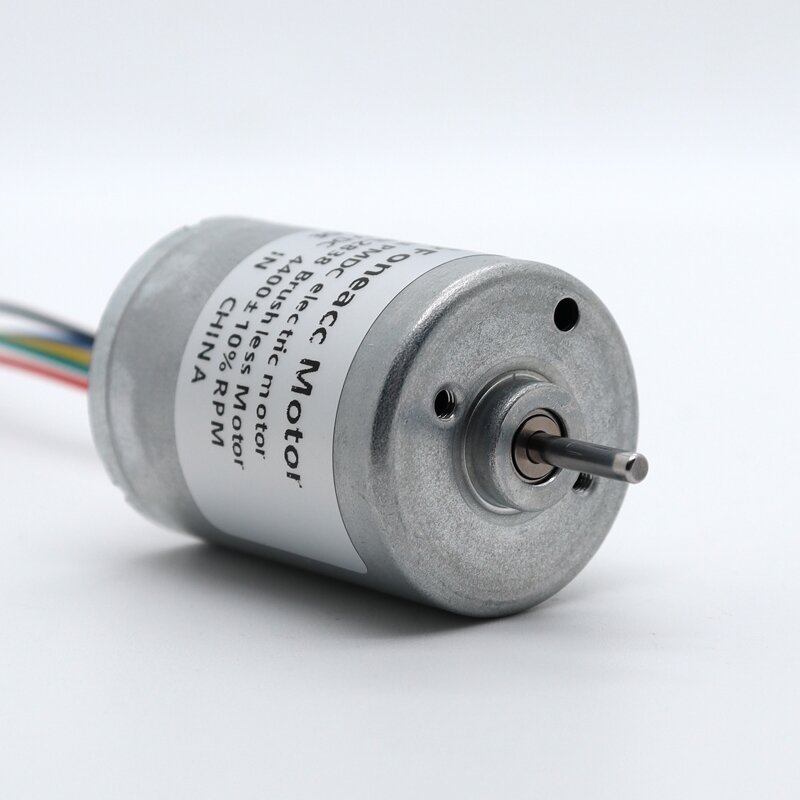

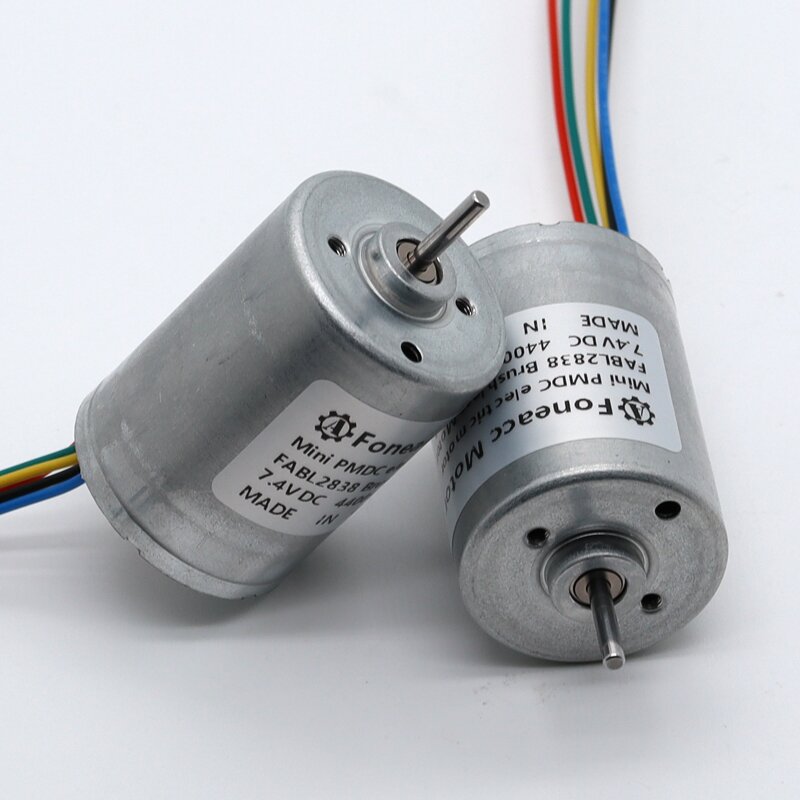

BL2838i B2838M 28mm inner rotor bldc brushless dc motor

| - Model Number: BL2838I
| - Shell Stator Size : Ø28* L 38 mm(Ø 1.1 inch * 1.5 inch)
| - Shaft : Ø2.3mm(0.09 inch), screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 1W - 16W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 95 gf-cm(9.31 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs

BL2838i B2838M 28mm inner rotor bldc brushless dc motorbuilt-in driver controller with hall sensor

Key features:

► Size: Ø28* L 38 mm(Ø 1.1 inch * 1.5 inch)
► Built-in driver (built-in driver controller with hall sensor)
► PWM pulse wide speed range
► Clockwise/counter-clockwise rotation
► FG speed feedback signal
► Low EMC ► Low noise
► Long lifespan: up to 20000hrs
► Over-current protection ► Over-voltage protection ► Under-voltage protection

bl2838 <a href=/micro-brushless-dc-motor-foneacc-motion.html target='_blank'>BLDC motor</a>




  OD 28mm inner rotor small bldc brushless dc motor has a family of BL2838, BL2847

bl2838i b2838m
BL2838 Output Power: 1W~30W Weight: 75g (Approx.)
Brushless DC Motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Electric Curtain

Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, centrifugal machine

Industry Equipment: Electric Valve, Portable Screwdriver, Air Pump, Water Pump, Vacuum Pump

Business Equipment: Printer, Copier, Projector, Scanner, Cash Register

Personal Care: Hair Dryer, Electric Shaver, Massager

Model Voltage(V) No Load Rated Load Stall
Operating Range Rated Speed (rpm) Current (A) Torque (mNm) Speed (rpm) Current (A) Output P. (W) Torque (mNm) Current (A)
BL2838i-S01 6~12 7.4 4400 0.15 7 4100 0.68 3 38 1.6
BL2838i-S02 8~26 12 3900 0.09 12 3200 0.58 4.1 69.4 1.6
BL2838i-S03 8~26 24 7640 0.15 18 4700 0.9 9 48 2.5
BL2838i-S04 8~26 24 9400 0.18 24 5800 1.38 14.6 60 2.5
BL2838i-S05 8~26 24 16000 0.3 20 13000 1.75 27.4 40 2.5

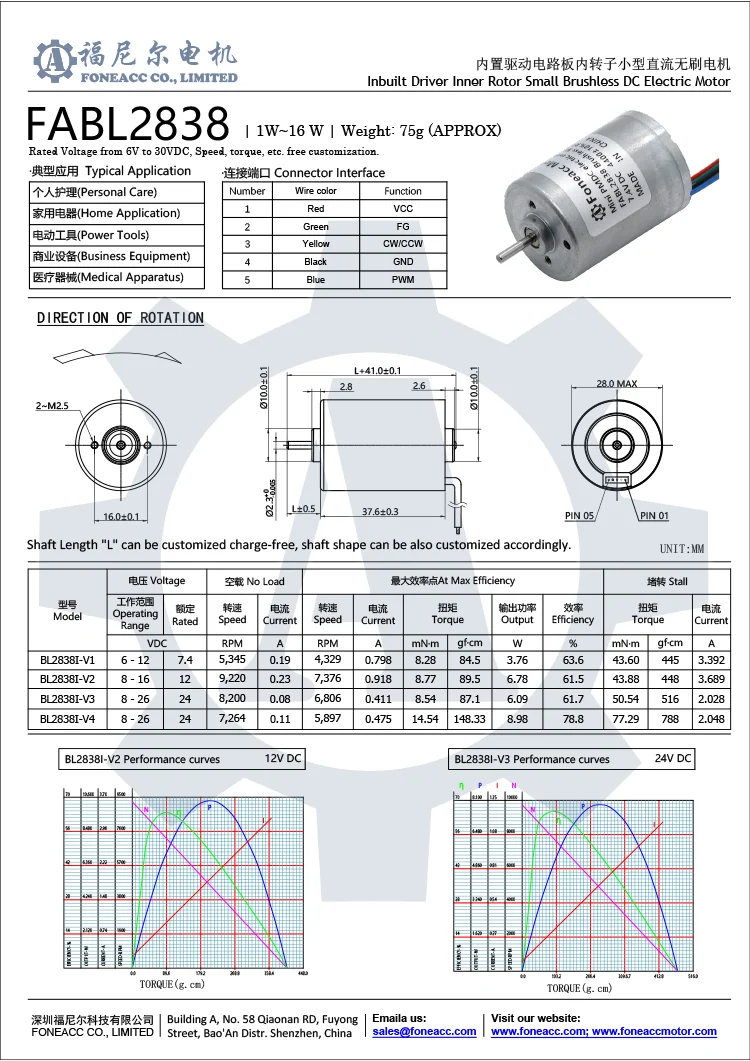

Motor drawing:

dimension-bl2838i b2838m



  BL2838-V2           12V  BL2838-V4            24V
bl2838i v2 performance curvebl2838i v4 performance curve


Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized.
