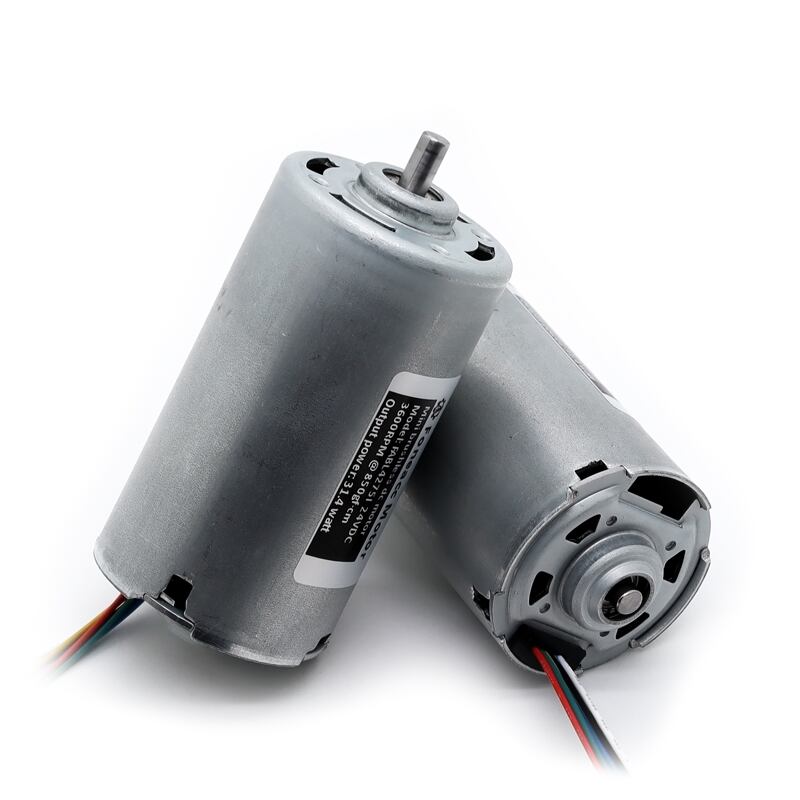

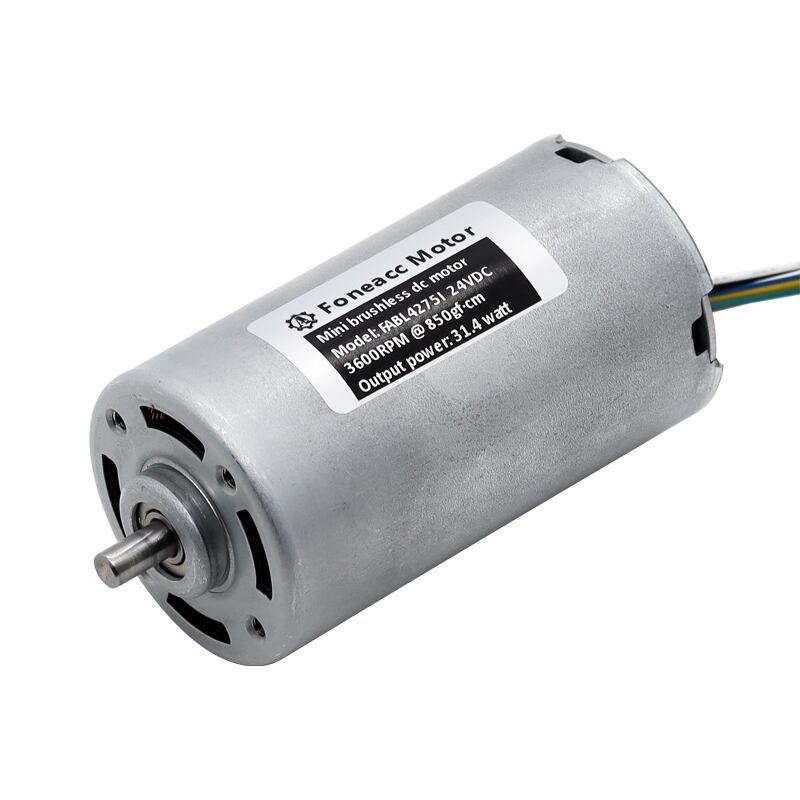

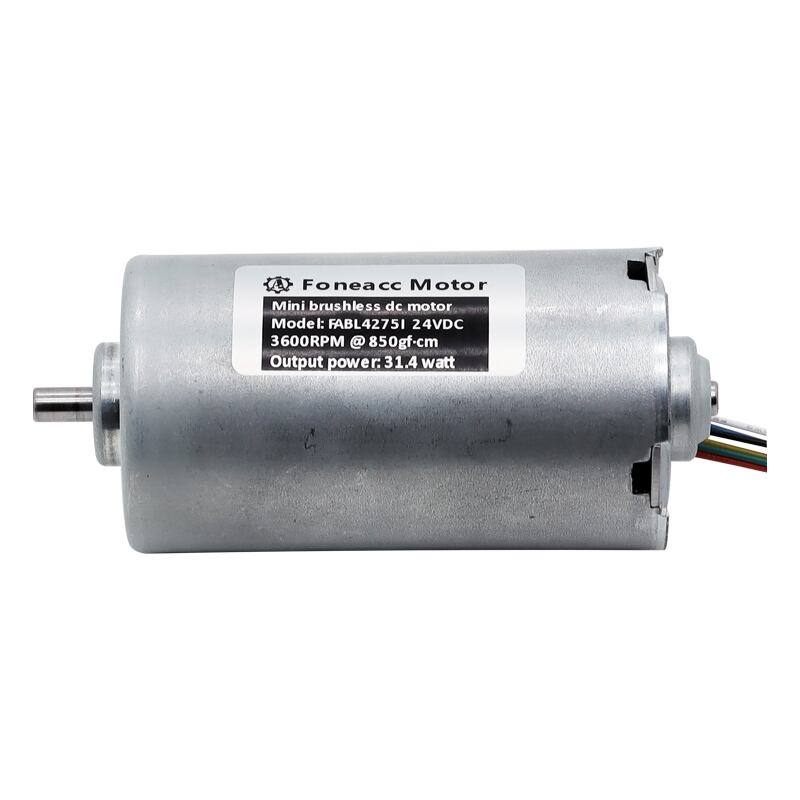

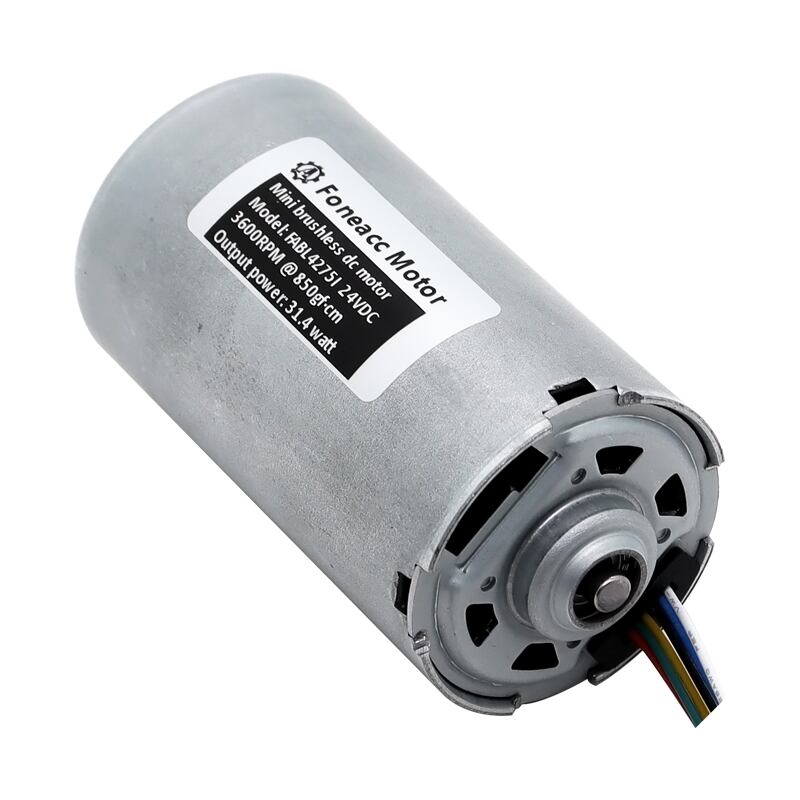

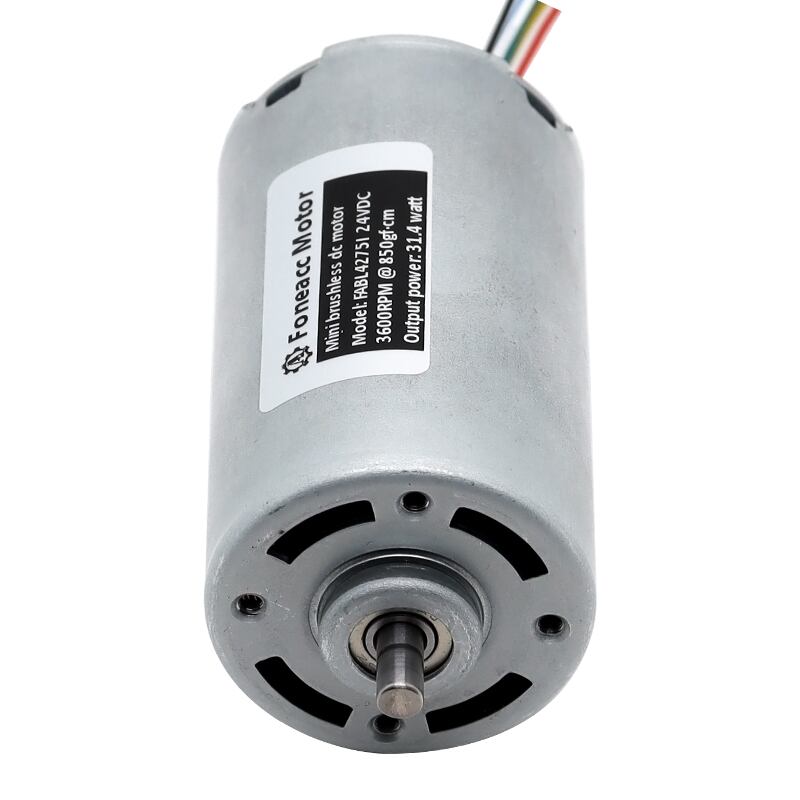

| - Model Number: BL4275I
| - Shell Stator Size : Φ 42* L 75 mm(Φ 1.65 inch * 2.95 inch)
| - Shaft : Φ5.0mm[0.197 inch], screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 10W - 95W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 1500 gf-cm(147 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs
| - Model Number: BL4275I
| - Shell Stator Size : Φ 42* L 75 mm(Φ 1.65 inch * 2.95 inch)
| - Shaft : Φ 5.0mm[0.197 inch], screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 10W - 95W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 1500 gf-cm(147 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 6/12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs
| - PWM pulse wide speed range
| - Clockwise/counter-clockwise rotation
| - FG speed feedback signal
| - Low EMC | - Low noise
| - Long lifespan: up to 20000hrs
| - Over-current protection | - Over-voltage protection | - Under-voltage protection

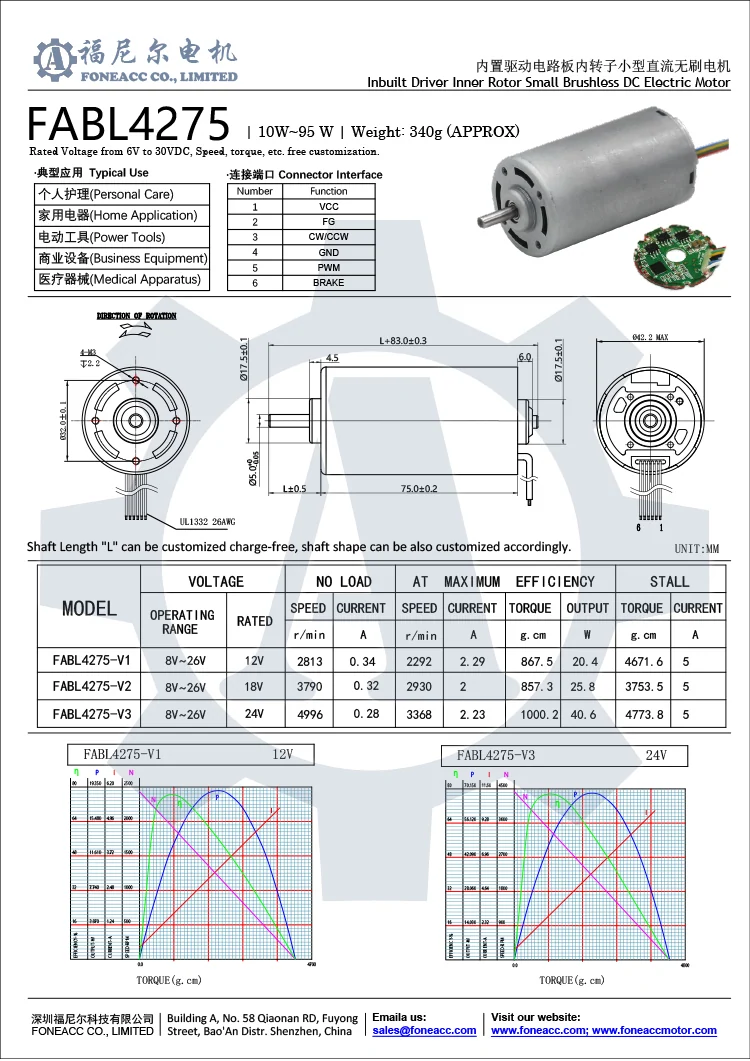

Model | Voltage | No load | At maximum efficiency | Stall | |||||||
Range | Nominal | Speed | Current | Speed | Current | Torque | P.out | Eff. | Torque | Current | |
V | R/min | A | R/min | A | gf-cm | W | % | gf-cm | A | ||
BL4275I-V1 | 8~16 | 12 | 2,813 | 0.34 | 2,292 | 2.29 | 867.5 | 20.41 | 74.3 | 4,672 | 10.87 |
BL4275I-V2 | 8~26 | 18 | 3,790 | 0.32 | 2,930 | 2 | 857.3 | 25.79 | 71.6 | 3,754 | 7.72 |
BL4275I-V3 | 8~26 | 24 | 4,996 | 0.28 | 3,368 | 2.23 | 1,000.2 | 34.58 | 64.6 | 4,774 | 6.26 |
BL4275I-V4 | 8~16 | 12 | 6,880 | 0.37 | 5,955 | 2.42 | 405.5 | 24.66 | 86.5 | 3,014 | 15.32 |
B4275M-S01 | 8~26 | 12 | 2,511 | 0.43 | 1,310 | 2.38 | 1,101 | 14.81 | 51.8 | 2,265 | 4.51 |
B4275M-S02 | 8~26 | 12 | 2,813 | 0.34 | 2,292 | 2.29 | 867.3 | 20.41 | 74.3 | 4,673 | 9.30 |
B4275M-S03 | 8~26 | 24 | 5,050 | 0.42 | 3,900 | 2.62 | 1,108.2 | 44.37 | 70.6 | 4,866 | 10.4 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
Contact: Foneacc Motor Sales Team
Phone: +86-13923860676
E-mail: sales@foneacc.com
Add: Building A, No. 58 Qiaonan RD, Fuyong Street, Bao An District. Shenzhen, China
