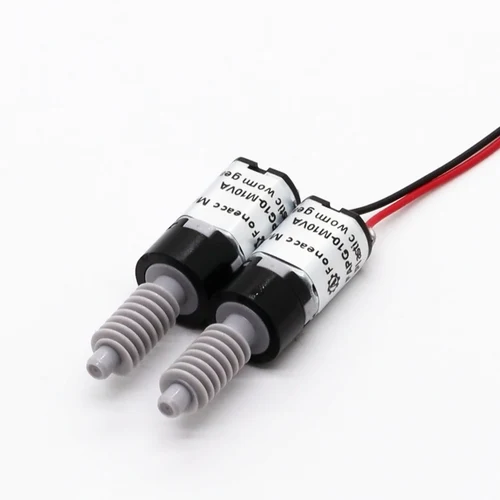

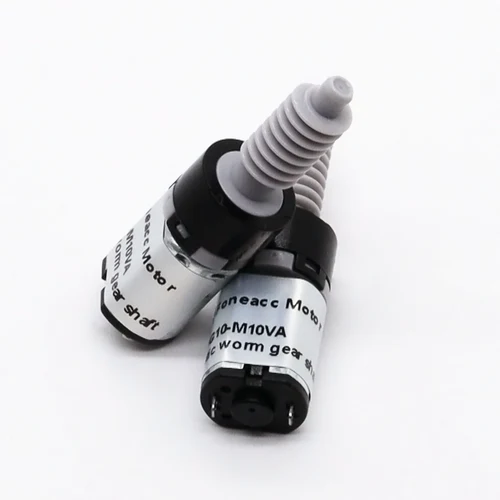

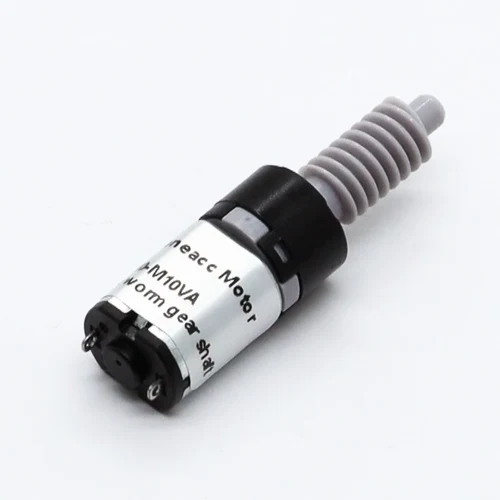

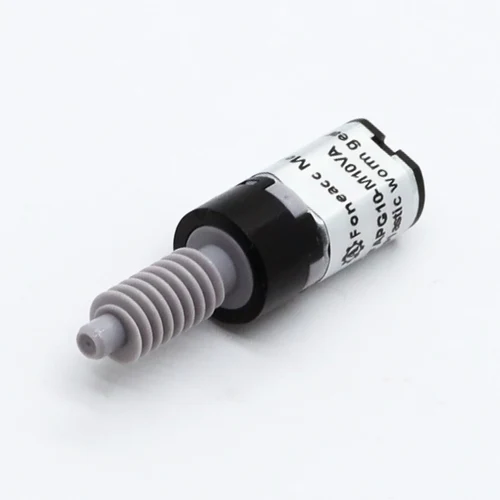

M10 motor planetary geared motor with plastic worm gear shaft

M10 motor planetary geared motor with plastic worm gear shaft

|- Model: PG10-M10VA; FF-M10VA micromotor with plastic gear reducer with plastic worm wheel shaft.
|- Gearbox: Plastic planetary gear reducer with ratio 1:171;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 50gf-cm ;
|- Size : Φ10mm* L 36mm ;
|- Shaft : concentric,Parallel driveshaft, worm gear shaft,eccentric, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet iron cored motor;
|- Encoder: Magnetic encoder;
|- MOQ: 1000 pcs;

Shop on Alibaba.com

PG10-M10VA 10mm Plastic Gearbox DC Motor

Main features:

|- Model: PG10-M10VA; FF-M10VA micromotor with plastic gear reducer.
|- Gearbox: Plastic planetary gear reducer with ratio 1:171;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 50gf-cm ;
|- Size : Ø10mm* L 24mm ;
|- Shaft : concentric,Parallel driveshaft, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet iron cored motor;
|- Encoder: magnetic encoder;
|- MOQ: 1000 pcs;

PG10-M10VA plastic dc geared motor data examples:

Model	Voltage		No load		On load			Stall
	Range	rated	speed	current	speed	current	torque	torque	current
	v	v	r/min	A	r/min	A	gf-cm	gf-cm	A
PG10-M10VA-V1	1.0~2.5	1.5	40	0.05	25rpm	0.087	122	332	0.15
PG10-M10VA-V2	1.5~3.5	2.5	122	0.078	90rpm	0.227	124	350	0.65
PG10-M10VA-V3	1.0~3.0	1.5	33	0.055	20rpm	0.082	35	120	0.16
PG10-M10VA-V4	1.0~3.0	3	120	0.04	89rpm	0.112	30	180	0.35
PG10-M10VA-V5	1.0~9.0	6	96	0.036	68rpm	0.118	40	220	0.38

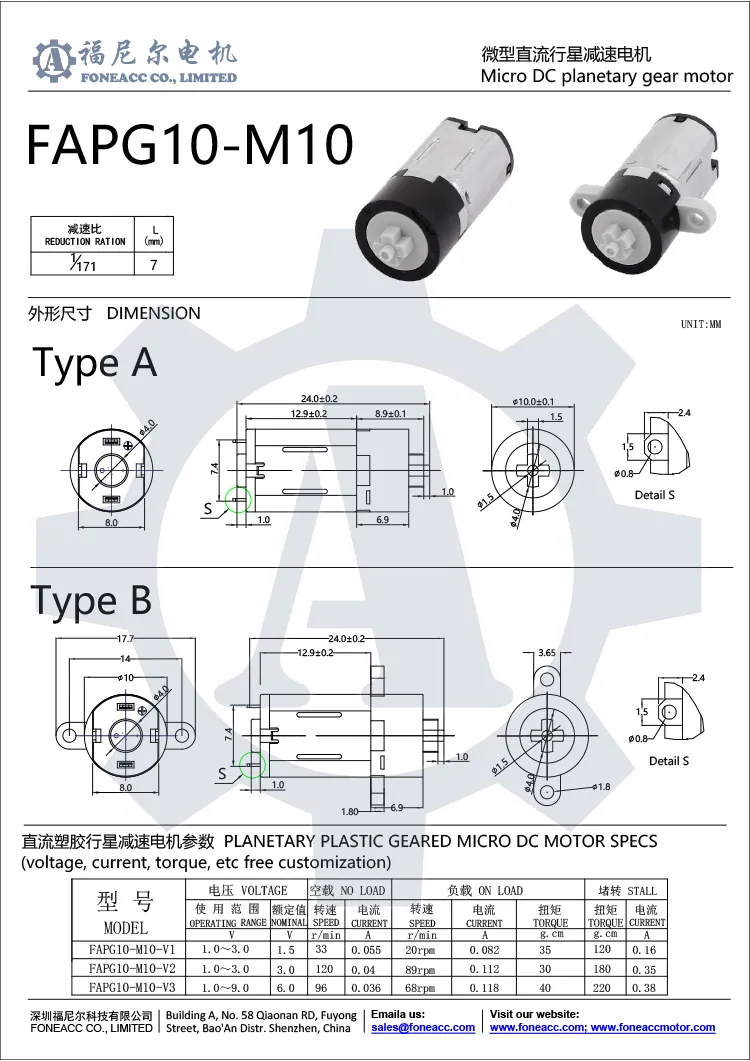

Dimensions and configurations of PG10-M10VA plastic dc gear motor for reference:

Download PG10-M10VA plastic DC gearmotor datasheet for clear view:

PG10-M10VA-datasheet.pdf

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
