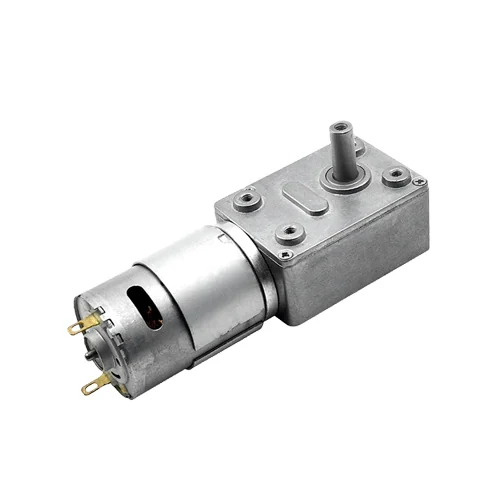

|- Model: WG5840-555; RS-555, RS-550 dc motor with worm wheel gearbox reducer.
|- Gearbox: metal worm gear reducer;1.gear ratio: 50-1200;
|- Speed:1-300 RPM;
|- Voltage: 3V to 24V DC;
|- Output torque: from 0.5kg.cm~90kg.cm;
|- Worm gear structure with right-angle driveshaft;
|- Large torque and low noise;
|- Encoder: Magnetic Encoder;
|- Commutation: Carbon/Graphite
|- Encoder: Magnetic/Optical encoder.
|- MOQ: 500 pcs;
|- Model: WG5840-555; RS-555, RS-550 dc motor with worm wheel gearbox reducer.
|- Gearbox: metal worm gear reducer;1.gear ratio: 50-1200;
|- Speed:1-300 RPM;
|- Voltage: 3V to 24V DC;
|- Output torque: from 0.5kg.cm~90kg.cm;
|- Worm gear structure with right-angle driveshaft;
|- Large torque and low noise;
|- Encoder: magnetic encoder;
|- Commutation: Carbon/Graphite
|- Encoder: Magnetic/optical encoder.
|- MOQ: 500 pcs;
| Model | No Load | Rated Load |
Breaking
Torque
|
|
| Speed | Torque | Speed | ||
| r/min | N-m | r/min | N-m | |
| WG5840-555-6V47.4K | 69.5 | 0.233 | 57 | 1.394 |
| WG5840-555-6V54K | 61 | 0.265 | 50 | 1.588 |
| WG5840-555-6V109K | 30.3 | 0.535 | 24.8 | 3.205 |
| WG5840-555-6V120.5K | 27.4 | 0.592 | 22.4 | 3.543 |
| WG5840-555-6V139K | 23.7 | 0.682 | 19.4 | 4.087 |
| WG5840-555-6V212K | 15.6 | 1.041 | 12.7 | x |
| WG5840-555-6V305K | 10.8 | 0.998 | 8.9 | x |
| WG5840-555-6V326.5K | 10 | 1.069 | 8.3 | x |
| WG5840-555-6V777K | 4.2 | 2.543 | 3.5 | x |
| WG5840-555-6V894K | 3.7 | 2.926 | 3 | x |
| WG5840-555-6V1067K | 3 | 3.493 | 2.5 | x |
| WG5840-555-6V1211K | 2.7 | 3.964 | 2.2 | x |
| WG5840-555-12V47.4K | 97 | 0.293 | 82.3 | 1.812 |
| WG5840-555-12V54K | 85 | 0.333 | 72 | 2.064 |
| WG5840-555-12V109K | 42.2 | 0.673 | 35.8 | 4.166 |
| WG5840-555-12V120.5K | 38.2 | 0.744 | 32.4 | x |
| WG5840-555-12V139K | 33 | 0.858 | 28 | x |
| WG5840-555-12V212K | 21.7 | 1.309 | 18.4 | x |
| WG5840-555-12V305K | 15 | 1.255 | 12.8 | x |
| WG5840-555-12V326.5K | 14 | 1.344 | 11.9 | x |
| WG5840-555-12V777K | 5.9 | 3.198 | 5 | x |
| WG5840-555-12V894K | 5 | 3.68 | 4.4 | x |
| WG5840-555-12V1067K | 4.3 | 4.392 | 3.7 | x |
| WG5840-555-12V1211K | 3.8 | 4.984 | 3.2 | x |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
