OD Φ 10mm small coreless dc electric motor

  • 1015R 10mm diameter precision brushed coreless dc electric motors
1015R 10mm diameter precision brushed coreless dc electric motors

1015R 10mm diameter precision brushed coreless dc electric motors

  • Model: 1015R
  • OD: 10mm
  • Depth: 15mm
  • Type: brushed coreless motor
  • Product description:We are 1015R China small dc motor factory, We offer 10mm diameter precision coreless dc electric motors specs custom, you can check with our engineer for advice and pricing.
  • INQUIRY

1015R 10mm diameter precision brushed coreless dc electric motors

See details as below:

电机参数(Motor data) 1015R-02A 1015R-01A 1015R-03AI2 1015R-04A
额定电压下数值
(Values at nominal voltage)
1 额定电压(Nominal voltage VDC 5.0 7.4 7.4 7.4
2 空载转速(No-load speed) rpm 25000 31200 44860 26000
3 空载电流(No-load current) mA 52 60 78 38
4 额定转速(Nominal  speed) rpm 20000 26988 34776 22100
5 额定转矩(Nominal torque) mNm 0.5 0.5 1 0.5
6 额定电流(Nominal  current) A 0.30 0.27 0.70 1.17
7 堵转转矩(Stall torque) mNm 2.46 3.6 4.44 3.31
8 堵转电流(Stall current) A 1.32 1.64 2.88 1.24
9 最大效率(Max efficiency) % 69 70 74 72
电机常数(Motor constant)
10 相间电阻(Terminal resistance) Ω 3.8 4.5 2.57 5.95
11 转矩常数(Torque constant) mNm/A 1.87 2.22 1.54 2.66
12 速度常数(Speed constant) rpm/V 5000 4216 6062 3514
其他特性参数 Other specs
13 环境温度范围 (Ambient temperature ) -10~40
14 绕组最高允许温度
(Max permissible winding temperature)
80
15 最高允许转速(Max permissible speed) 47000rpm
16 电极磁极对数(Number of the pole pairs) 1
17 换向器片数(Number of the commutator  segments) 5
18 电机质量(Weight) 4.65g

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

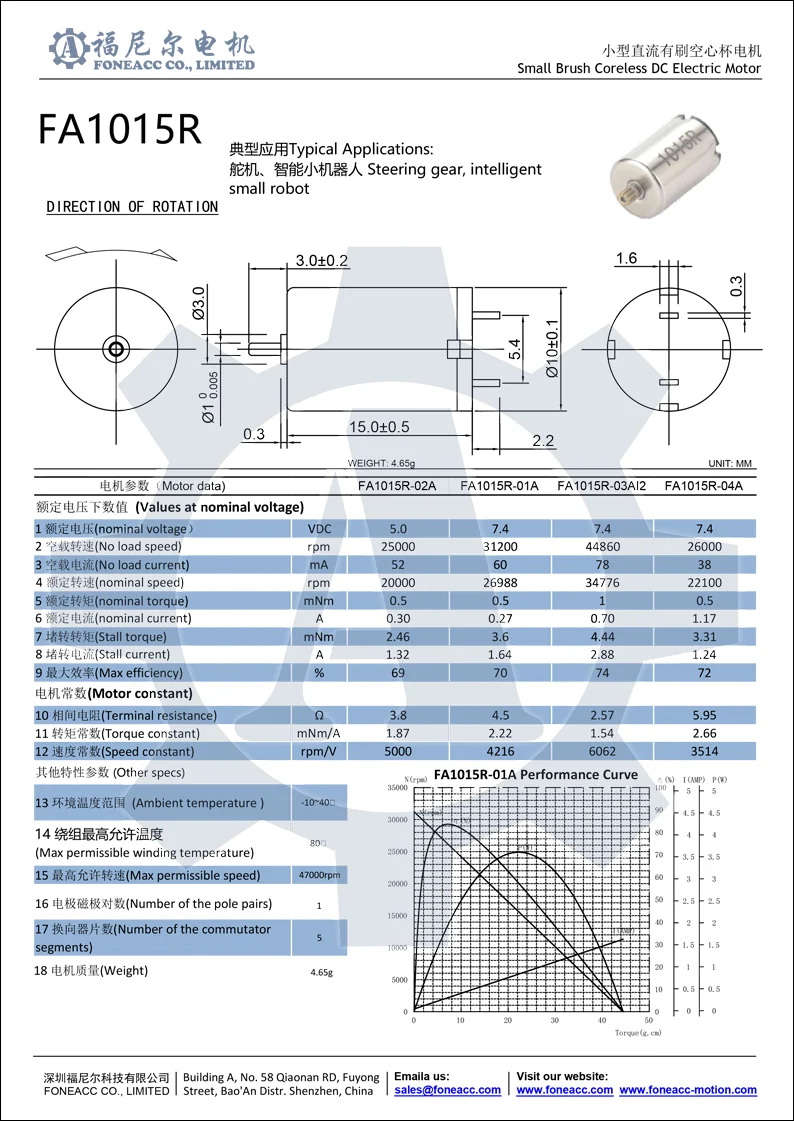

1015R specs

To view HD specs, you can download the file 1015R.pdf
