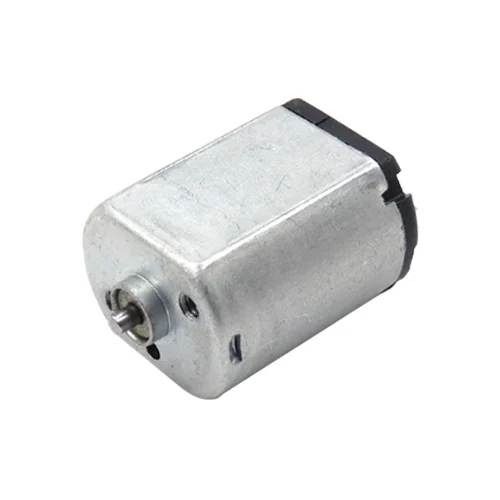

|-Model: FF-030PA
|-Motor type: brushed dc motor
|-Voltage: 1.5V-12VDC
|-Speed: 2500rpm-35000rpm
|-Torque: 2g.cm-15g.cm
|-Shaft OD: Φ1.5mm
|-Rotation Direction: CW/ CCW
|-Bearing: Bushing
|-Typical application: RC toys, electric lock, smart home electronics, E-toothbrush
Main features:
|-Model: FF-030PA
|-Motor type: brushed dc motor
|-Voltage: 1.5V-12VDC
|-Speed: 2500rpm-35000rpm
|-Torque: 2g.cm-15g.cm
|-Shaft OD: Φ1.5mm
|-Rotation Direction: CW/ CCW
|-Bearing: Bushing
|-Typical application: RC toys, electric lock, smart home electronics, E-toothbrush
FF-030 DC motor data examples:
Model | Voltage | No load | At maximum efficiency | Stall | |||||||
Range | Rated | Speed | Current | Speed | Current | Torque | P.out | Eff. | Torque | Current | |
V | R/m | A | R/m | A | gf.cm | W | % | gf.cm | A | ||
FF-030PA-08250 | 1.0-4.0 | 2.5 | 4,100 | 0.028 | 2,928 | 0.07 | 2.05 | 0.062 | 35.2 | 7.2 | 0.175 |
FF-030PA-11155 | 2.0-4.0 | 3 | 7,200 | 0.045 | 5,500 | 0.17 | 5 | 0.282 | 55.4 | 21.0 | 0.59 |
FF-030PA-1592 | 2.0-4.0 | 3.5 | 14,300 | 0.09 | 12,500 | 0.3 | 5 | 0.642 | 61.1 | 40.0 | 2 |
FF-030PA-10180 | 1.5-6.0 | 5 | 11,500 | 0.045 | 9,247 | 0.185 | 4.51 | 0.428 | 46.3 | 23.0 | 0.758 |
FF-030PA-06400 | 3.0-8.0 | 6 | 6,300 | 0.015 | 5,160 | 0.068 | 4.07 | 0.216 | 52.8 | 22.5 | 0.308 |
FF-030PA-08270 | 3.0-8.0 | 6 | 9,400 | 0.025 | 7,463 | 0.096 | 5.1 | 0.391 | 67.8 | 24.7 | 0.371 |
FF-030PA-10180 | 3.0-9.0 | 8 | 18,500 | 0.063 | 14,866 | 0.258 | 4.49 | 0.685 | 33.2 | 22.8 | 1.054 |

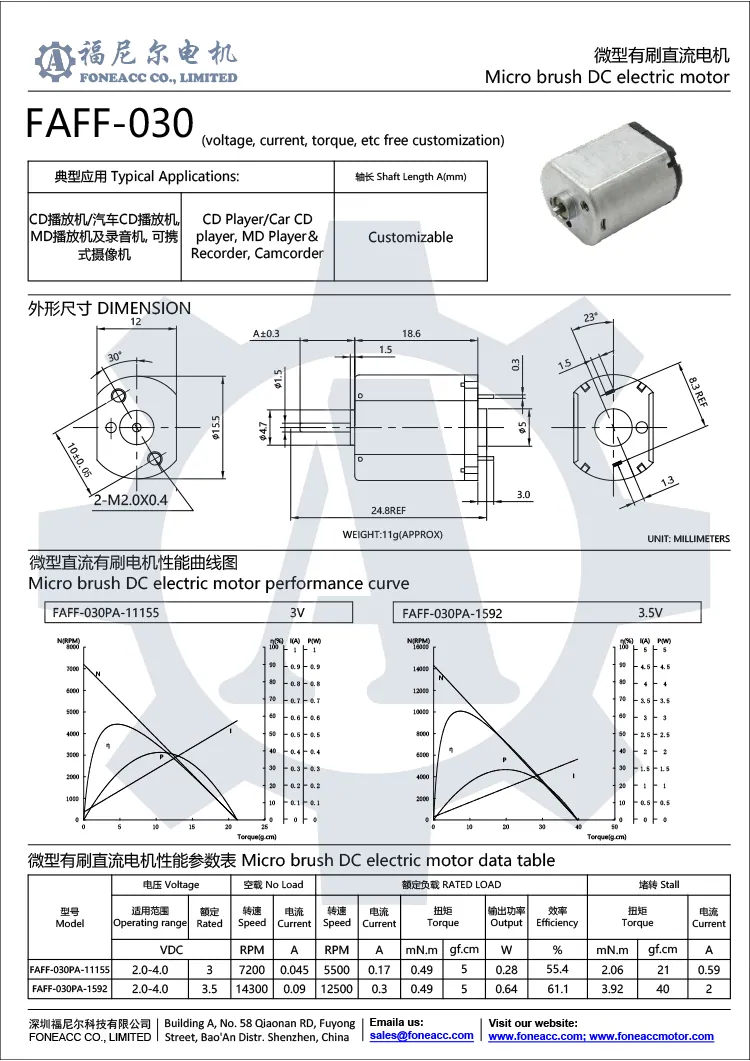

Dimensions and performance curves of FF-030 micro dc motor for reference:
Download FF-030 DC motor datasheet for clear view:
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
