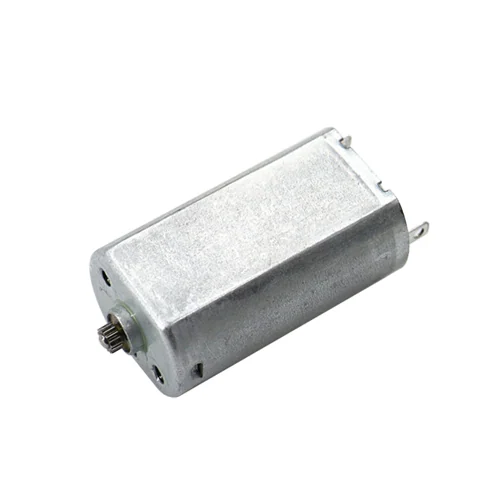

FF-050 Micro DC Motor

Model: FF-050SH
1.Size:D15.5*12*26.9mm
2.Power:0.2W-1.5W
3.Precious metal brushes
4.ROHS APPROVAL
5.Voltage:1.5-24V
6.Quite, Good Price
7.Specification are customized

FF-050 micro dc motor -- Foneacc Motor


Main features:

Model: FF-050SH
1.Size:D15.5*12*26.9mm
2.Power:0.2W-1.5W
3.Precious metal brushes
4.ROHS APPROVAL
5.Voltage:1.5-24V
6.Quite, Good Price
7.Specification are customized
Application: Audio and visual equipment, household appliance, toy, models, massager,Other industrial equipment,CD/MD Player, Car CD Player, Blood pressure meter, electric shaver.


FF-050 dc motor data examples:

Model Voltage No load At maximum efficiency Stall
Range Rated Speed Current Speed Current Torque P.out Eff. Torque Current
V R/min A R/min A gf-cm W % gf-cm A
FF-050SH-12140 2.0-9.0 7 12,500 0.06 9,800 0.3 12 1.21 69.4 54 1.1
FF-050SH-2434 2.0-4.2 3.7 16,800 0.37 16,300 0.6 5 0.84 75.6 180 7.45
FF-050SH-09250 5~11.5 5 8,100 0.023 6,610 0.1 6.4 0.43 67.0 35 0.45
FF-050SH-11170 3~9 5 10,300 0.05 8,500 0.17 7 0.61 68.7 46 0.82
FF-050SH-13125 3~10 2.5 11,500 0.09 9,100 0.68 11.4 1.07 62.7 55 1.3

Dimensions and performance curves of FF-050 dc motor for reference:

ff-050 micro brush dc electric motor


Download FF-050 DC motor datasheet for clear view:

FF-050-datasheet.pdf

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
