FF-N10VA 12mm Micro DC Motor

|- Model Number: FF-N10VA
|- Shell Stator Size : Φ12* L 13.0 mm(Φ 0.472 inch * 0.512 inch)
|- Shaft : Φ1.0mm(0.039 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 1W
|- Rated Voltage: DC 1.5V - 12V
|- Rated Torque: up to 2gf·cm(0.196 mN·m)
|- Construction: Permanent Magnet
|- Commutation: Metal/Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)

FF-N10VA 12mm micro dc motor


Main features:

|- Model Number: FF-N10VA
|- Shell Stator Size : Φ12* L 13.0 mm(Φ 0.472 inch * 0.512 inch)
|- Shaft : Φ1.0mm(0.039 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 1W
|- Rated Voltage: DC 1.5V - 12V
|- Rated Torque: up to 2gf-cm(0.196 mN-m)
|- Construction: Permanent Magnet
|- Commutation: Metal/Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)


FF-N10VA dc motor data examples:

Model Voltage No Load RATED LOAD Stall
Operating range Rated Speed Current Speed Current Torque Output Efficiency Torque Current
VDC RPM A RPM A gf.cm W % gf.cm A
FF-N10VA-10140 2.0~4.0 3 16000 0.046 13000 0.18 2.5 0.33 61.8 12 0.8

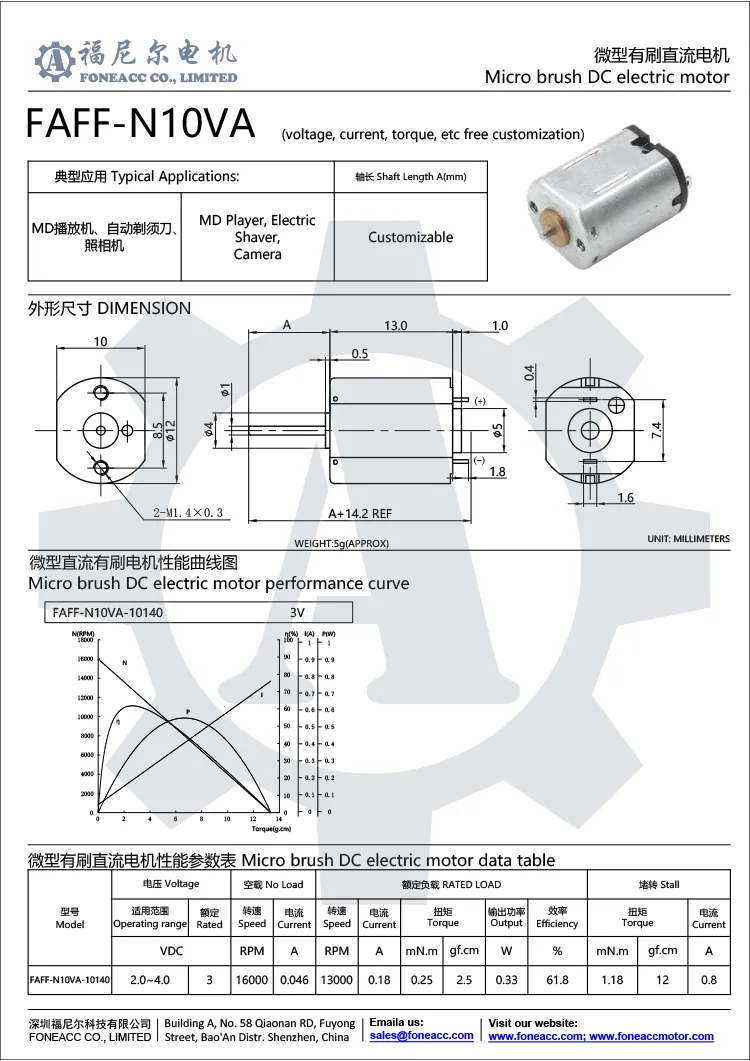

Dimensions and performance curves of FF-N10VA dc motor for reference:

ff-n10va micro brush dc electric motor


Download FF-N10VA DC motor datasheet for clear view:

FF-N10-datasheet.pdf

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
