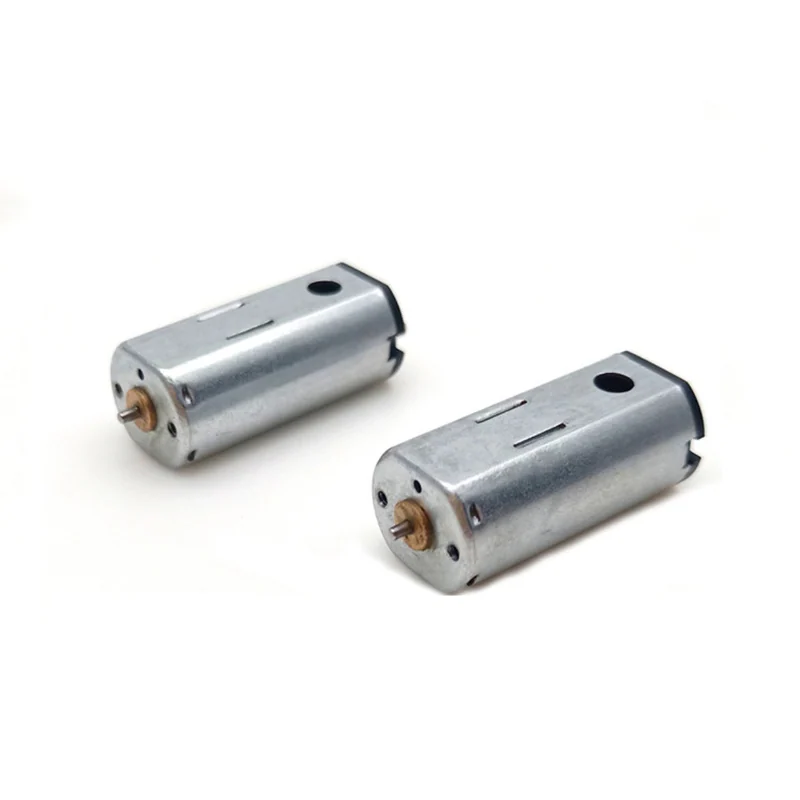

Model: FF-N50VA
Motor type: brushed dc motor,
Voltage: 1.5V-24VDC,
Speed: 7500rpm-35000rpm,
Torque: 0.5g.cm-20g.cm,
Shaft OD: Φ1.0mm,
Rotation Direction: CW/ CCW,
Bearing: Bushing,
Typical application: smart lock, electric lock, smart home electronics, actuator sensors
Main features:
Model: FF-N50VA
Motor type: brushed dc motor,
Voltage: 1.5V-24VDC,
Speed: 7500rpm-35000rpm,
Torque: 0.5g.cm-20g.cm,
Shaft OD: Φ1.0mm,
Rotation Direction: CW/ CCW,
Bearing: Bushing,
Typical application: smart lock, electric lock, smart home electronics, actuator sensors
FF-N50VA DC motor data examples:
Model | Voltage | No load | At maximum efficiency | Stall | |||||||
Range | Rated | Speed | Current | Speed | Current | Torque | P.out | Eff. | Torque | Current | |
V | R/m | A | R/m | A | gf.cm | W | % | gf.cm | A | ||
FF-N50VA-1860 | 2-8 | 7.4 | 31000 | 0.19 | 25846 | 0.953 | 19.6 | 5.17 | 73.4 | 117.8 | 4.78 |
FF-N50VA-2630 | 2-4 | 3.7 | 33000 | 0.42 | 27152 | 1.952 | 16.6 | 4.60 | 63.7 | 93.50 | 9.06 |
FF-N50VA-2145 | 2-8 | 7.4 | 40300 | 0.19 | 35000 | 1.300 | 20.2 | 7.26 | 75.4 | 160.0 | 9.00 |

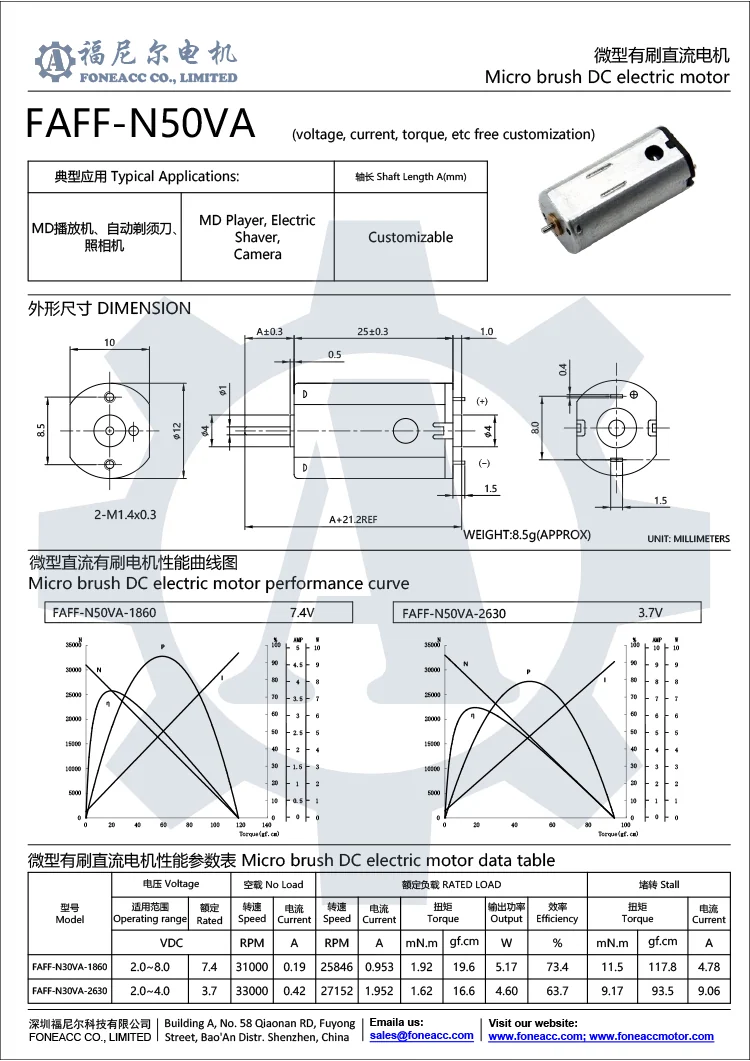

Dimensions and performance curves of FF-N50VA micro dc motor for reference:
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
