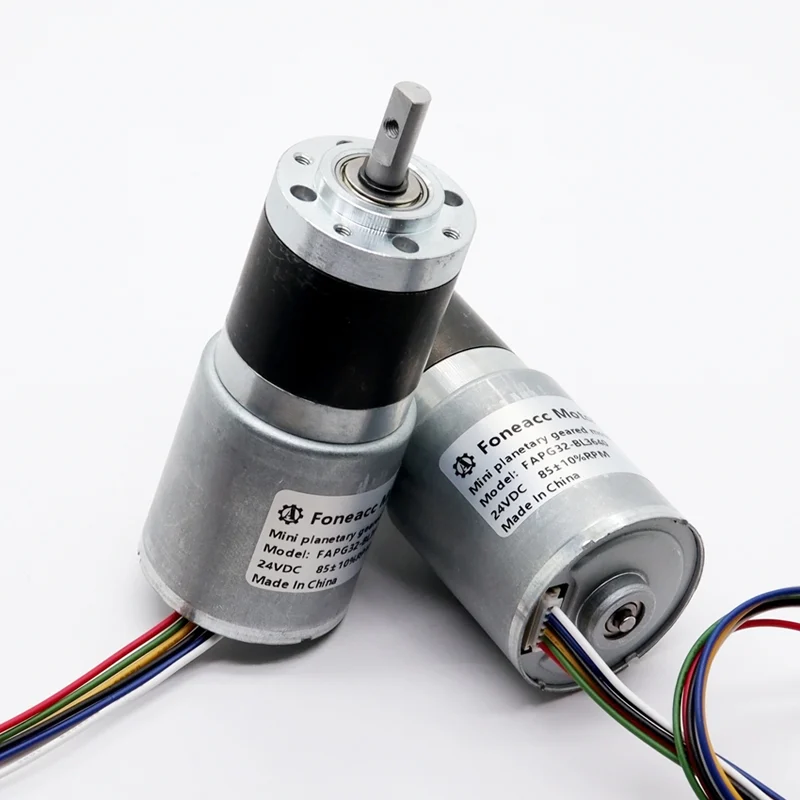

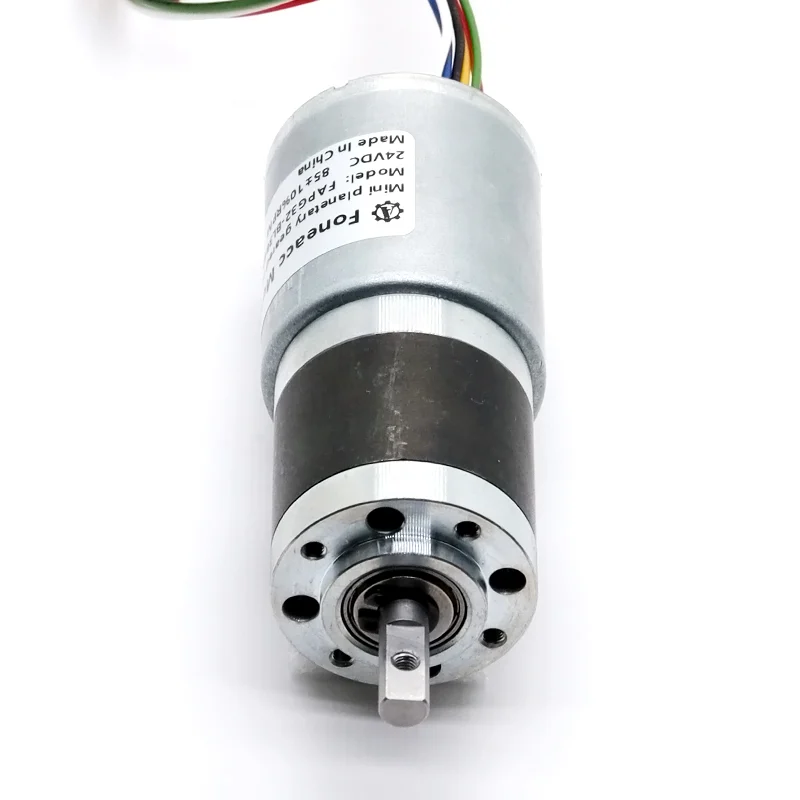

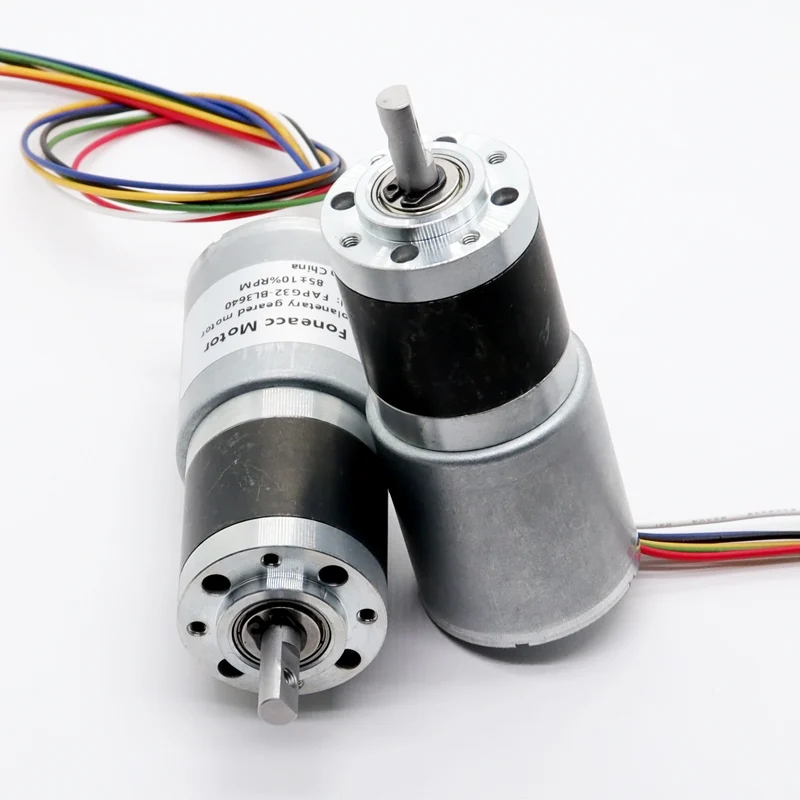

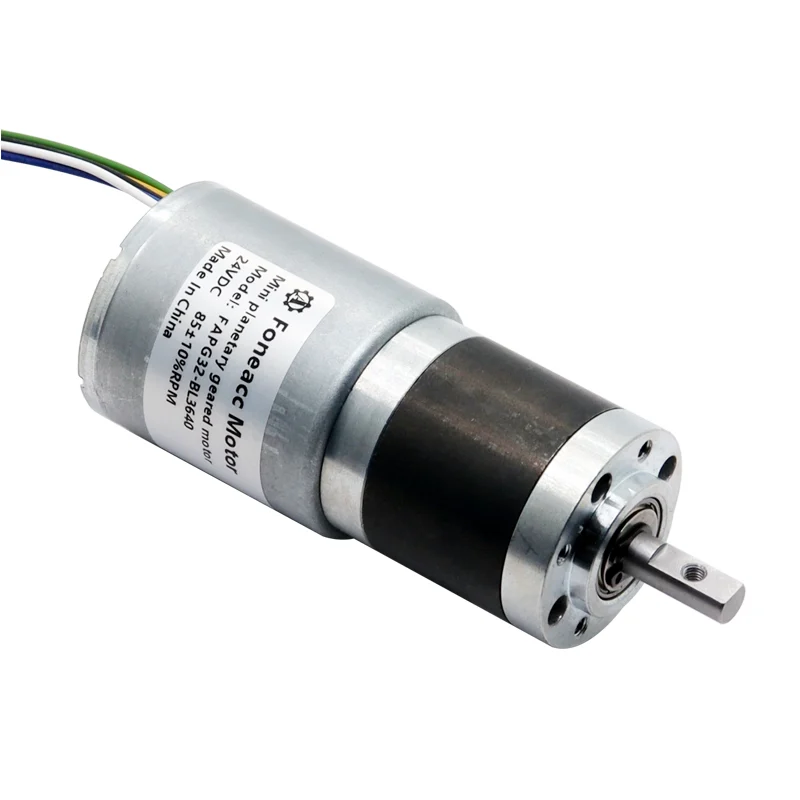

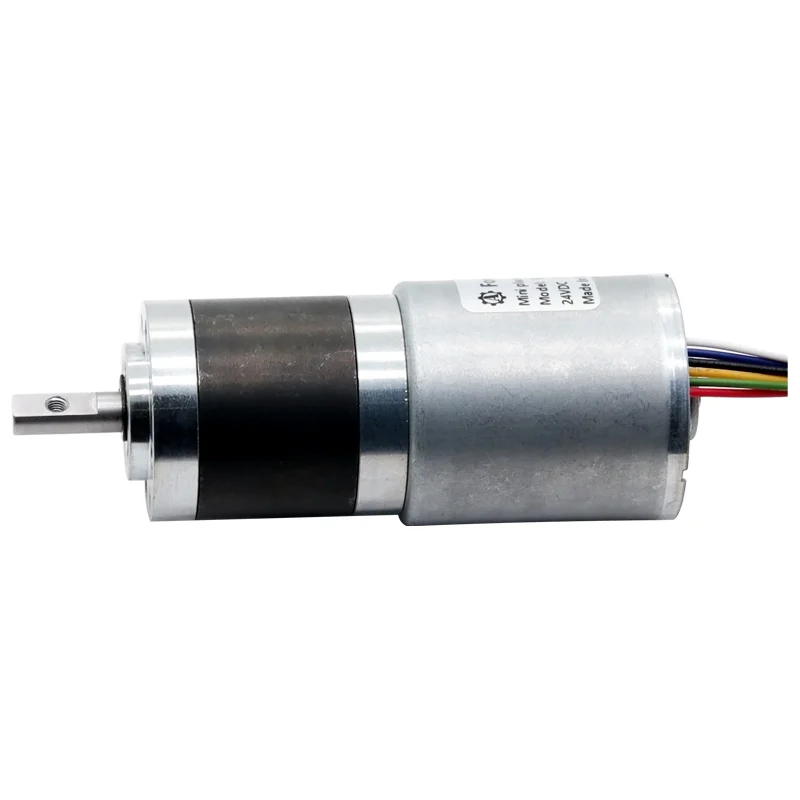

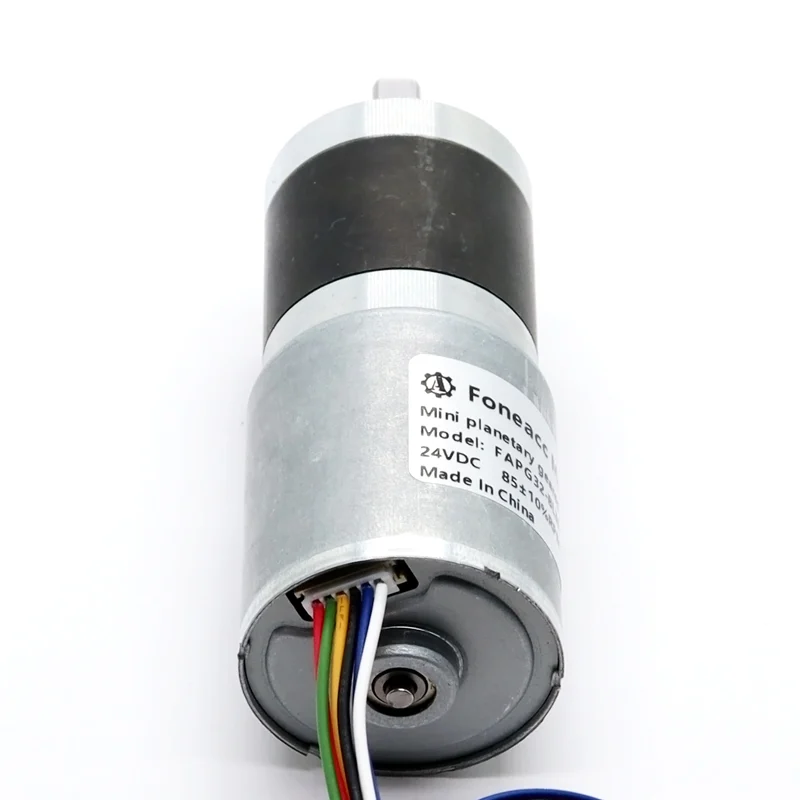

PG32-BL3640 36mm bldc motor assembled with 32mm OD planetary(epicyclic) gearbox

PG32-BL3640 36mm brushless dc motor assembled with 32mm diameter planetary gearbox

---

Main features:

|- Model: PG32-BL3640; BL3640 BLDC motor with gearbox.
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 50Kgf-cm ;
|- Size : Φ32(Φ36)* L TBD ;
|- Shaft : concentric driveshaft, Φ6mm D-cut 0.5mm, custom;
|- Commutation: Brushless, PWM-driven;
|- Construction: Permanent Magnet;
|- Control: Built-in driver board with hall sensors;
|- MOQ: 500 pcs;

---

PG32-BL363640 mini bldc planetary geared motor data examples:

Model	No Load	Rated Load		Breaking Torque
	Speed	Torque	Speed
	r/min	kgf-cm	r/min	kgf-cm
PG32-BL3640-12V3K	2643.3	0.5	2266.7	6.5
PG32-BL3640-12V5K	1586.0	0.8	1360.0	6.5
PG32-BL3640-12V11K	720.9	1.5	618.2	15.5
PG32-BL3640-12V16K	495.6	2.2	425.0	15.5
PG32-BL3640-12V21K	377.6	2.9	323.8	15.5
PG32-BL3640-12V38K	208.7	4.6	178.9	50.0
PG32-BL3640-12V52K	152.5	6.2	130.8	50.0
PG32-BL3640-12V72K	110.1	8.6	94.4	50.0
PG32-BL3640-12V100K	79.3	12.0	68.0	50.0
PG32-BL3640-12V126K	62.9	12.6	54.0	75.0
PG32-BL3640-12V175K	45.3	17.5	38.9	75.0
PG32-BL3640-12V334K	23.7	33.4	20.4	75.0
PG32-BL3640-12V462K	17.2	46.2	14.7	75.0
PG32-BL3640-24V3K	1669.0	0.6	1349.0	6.5
PG32-BL3640-24V5K	1001.4	1.0	809.4	6.5
PG32-BL3640-24V11K	455.2	1.8	367.9	15.5
PG32-BL3640-24V16K	312.9	2.7	252.9	15.5
PG32-BL3640-24V21K	238.4	3.5	192.7	15.5
PG32-BL3640-24V38K	131.8	5.5	106.5	50.0
PG32-BL3640-24V52K	96.3	7.5	77.8	50.0
PG32-BL3640-24V72K	69.5	10.4	56.2	50.0
PG32-BL3640-24V100K	50.1	14.4	40.5	50.0
PG32-BL3640-24V126K	39.7	15.1	32.1	75.0
PG32-BL3640-24V175K	28.6	21.0	23.1	75.0
PG32-BL3640-24V334K	15.0	40.0	12.1	75.0
PG32-BL3640-24V462K	10.8	55.4	8.8	75.0

---

Dimensions and configurations of PG32-BL3640 mini bldc planetary gear motor for reference:

---

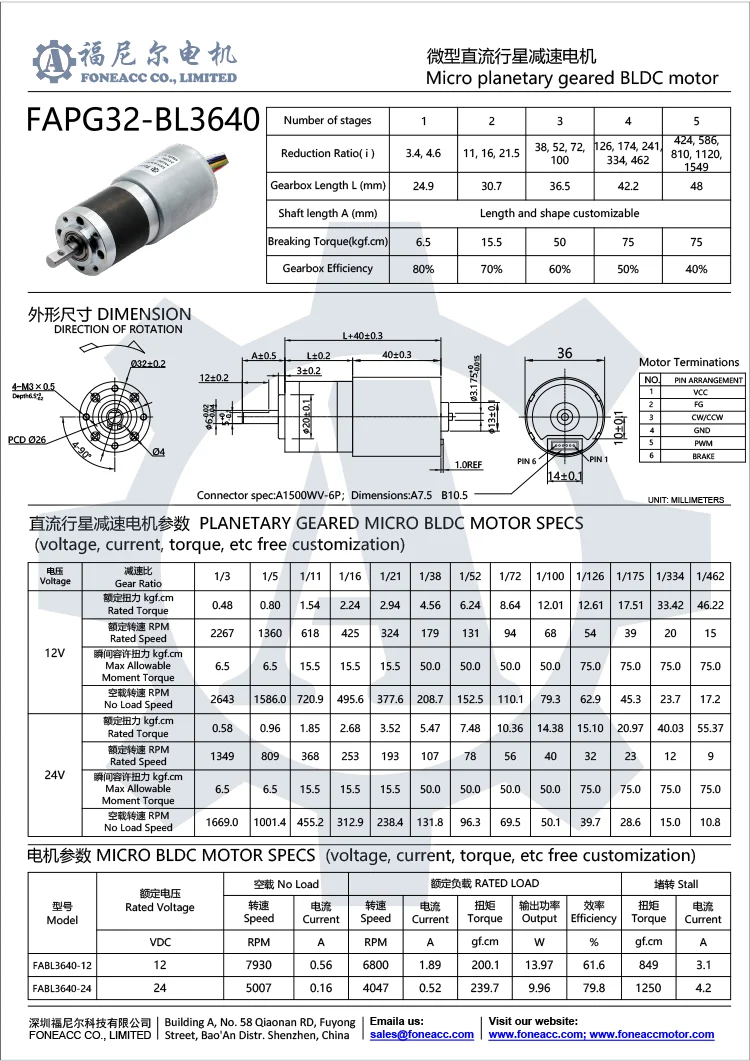

Download PG32-BL3640 mini dc gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
