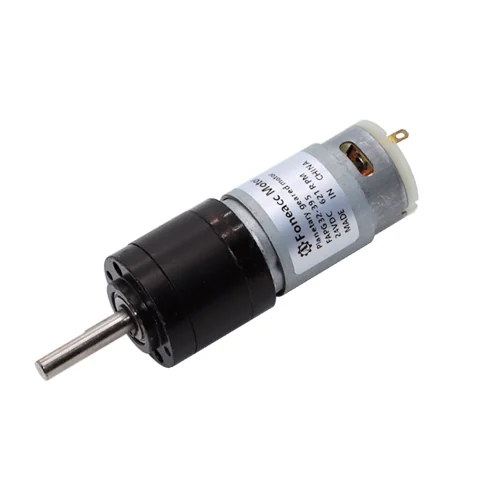

PG32-395 32mm mini epicyclic(planetary) gear motor

|- Model: PG32-395;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 30 Kgf-cm ;
|- Size : Φ32* L TBD ;
|- Shaft : concentric driveshaft, Φ6mm D-cut 1mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic/Optical encoder.
|- MOQ: 500 pcs;

PG32-395 32mm mini epicyclic(planetary) gear motor


Main features:

|- Model: PG32-395; RS-395 dc motor with planetary gearbox reducer.
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 30 Kgf-cm ;
|- Size : Φ32* L TBD ;
|- Shaft : concentric driveshaft, Φ6mm D-cut 1mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder:  Magnetic/optical encoder
|- MOQ: 500 pcs;
|- MOQ: 500 pcs;


PG32-395 mini dc geared motor data examples:

Model No Load Rated Load
Breaking
Torque
Speed Torque Speed
r/min kgf-cm r/min kgf-cm
PG32-395-12V3K 2000 0.23 1700 3.5
PG32-395-12V5K 1200 0.39 1020 3.5
PG32-395-12V11K 545.5 0.75 464 8
PG32-395-12V16K 375 1.09 319 8
PG32-395-12V21K 285.7 1.43 243 8
PG32-395-12V38K 157.9 2.21 134 35
PG32-395-12V52K 115.4 3.03 98 35
PG32-395-12V72K 83.3 4.19 71 35
PG32-395-12V100K 60 5.82 51 35
PG32-395-12V126K 47.6 6.11 40 75
PG32-395-12V175K 34.3 8.49 29 75
PG32-395-12V334K 18 16.2 15 75
PG32-395-12V462K 13 22.41 11 75
PG32-395-24V3K 2000 0.24 1733 3.5
PG32-395-24V5K 1200 0.4 1040 3.5
PG32-395-24V11K 545.5 0.76 473 8
PG32-395-24V16K 375 1.11 325 8
PG32-395-24V21K 285.7 1.46 248 8
PG32-395-24V38K 157.9 2.26 137 35
PG32-395-24V52K 115.4 3.09 100 35
PG32-395-24V72K 83.3 4.28 72 35
PG32-395-24V100K 60 5.94 52 35
PG32-395-24V126K 47.6 6.24 41 75
PG32-395-24V175K 34.3 8.66 30 75
PG32-395-24V334K 18 16.53 16 75
PG32-395-24V462K 13 22.87 11 75

Dimensions and configurations of PG32-395 mini dc planetary gear motor for reference:

PG32-395 planetary gearbox dc electric motor


Download PG32-395 mini dc gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
