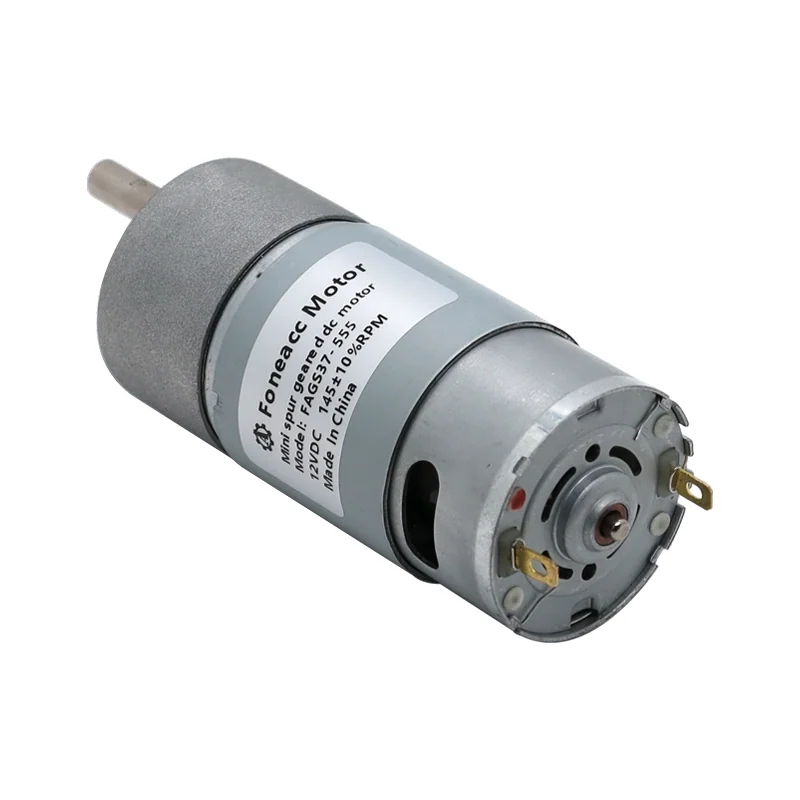

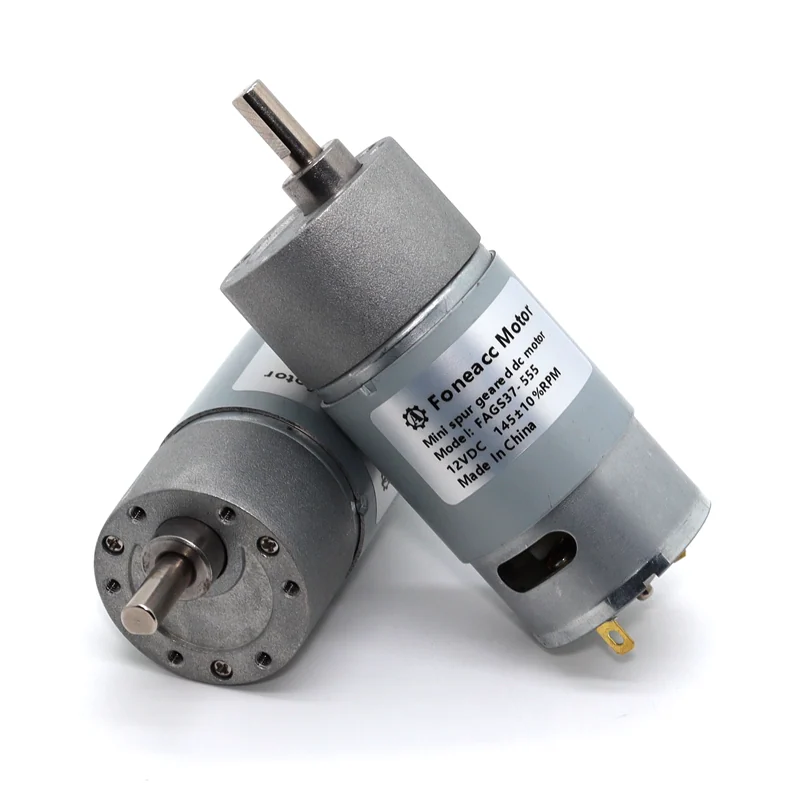

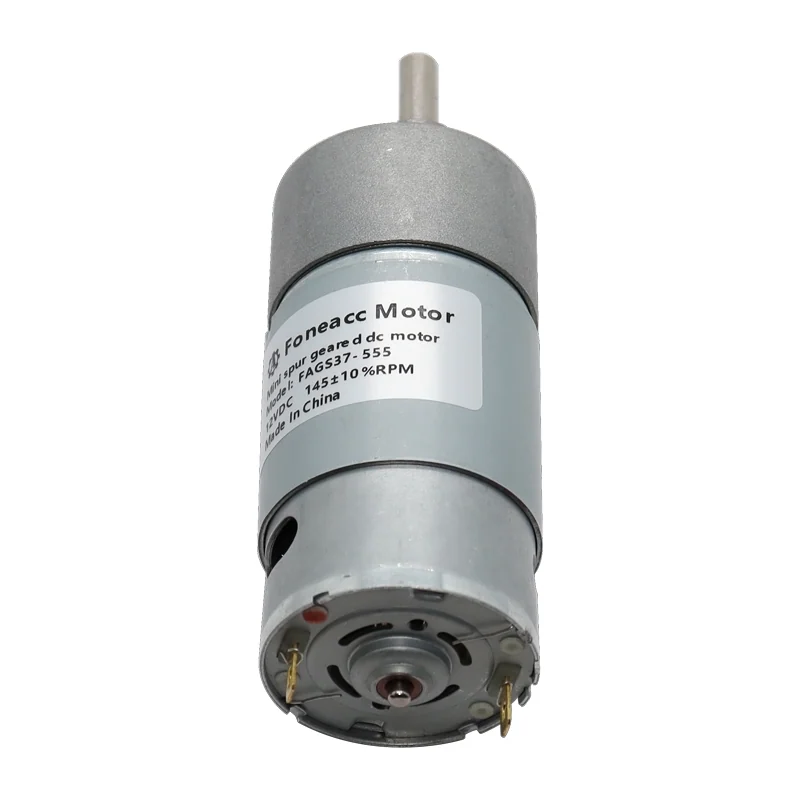

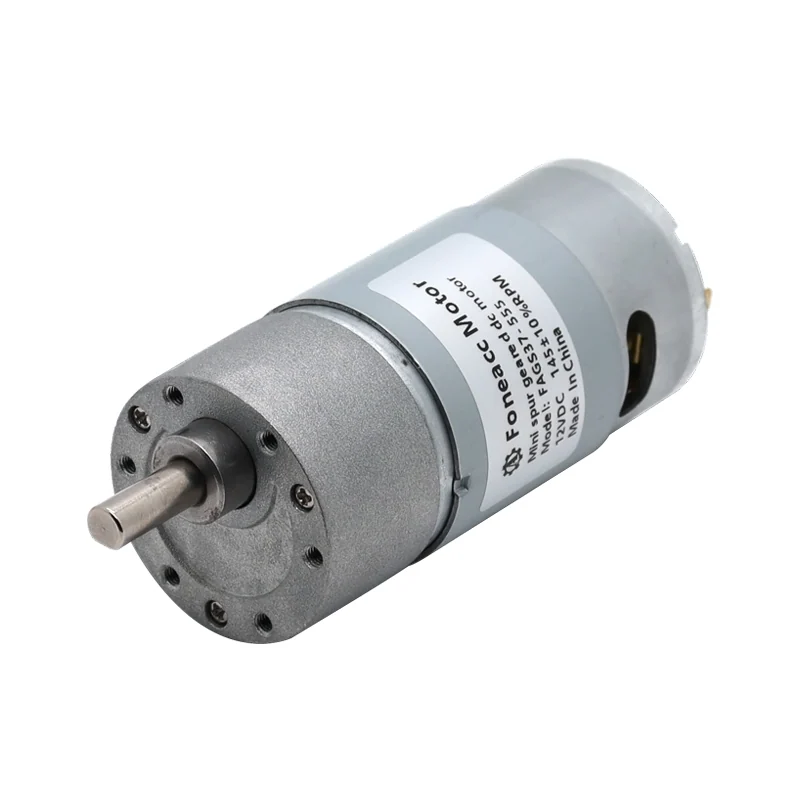

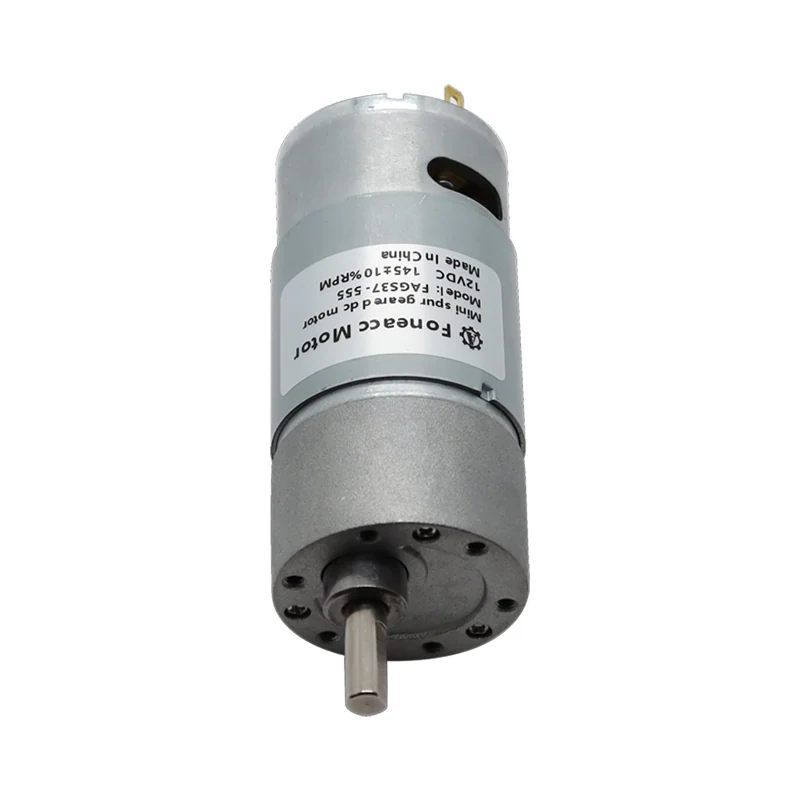

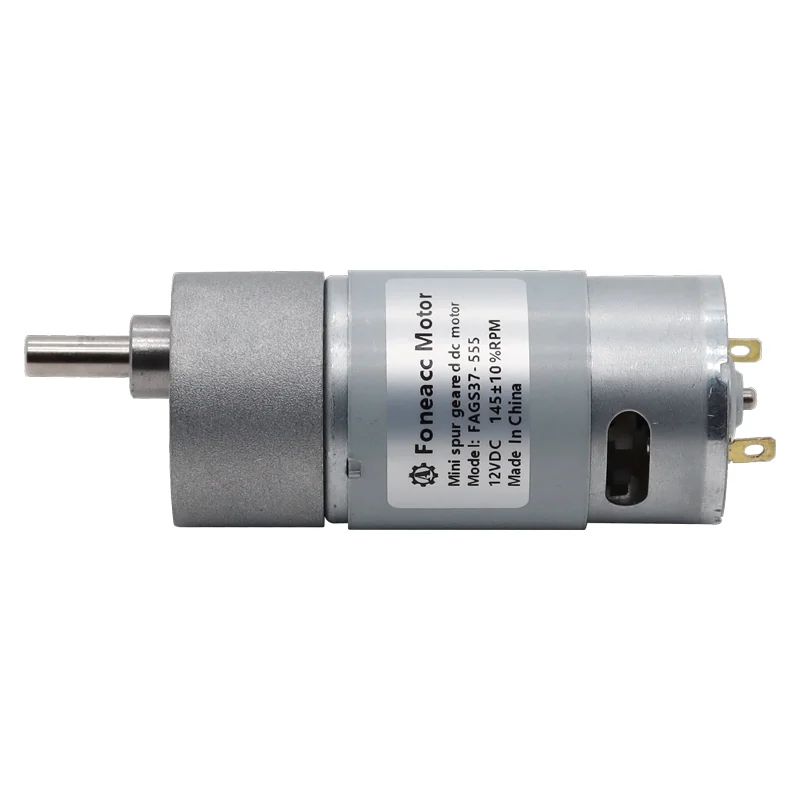

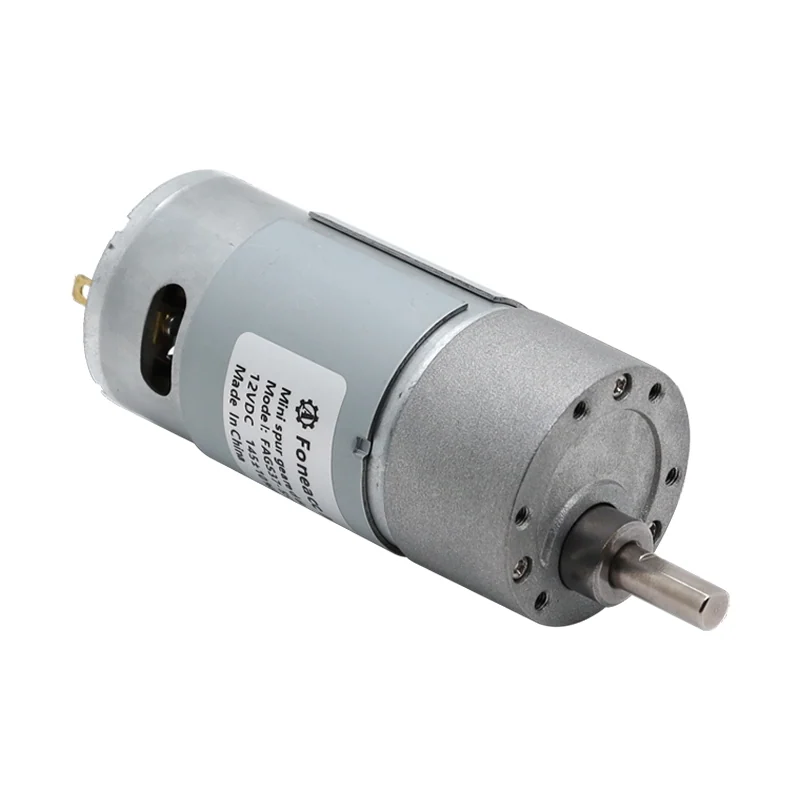

37GB555 diameter 37mm compact metal spur gear dc motor

37GB555 Small DC geared motor

---

Main features:

|- Model: 37GB555 micro metal gearmotor;
|- Gearbox: 37 mm metal spur gear reducer with parallel shaft ;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 35Kgf-cm ;
|- Size : Φ37 * L TBD ;
|- Shaft : Φ6mm D-cut 0.5mm, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

---

37GB555, 37GB-555 dc geared motor data examples:

Voltage	Stages	2	3			4			5				6
	Gear Ratio	10	16.7	23.3	36	50	70	90	110	121	180	270	350	490	540	630	810
6V	(kgf.cm) Rated Torque	1.38	2.10	2.93	4.53	5.73	8.02	10.31	11.46	12.61	18.76	28.14	33.19	46.47	51.21	59.75	76.82
	(RPM) Rated Speed	270	162	116	75	54	39	30	25	22	15	10	8	6	5	4	3
	(kgf.cm) Breaking Torque	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0
	(RPM) No Load Speed	330	198	142	92	66	47	37	30	27	18	12	9	7	6	5	4
12V	(kgf.cm) Rated Torque	1.74	2.64	3.69	5.70	7.20	10.08	12.96	14.42	15.86	23.59	35.38	41.74	58.43	64.40	75.13	96.59
	(RPM) Rated Speed	390	234	167	108	78	56	43	35	32	22	14	11	8	7	6	5
	(kgf.cm) Breaking Torque	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0	40.0
	(RPM) No Load Speed	460.0	275.4	197.4	127.8	92.0	65.7	51.1	41.8	38.0	25.6	17.0	13.1	9.4	8.5	7.3	5.7

Single motor RS-555 dc electric motor specs

Model	Rated Voltage	No Load		RATED LOAD					Stall
		Speed	Current	Speed	Current	Torque	Output	Efficiency	Torque	Current
	VDC	RPM	A	RPM	A	gf.cm	W	%	gf.cm	A
RS-555-3730	6	3300	0.25	2700	1.3	167	4.629	59.3	1000	6.7
RS-555-3156	12	4600	0.23	3900	1.3	210	8.408	53.9	1300	5.5

---

Dimensions and configurations of 37GB555 dc gear motor for reference:

---

Download 37GB555 DC gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
