37GB-BL3640 diameter 37mm mini spur geared bldc motor with driver

37GB-BL3640 diameter 37mm mini spur geared bldc motor with driver

|- Model: 37GB-BL3640 small metal spur geared gearmotor;
|- Motor: BL3640I, BL3640 diameter 36mm bldc motor with internal driver;
|- Gearbox: 37 mm metal spur gear reducer with parallel drive shaft;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 40Kgf-cm ;
|- Size : Φ37 * L TBD ;
|- Shaft : Φ6mm D-cut 0.5mm, M4, custom;
|- Encoder : internal driver wtih MCU;
|- Commutation: PWM-driving;
|- Construction: micro Permanent Magnet iron cored bldc electric motor;
|- MOQ : 500 pcs

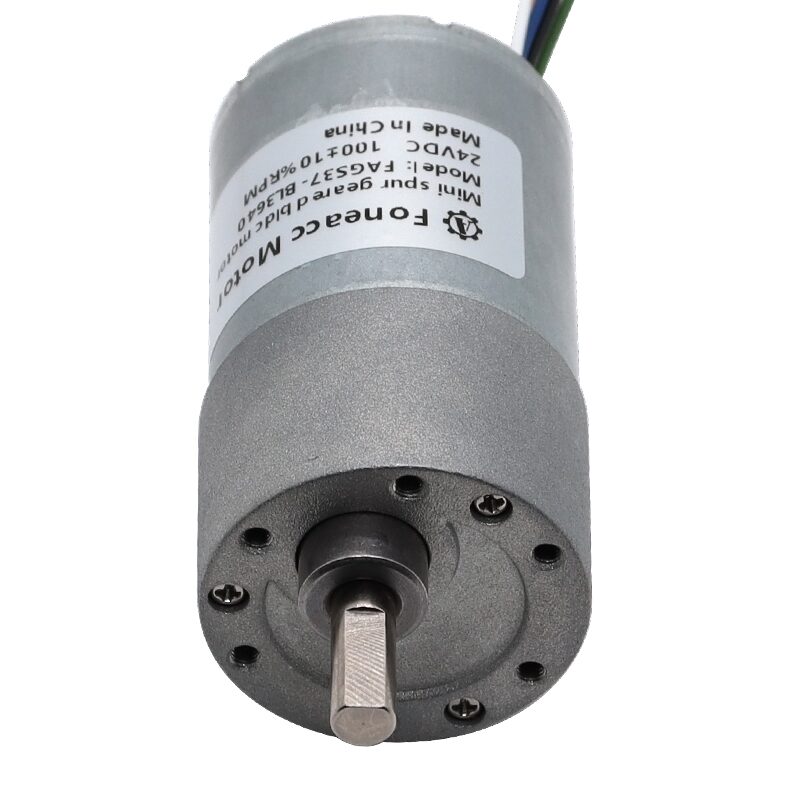

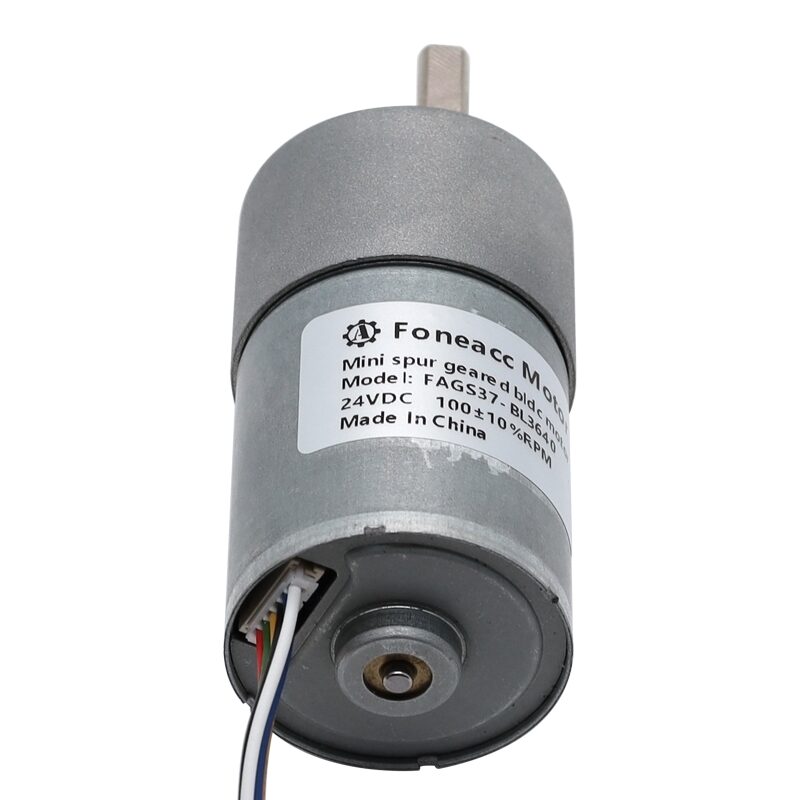

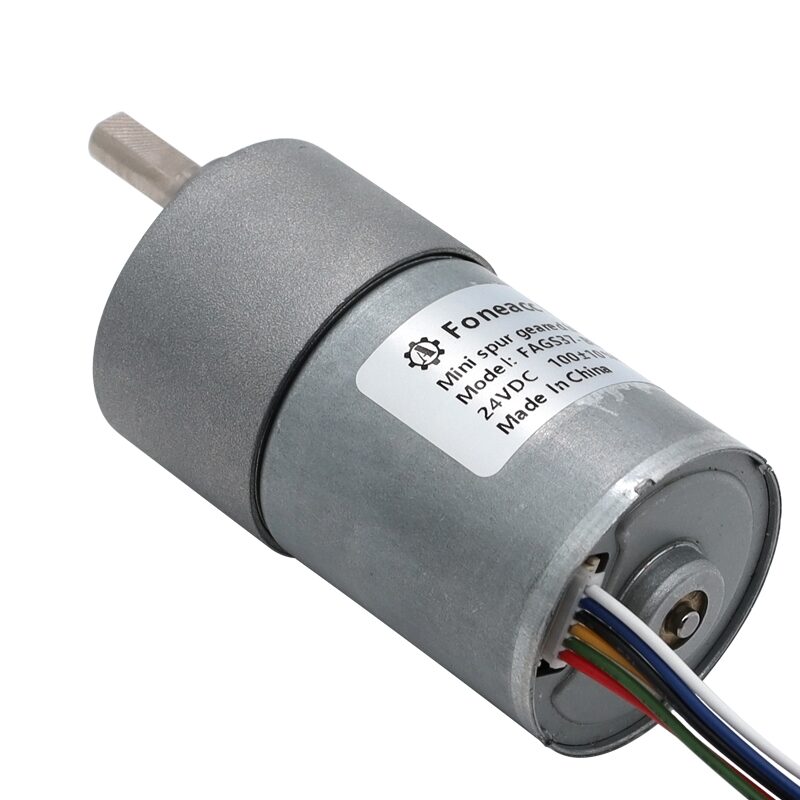

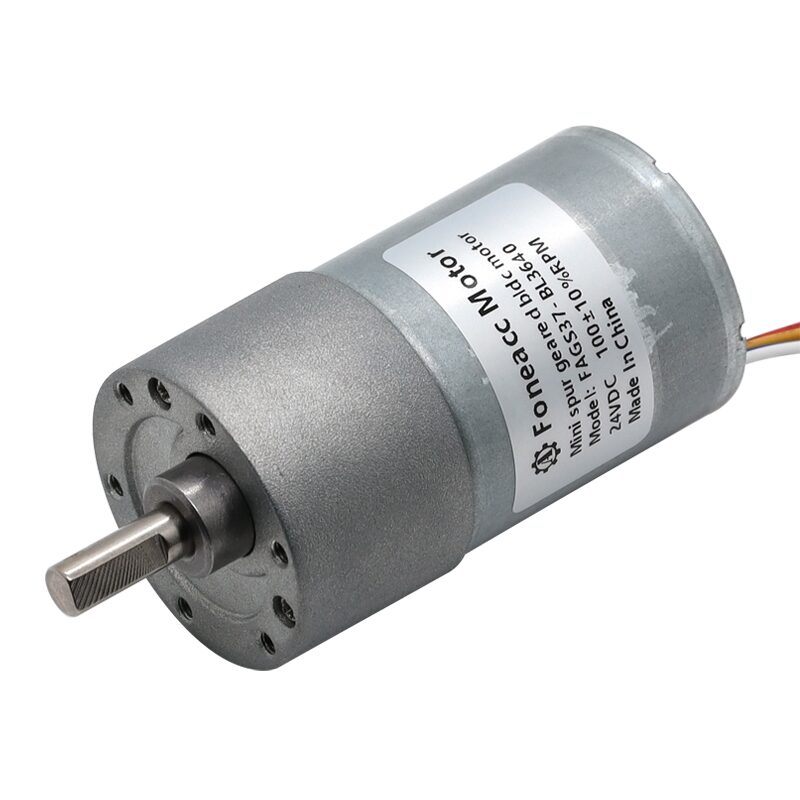

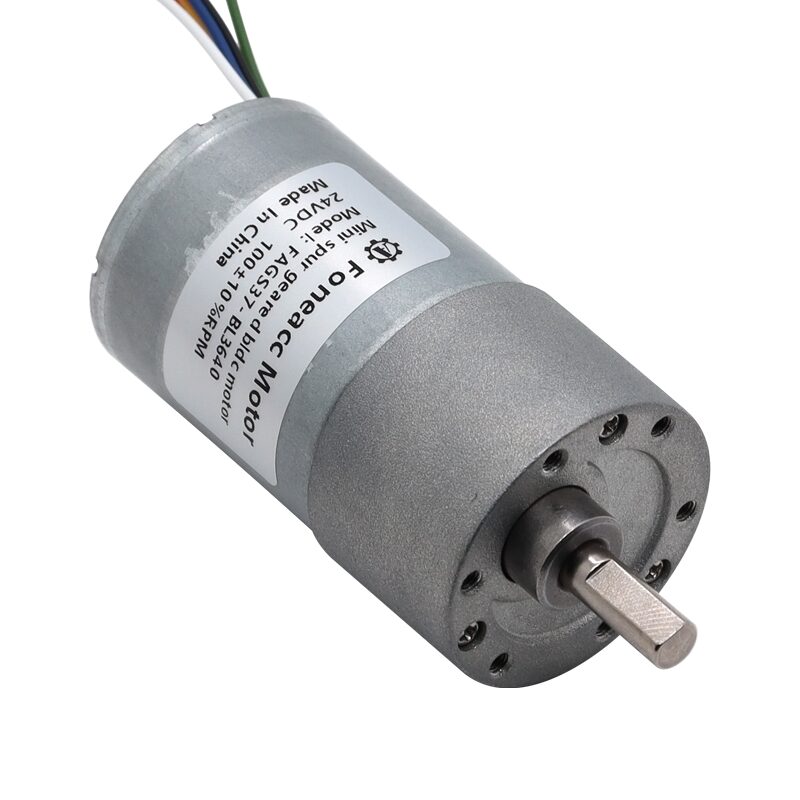

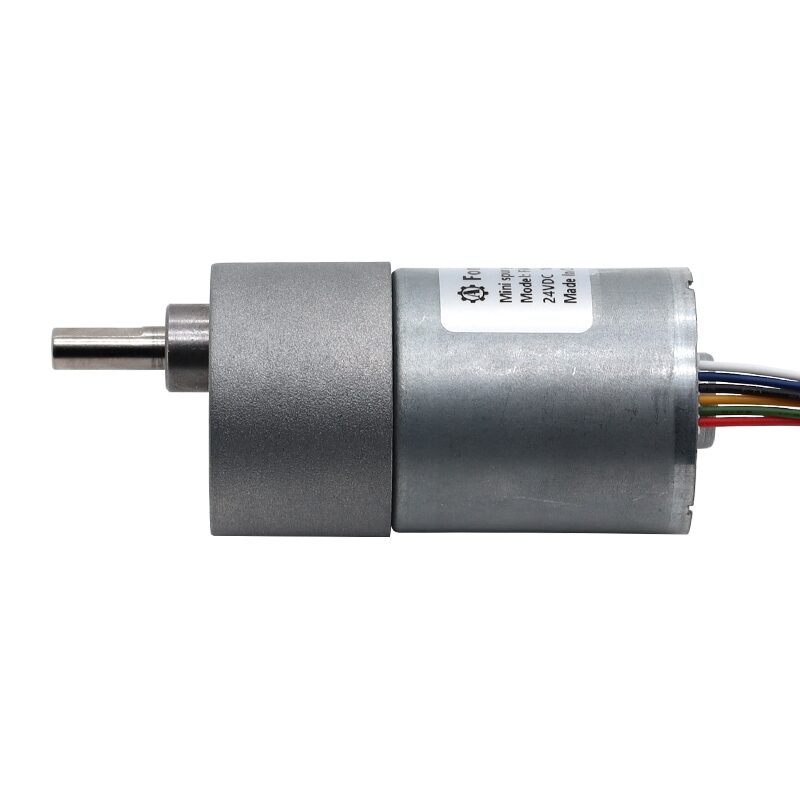

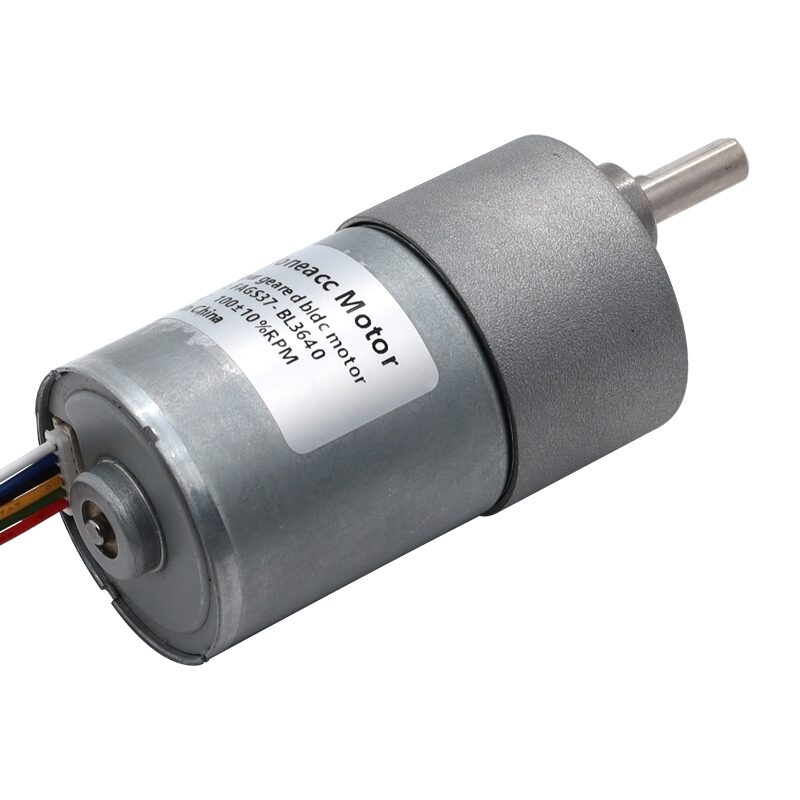

37GB-BL3640 BL3640 BLDC motor with internal driver assembled a diameter 37mm metal spur gear reducer

Main features:

|- Model: 37GB-BL3640 small metal spur geared gearmotor;
|- Motor: BL3640I, BL3640 diameter 36mm bldc motor with internal driver;
|- Gearbox: 37 mm metal spur gear reducer with parallel drive shaft;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 40Kgf-cm ;
|- Size : Ø37 * L TBD ;
|- Shaft : Ø6mm D-cut 0.5mm, M4, custom;
|- Encoder : internal driver wtih MCU;
|- Commutation: PWM-driving;
|- Construction: micro Permanent Magnet iron cored bldc electric motor;
|- MOQ : 500 pcs

37GB-BL3640 dc geared motor data examples:

Model	No Load	Rated Load		Breaking Torque
	Speed	Torque	Speed	Breaking Torque
	R/min	kgf-cm	R/min	kgf-cm
37GB-BL3640-12V10K	476.9	1.2	400.6	40.0
37GB-BL3640-12V17K	285.6	1.8	239.9	40.0
37GB-BL3640-12V23K	204.7	2.6	171.9	40.0
37GB-BL3640-12V30K	159.0	3.3	133.5	40.0
37GB-BL3640-12V36K	132.5	4.0	111.3	40.0
37GB-BL3640-12V50K	95.4	5.0	80.1	40.0
37GB-BL3640-12V60K	79.5	6.0	66.8	40.0
37GB-BL3640-12V70K	68.1	7.0	57.2	40.0
37GB-BL3640-12V90K	53.0	9.1	44.5	40.0
37GB-BL3640-12V110K	43.4	10.1	36.4	40.0
37GB-BL3640-12V121K	39.4	11.1	33.1	40.0
37GB-BL3640-12V150K	31.8	13.7	26.7	40.0
37GB-BL3640-12V180K	26.5	16.5	22.3	40.0
37GB-BL3640-12V210K	22.7	19.2	19.1	40.0
37GB-BL3640-12V270K	17.7	24.7	14.8	40.0
37GB-BL3640-12V350K	13.6	29.2	11.4	40.0
37GB-BL3640-12V405K	11.8	33.7	9.9	40.0
37GB-BL3640-12V450K	10.6	37.5	8.9	40.0
37GB-BL3640-12V490K	9.7	x	8.2	40.0
37GB-BL3640-12V540K	8.8	x	7.4	40.0
37GB-BL3640-12V630K	7.6	x	6.4	40.0
37GB-BL3640-12V810K	5.9	x	4.9	40.0
37GB-BL3640-24V10K	560.2	1.8	451.8	40.0
37GB-BL3640-24V17K	335.4	2.8	270.5	40.0
37GB-BL3640-24V23K	240.4	3.9	193.9	40.0
37GB-BL3640-24V30K	186.7	5.0	150.6	40.0
37GB-BL3640-24V36K	155.6	6.0	125.5	40.0
37GB-BL3640-24V50K	112.0	7.6	90.4	40.0
37GB-BL3640-24V60K	93.4	9.1	75.3	40.0
37GB-BL3640-24V70K	80.0	10.6	64.5	40.0
37GB-BL3640-24V90K	62.2	13.7	50.2	40.0
37GB-BL3640-24V110K	50.9	15.2	41.1	40.0
37GB-BL3640-24V121K	46.3	16.7	37.3	40.0
37GB-BL3640-24V150K	37.3	20.7	30.1	40.0
37GB-BL3640-24V180K	31.1	24.9	25.1	40.0
37GB-BL3640-24V210K	26.7	29.0	21.5	40.0
37GB-BL3640-24V270K	20.7	37.3	16.7	40.0
37GB-BL3640-24V350K	16.0	x	12.9	40.0
37GB-BL3640-24V405K	13.8	x	11.2	40.0
37GB-BL3640-24V450K	12.4	x	10.0	40.0
37GB-BL3640-24V490K	11.4	x	9.2	40.0
37GB-BL3640-24V540K	10.4	x	8.4	40.0
37GB-BL3640-24V630K	8.9	x	7.2	40.0
37GB-BL3640-24V810K	6.9	x	5.6	40.0

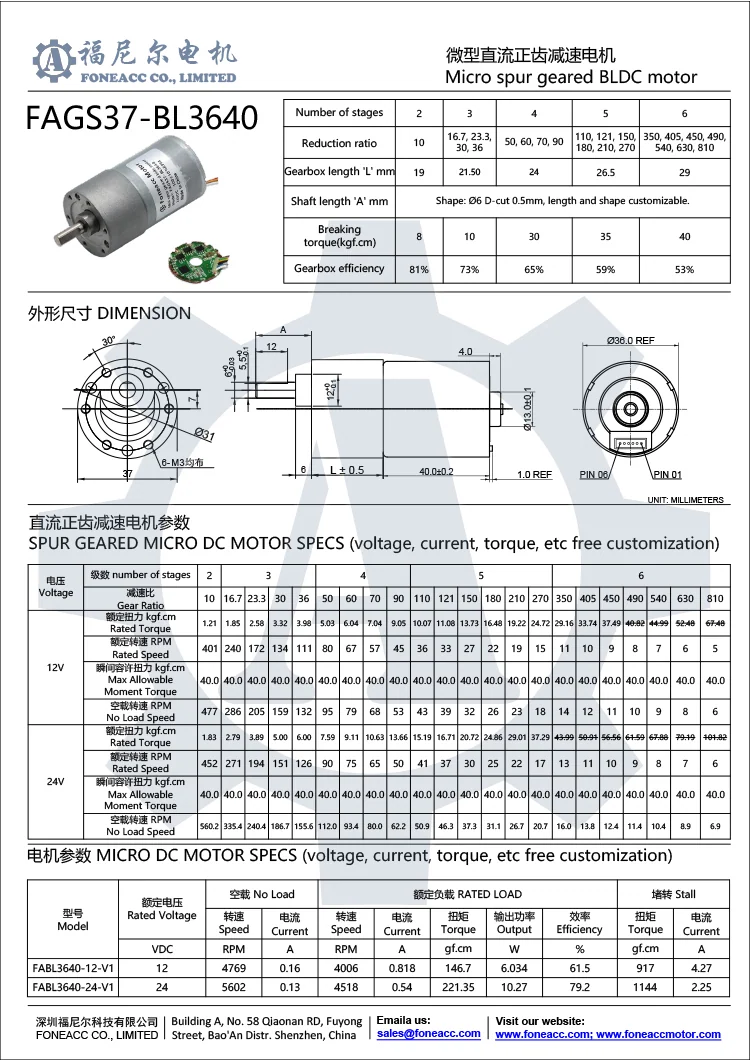

Dimensions and configurations of 37GB-BL3640 brushless dc gear motor for reference:

37GB-BL3640 small spur geared brush dc electric motor datasheet

6 wires built-in driver interface instruction.webp

Download 37GB-BL3640 DC gearmotor datasheet for clear view:

37GB-BL3640-datasheet.pdf

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
