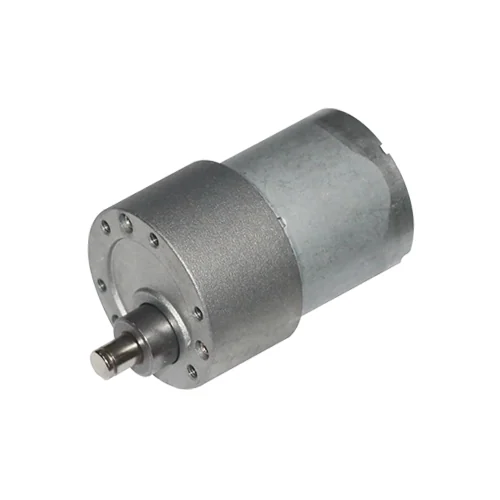

Pololu 37D metal gearmotors equivalent Micro DC spur geared motor

|- Model: Pololu 37D metal gearmotors equivalent micro metal gearmotor;
|- Gearbox: 37 mm metal spur gear reducer with parallel shaft ;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 20Kgf-cm ;
|- Size : Φ37 * L TBD ;
|- Shaft : Φ6mm D-cut 0.5mm, custom;
|- Encoder : Magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

Pololu 37D metal gearmotors equivalent Micro DC spur geared motor

Main features:

|- Model: Pololu 37D metal gearmotors equivalent micro metal gearmotor;
|- Gearbox: 37 mm metal spur gear reducer with parallel shaft ;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 20Kgf-cm ;
|- Size : Φ37 * L TBD ;
|- Shaft : Φ6mm D-cut 0.5mm, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

Pololu 37D metal gearmotors equivalent dc geared motor data examples:

Rated Voltage	Stall Current	No-Load Current	Gear Ratio	No-Load Speed (RPM)	Extrapolated Stall Torque		Max Power (W)
Rated Voltage	Stall Current	No-Load Current	Gear Ratio	No-Load Speed (RPM)	(kg ⋅ cm)	(oz ⋅ in)	Max Power (W)
12 V	5.5 A	0.2 A	1:1 (no gearbox)	10,000	0.5	7	–
			6.3:1	1600	3.0	42	12
			10:1	1000	4.9	68	12
			19:1	530	8.5	120	12
			30:1	330	14	190	12
			50:1	200	21	290	10
			70:1	150	27	380	10*
			100:1	100	34	470	8*
			131:1	76	45	630	6*
			150:1	67	49	680	6*
24 V	3 A	0.1 A	1:1 (no gearbox)	10,000	0.55	8	–
			6.3:1	1600	3.5	49	14
			10:1	1000	5.5	76	14
			19:1	530	9.5	130	13
			30:1	330	15	210	13
			50:1	200	23	320	12
			70:1	140	31	430	10*
			100:1	100	39	540	8*
			131:1	79	47	650	6*
			150:1	68	56	780	6*
* Output power for these units is constrained by gearbox load limits; spec provided is output power at max recommended load of 10 kg⋅cm.

Dimensions and configurations of Pololu 37D metal gearmotors equivalent dc gear motor for reference:

Pololu 37D metal gearmotors equivalent small spur geared brush dc electric motor datasheet

Download Pololu 37D metal gearmotors equivalent DC gearmotor datasheet for clear view:

Pololu 37D metal gearmotors equivalent datasheet.pdf

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
