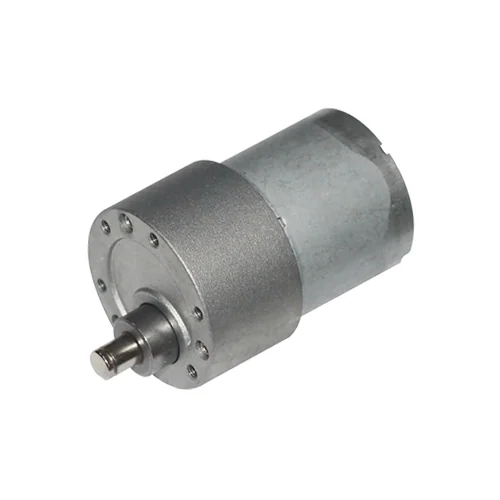

|- Model: 37GB-528 micro metal gearmotor;
|- Gearbox: 37 mm metal spur gear reducer with parallel shaft ;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 20Kgf-cm ;
|- Size : Φ37 * L TBD ;
|- Shaft : Φ6mm D-cut 0.5mm, custom;
|- Encoder : Magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs
|- Model: 37GB-528 micro metal gearmotor;
|- Gearbox: 37 mm metal spur gear reducer with parallel shaft ;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 20Kgf-cm ;
|- Size : Φ37 * L TBD ;
|- Shaft : Φ6mm D-cut 0.5mm, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

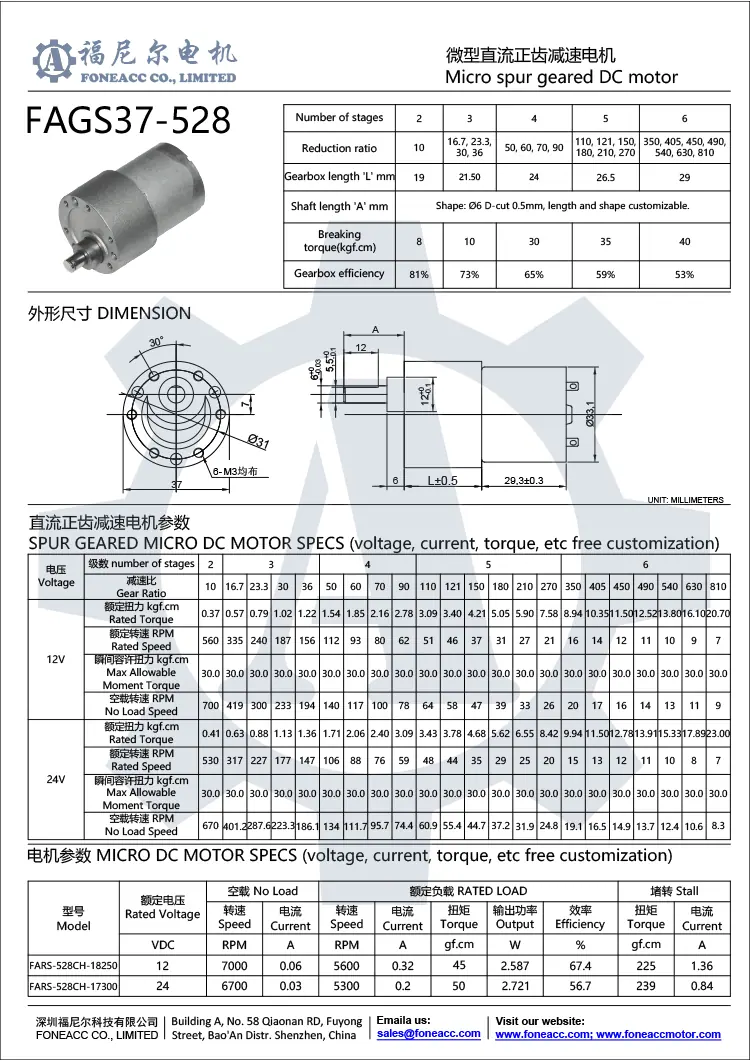

Spur Gear Box data:
| Gearbox Length (mm) | Stages | Reduction Ratio | Rated Torque | Breaking Torque | |||||
| kg.cm | |||||||||
| 21.5 | 2 (Enhanced) | 8.9/1 | 10.3/1 | 5 | 10 | ||||
| 21.5 | 3 | 18/1 | 26/1 | 31/1 | 5 | 10 | |||
| 24 | 4 | 40/1 | 46/1 | 55/1 | 68/1 | 79/1 | 93/1 | 7 | 13 |
| 26.5 | 5 | 102/1 | 120/1 | 165/1 | 202/1 | 238/1 | 278/1 | 10 | 20 |
| 29 | 6 | 306/1 | 359/1 | 420/1 | 495/1 | 516/1 | 606/1 | 12 | 20 |
| 31.5 | 7 | 666/1 | 782/1 | 918/1 | 15 | 25 | |||
| 31.5 | 5(Enhanced) | 120/1 | 30 | 50 | |||||
37GB-528 Spur Geared Motor data(for reference only, specs can be customized accordingly):
| MODEL |
Gear |
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||
|
Range |
Rated | Speed | Current | Speed | Current | Torque | P.out | Torque | Current | ||
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A | |||
| 37GB-528-8.9K12730 | 8.9/1 | 5.0~13.0 | 12 | 730 | 0.09 | 639 | 0.64 | 0.5 | 3.08 | 3.8 | 4.5 |
| 37GB-528-31K12209 | 31/1 | 5.0~13.0 | 12 | 209 | 0.09 | 183 | 0.65 | 1.5 | 2.82 | 11.8 | 4.5 |
| 37GB-528-93K1270 | 93/1 | 5.0~13.0 | 12 | 70 | 0.1 | 60 | 0.7 | 4.5 | 2.77 | 32.5 | 4.5 |
| 37GB-528-165K1240 | 165/1 | 8.0~15.0 | 12 | 40 | 0.1 | 35 | 0.67 | 6.6 | 2.37 | 51.6 | 4.5 |
| 37GB-528-495K1213 | 495/1 | 8.0~15.0 | 12 | 13 | 0.11 | 11.3 | 0.7 | 18 | 2.09 | 139 | 4.5 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
