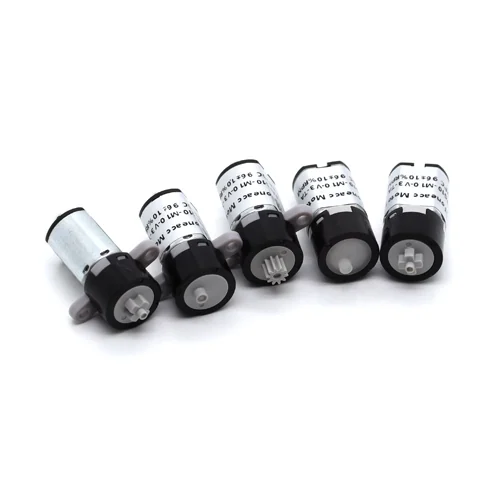

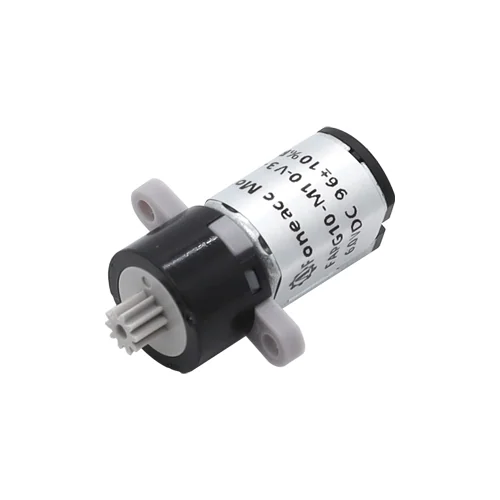

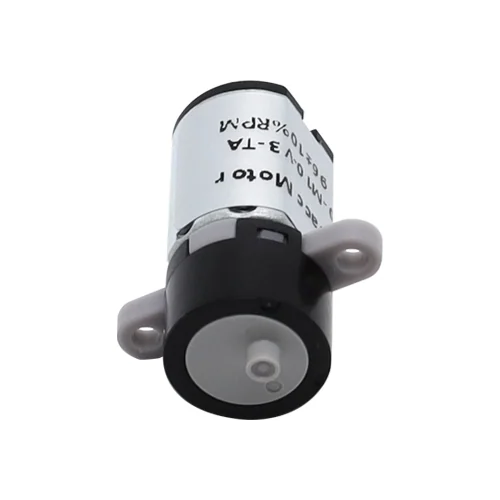

M10 micromotor plastic epicyclic geared dc motor with eccentric shaft for small electric smart padlock applications

|- Model: M10 micromotor FAPG10-M10;
|- Gearbox: Plastic planetary gear reducer with ratio 1:171;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V;
|- Rated Torque: Max. 200gf-cm ;
|- Size : Ø10mm* L 24mm ;
|- Shaft : eccentric shaft,concentric,Parallel driveshaft, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet iron cored motor;
|- Encoder: Magnetic encoder;
|- MOQ: 1000 pcs;

|- Model: m10 micromotor FAPG10-M10;

|- Gearbox: Plastic planetary gear reducer with ratio 1:171;

|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V;

|- Rated Torque: Max. 200gf-cm ;

|- Size : Ø10mm* L 24mm ;

|- Shaft : eccentric shaft,concentric,Parallel driveshaft, custom;

|- Commutation: Carbon brush/Graphite brush;

|- Construction: Permanent Magnet iron cored motor;

|- Encoder:  magnetic encoder

|- MOQ: 1000 pcs;


2 terminals connector, cylinderical gear motor.

Used for treatment apparatus, automatic window curtain, safe box, robot, optic equipment, electronic game machine, coin refund devices, etc.


FAPG10-M10 10mm plastic planetary gear motors specs:

GEARED micro dc motor SPECS

型 号

MODEL

电压 VOLTAGE 空载 NO LOAD 负载 ON LOAD 堵转 STALL
使 用 范 围 额定值 转速 电流 转速 电流 扭矩 扭矩 电流
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
V V r/min A r/min A g.cm g.cm A
FAPG10-M10-V1 1.0~3.0 1.5 33 0.055 20rpm 0.082 35 120 0.16
FAPG10-M10-V2 1.0~3.0 3 120 0.04 89rpm 0.112 30 180 0.35
FAPG10-M10-V3 1.0~9.0 6 96 0.036 68rpm 0.118 40 220 0.38
FAPG10-M10-V4 1.0~2.5 1.5 40 0.05 25rpm 0.087 122 332 0.15
FAPG10-M10-V5 1.5~3.5 2.5 122 0.078 90rpm 0.227 254 978 0.65



-------

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.

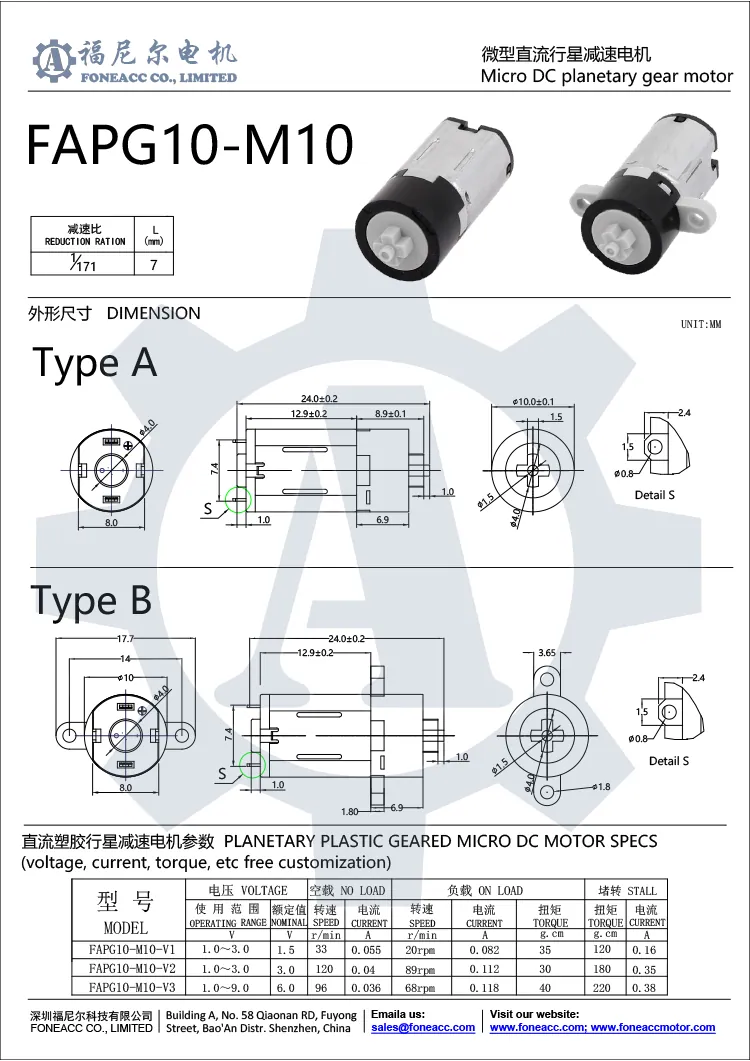

To see HD viewing of the PDF file here.
