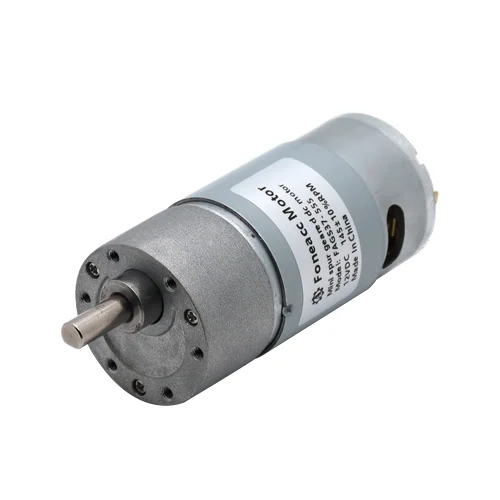

|- Model: 37GB-555 micro metal gearmotor;
|- Gearbox: 37 mm metal spur gear reducer with parallel shaft ;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 35Kgf-cm ;
|- Size : Φ37 * L TBD ;
|- Shaft : Φ6mm D-cut 0.5mm, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs
|- Model: 37GB-555 micro metal gearmotor;
|- Gearbox: 37 mm metal spur gear reducer with parallel shaft ;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 35Kgf-cm ;
|- Size : Φ37 * L TBD ;
|- Shaft : Φ6mm D-cut 0.5mm, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs
|

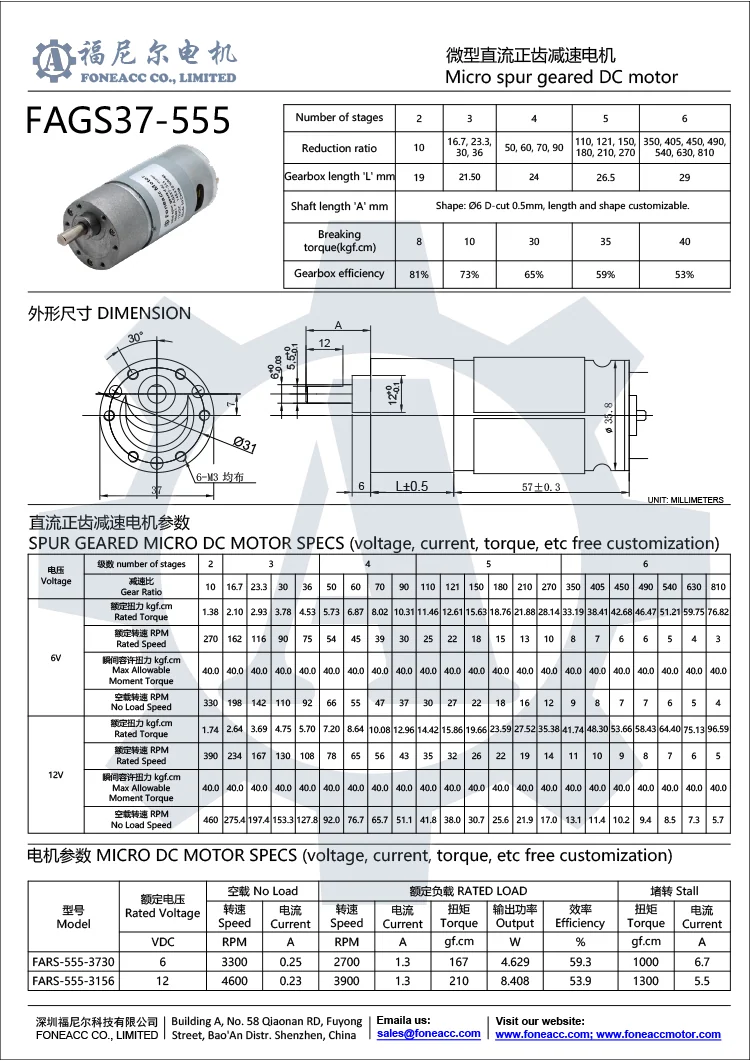

Voltage
|
Stages | 2 | 3 | 4 | 5 | 6 | |||||||||||
| Gear Ratio | 10 | 16.7 | 23.3 | 36 | 50 | 70 | 90 | 110 | 121 | 180 | 270 | 350 | 490 | 540 | 630 | 810 | |
| 6V |
(kgf.cm)
Rated
Torque
|
1.38 | 2.10 | 2.93 | 4.53 | 5.73 | 8.02 | 10.31 | 11.46 | 12.61 | 18.76 | 28.14 | 33.19 | 46.47 | 51.21 | 59.75 | 76.82 |
|
(RPM)
Rated
Speed
|
270 | 162 | 116 | 75 | 54 | 39 | 30 | 25 | 22 | 15 | 10 | 8 | 6 | 5 | 4 | 3 | |
|
(kgf.cm)
Breaking
Torque
|
40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | |
|
(RPM)
No Load
Speed
|
330 | 198 | 142 | 92 | 66 | 47 | 37 | 30 | 27 | 18 | 12 | 9 | 7 | 6 | 5 | 4 | |
| 12V |
(kgf.cm)
Rated
Torque
|
1.74 | 2.64 | 3.69 | 5.70 | 7.20 | 10.08 | 12.96 | 14.42 | 15.86 | 23.59 | 35.38 | 41.74 | 58.43 | 64.40 | 75.13 | 96.59 |
|
(RPM)
Rated
Speed
|
390 | 234 | 167 | 108 | 78 | 56 | 43 | 35 | 32 | 22 | 14 | 11 | 8 | 7 | 6 | 5 | |
|
(kgf.cm)
Breaking
Torque
|
40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | |
|
(RPM)
No Load
Speed
|
460.0 | 275.4 | 197.4 | 127.8 | 92.0 | 65.7 | 51.1 | 41.8 | 38.0 | 25.6 | 17.0 | 13.1 | 9.4 | 8.5 | 7.3 | 5.7 | |
| Model | Rated Voltage | No Load | RATED LOAD | Stall | ||||||
| Speed | Current | Speed | Current | Torque | Output | Efficiency | Torque | Current | ||
| VDC | RPM | A | RPM | A | gf.cm | W | % | gf.cm | A | |
| RS-555-3730 | 6 | 3300 | 0.25 | 2700 | 1.3 | 167 | 4.629 | 59.3 | 1000 | 6.7 |
| RS-555-3156 | 12 | 4600 | 0.23 | 3900 | 1.3 | 210 | 8.408 | 53.9 | 1300 | 5.5 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
