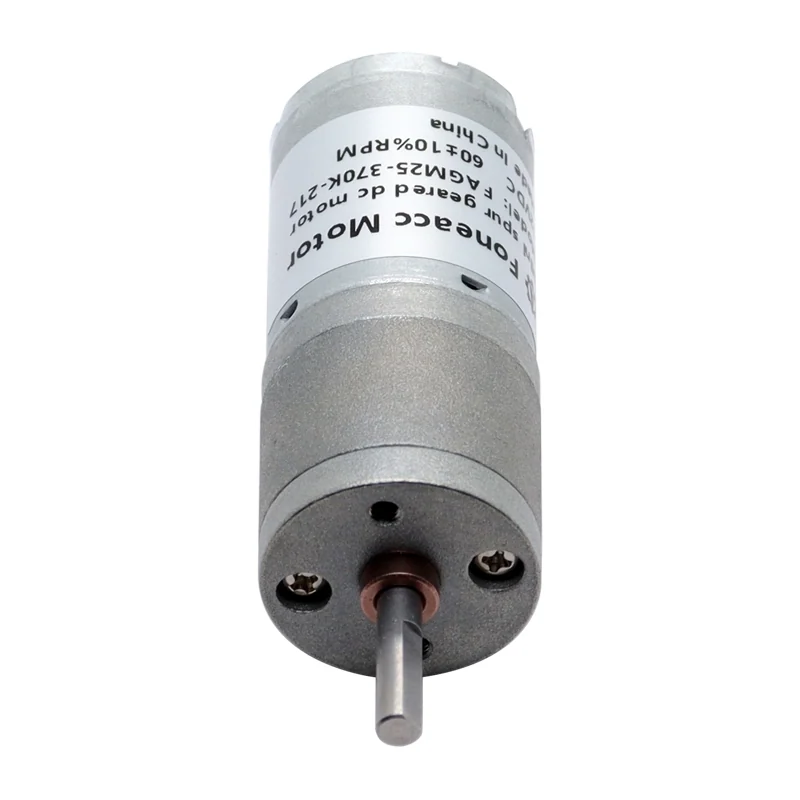

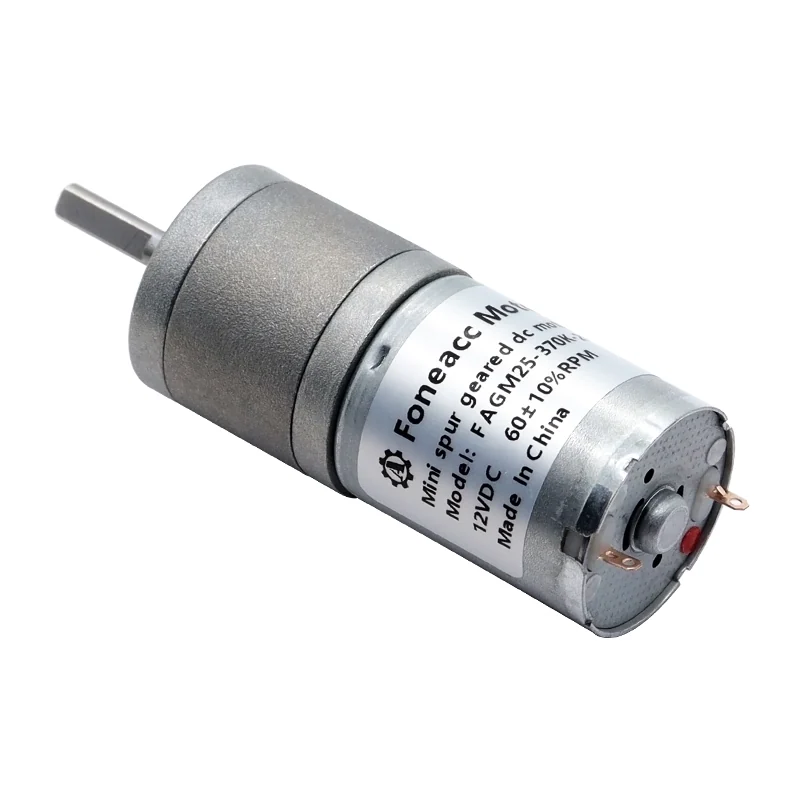

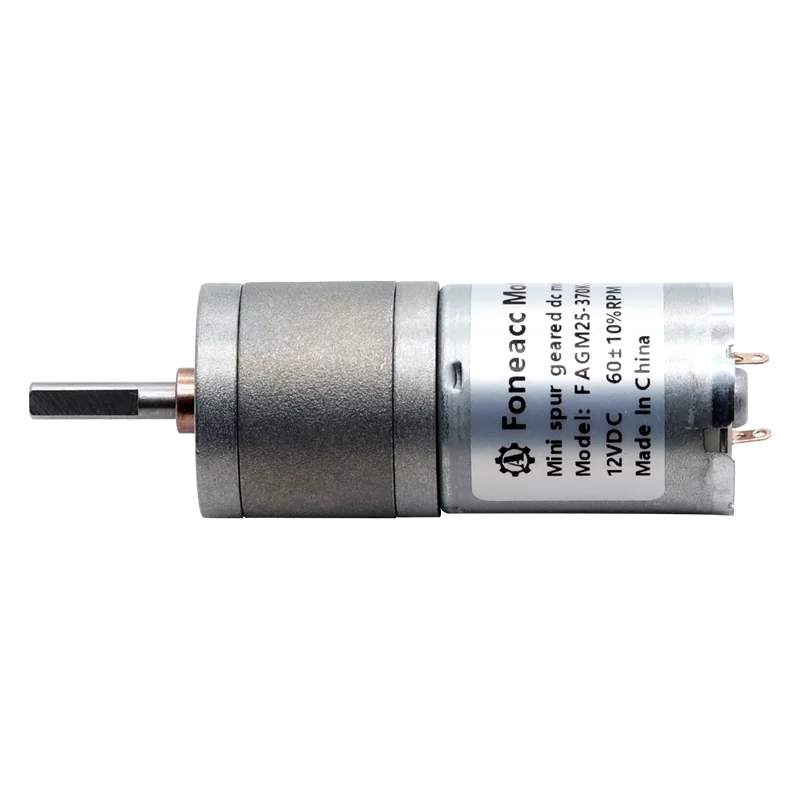

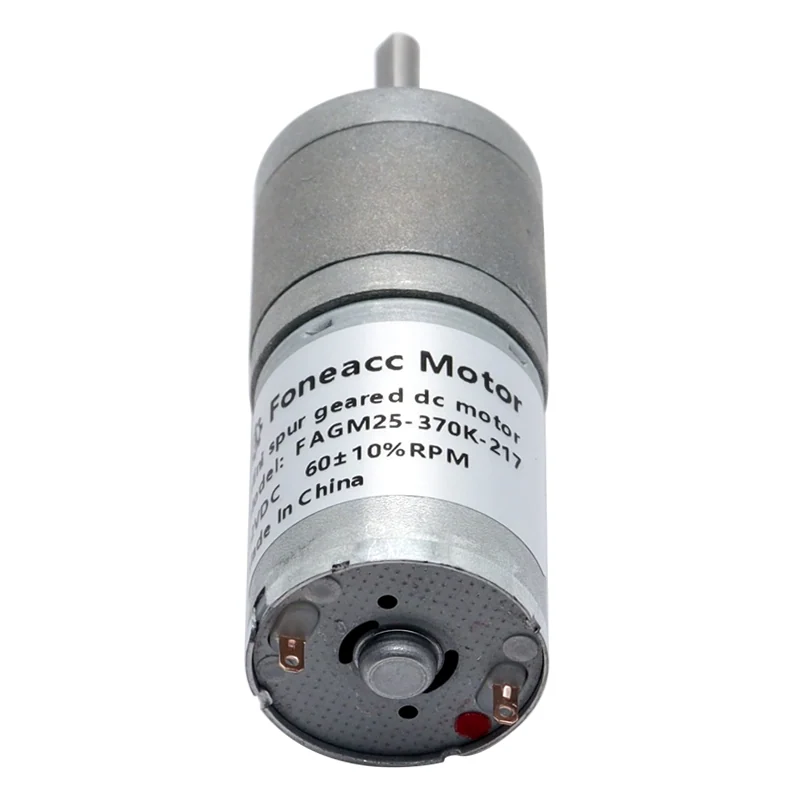

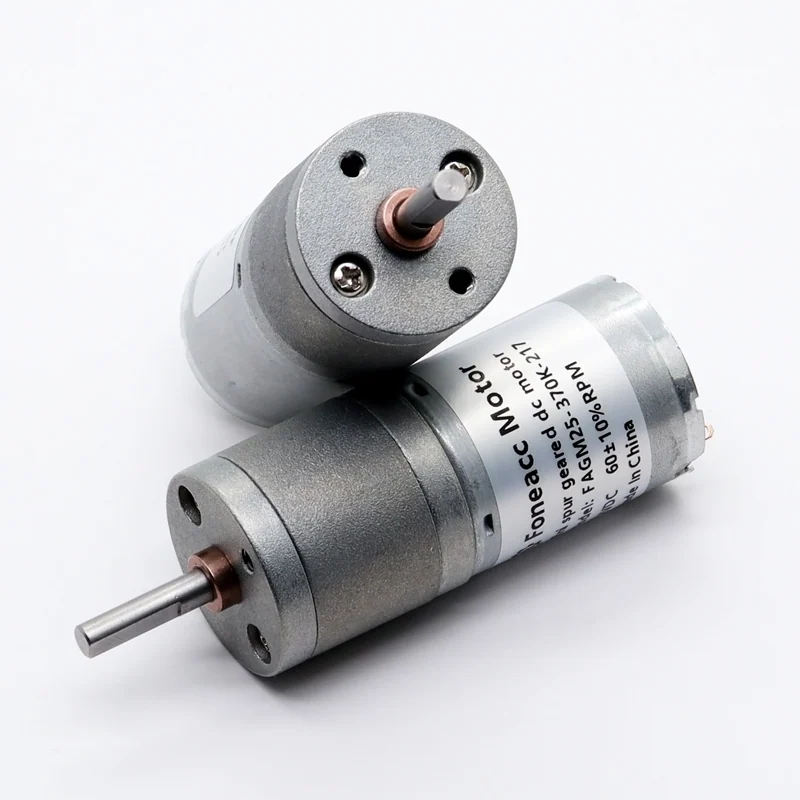

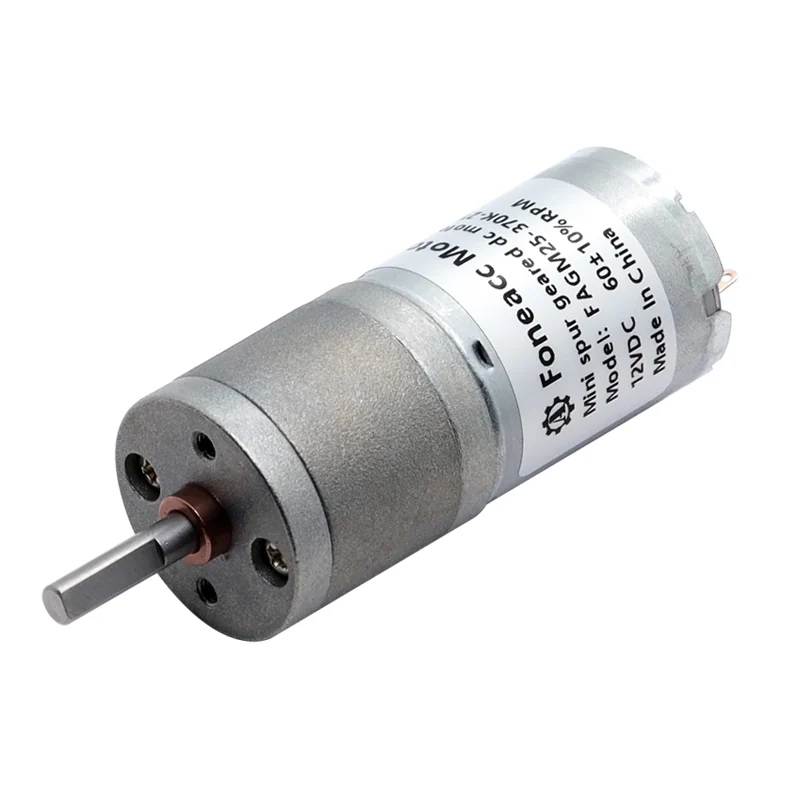

pololu 25D metal gearmotors equivalent 25mm DC spur gear motor

pololu 25D metal gearmotors equivalent 25mm DC spur gear motor

|- Model: pololu 25D metal gearmotors equivalent micro metal gearmotor;
|- Gearbox: 25 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 5Kgf-cm ;
|- Size : Φ25 * L TBD ;
|- Shaft : Φ4mm D-cut 0.5mm, custom;

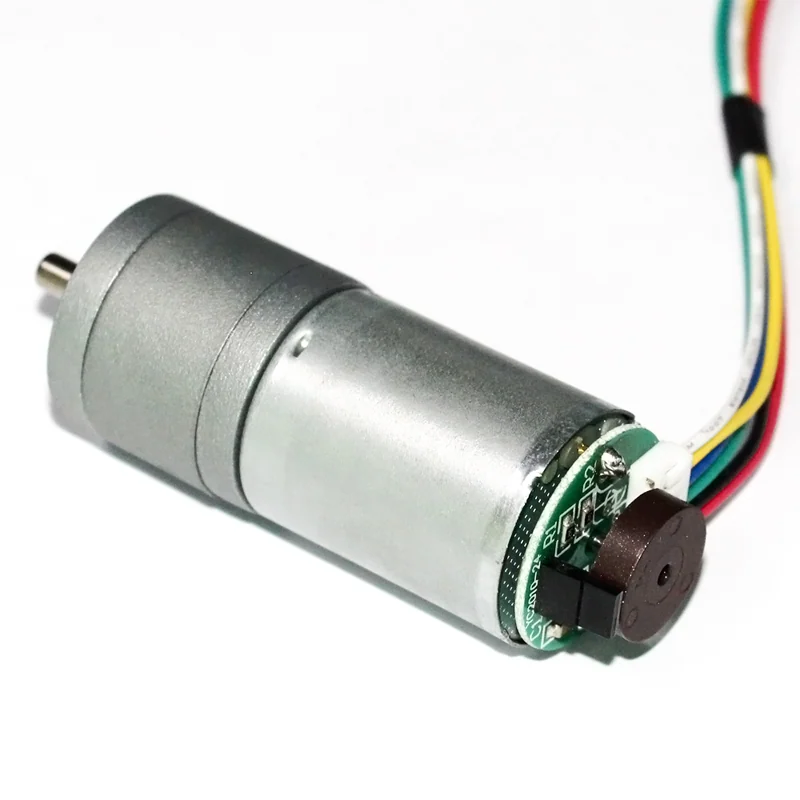

|- Encoder : Magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

Shop on Alibaba.com

pololu 25D metal gearmotors equivalent(GM25-370) 25mm DC spur gear motor

Main features:

|- Model: pololu 25D metal gearmotors equivalent micro metal gearmotor;
|- Gearbox: 25 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 5Kgf-cm ;
|- Size : Ø25 * L TBD ;
|- Shaft : Ø4mm D-cut 0.5mm, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

pololu 25D metal gearmotors equivalent dc geared motor data examples:

Rated Voltage	Motor Type	Stall Current	No-Load Current	Gear Ratio	No-Load Speed (RPM)	Extrapolated Stall Torque		Max Power (W)
Rated Voltage	Motor Type	Stall Current	No-Load Current	Gear Ratio	No-Load Speed (RPM)	(kg-cm)	(oz-in)	Max Power (W)
12 V	High-Power (HP)	5.0 A	250 mA w/o encoder 300 mA with encoder	1:1 (no gearbox)	10,000	0.4	5.5	10
				4.4:1	2200	1.7	24	9.4
				9.7:1	1000	3.9	54	10
				20.4:1	500	7.4	100	9.4
				34:1	300	11	150	8.9
				47:1	220	15	210	8.4
				75:1	130	22	310	–
				99:1	100	29	400	–
12 V	Medium-Power (MP)	1.8 A	80 mA w/o encoder 100 mA with encoder	1:1 (no gearbox)	8200	0.17	2.4	3.5
				4.4:1	1800	0.71	10	3.2
				9.7:1	800	1.7	24	3.4
				20.4:1	380	3.2	44	3.1
				34:1	230	4.7	65	2.8
				47:1	170	6.4	89	2.8
				75:1	100	8.5	120	2.3
				99:1	79	11	150	2.3
				172:1	46	18	250	2.1
				227:1	35	24	330	–
12 V	Low-Power (LP)	0.9 A	50 mA w/o encoder 60 mA with encoder	1:1 (no gearbox)	5600	0.14	1.9	1.8
				4.4:1	1200	0.53	7.4	1.7
				9.7:1	580	1.3	18	1.8
				20.4:1	280	2.4	33	1.7
				34:1	170	3.7	51	1.6
				47:1	120	4.8	67	1.4
				75:1	75	7.1	99	1.4
				99:1	57	8.7	120	1.2
				172:1	33	13	180	1.1
				227:1	25	16	220	1.0
				378:1	15	23	320	–
6 V	High-Power (HP)	6.0 A	420 mA w/o encoder 500 mA with encoder	1:1 (no gearbox)	10,000	0.3	4	7
				4.4:1	2200	1.2	17	6.7
				9.7:1	1000	2.3	32	5.9
				20.4:1	480	4.8	67	5.9
				34:1	290	6.8	94	5.1
				47:1	210	9.1	130	4.9
				75:1	130	14	190	4.5
				99:1	99	15	210	3.9
				172:1	57	27	380	–
6 V	Low-Power (LP)	2.0 A	100 mA w/o encoder 120 mA with encoder	1:1 (no gearbox)	6200	0.15	2.1	2.1
				4.4:1	1300	0.63	8.7	2.1
				9.7:1	630	1.3	18	1.9
				20.4:1	290	2.5	35	1.9
				34:1	180	3.9	54	1.7
				47:1	130	4.8	67	1.5
				75:1	80	7.5	100	1.5
				99:1	61	9.1	130	1.4
				172:1	35	14	190	1.2
				227:1	27	17	240	1.1
				378:1	16	25	350	–
				499:1	12	31	430	–

Dimensions and configurations of pololu 25D metal gearmotors equivalent dc gear motor for reference:

pololu 25D metal gearmotors equivalent small spur geared brush dc electric motor datasheet

Download pololu 25D metal gearmotors equivalent DC gearmotor datasheet for clear view:

pololu 25D metal gearmotors equivalent datasheet.pdf

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
