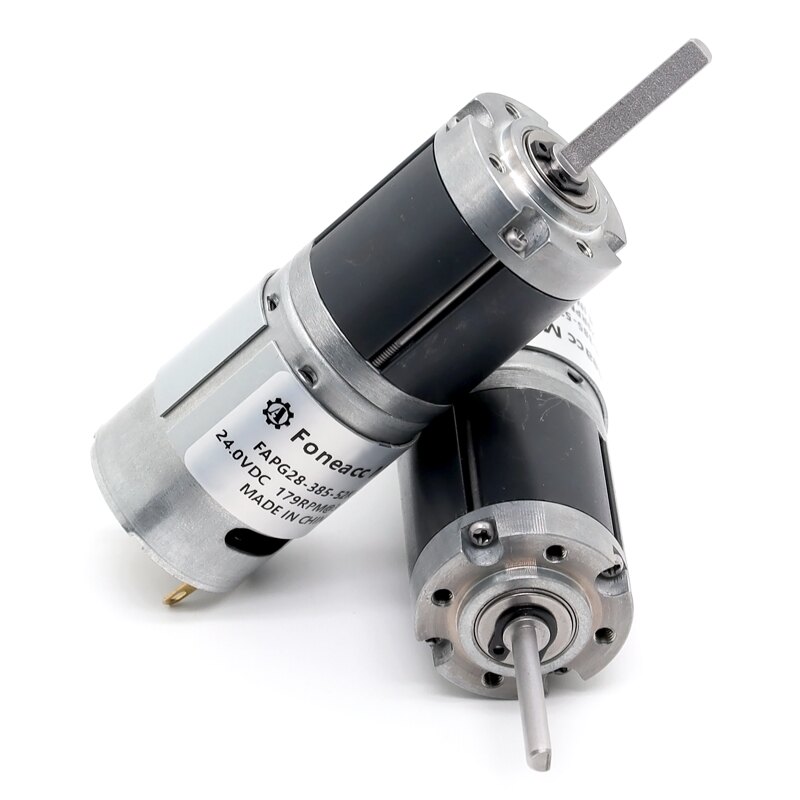

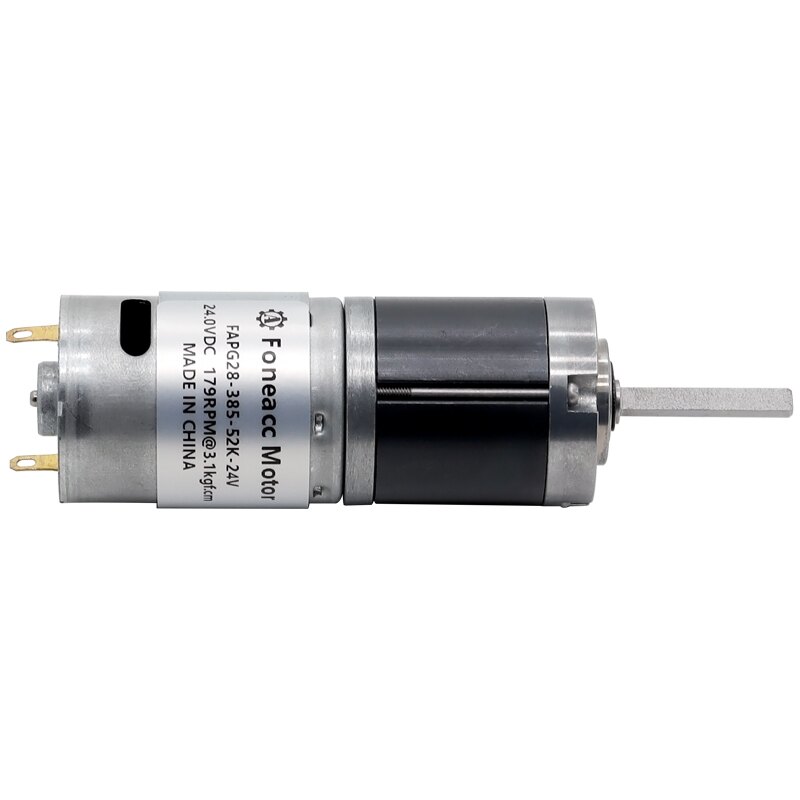

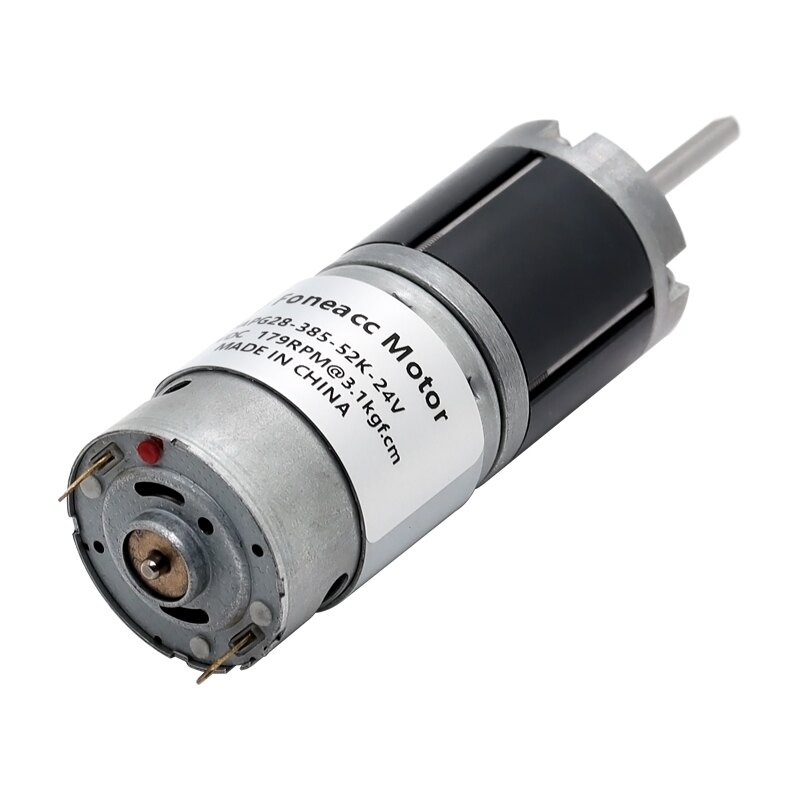

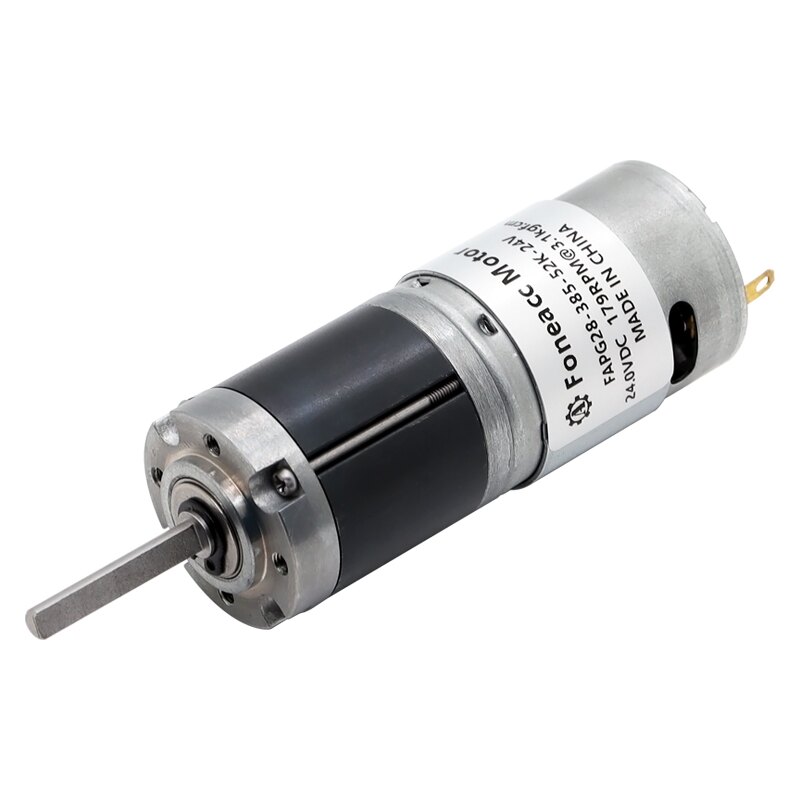

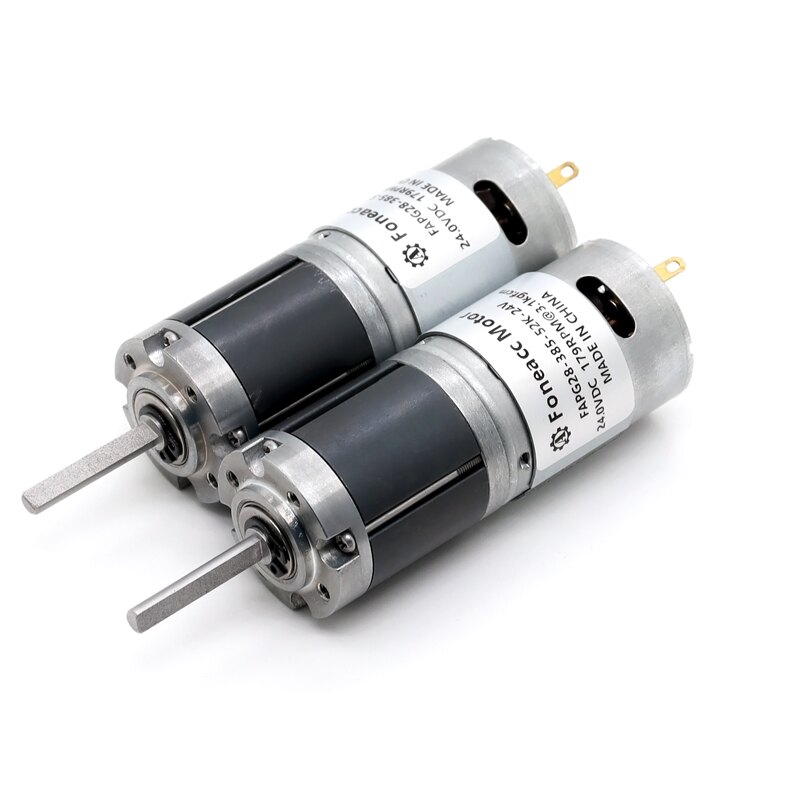

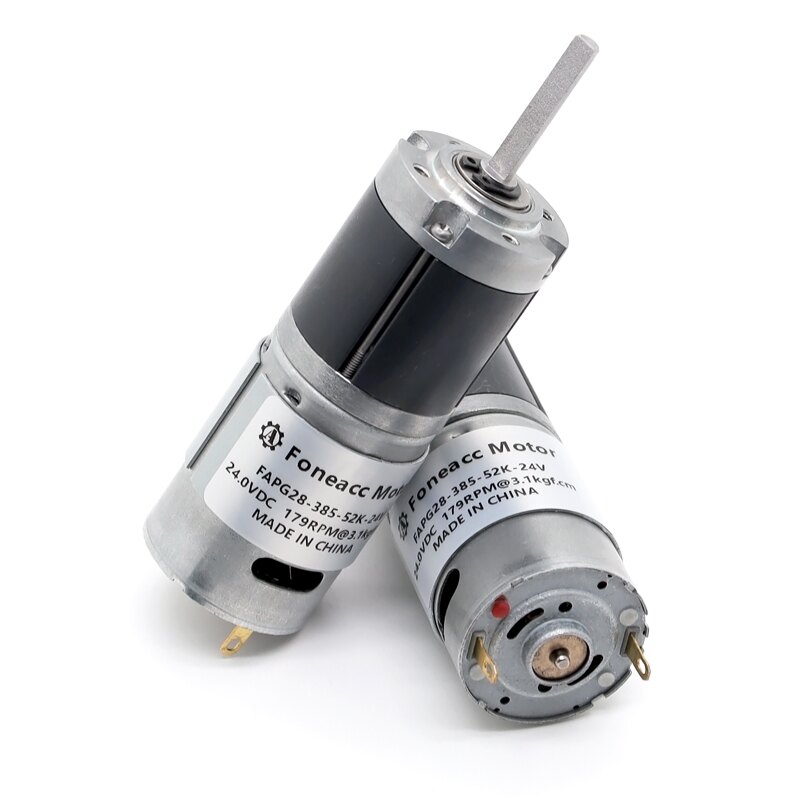

|- Model: PG28-385, 28GP385, FAPG28-385, RS-385 dc gear motor;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 3V, 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 25 Kgf-cm ;
|- Size : Φ28* L TBD ;
|- Shaft : concentric driveshaft, Φ6mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic encoder;
|- MOQ: 500 pcs;
|- Model: PG28-385, RS-385 dc gear motor;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 3V, 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 25 Kgf-cm ;
|- Size : Φ28* L TBD ;
|- Shaft : concentric driveshaft, Φ6mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush;
|- Construction: Permanent Magnet;
|- Encoder: magnetic encoder;
|- MOQ: 500 pcs;

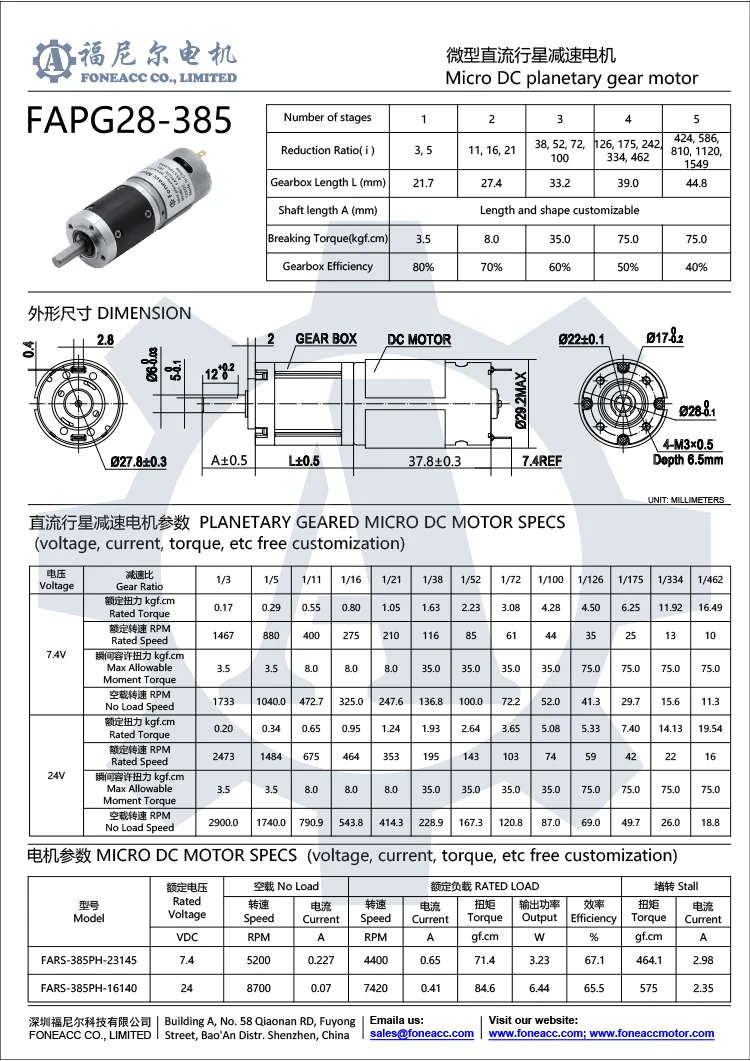

| Model | No Load | Rated Load | Breaking Torque | |
| Speed | Torque | Speed | ||
| R/min | kgf-cm | R/min | kgf-cm | |
| PG28-385-12V3K | 1733.3 | 0.2 | 1466.7 | 3.5 |
| PG28-385-12V5K | 1040.0 | 0.3 | 880.0 | 3.5 |
| PG28-385-12V11K | 472.7 | 0.5 | 400.0 | 8.0 |
| PG28-385-12V16K | 325.0 | 0.8 | 275.0 | 8.0 |
| PG28-385-12V21K | 247.6 | 1.0 | 209.5 | 8.0 |
| PG28-385-12V38K | 136.8 | 1.6 | 115.8 | 35.0 |
| PG28-385-12V52K | 100.0 | 2.2 | 84.6 | 35.0 |
| PG28-385-12V72K | 72.2 | 3.1 | 61.1 | 35.0 |
| PG28-385-12V100K | 52.0 | 4.3 | 44.0 | 35.0 |
| PG28-385-12V126K | 41.3 | 4.5 | 34.9 | 75.0 |
| PG28-385-12V175K | 29.7 | 6.2 | 25.1 | 75.0 |
| PG28-385-12V334K | 15.6 | 11.9 | 13.2 | 75.0 |
| PG28-385-12V462K | 11.3 | 16.5 | 9.5 | 75.0 |
| PG28-385-24V3K | 2900.0 | 0.2 | 2473.3 | 3.5 |
| PG28-385-24V5K | 1740.0 | 0.3 | 1484.0 | 3.5 |
| PG28-385-24V11K | 790.9 | 0.7 | 674.5 | 8.0 |
| PG28-385-24V16K | 543.8 | 0.9 | 463.8 | 8.0 |
| PG28-385-24V21K | 414.3 | 1.2 | 353.3 | 8.0 |
| PG28-385-24V38K | 228.9 | 1.9 | 195.3 | 35.0 |
| PG28-385-24V52K | 167.3 | 2.6 | 142.7 | 35.0 |
| PG28-385-24V72K | 120.8 | 3.7 | 103.1 | 35.0 |
| PG28-385-24V100K | 87.0 | 5.1 | 74.2 | 35.0 |
| PG28-385-24V126K | 69.0 | 5.3 | 58.9 | 75.0 |
| PG28-385-24V175K | 49.7 | 7.4 | 42.4 | 75.0 |
| PG28-385-24V334K | 26.0 | 14.1 | 22.2 | 75.0 |
| PG28-385-24V462K | 18.8 | 19.5 | 16.1 | 75.0 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
