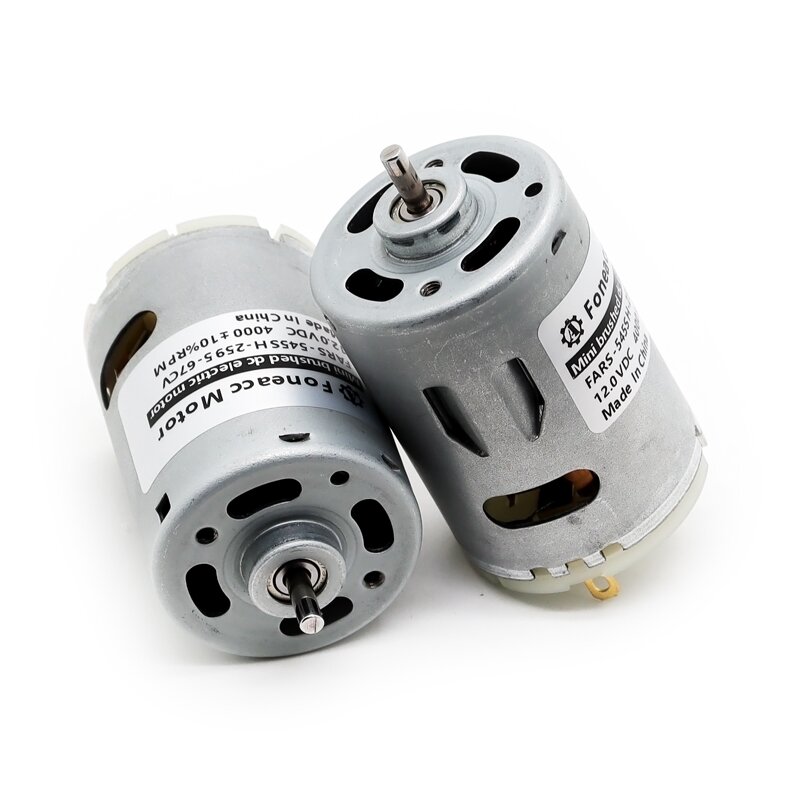

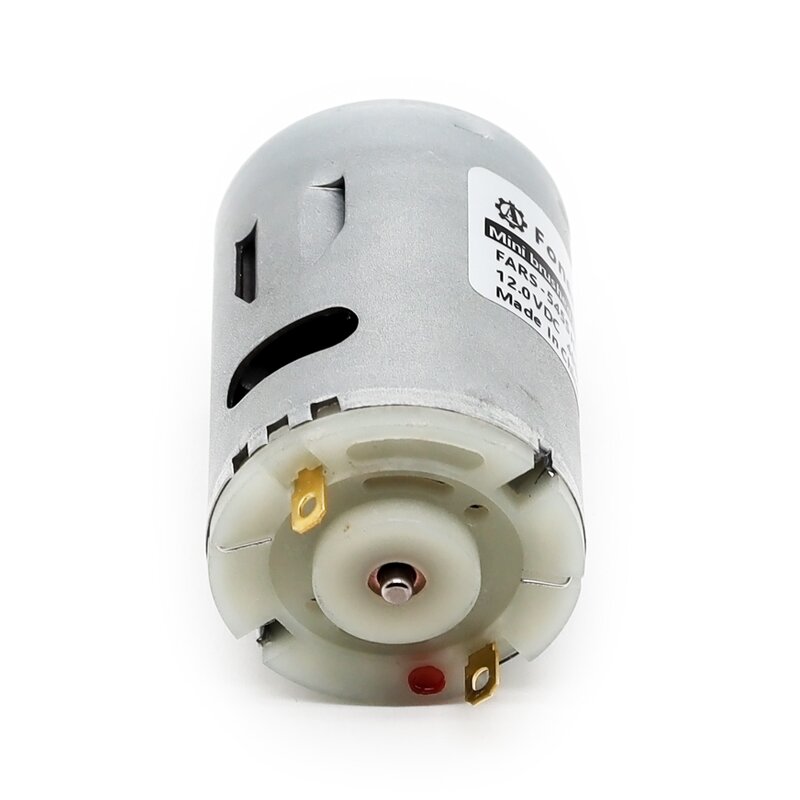

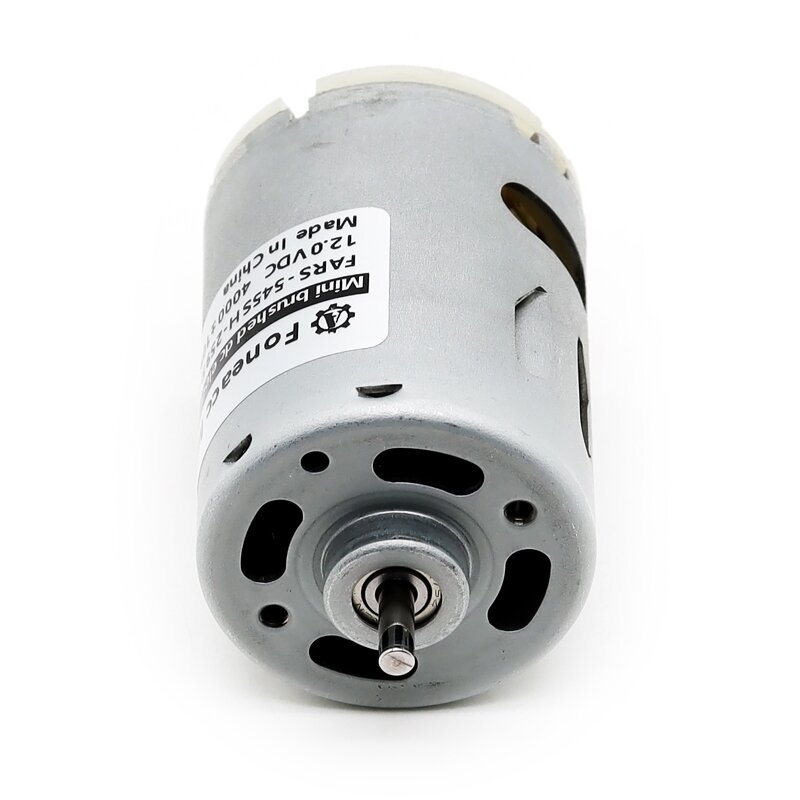

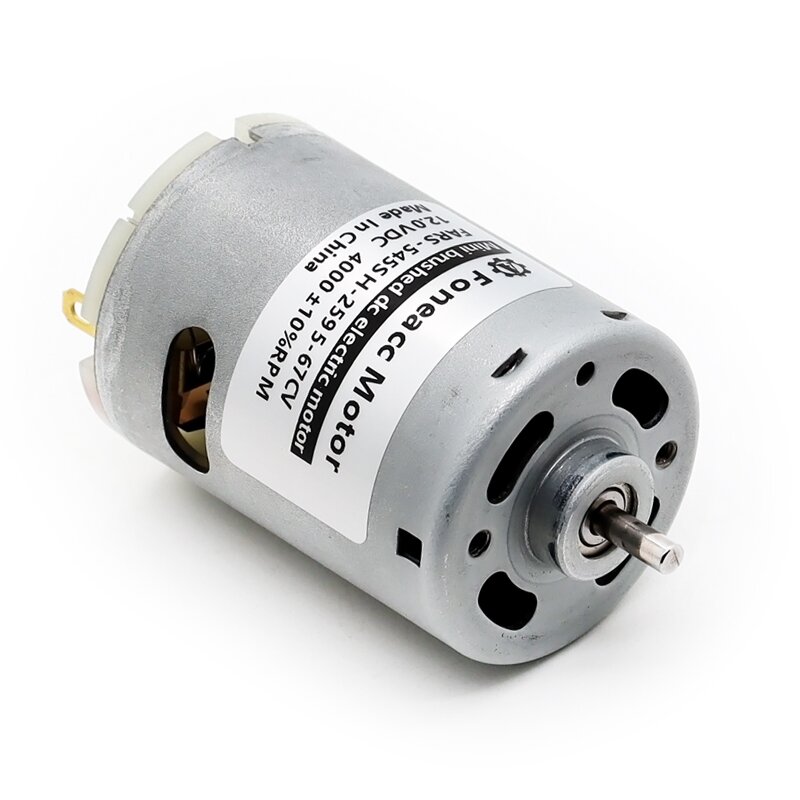

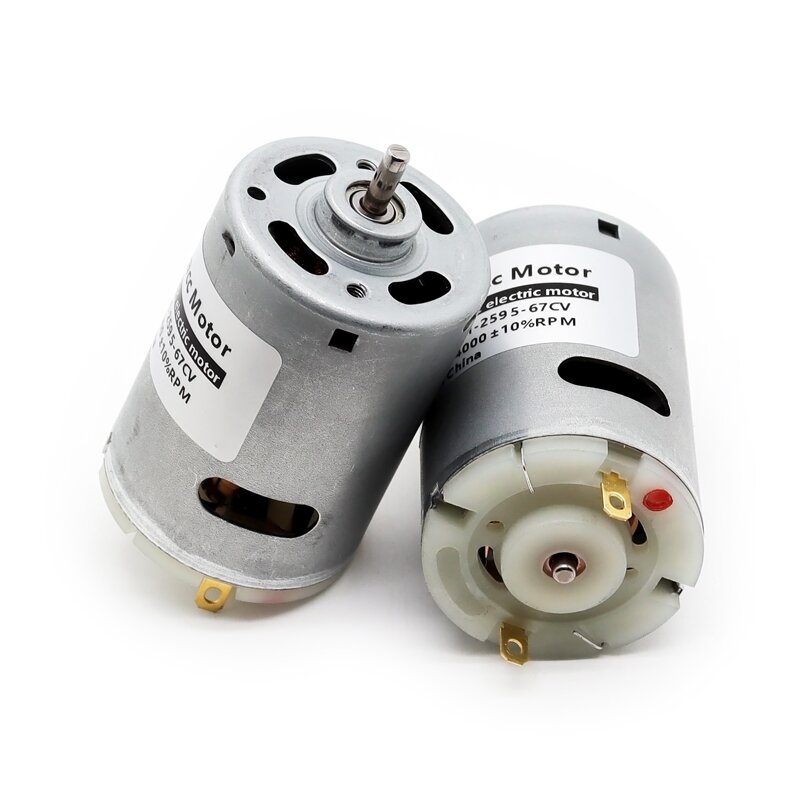

RS-545SA OD Φ 35.8/36 mm carbon brush DC motor with plastic end cap

|- Model Number: RS-545SA, OD Φ 35.8/36 mm carbon brush DC motor with plastic end cap
|- Shell Stator Size : Φ 35.8* L 50 mm(Φ 1.409 inch * 1.97 inch)
|- Shaft : Φ 3.175mm(0.125 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 50W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 0.5 Kgf·cm(0.49 N·m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)

RS-545SA OD Φ 35.8/36 mm carbon brush DC motor with plastic end cap


Main features:

|- Model Number: RS-545SA, OD Φ 35.8/36 mm carbon brush DC motor with plastic end cap
|- Shell Stator Size : Φ 35.8* L 50 mm(Φ 1.409 inch * 1.97 inch)
|- Shaft : Φ 3.175mm(0.125 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 50W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 0.5 Kgf-cm(0.49 N-m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)


RS-545SA dc motor data examples:

Model Voltage No load At Maximum Efficiency Stall
Range Rated Speed Current Speed Current Torque P.out EFF. Torque Current
V R/min A R/min A g-cm W % g-cm A
RS-545SA-2870 6-20 9 2,270 0.23 1,840 1 150 2.83 68.7 792 4.3
RS-545SA-2486 9-20 12 4,800 0.25 3,800 0.99 175 6.83 57.5 840 3.8
RS-545SA-2595 9-20 12 4000 0.06 3200 0.48 120 3.94 68.4 600 2.16

Dimensions and performance curves of RS-545SA dc motor for reference:

RS-545SA micro brush dc electric motor DATASHEET.webp


Download RS-545SA DC motor datasheet for clear view:

RS-545SA-datasheet.pdf

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
