PG42-BL4275 12V 18V 24V high torque low rpm outer diameter 42mm compact epicyclic planetary geared brushless bldc motor with integrated driver

PG42-BL4275 12V 18V 24V high torque low rpm outer diameter Φ 42mm compact epicyclic planetary geared brushless BLDC motor with integrated driver

---

Main features:

|- Model: PG42-BL4275; BL4275,BL4275I,B4275M bldc motor with gearbox.
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 500Kgf-cm ;
|- Size : Φ 42* L TBD ;
|- Shaft : concentric driveshaft, Φ8mm D-cut 1mm, custom;
|- Commutation: Brushless, PWM-driven;
|- Construction: Permanent Magnet;
|- Control: Built-in driver board with hall sensors;
|- MOQ: 500 pcs;

---

PG42-BL4275 mini bldc planetary geared motor data examples:

Model	No Load	Rated Load		Breaking Torque
	Speed	Torque	Speed
	r/min	kgf-cm	r/min	kgf-cm
PG42-BL4275-12V3.7K	2073.0	1.81	1575.4	100
PG42-BL4275-12V5.2K	1475.0	2.55	1121.0	100
PG42-BL4275-12V14K	547.9	6.00	416.4	300
PG42-BL4275-12V19K	403.7	8.14	306.8	300
PG42-BL4275-12V27K	284.1	11.57	215.9	300
PG42-BL4275-12V51K	150.4	18.73	114.3	600
PG42-BL4275-12V71K	108.0	26.07	82.1	600
PG42-BL4275-12V100K	76.7	36.72	58.3	600
PG42-BL4275-12V139K	55.2	42.53	41.9	600
PG42-BL4275-12V325K	23.6	99.45	17.9	600
PG42-BL4275-12V451K	17.0	138.01	12.9	600
PG42-BL4275-12V624K	12.3	190.94	9.3	600
PG42-BL4275-12V864K	8.9	264.38	6.7	600
PG42-BL4275-24V3.7K	1111.9	3.39	912.2	100
PG42-BL4275-24V5.2K	791.2	4.77	649.0	100
PG42-BL4275-24V14K	293.9	11.23	241.1	300
PG42-BL4275-24V19K	216.5	15.24	177.6	300
PG42-BL4275-24V27K	152.4	21.66	125.0	300
PG42-BL4275-24V51K	80.7	35.07	66.2	600
PG42-BL4275-24V71K	57.9	48.82	47.5	600
PG42-BL4275-24V100K	41.1	68.76	33.8	600
PG42-BL4275-24V139K	29.6	79.65	24.3	600
PG42-BL4275-24V325K	12.7	186.23	10.4	600
PG42-BL4275-24V451K	9.1	258.42	7.5	600
PG42-BL4275-24V624K	6.6	357.55	5.4	600
PG42-BL4275-24V864K	4.8	495.07	3.9	600

---

Dimensions and configurations of PG42-BL4275 mini bldc planetary gear motor for reference:

---

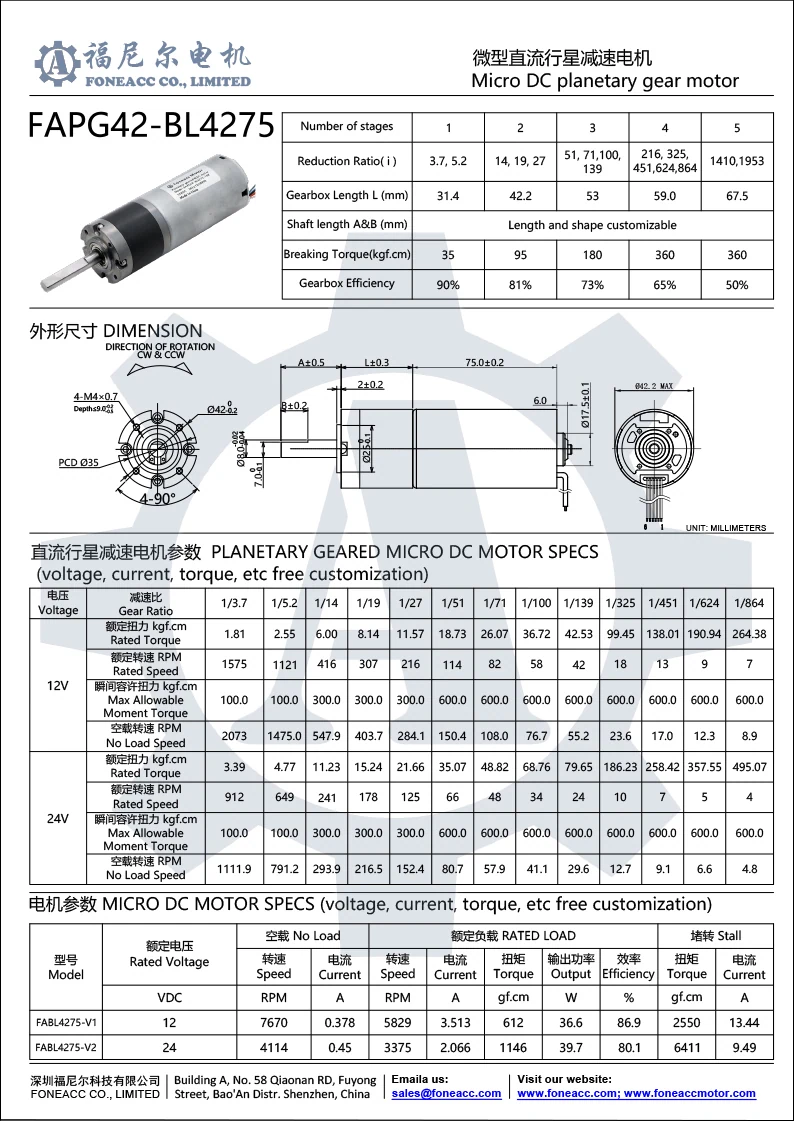

Download PG42-BL4275 mini dc gearmotor datasheet for clear view:

PG42-BL4275-datasheet.pdf

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
