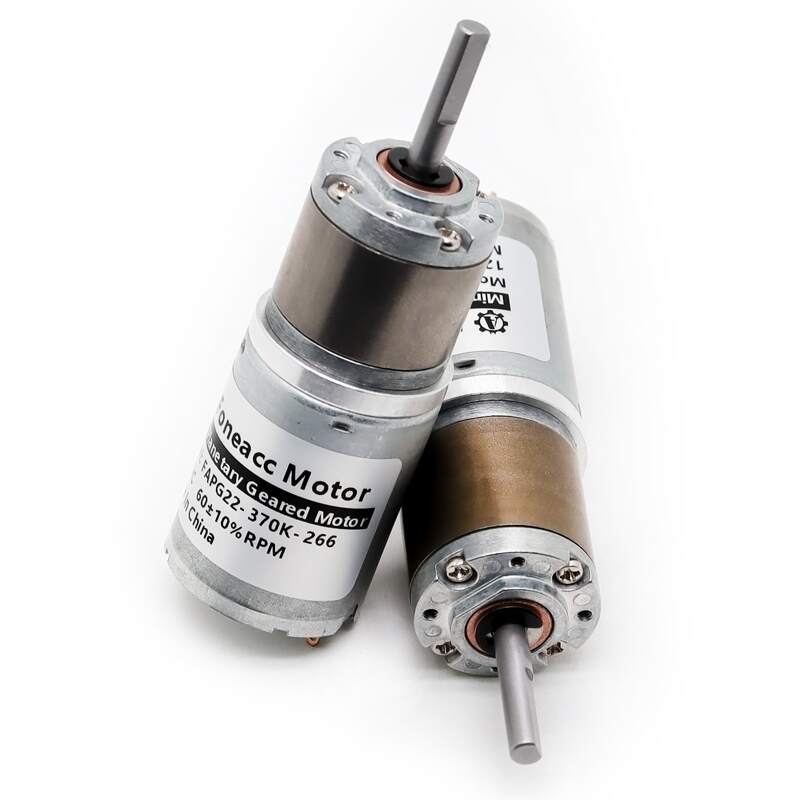

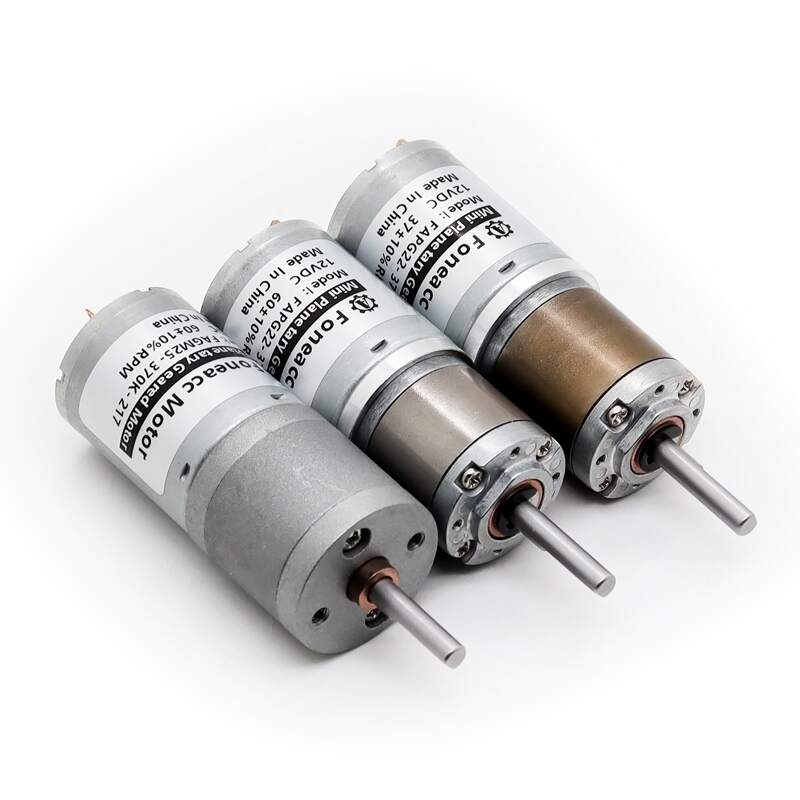

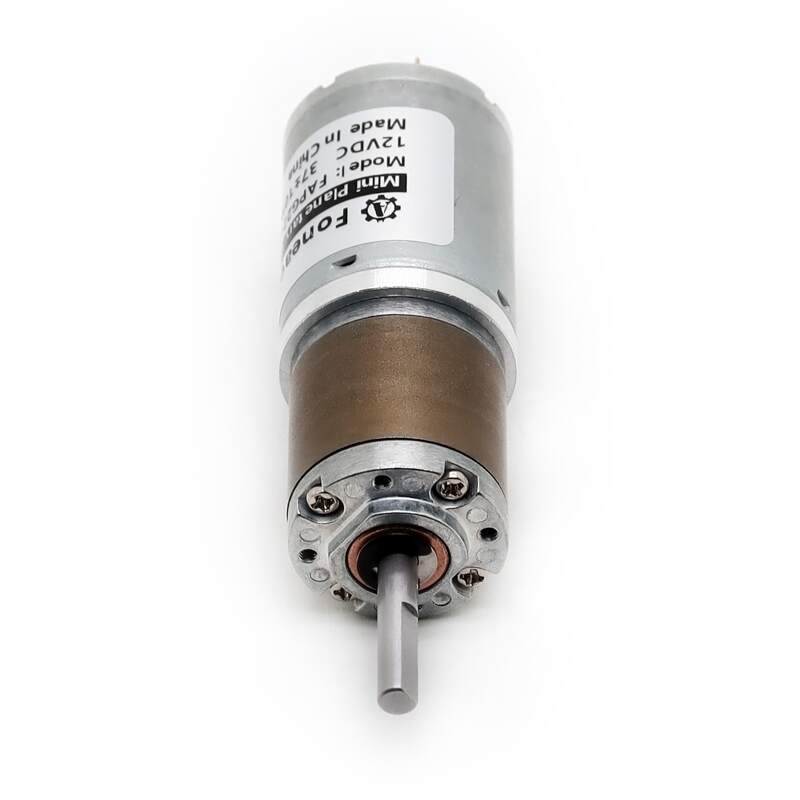

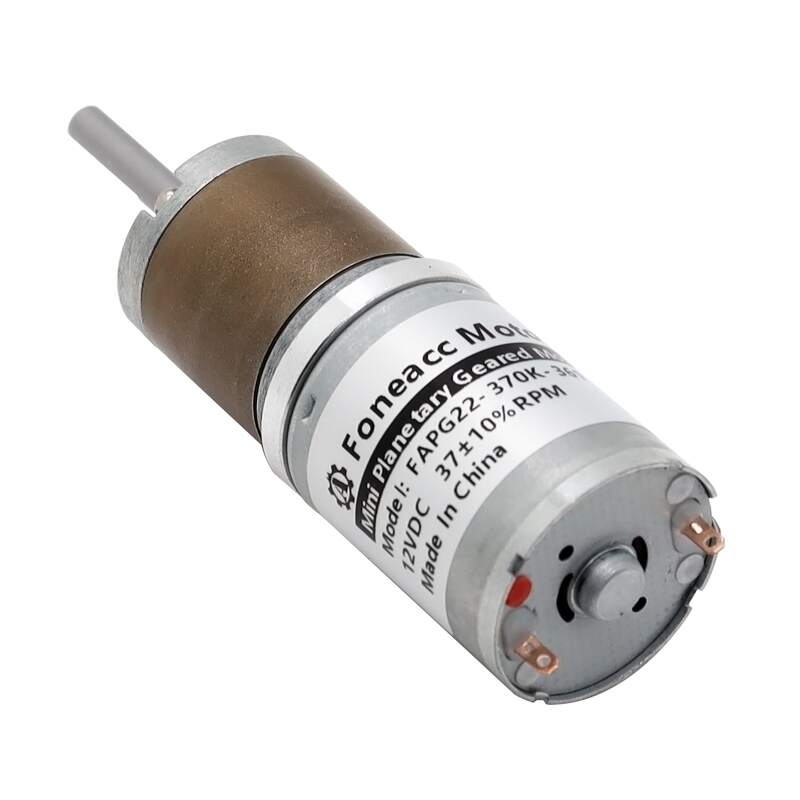

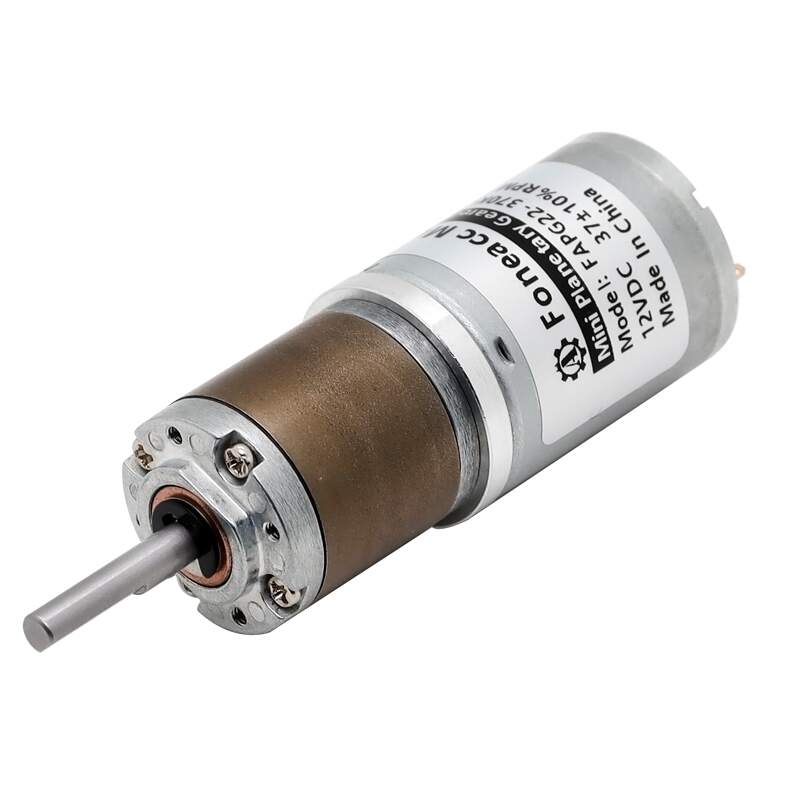

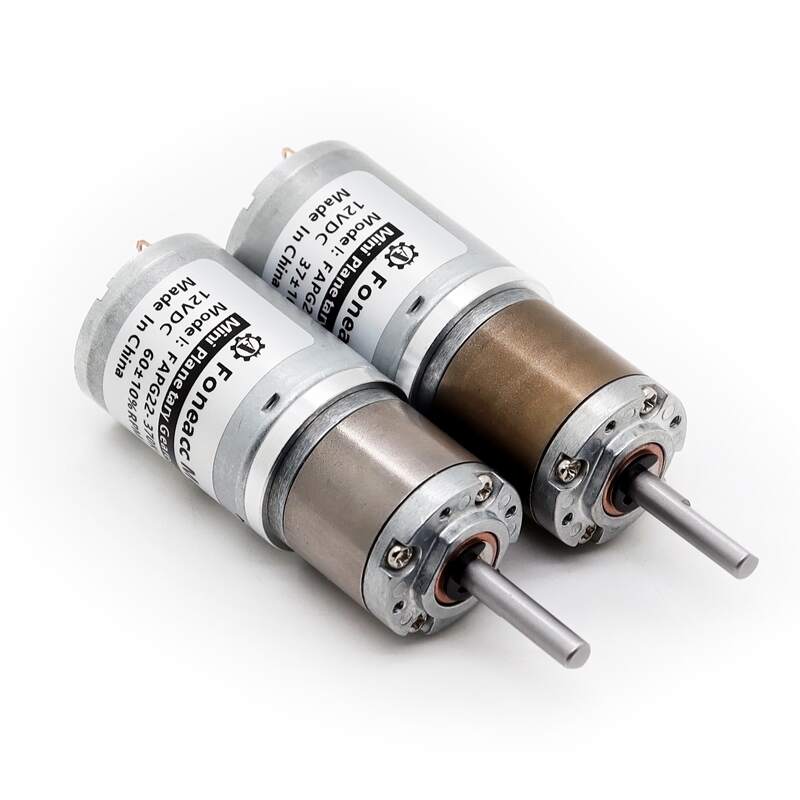

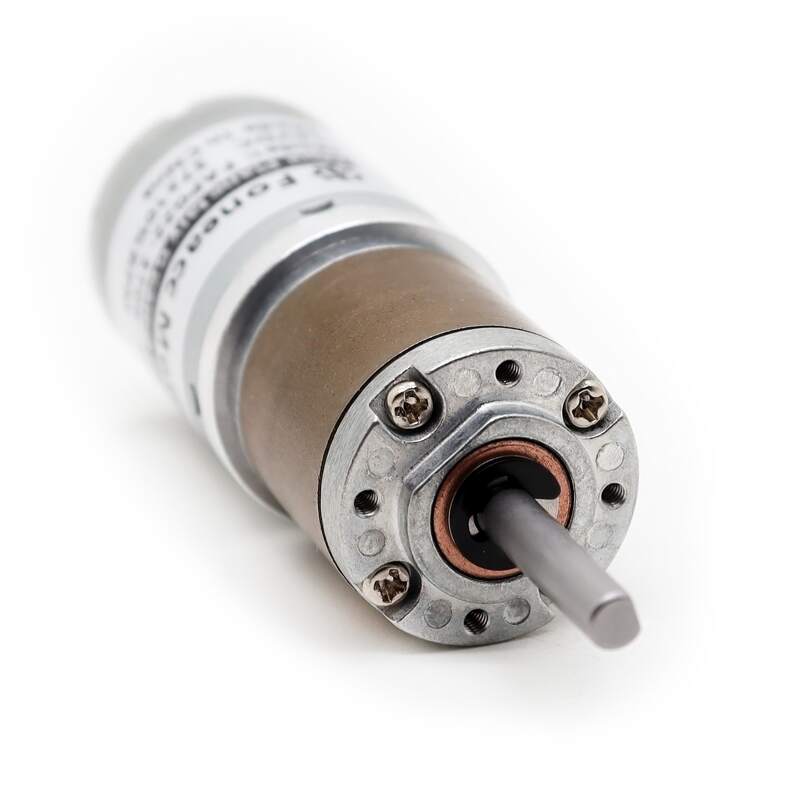

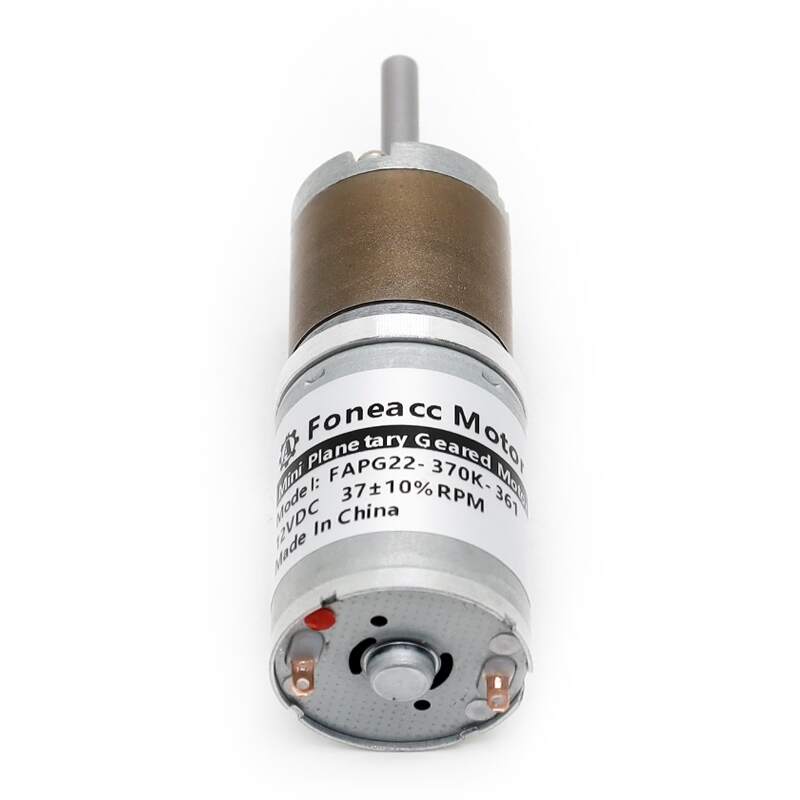

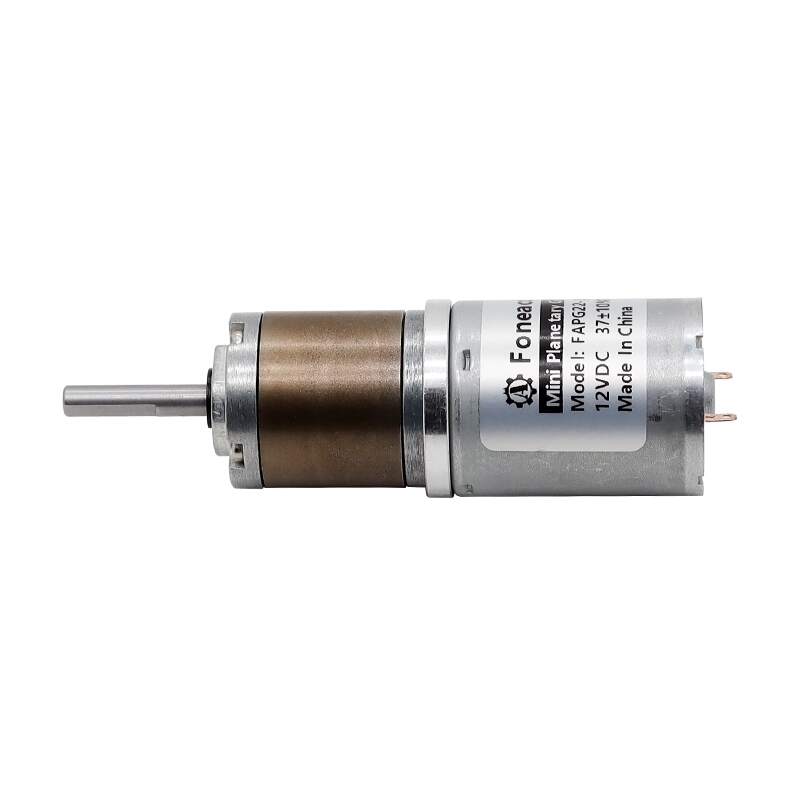

|- Model: PG22-370; 370 gear motor;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 10 Kgf-cm ;
|- Size : Φ22* L TBD ;
|- Shaft : concentric driveshaft, Φ4mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic encoder;
|- MOQ: 500 pcs;
|- Model: PG22-370; 370 motor with planetary gear reducer.

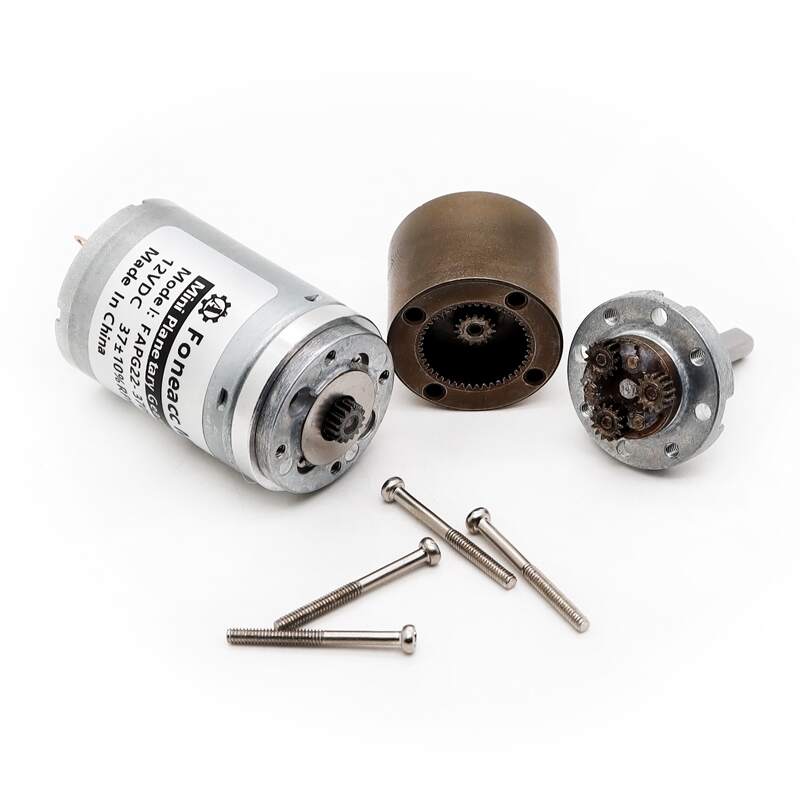

|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 10 Kgf-cm ;
|- Size : Φ22* L TBD ;
|- Shaft : concentric driveshaft, Φ4mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: magnetic encoder;
|- MOQ: 500 pcs;

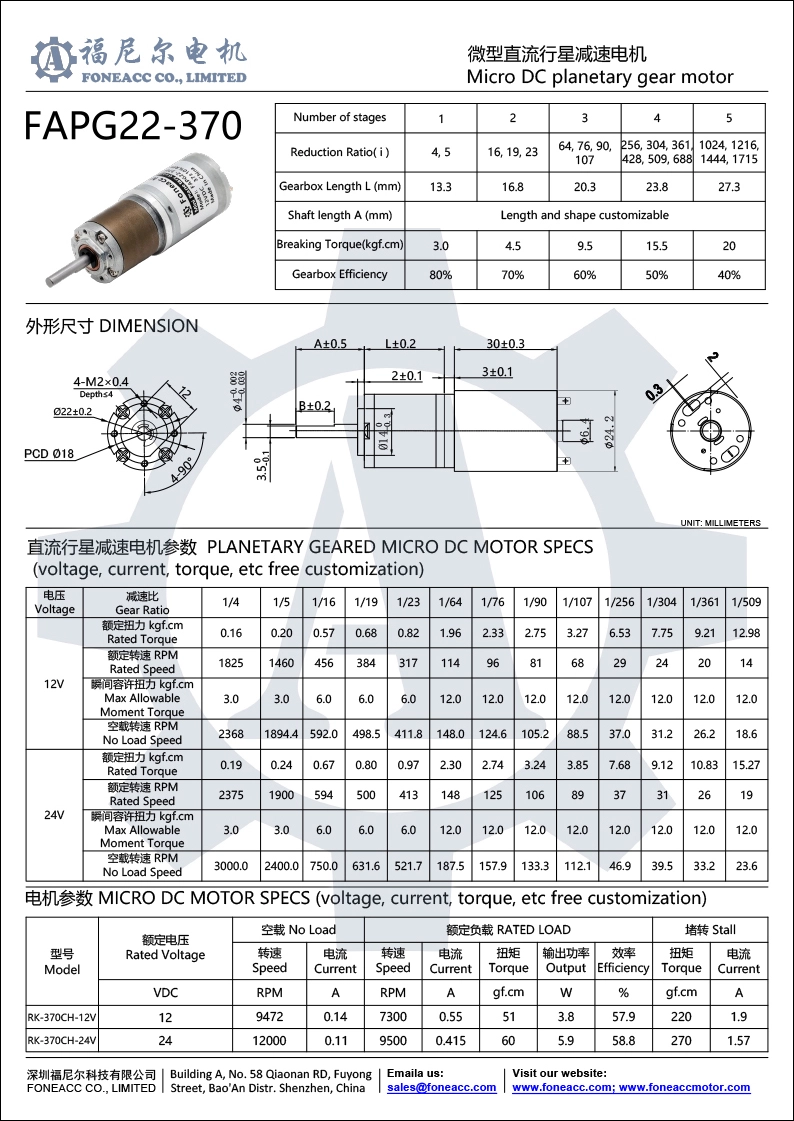

| Model | No Load | Rated Load | Breaking Torque |
|
| Speed | Torque | Speed | ||
| r/min | kgf-cm | r/min | kgf-cm | |
| PG22-370-12V4K | 2368.0 | 0.2 | 1825.0 | 3 |
| PG22-370-12V5K | 1894.4 | 0.2 | 1460.0 | 3 |
| PG22-370-12V16K | 592.0 | 0.6 | 456.3 | 6 |
| PG22-370-12V19K | 498.5 | 0.7 | 384.2 | 6 |
| PG22-370-12V23K | 411.8 | 0.8 | 317.4 | 6 |
| PG22-370-12V64K | 148.0 | 2.0 | 114.1 | 12 |
| PG22-370-12V76K | 124.6 | 2.3 | 96.1 | 12 |
| PG22-370-12V90K | 105.2 | 2.8 | 81.1 | 12 |
| PG22-370-12V107K | 88.5 | 3.3 | 68.2 | 12 |
| PG22-370-12V256K | 37.0 | 6.5 | 28.5 | 12 |
| PG22-370-12V304K | 31.2 | 7.8 | 24.0 | 12 |
| PG22-370-12V361K | 26.2 | 9.2 | 20.2 | 12 |
| PG22-370-12V509K | 18.6 | 13.0 | 14.3 | 12 |
| PG22-370-24V4K | 3000.0 | 0.2 | 2375.0 | 3 |
| PG22-370-24V5K | 2400.0 | 0.2 | 1900.0 | 3 |
| PG22-370-24V16K | 750.0 | 0.7 | 593.8 | 6 |
| PG22-370-24V19K | 631.6 | 0.8 | 500.0 | 6 |
| PG22-370-24V23K | 521.7 | 1.0 | 413.0 | 6 |
| PG22-370-24V64K | 187.5 | 2.3 | 148.4 | 12 |
| PG22-370-24V76K | 157.9 | 2.7 | 125.0 | 12 |
| PG22-370-24V90K | 133.3 | 3.2 | 105.6 | 12 |
| PG22-370-24V107K | 112.1 | 3.9 | 88.8 | 12 |
| PG22-370-24V256K | 46.9 | 7.7 | 37.1 | 12 |
| PG22-370-24V304K | 39.5 | 9.1 | 31.3 | 12 |
| PG22-370-24V361K | 33.2 | 10.8 | 26.3 | 12 |
| PG22-370-24V509K | 23.6 | 15.3 | 18.7 | 12 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
