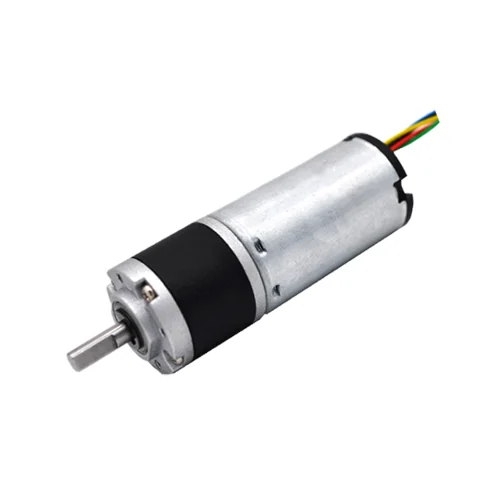

|- Model: PG22-BL2238;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 3V, 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 10Kgf-cm ;
|- Size : Φ22* L TBD ;
|- Shaft : concentric driveshaft, Φ4mm D-cut 0.5mm, custom;
|- Commutation: Brushless, PWM-driven;
|- Construction: Permanent Magnet;
|- Control: Built-in driver board with hall sensors;
|- MOQ: 500 pcs;
|- Model: PG22-BL2238;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 3V, 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 10Kgf-cm ;
|- Size : Φ22* L TBD ;
|- Shaft : concentric driveshaft, Φ4mm D-cut 0.5mm, custom;
|- Commutation: Brushless, PWM-driven;
|- Construction: Permanent Magnet;
|- Control: Built-in driver board with hall sensors;
|- MOQ: 500 pcs;

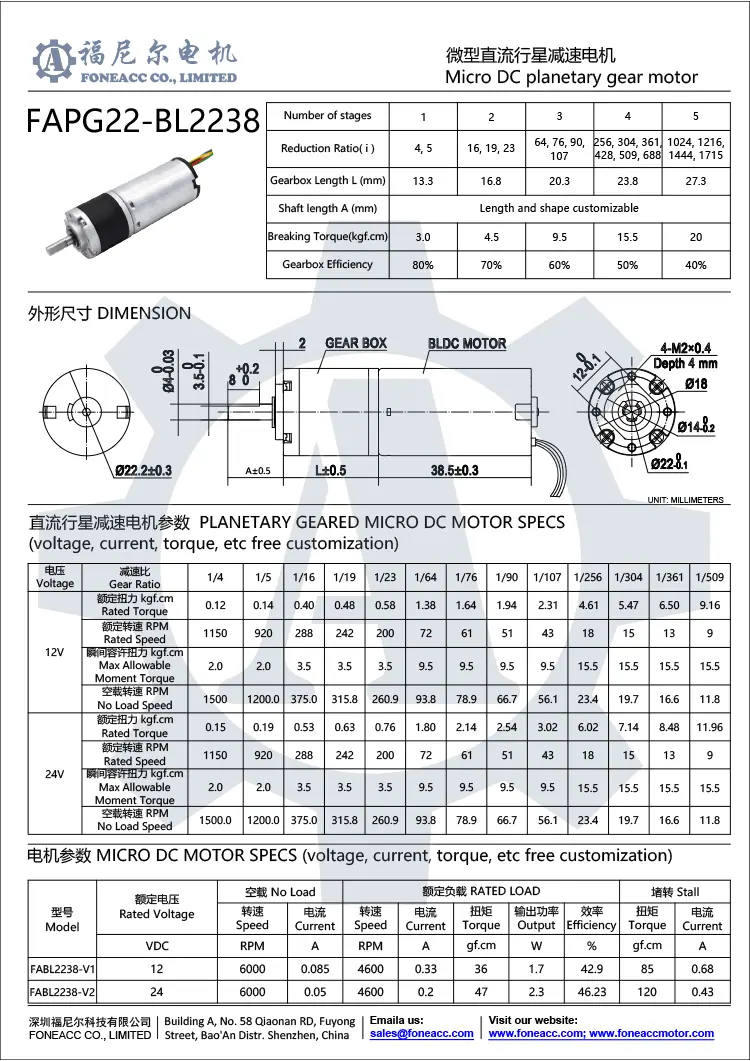

| Model | No Load | Rated Load |
Breaking
Torque
|
|
| Speed | Torque | Speed | ||
| r/min | kgf-cm | r/min | kgf-cm | |
| PG22-BL2238-12V4K | 1500 | 0.12 | 1150 | 2 |
| PG22-BL2238-12V5K | 1200 | 0.14 | 920 | 2 |
| PG22-BL2238-12V16K | 375 | 0.4 | 288 | 3.5 |
| PG22-BL2238-12V19K | 315.8 | 0.48 | 242 | 3.5 |
| PG22-BL2238-12V23K | 260.9 | 0.58 | 200 | 3.5 |
| PG22-BL2238-12V64K | 93.8 | 1.38 | 72 | 9.5 |
| PG22-BL2238-12V76K | 78.9 | 1.64 | 61 | 9.5 |
| PG22-BL2238-12V90K | 66.7 | 1.94 | 51 | 9.5 |
| PG22-BL2238-12V107K | 56.1 | 2.31 | 43 | 9.5 |
| PG22-BL2238-12V256K | 23.4 | 4.61 | 18 | 15.5 |
| PG22-BL2238-12V304K | 19.7 | 5.47 | 15 | 15.5 |
| PG22-BL2238-12V361K | 16.6 | 6.5 | 13 | 15.5 |
| PG22-BL2238-12V509K | 11.8 | 9.16 | 9 | 15.5 |
| PG22-BL2238-24V4K | 1500 | 0.15 | 1150 | 2 |
| PG22-BL2238-24V5K | 1200 | 0.19 | 920 | 2 |
| PG22-BL2238-24V16K | 375 | 0.53 | 288 | 3.5 |
| PG22-BL2238-24V19K | 315.8 | 0.63 | 242 | 3.5 |
| PG22-BL2238-24V23K | 260.9 | 0.76 | 200 | 3.5 |
| PG22-BL2238-24V64K | 93.8 | 1.8 | 72 | 9.5 |
| PG22-BL2238-24V76K | 78.9 | 2.14 | 61 | 9.5 |
| PG22-BL2238-24V90K | 66.7 | 2.54 | 51 | 9.5 |
| PG22-BL2238-24V107K | 56.1 | 3.02 | 43 | 9.5 |
| PG22-BL2238-24V256K | 23.4 | 6.02 | 18 | 15.5 |
| PG22-BL2238-24V304K | 19.7 | 7.14 | 15 | 15.5 |
| PG22-BL2238-24V361K | 16.6 | 8.48 | 13 | 15.5 |
| PG22-BL2238-24V509K | 11.8 | 11.96 | 9 | 15.5 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
